CE1-8LRG-B015 Overview

led lighting modules 18 lnr W/ 15d optc

CE1-8LRG-B015 Parametric

Parameter Name	Attribute value
Manufacture	Dialigh
Product Category	LED Lighting Modules
RoHS	Yes
Produc	LED Light Engines
Number of LEDs	18
Illumination Col	RGB
Wavelength/Color Temperature	627 nm, 530 nm, 455 nm
Width	22.5 mm
Length	590 mm
Packaging	Bulk
Forward Curre	350 mA
Forward Voltage	2.95 V, 3.42 V, 3.42 V
Heigh	15.5 mm
Luminous Flux/Radiant Flux	44 lm, 53 lm
Power Rating	6 W, 7.2 W, 7.2 W
Size	590 mm x 22.5 mm x 15.5 mm
Factory Pack Quantity	10

Preview

Download Datasheet

View All

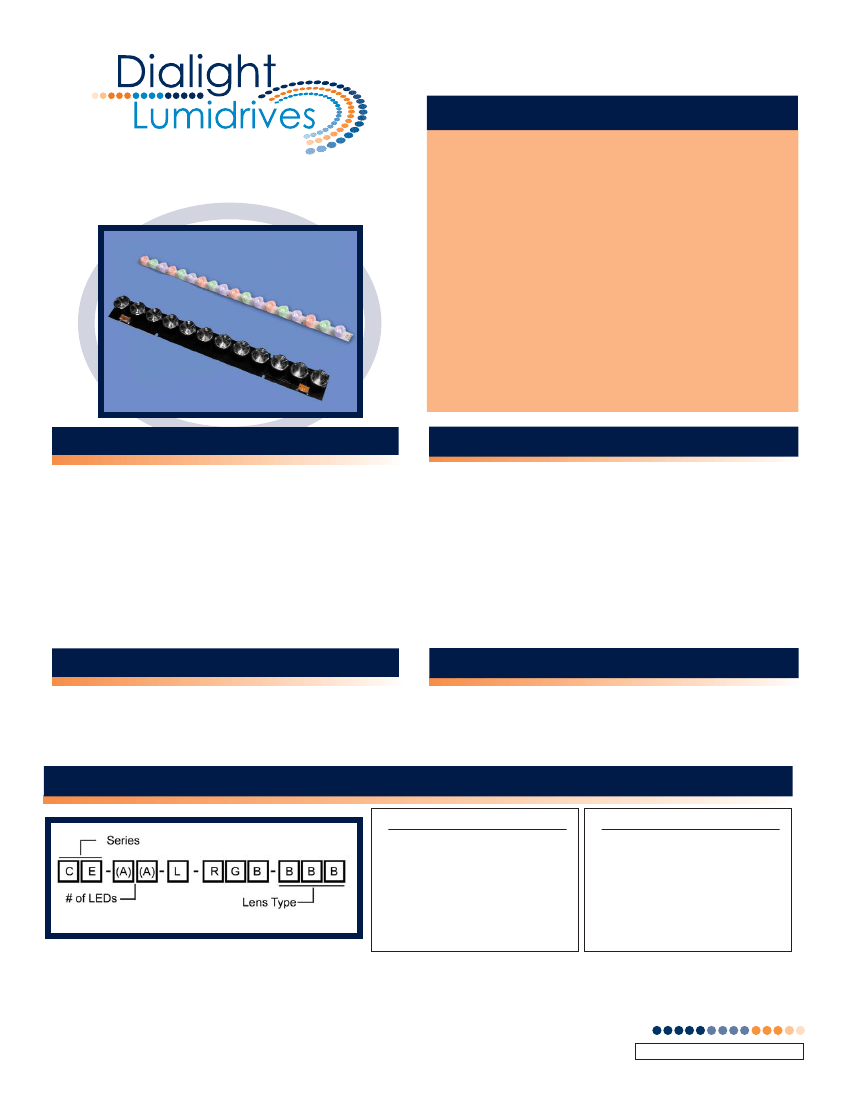

FEATURES / BENEFITS

COLOR ENGINE LINEAR

LED LIGHT ENGINES

Extremely long life of 50,000 hours at 55ºC PCB

temperature

Durable F-Form optics holder allow for easy changing

of 4 lens options (5, 15, 25 degree and 5X20 degree

oval)**

Red, Blue and Green LEDs allow for infinite number of

color combinations and dynamic color changing

(appropriate colordriver controller required)

Aluminum based PCB for easier heat dissipation

and more efficient operation

Modular “Plug & Play” system with CT4 quick connects

for easy wiring

Available Color Kinetics pass through license,

consult factory for details

OPERATING CONDITIONS

Recommended PCB temp=55ºC (131ºF)

Maximum PCB temp = 105ºC (221ºF)

LED Life @ 55ºC PCB temp = 50,000 hours

For maximum performance, all “Linear Color Engine”

LED Light Engines should be screwed or affixed using

thermal adhesive to an appropriate heat sink

Thermal conductivity = 1.3W/m-k

Breakdown voltage = 2kV

Recommended drivers = Color driver DMX, RF* or SL*

* = with mfg date of 4/08 or later

APPLICATIONS

Color washing

Decorative effects

Entertainment lighting

Retail

Landscape

Night clubs, restaurants, bars

Any application requiring color changing, efficiency,

and long life in a linear pattern.

MECHANICAL DIMENSIONS

Height (all models including lens) = 15.5mm (0.61”)

Color engine12L, Length = 290mm x 35mm (11.42” x 1.38”)

Color engine18L, Length = 590mm x 22.5mm (23.22” x 0.88”)

MATERIALS/FINISH

LUXEON

I LEDs

1.6mm Aluminum clad PCB substrate

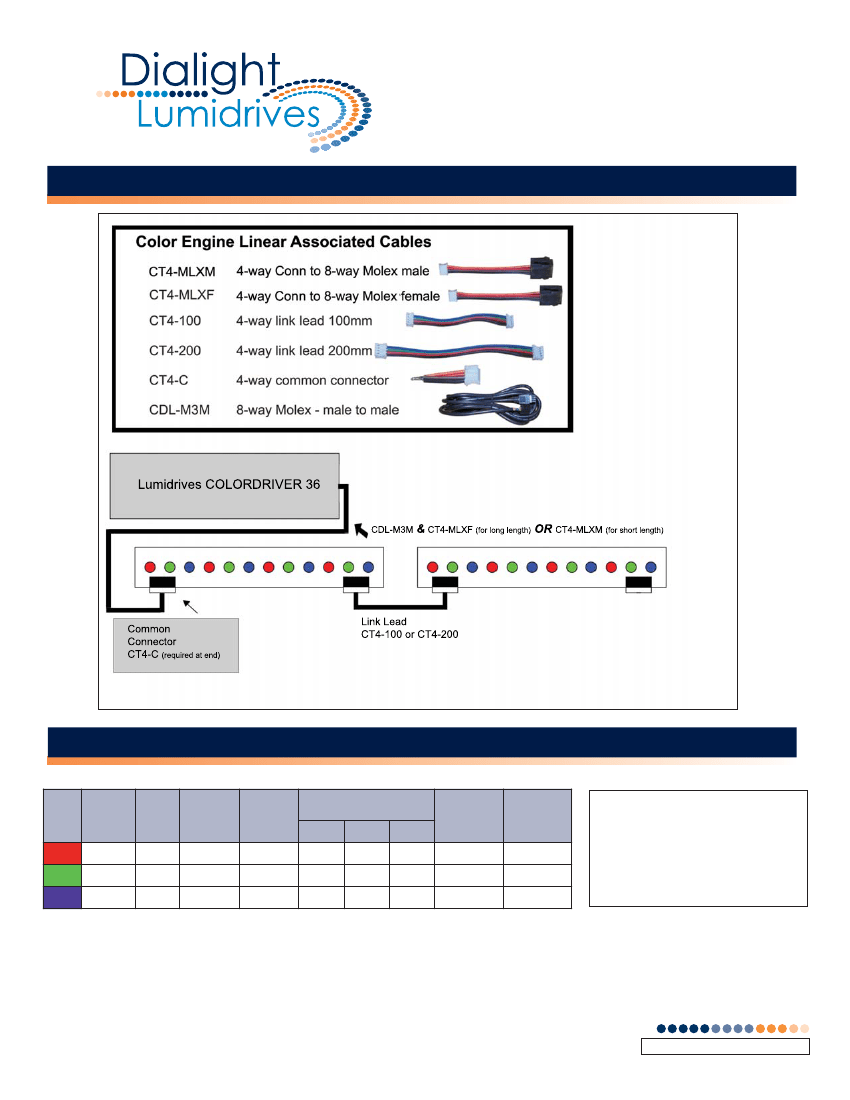

4 pin quick connector blocks for use with CT-4 cable

system

(see recommended cables on back)

PART NUMBERS

# of LEDs (AA)

12 = Color engine12L (4 each

of red, blue and green LEDs)

18 = Color engine18L (6 each

of red, blue and green LEDs)

LENS Type (BBB)**

005 = 5 Degree

015 = 15 Degree

025 = 25 Degree

520 = 5 X 20 Degree

XXX = no lens*

Dialight reserves the right to make changes at any time

in order to supply the best product possible.

* Lens to be purchased and installed seperately

** Half divergence angles

Dialight Corporation

1501 Route 34 South • Farmingdale, NJ 07727 USA

Tel: (1) 732-919-3119 • Fax: (1) 732-751-5778 • www.dialight.com

MDEXLUMCLENGL_E

CE1-8LRG-B015 Related Products

	CE1-8LRG-B015	CE1-8LRG-B520	CE1-8LRG-B025	CE1-2LRG-B005	CE1-2LRG-B520	CE1-2LRG-B025	CE1-8LRG-B005
Description	led lighting modules 18 lnr W/ 15d optc	led lighting modules lnr 18x1w rgb 5x20dg	led lighting modules 18 lnr W/ 25d optc	led lighting modules 12 lnr W/ 5D optc	led lighting modules 12 lnr W/ 5x20 ovl	led lighting modules 12 lnr W/ 25d optc	led lighting modules 18 lnr W/5D optc
Manufacture	Dialigh	Dialigh	Dialigh	Dialigh	Dialigh	Dialigh	Dialigh
Product Category	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules	LED Lighting Modules
RoHS	Yes	Yes	Yes	Yes	Yes	Yes	Yes
Produc	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines	LED Light Engines
Number of LEDs	18	18	18	12	12	12	18
Illumination Col	RGB	RGB	RGB	RGB	RGB	RGB	RGB
Wavelength/Color Temperature	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm	627 nm, 530 nm, 455 nm
Width	22.5 mm	22.5 mm	22.5 mm	35 mm	35 mm	35 mm	22.5 mm
Length	590 mm	590 mm	590 mm	290 mm	290 mm	290 mm	590 mm
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk	Bulk
Forward Curre	350 mA	350 mA	350 mA	350 mA	350 mA	350 mA	350 mA
Forward Voltage	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V	2.95 V, 3.42 V, 3.42 V
Heigh	15.5 mm	15.5 mm	15.5 mm	15.5 mm	15.5 mm	15.5 mm	15.5 mm
Luminous Flux/Radiant Flux	44 lm, 53 lm	44 lm, 53 lm	44 lm, 53 lm	44 lm, 53 lm	44 lm, 53 lm	44 lm, 53 lm	44 lm, 53 lm
Power Rating	6 W, 7.2 W, 7.2 W	6 W, 7.2 W, 7.2 W	6 W, 7.2 W, 7.2 W	4 W, 4.8 W, 4.8 W	4 W, 4.8 W, 4.8 W	4 W, 4.8 W, 4.8 W	6 W, 7.2 W, 7.2 W
Size	590 mm x 22.5 mm x 15.5 mm	590 mm x 22.5 mm x 15.5 mm	590 mm x 22.5 mm x 15.5 mm	290 mm x 35 mm x 15.5 mm	290 mm x 35 mm x 15.5 mm	290 mm x 35 mm x 15.5 mm	590 mm x 22.5 mm x 15.5 mm
Factory Pack Quantity	10	10	10	10	10	10	10
