LSS104ATP datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> LSS104ATP

LSS104ATP: Descriptionled light pipes 3mm litepipe w/lens 1.04" amber; CategoryLED optoelectronic/LED; File Size84KB，1 Pages; ManufacturerVisual Communications Company, LLC; Websitehttp://vcclite.com; Environmental Compliance

Download Datasheet Parametric View All

LSS104ATP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LSS104ATP	-	-	View	Buy Now

LSS104ATP Overview

led light pipes 3mm litepipe w/lens 1.04" amber

LSS104ATP Parametric

Parameter Name	Attribute value
Manufacture	VCC
Product Category	LED Light Pipes
RoHS	Yes
Produc	Light Pipe Assembly
Col	Ambe
LED Size	3 mm
Body Shape	Tubul
Body Length	26.4 mm
Material	Acrylic, Optical Grade
Dimensions	26.4 mm x 4.91 mm
Mounting Style	Panel
Packaging	Bulk

Preview

Download Datasheet

View All

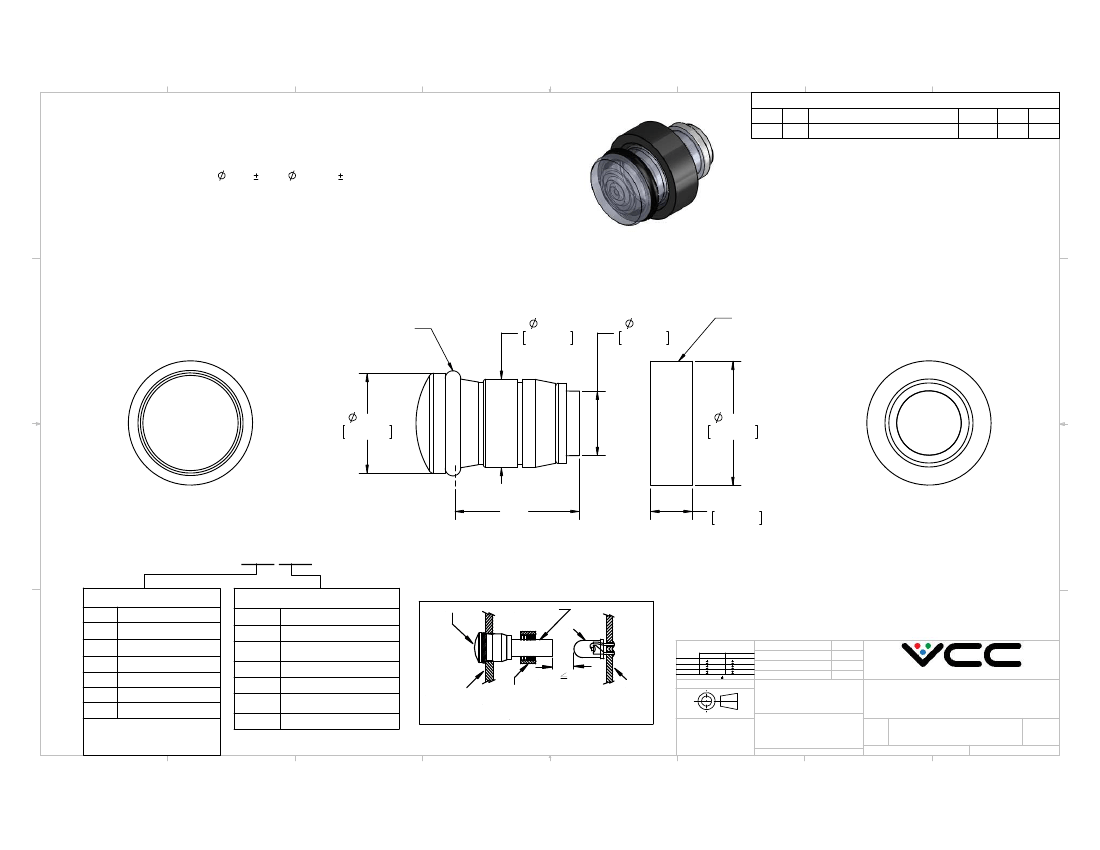

REVISIONS

ECN #

391

REV.

000

DESCRIPTION

INITIAL RELEASE

DATE

2/20/12

NOTES:

ROHS COMPLIANT

MATERIAL:

LIGHTPIPE - ACRYLIC (CLEAR OPTICAL GRADE), UL 94-HB

LENS - POLYCARBONATE, UL 94-V2

SEAL - EPDM

RETAINING RING - POLYPROPYLENE (BLACK)

MOUNTING: MOUNTS IN A .171" .002 [ 4.34mm .05] PANEL HOLE ON

.250" [6.35mm] CENTER

PANEL HOLE SHALL BE DEBURRED, BUT NOT CHAMFERED

PANEL THICKNESS: .031" [.8mm] TO .094" [2.39mm]

ASSEMBLY:

A.) INSERT LITEPIPE THROUGH PANEL HOLE

B.) PRESS ON RETAINING RING TO SECURE UNIT TO PANEL

C.) SLIDE PCB INTO POSITION ALIGNING LED WITH END OF LITEPIPE UNIT

U.S AND FOREIGN PATENTS ISSUED

INITIALS

CHK'D

MOISTURE

SEAL

.170in

4.32mm

.125in

3.16mm

RETAINING

RING

.193in

4.91mm

.240in

6.10mm

.XXX

.080in

2.03mm

ORDERING CODE:

LSS XXX XXX

LITEPIPE

XXX =

024

044

LENS

XXX =

RTP

ATP

GTP

BTP

YTP

CTP

COLOR

RED TRANSPARENT

AMBER TRANSPARENT

GREEN TRANSPARENT

BLUE TRANSPARENT

YELLOW TRANSPARENT

CLEAR TRANSPARENT

DISPLAY

PANEL

GAP

RNG 132

RETAINING RING

ASSEMBLY

.050"

PCB

LENS

LITEPIPE

LED

DIMENSION STYLE: INCHES [MM]

GENERAL TOLERANCES UNLESS

OTHERWISE SPECIFIED

LENGTH

.240" (6.10mm)

.440" (11.18mm)

APPROVAL

DATE

2/20/12

3/6/12

064

.640" (16.26mm)

084

.840" (21.34mm)

104

1.04" (26.4mm)

124

1.24" (31.5mm)

CUSTOM LENGTHS

AVAILABLE UPON

REQUEST

.XX

.XXX

INCHES

.020

.010

.005

ANGLE 1'

.508

.254

.127

DRAWN

CHECKED

KHOWARD

AZANELLI

12780 DANIELSON CT, SUITE A, POWAY, CA 92064 U.S.A

PHONE: (800) 522-5546 EMAIL: vccsales@vcclite.com

BREAK ALL CORNERS AND SHARP

EDGES .030 MAX

MATERIAL

TITLE:

SEE NOTES

ASSY, 3MM MOISTURE

SEALED LITEPIPE

REV

THIRD ANGLE PROJECTION

PROPRIETARY AND CONFIDENTIAL

FINISH

THE INFORMATION CONTAINED IN THIS

DRAWING IS THE SOLE PROPERTY OF

VISUAL COMMUNICATIONS COMPANY, INC.

ANY REPRODUCTION IN PART OR AS

A WHOLE WITHOUT THE WRITTEN

PERMISSION OF VISUAL

COMMUNICATIONS COMPANY, INC IS

PROHIBITED.

SIZE DWG. NO.

SEE NOTES

SCALE: 8:1

LSS XXX XXX

000

DO NOT SCALE DRAWING

SHEET 1 OF 1
