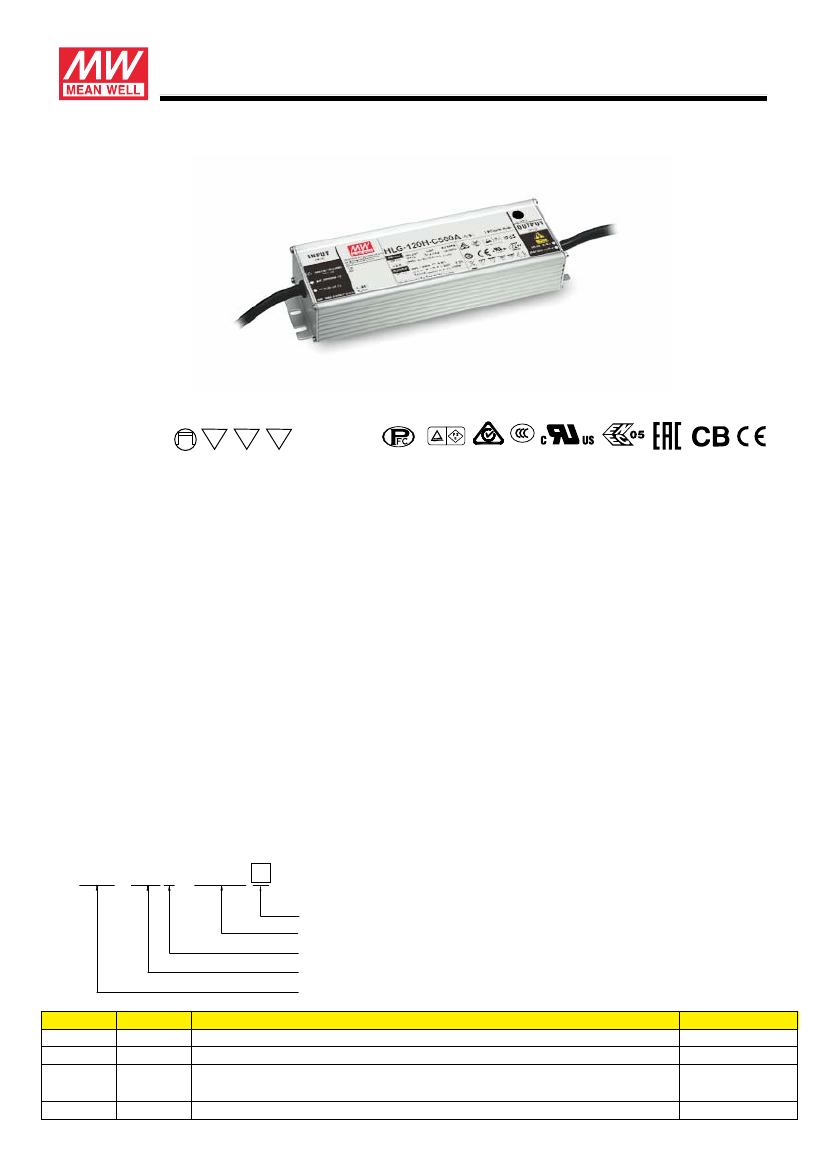

150W
Constant Current Mode LED Driver
HLG-120H-C
series
110
M
M
IP65 IP67
■
Applications
LED street lighting
LED fishing lamp
LED harbor lighting
LED building architectural lighting
LED greenhouse lighting
LED bay lighting
■
Features
Constant Current mode output
Metal housing with Class
Ⅰ
design
Built-in active PFC function
IP67 / IP65 design for indoor or outdoor installations
Function options: output adjustable via potentiometer;
3 in 1 dimming; Timer dimming
Typical lifetime>62000 hours
7 years warranty
■
Description
HLG-120H-C series is a 150W AC/DC LED driver featuring the constant current mode and high voltage output.
HLG-120H-C operates from 90
~
305VAC and offers models with different rated current ranging between 350mA
and 1400mA. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to
operate for -40
℃
~ +90
℃
case temperature under free air convection. The design of metal housing and
IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications.
HLG-120H-C is equipped with various function options, such as dimming methodologies, so as to provide
the optimal design flexibility for LED lighting system.
■
Model Encoding
HLG - 120 H - C500 A
Function options
Rated output
current(350/500/700/1050/1400mA)
High input voltage up to 305VAC
Rated
wattage
Series name
Type
A
B
AB
D
IP Level
IP65
IP67
IP65
IP67
Function
Io adjustable through built-in potentiometer.
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)
I
o adjustable through built-in potentiometer &
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance)
Timer dimming function, contact MEAN WELL for details(safety pending).
Note
In Stock
In Stock
In Stock
By request
File Name:HLG-120H-C-SPEC 2018-09-30
150W
Constant Current Mode LED Driver
SPECIFICATION
MODEL
RATED CURRENT
RATED POWER
HLG-120H-C
HLG-120H-C700
700mA
150.5W
107V ~ 215V
HLG-120H-C1050
1050mA
155.4W
74V ~ 148V
1400mA
151.2W
series
HLG-120H-C350
350mA
150.5W
HLG-120H-C500
500mA
150W
150V ~ 300V
HLG-120H-C1400
CONSTANT CURRENT REGION
Note.2
215 ~ 430V
OUTPUT
CURRENT ADJ. RANGE
54V ~ 108V
Adjustable for A/AB-Type only (via built-in potentiometer)
175 ~ 350mA
8.0% max. @rated current
±
5%
250 ~ 500mA
350 ~ 700mA
525 ~ 1050mA
700 ~ 1400mA
CURRENT RIPPLE
CURRENT TOLERANCE
SET UP TIME
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
Note.4
1000ms / 115VAC
Note.3
500ms / 230VAC
90 ~ 305VAC
127 ~ 431VDC
(Please refer to "STATIC CHARACTERISTIC" section)
47 ~ 63Hz
PF
≧
0.98/115VAC, PF
≧
0.96/230VAC, PF
≧
0.93/277VAC @full load
(Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
THD< 20% (@ load
≧
50% /115VAC, 230VAC; @ load
≧
75%/277VAC)
(Please refer to “TOTAL HARMONIC DISTORTION (THD)” section)
94%
1.6A / 115VAC
94%
0.8 A / 230VAC
94%
0.7A / 277VAC
94%
93.5%
TOTAL HARMONIC DISTORTION
INPUT
EFFICIENCY (Typ.)
AC CURRENT (Typ.)
INRUSH CURRENT(Typ.)
COLD START 50A(t
width
=600 s measured at 50% I
peak
) at 230VAC; Per NEMA 410
μ
4 units (circuit breaker of type B) / 6 units (circuit breaker of type C) at 230VAC
<0.75mA / 277VAC
MAX. No. of PSUs on 16A
CIRCUIT BREAKER
LEAKAGE CURRENT
SHORT CIRCUIT
PROTECTION OVER VOLTAGE
OVER TEMPERATURE
WORKING TEMP.
MAX. CASE TEMP.
Constant current limiting, recovers automatically after fault condition is removed
475 ~ 495V
335 ~ 355V
240 ~ 260V
165 ~ 175V
120 ~ 130V
Shut down o/p voltage with auto-recovery or re-power on to recovery
Shut down o/p voltage, recovers automatically after temperature goes down
Tcase=-40 ~ +90
℃
(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
Tcase=+90℃
ENVIRONMENT
WORKING HUMIDITY
STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
10 ~ 95% RH non-condensing
-40 ~ +80
℃
, 10 ~ 95% RH
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
UL8750, CSA C22.2 No. 250.13-12, EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13, EN62384 independent,GB19510.1,GB19510.14,
SAFETY STANDARDS
Note.6
IP65 or IP67, J61347-1, J61347-2-13, EAC TP TC 004 approved
SAFETY &
EMC
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
I/P-O/P:3.75KVAC
I/P-FG:2KVAC
O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Compliance to
EN61000-4-2,3,4,5,6,8,11, EN61547,
light
industry level (surge immunity Line-Earth 4KV, Line-Line 2KV)
, EAC TP TC 020
652.2K hrs min.
Telcordia SR-332 (Bellcore) ;
191.1K hrs min.
MIL-HDBK-217F (25
℃
)
EMC EMISSION
EMC IMMUNITY
MTBF
Note.6
Compliance to
EN55015, EN61000-3-2 Class C (
@ load
≧
50%
) ; EN61000-3-3
,GB17743 and GB17625.1, EAC TP TC 020
OTHERS
DIMENSION
PACKING
220*68*38.8mm (L*W*H)
1.04Kg; 12pcs/13.5Kg/0.8CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25
℃
of ambient temperature.
2.
Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to STATIC CHARACTERISTIC sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently
connected to the mains.
7. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80
℃
or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using.
https://www.meanwell.com/Upload/PDF/LED_EN.pdf
File Name:HLG-120H-C-SPEC 2018-09-30
150W
Constant Current Mode LED Driver
BLOCK DIAGRAM
HLG-120H-C
series
PFC fosc : 70KHz
PWM fosc : 60KHz
I/P
EMI FILTER
&
RECTIFIERS
PFC
CIRCUIT
POWER
SWITCHING
RECTIFIERS
&
FILTER
O.L.P.
+V
-V
DIM+
DIM-
(B Type)
FG
O.T.P.
O.L.P.
PWM & PFC
CONTROL
DETECTION
CIRCUIT
O.V.P.
DRIVING METHODS OF LED MODULE
※
This series works in constant current mode to directly drive the LEDs.
In the constant current region, the highest voltage at the output of the driver
depends on the configuration of the end systems.
Should there be any compatibility issues, please contact MEAN WELL.
Constant
Current region
100
Vo(%)
50
100
Io (%)
Typical output current normalized by rated current (%)
File Name:HLG-120H-C-SPEC 2018-09-30
150W
Constant Current Mode LED Driver

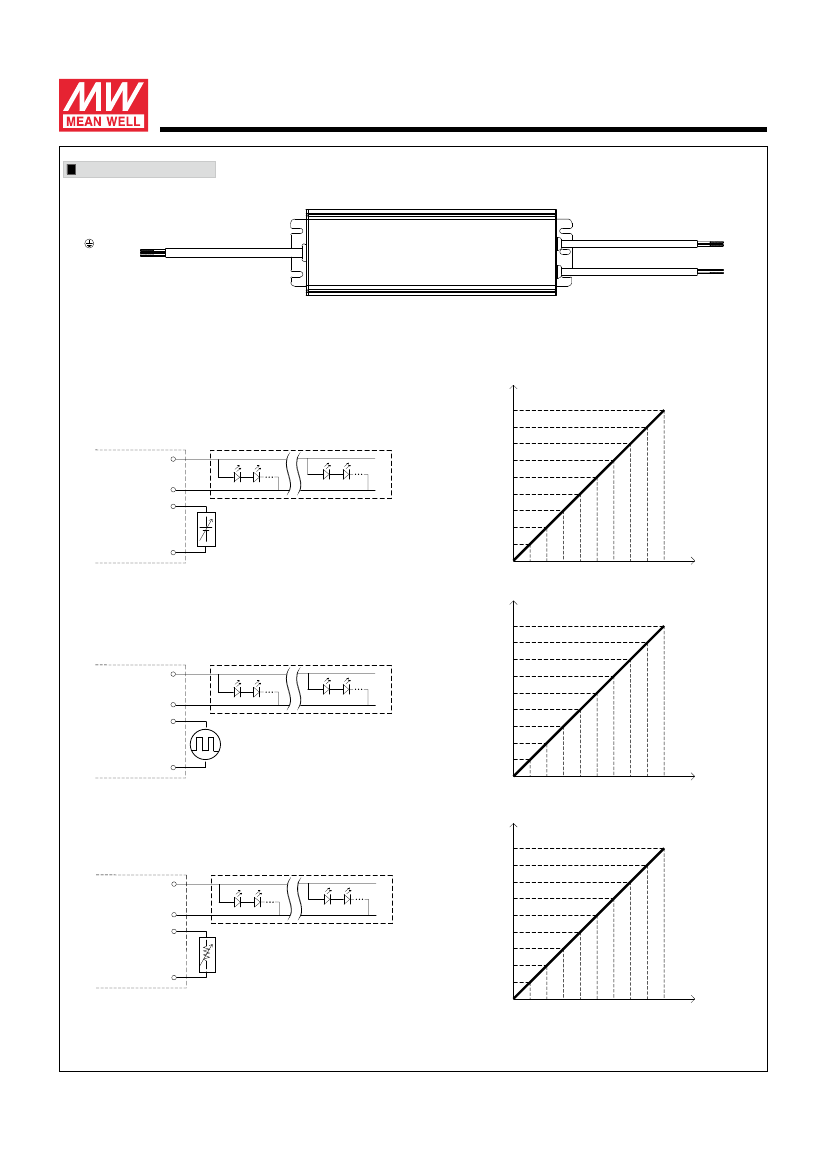

DIMMING OPERATION
HLG-120H-C
series
FG (Green/Yellow)
AC/L(Brown)
AC/N(Blue)
HLG-120H-C
B Type
DIM+(Gray)
DIM-(Black)
-V(Blue)
+V(Brown)
※
3 in 1 dimming function (for B/AB-Type)
Output constant current level can be adjusted by applying one of the three methodologies between DIM+ and DIM-:
1 ~ 10VDC, or 10V PWM signal or resistance.
Direct connecting to LEDs is suggested. It is not suitable to be used with additional drivers.
Dimming source current from power supply: 1 0 0
μ
A (typ.)
◎
Applying additive 1 ~ 10VDC
100%
90%
+V
-V
DIM+
+
-
+
Additive Voltage
-
+
-
Output current (%)
80%
70%
60%
50%
40%
30%
20%
10%
1V
2V 3V 4V 5V 6V 7V 8V 9V 10V
Dimming input: Additive voltage
DIM-
“DO
NOT connect "DIM- to -V"
◎
Applying additive 10V PWM signal (frequency range 100Hz ~ 3KHz):
Output current (%)
Output current (%)
100%
90%
80%
70%
60%
50%
40%
+V
-V
DIM+
+
-
+
-
Additive PWM signal
DIM-
“DO
NOT connect "DIM- to -V"
30%
20%
10%
10% 20% 30% 40% 50% 60% 70% 80% 90% 100%
Duty cycle of additive 10V PWM signal dimming input
◎
Applying additive resistance:
+
-
100%
90%
+V
-V
DIM+
+
-
80%
70%
60%
50%
40%
30%
Additive Resistance
DIM-
“DO
NOT connect "DIM- to -V"
20%
10%
10K/N 20K/N 30K/N 40K/N 50K/N 60K/N 70K/N 80K/N 90K/N 100K/N
(N=driver quantity for synchronized
dimming operation
)
Dimming input: Additive resistance
File Name:HLG-120H-C-SPEC 2018-09-30
150W
Constant Current Mode LED Driver
HLG-120H-C
series
Note: In the case of turning the lighting fixture down to 0% brightness, please refer to the configuration as follow, or please contact MEAN WELL
for other options.
N
FG
L
Relay
Switch
Adjuster
10K/N~100K/N Ohms resistance
1~10V DC Voltage
10V PWM Signal
Green/
Yellow
Brown
Blue
AC/L
AC/N
HLG-120H-C
B-Type
DIM+
DIM-
V(-)
V(+)
Gray
Black
Blue
Brown
LED Lighting Fixture
Using a switch and relay can turn ON/OFF the lighting fixture.
File Name:HLG-120H-C-SPEC 2018-09-30
