CMDA6AG7D1S-100 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> CMDA6AG7D1S-100

CMDA6AG7D1S-100: Descriptionstandard leds - smd grn 520nm 145mcd; CategoryLED optoelectronic/LED; File Size425KB，1 Pages; ManufacturerChicago Miniature

Download Datasheet Parametric Compare View All

CMDA6AG7D1S-100 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CMDA6AG7D1S-100	-	-	View	Buy Now

CMDA6AG7D1S-100 Overview

standard leds - smd grn 520nm 145mcd

CMDA6AG7D1S-100 Parametric

Parameter Name	Attribute value
Manufacture	Chicago Miniature
Product Category	Standard LEDs - SMD
Package / Case	0603
LED Size	1.6 mm x 0.8 mm x 0.8 mm
Illumination Col	Gree
Wavelength/Color Temperature	520 nm
Lens Color/Style	Diffused
Forward Curre	20 mA
Forward Voltage	3.4 V
Luminous Intensity	145 mcd
Viewing Angle	140 deg
Packaging	Cut Tape
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 30 C
Factory Pack Quantity	100

Preview

Download Datasheet

View All

engineered to light up your design

www.vcclite.com

1.800.522.5546

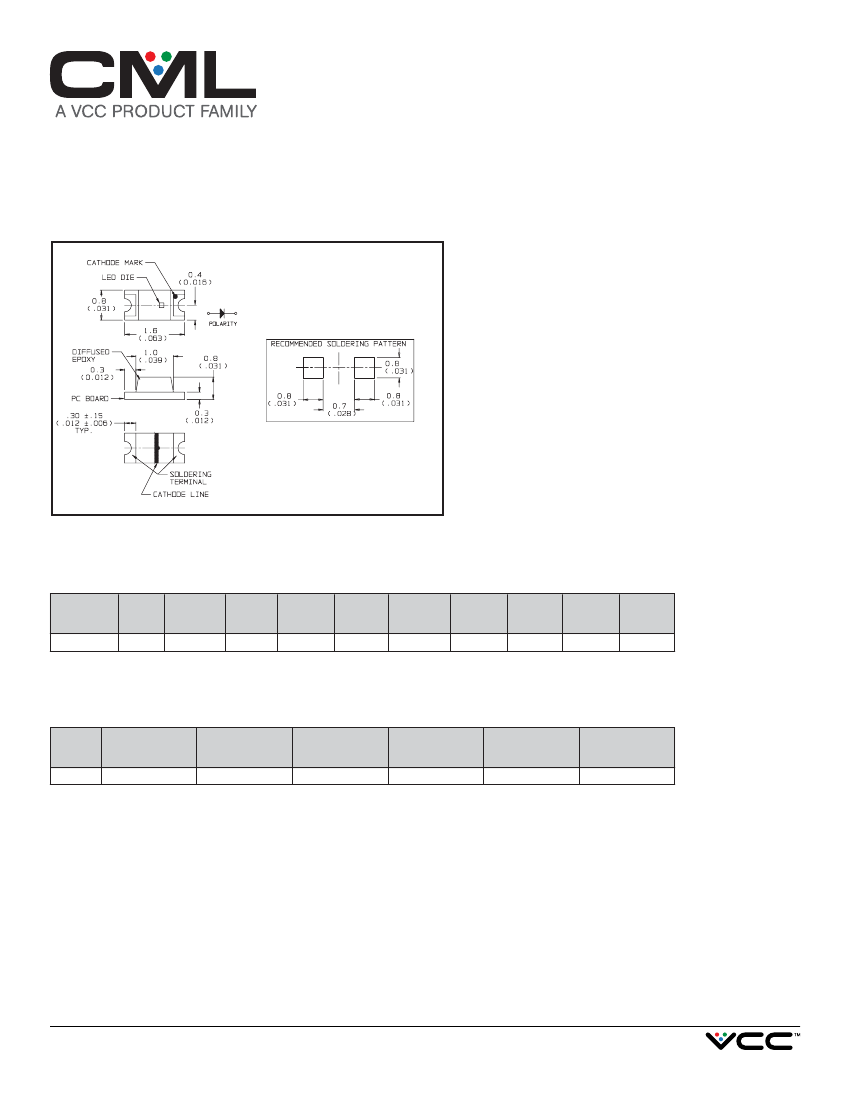

CMDA6 Series HIGH BRIGHTNESS 0603 Package Size Surface Mount LED

Description and Features

Features

• High brightness

• Small size

• Industrial standard 0603

Footprint

• Diffused optics

• Top emitting

• Compatible with IR solder

profiles

• Ideal for use with Light

Pipes

• Available in 8 mm tape on

7" diameter reel

• Packaged 4,000 pieces

per reel

•

RoHS Compliant

Applications

• LCD backlighting

• Push button

backlighting

• Front panel indicator

• Symbol indicator

• Microdisplays

• Small message panel

signage

NOTES:

1. All dimensions are in millimeters (in).

2. 1 micro second @ 10% duty cycle

Electro-Optical Characteristics and Ratings

Part

Number

CMDA6AR7D1S

Output

Color

Red

Diffusion

Package

Color

Clear

Test

Current

(mA)

Forward

Voltage

Typ. (V)

1.9

Forward

Luminous

Voltage

Intensity

Max. Typ. (V) Min. (mcd)

2.4

Luminous

Intensity

Typ. (mcd)

Peak

Wavelength

(nm)

637

Viewing

Angle

(Degrees)

170

Diffused

Absolute Maximum Ratings to = 25°C

Part

Number

Power

Dissipation

(mW)

Operating

Temperature

(°C)

-30 to +85

Storage

Temperature

(°C)

-40 to +85

Peak Forward

Current Max.

(See note 2) (mA)

100

Reverse Voltage

(IR = 100 mA)

(V)

Lead Solder Time

at 230°C

(Seconds)

CML and Chicago Miniature Lamp are registered trademarks of Visual Communications Company, LLC.

CMDA6AG7D1S-100 Related Products

	CMDA6AG7D1S-100	CMDA6CB7D1S-100
Description	standard leds - smd grn 520nm 145mcd	standard leds - smd blue 469nm 55mcd
Manufacture	Chicago Miniature	Chicago Miniature
Product Category	Standard LEDs - SMD	Standard LEDs - SMD
Package / Case	0603	0603
LED Size	1.6 mm x 0.8 mm x 0.8 mm	1.6 mm x 0.8 mm x 0.8 mm
Illumination Col	Gree	Blue
Wavelength/Color Temperature	520 nm	469 nm
Lens Color/Style	Diffused	Diffused
Forward Curre	20 mA	20 mA
Forward Voltage	3.4 V	3.4 V
Luminous Intensity	145 mcd	55 mcd
Viewing Angle	140 deg	140 deg
Packaging	Cut Tape	Cut Tape
Maximum Operating Temperature	+ 85 C	+ 85 C
Minimum Operating Temperature	- 30 C	- 30 C
Factory Pack Quantity	100	100
