EL-24-21UBGC/TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> EL-24-21UBGC/TR8

EL-24-21UBGC/TR8: Descriptionstandard leds - smd blu-grn wtr clr 505nm 58mcd; CategoryLED optoelectronic/LED; File Size121KB，8 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

EL-24-21UBGC/TR8 Overview

standard leds - smd blu-grn wtr clr 505nm 58mcd

EL-24-21UBGC/TR8 Parametric

Parameter Name	Attribute value
Manufacture	Everligh
Product Category	Standard LEDs - SMD
RoHS	Yes
LED Size	3.2 mm x 1.6 mm
Illumination Col	Gree
Wavelength/Color Temperature	505 nm
Lens Color/Style	Water Cle
Forward Curre	20 mA
Forward Voltage	3.5 V
Luminous Intensity	58 mcd
Viewing Angle	130 deg
Packaging	Reel
Maximum Operating Temperature	+ 80 C
Minimum Operating Temperature	- 20 C
Factory Pack Quantity	2000

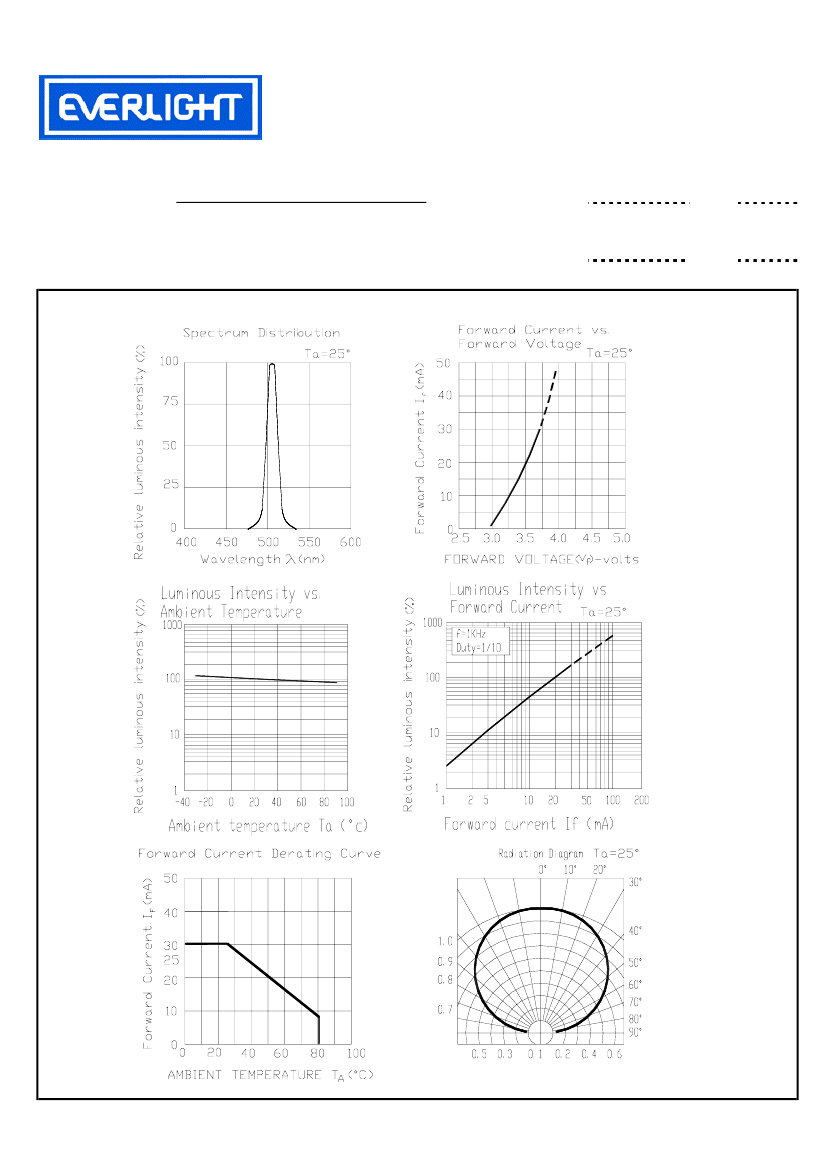

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO., LTD.

MODEL NO:

24-21UBGC/TR8

Reverse Package Chip LED

Device Number：

DSE-241-015 REV.

1.0

ECN：

Page:

1/8

█

Features：

：

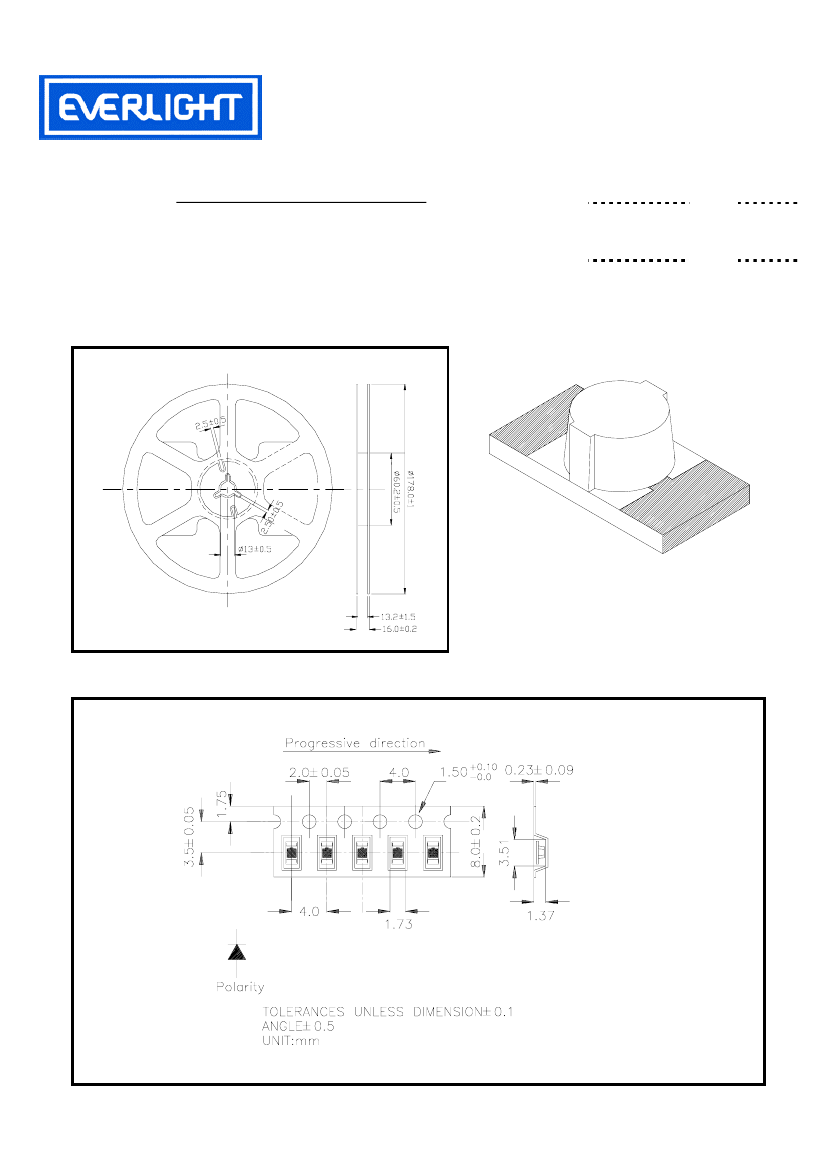

Package in 8mm tape on 7“ diameter

reel.

Compatible with automatic placement

equipment.

Compatible with infrared and vapor

phase reflow solder process.

Mono-color type.

█

Description：

：

The 24-21 SMD Taping is much smaller than

leaded components, thus enable smaller board

size, higher packing density, reduced storage space

and finally smaller equipment to be obtained.

Besides, lightweight makes them ideal for

miniature application, etc.

█

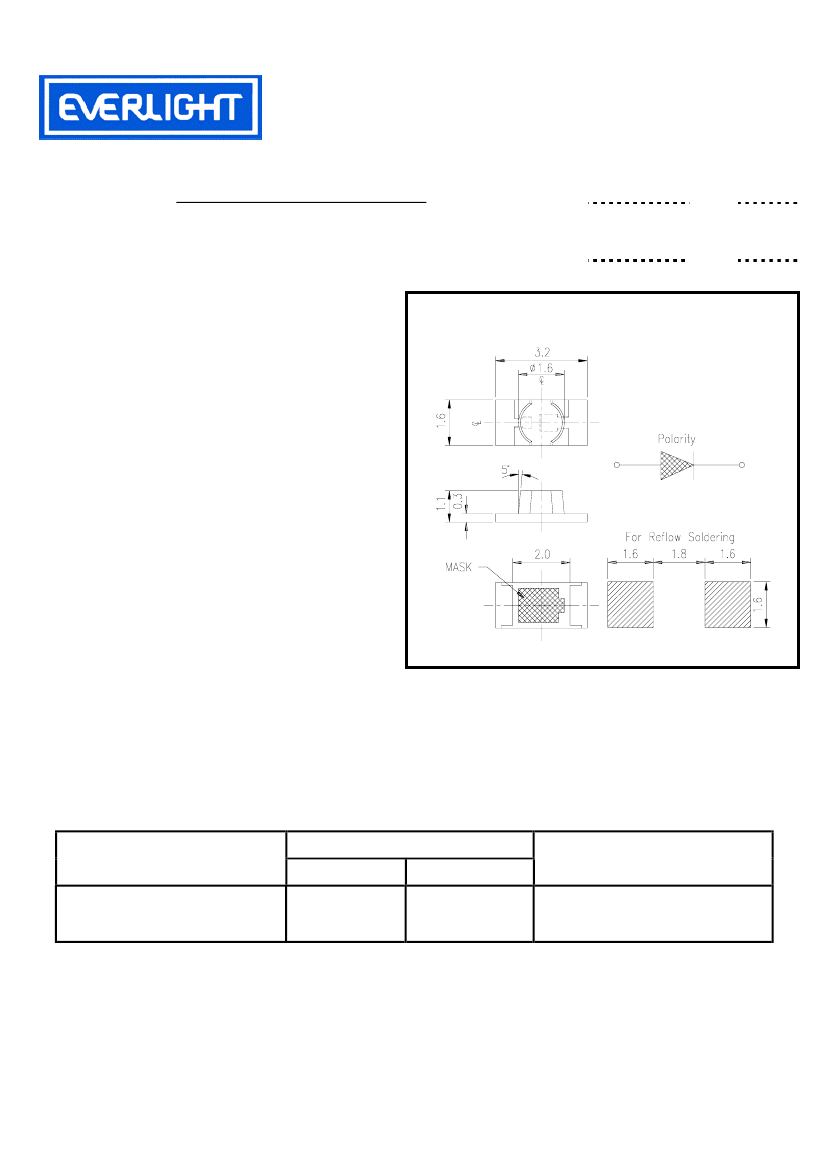

Package Dimensions：

：

█

Applications：

：

Automotive: backlighting in dashboard and switch.

Telecommunication: indicator and backlighting in telephone and fax.

Flat backlight for LCD, switch and symbol.

General use.

■

Notes：

：

Tolerances Unless Dimension

±0.1mm

Angle±0.5°

Unit = mm

PART NO

24-21UBGC/TR8

CHIP

Material

Emitted Color

GaN/SiC

Super Blue

Green

Substrate

Lens Color

Water

Clear

Office: NO 25,Lane.76, Chung Yang Rd., Sec.3, Tucheng, Taipei 236, Taiwan, R.O.C.

TEL: 886-2-2267-2000,2266-9936(22 Lines)

FAX: 886-2-2267-6189

http: //www.everlight.com
