VSMP2018876R00TCR0.2TST datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> VSMP2018876R00TCR0.2TST

VSMP2018876R00TCR0.2TST: DescriptionFixed Resistor, Metal Foil, 0.75W, 876ohm, 122V, 0.01% +/-Tol, -.2,.2ppm/Cel, 2018; CategoryPassive components The resistor; File Size457KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

VSMP2018876R00TCR0.2TST Overview

Fixed Resistor, Metal Foil, 0.75W, 876ohm, 122V, 0.01% +/-Tol, -.2,.2ppm/Cel, 2018

VSMP2018876R00TCR0.2TST Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1181385420
package instruction	SMT, 2018
Reach Compliance Code	compliant
Country Of Origin	Israel
ECCN code	EAR99
YTEOL	10
structure	Rectangular
Manufacturer's serial number	VSMP2018
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	0.64 mm
Package length	5.18 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	4.67 mm
method of packing	TR
Rated power dissipation(P)	0.75 W
resistance	876 Ω
Resistor type	FIXED RESISTOR
series	VSMP2018
size code	2018
technology	METAL FOIL
Temperature Coefficient	0.2 ppm/°C
Tolerance	0.01%
Operating Voltage	122 V

Preview

Download Datasheet

View All

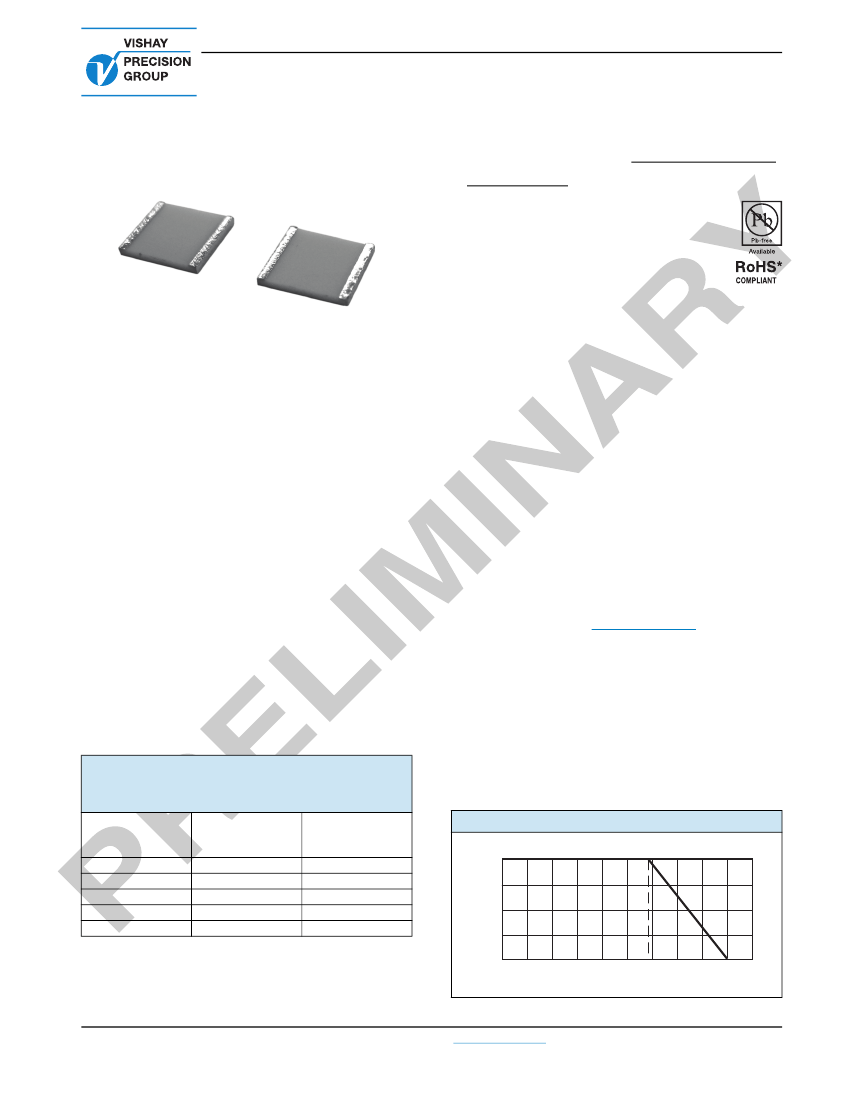

VSMP2018 (Z-Foil)

Vishay Foil Resistors

Ultra High Precision Foil Wraparound Surface Mount Chip Resistor

with Temperature Coefficient of Resistance (TCR) of ± 0.05 ppm/°C,

and Load Life Stability of ± 0.005 % (50 ppm)

FEATURES



Temperature coefficient of resistance (TCR):

0.05 ppm/°C typical (0 °C to + 60 °C)

0.2 ppm/°C typical (- 55 °C to + 125 °C, + 25 °C ref.)



Resistance range: 10 to 20 k(higher values

from 20 k to 150 k can be supplied on request)



Vishay Foil resistors are not restricted to standard

values; specific “as required” values can be supplied at no

extra cost or delivery (e.g. 1K2345 vs. 1K)



Tolerance: to ± 0.01 %



Power coefficient “R due to self heating”:

5 ppm at rated power



Power rating: to 750 mW at + 70 °C



Load life stability: to ± 0.005 % at 70 °C, 2000 h at rated

power



Electrostatic discharge (ESD) up to 25 000 V



Short time overload:



0.005 %



Non-inductive, non-capacitive design



Rise time: 1 ns effectively no ringing



Current noise: - 40 dB



Voltage coefficient < 0.1 ppm/V



Non inductive: < 0.08 µH



Non hot spot design



Terminal finish: lead (Pb)-free, tin/lead alloy



Compliant to RoHS directive 2002/95/EC



Matched sets are available on request



Prototype quantities available in just 5 working days or

sooner, please contact

foil@vishaypg.com



For better performances please contact us

Top View

INTRODUCTION

Vishay VSMP2018 ultra high precision Bulk Metal

Z-Foil

resistor is the result of a new concept in resistors

manufacturing: A proprietary Bulk Metal Foil of known and

controllable properties is applied to a special ceramic

substrate. A resistive pattern is then photoetched by an

ultra-fine technique developed by Vishay.

This process results in a resistor element that combines the

all important characteristics of low temperature coefficient

(TCR), long-term stability, ESD immunity, tight tolerance,

non-inductance, low capacitance and low noise.

These characteristics are optimum, approaching in total

performance the theoretical ideal, a straight wire.

The behavior of Vishay resistors under load is characterized

by a very small initial resistance change which occurs within

the first 500 h of the test. Only insignificant resistance

changes are observed upon continuation of the test, and no

signs of wear out appear even at full load over several

thousands hours.

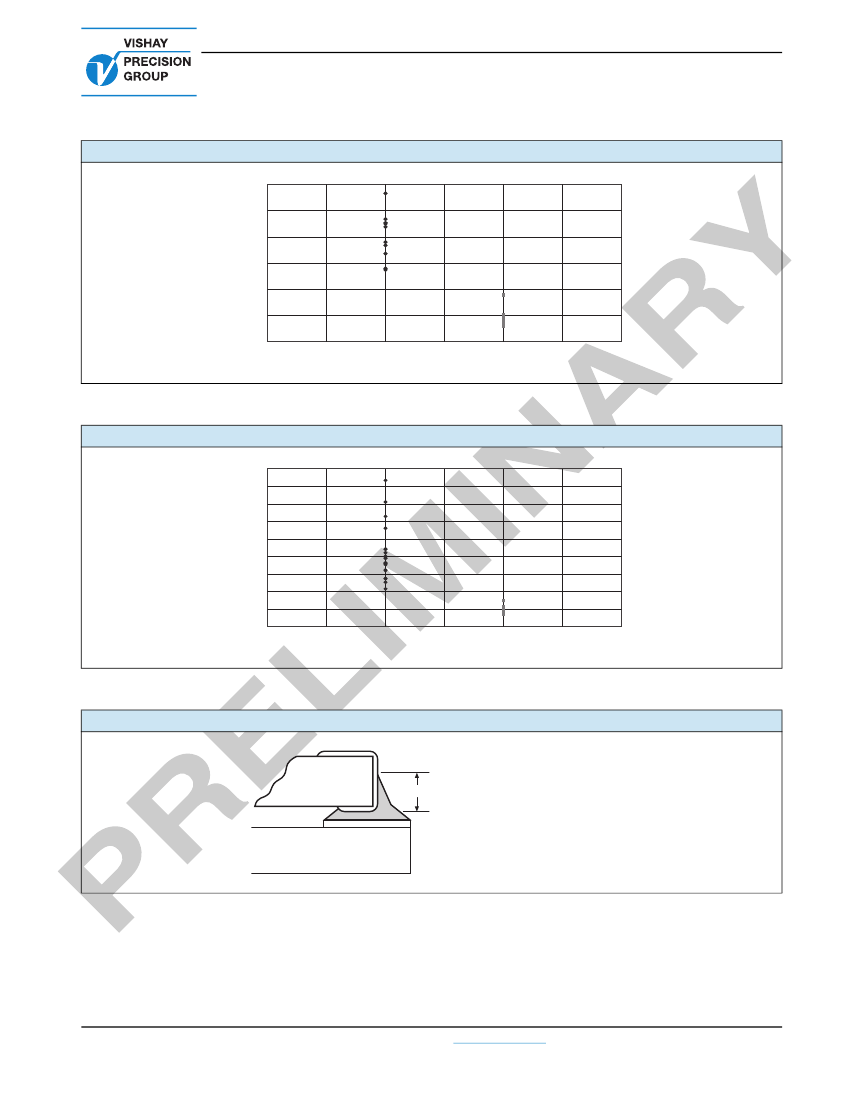

The VSMP has a full wraparound termination which ensures

safe handling during the manufacturing process, as well as

providing stability during multiple thermal cyclings.

Our application engineering department is available to

advise and make recommendations. For non-standard

technical requirements and special applications, please

APPLICATIONS



Automatic test equipment (ATE)

High precision instrumentation

Laboratory, industrial and medical

Audio

EB applications (electron beam scanning and recording

equipment, electron microscopes)



Down hole instrumentation



Communication

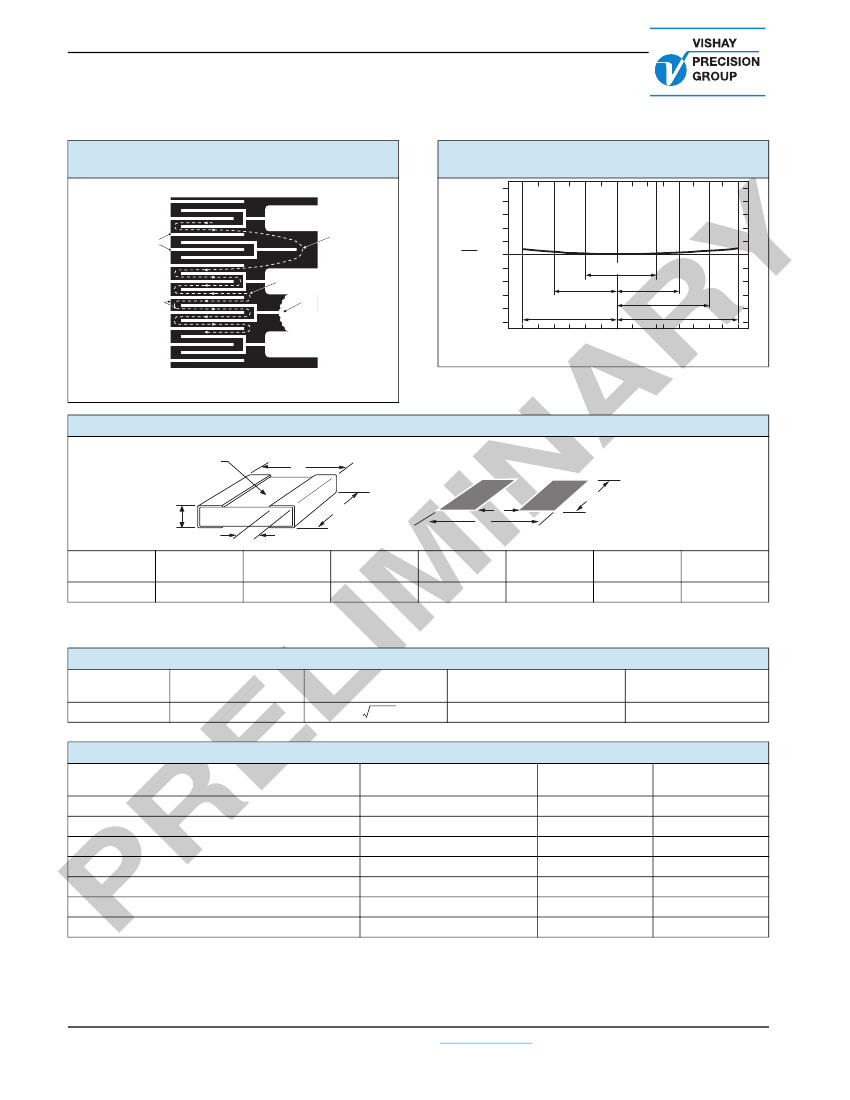

TABLE 1 - TOLERANCE AND TCR VS.

RESISTANCE VALUE

(1)

(- 55 °C to + 125 °C, + 25 °C Ref.)

RESISTANCE

VALUE

()

250to 20K

100to < 250

50to < 100

25to < 50

10to < 25

TOLERANCE

(%)

± 0.01

± 0.02

± 0.05

± 0.1

± 0.25

TYPICAL TCR AND

MAX. SPREAD

(ppm/°C)

± 0.2 ± 1.8

± 0.2 ± 2.8

± 0.2 ± 3.8

FIGURE 1 - POWER DERATING CURVE

Percent of Rated Power

- 55 °C

100

- 75

+ 70 °C

Note

(1)

For tighter performances and non-standard values up to 150K,

please contact Vishay application engineering using the e-mail

address in the footer below.

* Pb containing terminations are not RoHS compliant, exemptions may apply

Document Number: 63142

Revision: 26-Mar-10

- 50

- 25

+ 25 + 50 + 75 + 100 + 125 + 150 + 175

Ambient Temperature (°C)

For any questions, contact:

foil@vishaypg.com

www.foilresistors.com

Legal Disclaimer Notice

Vishay Precision Group, Inc.

Disclaimer

ALL PRODUCTS, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Vishay Precision Group, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf

(collectively, “VPG”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained herein or in

any other disclosure relating to any product.

The product specifications do not expand or otherwise modify VPG’s terms and conditions of purchase, including but

not limited to, the warranty expressed therein.

VPG makes no warranty, representation or guarantee other than as set forth in the terms and conditions of purchase.

To the maximum extent permitted by applicable law, VPG disclaims (i) any and all liability arising out of the

application or use of any product, (ii) any and all liability, including without limitation special, consequential or

incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular purpose,

non-infringement and merchantability.

Information provided in datasheets and/or specifications may vary from actual results in different applications and

performance may vary over time. Statements regarding the suitability of products for certain types of applications

are based on VPG’s knowledge of typical requirements that are often placed on VPG products. It is the customer’s

responsibility to validate that a particular product with the properties described in the product specification is suitable for

use in a particular application. You should ensure you have the current version of the relevant information by contacting

VPG prior to performing installation or use of the product, such as on our website at vpgsensors.com.

No license, express, implied, or otherwise, to any intellectual property rights is granted by this document, or by any

conduct of VPG.

The products shown herein are not designed for use in life-saving or life-sustaining applications unless otherwise

expressly indicated. Customers using or selling VPG products not expressly indicated for use in such applications do

so entirely at their own risk and agree to fully indemnify VPG for any damages arising or resulting from such use or sale.

Please contact authorized VPG personnel to obtain written terms and conditions regarding products designed for such

applications.

Product names and markings noted herein may be trademarks of their respective owners.

Document No.: 63999

Revision: 15-Jul-2014

www.vpgsensors.com
