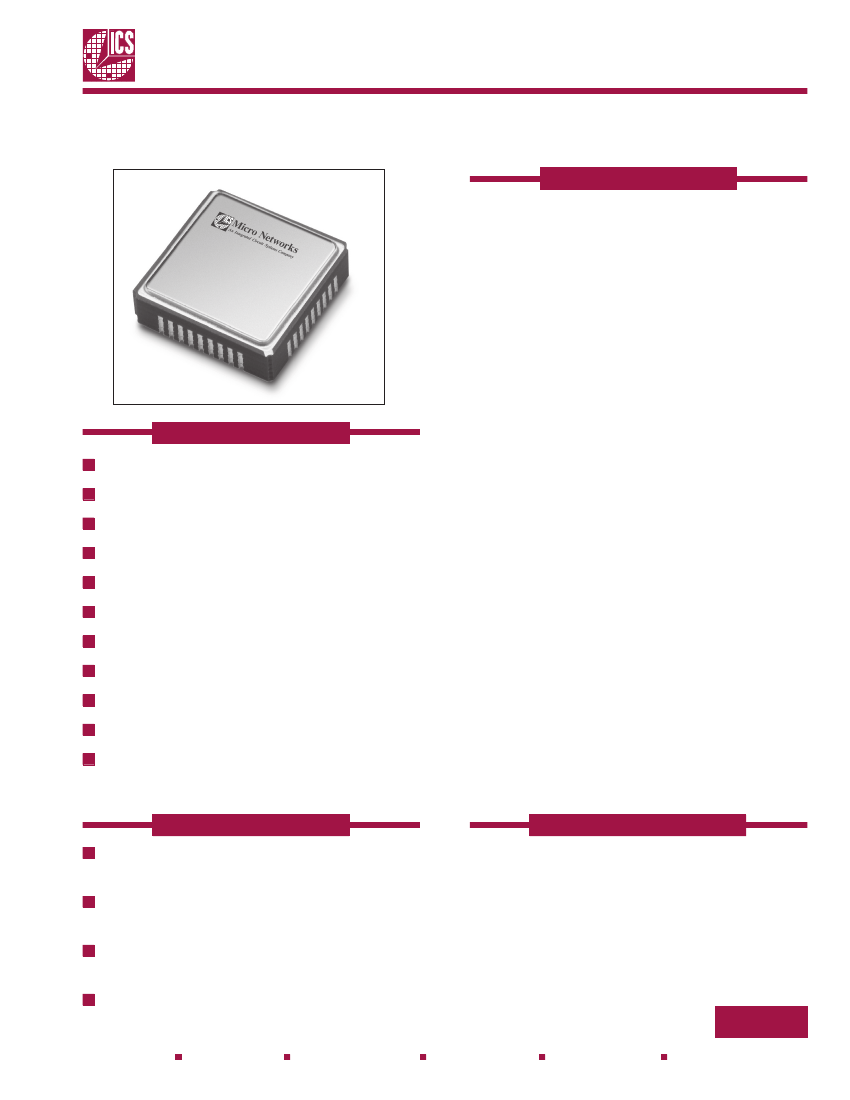

Micro Networks
An Integrated Circuit Systems Company
M2005-02
Preliminary Specifications
M2005-02
Frequency Translator
DESCRIPTION
The M2005-02 integrates a high performance Phase
Locked Loop (PLL) with a Voltage Controlled SAW
Oscillator (VCSO) to provide a low jitter Frequency
Synthesizer in a 9mm x 9mm surface mount
package.
The internal high “Q” SAW filter provides low jitter
signal performance and determines the maximum
output frequency of the VCSO. A programmable
output divider can divide the VCSO frequency by a
factor of 4 to achieve an output as low as 77.76MHz
with a 311.04MHz VCSO.
FEATURES
Output Clock Frequency up to 700MHz
Differential LVPECL Outputs
Internal Low-jitter SAW-based Oscillator
Intrinsic Jitter <1ps rms (12kHz - 20MHz)
Jitter Attenuation of Input Reference Clock
Dual Input MUX
Configurable Loop and Output Dividers
Tunable Loop Filter Response
Single 3.3V Supply
Small 9mm x 9mm SMT Package
HOLD Mode During Loss of Input
Reference Clock
APPLICATIONS
The input to the Frequency Synthesizer is provided
by selecting between one of two input reference
clocks. The maximum input frequency is 250 MHz.
Serial control of the input divider, the feedback
divider, and output divider is provided via the
configuration logic.
An external loop filter sets the PLL bandwidth which
can be optimized to provide jitter attenuation of the
input reference clock.
A HOLD feature freezes the VCSO frequency so that
a stable output clock can be maintained when both
input reference clocks are lost.
The bandwidth control, low phase noise, and HOLD
features make the M2005-02 ideal for use as a clock
jitter attenuator, frequency translator, and clock
frequency generator in OC-3 through OC-192
applications.
ABSOLUTE MAX RATINGS
Inputs, V
I
:
................................................. -0.5 to V
CC
+0.5V
Output, V
O
: ................................................. -0.5 to V
CC
+0.5V
Supply Voltage, V
CC
: ......................................................... 4.6 V
Storage Temperature, T
STO
: ............................ -45°C to +100°C
Stresses beyond those listed under Absolute Maximum Ratings may cause
permanent damage to the device. These ratings are stress specifications
only. Functional operation of product at these conditions or any conditions
beyond those listed in the
DC Characteristics
or
AC Characteristics
is not
implied. Exposure to absolute maximum rating conditions for extended peri-
ods may affect product reliability.
SONET / SDH / 10GbE System
Synchronization
Add / Drop Muxes, Access and Edge
Switches
Line Card System Clock Cleaner /
Translator
Optical Module Clock Cleaner / Translator
ISO 9001
Registered
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
1
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
FUNCTIONAL BLOCK DIAGRAM
M2005-02
Preliminary Specifications
The internal PLL will adjust the VCSO output
frequency to be M (feedback divider) divided by P
(input divider) times the selected input reference
clock frequency. Note that the ratio of M/P times
input frequency must be such that it falls within the
“lock” range of the VCSO. The M divider (17-bits)
can be programmed for a maximum value of
131,071 and a minimum value of 4. The P divider
(9-bits) can be set to a maximum value of 511 and
a minimum value of 1. The N output divider can be
programmed to divide the VCSO output frequency
by 1, or 4 and provide a 50% output duty cycle.
The M2005-02 is serially programmed via a 3 wire
interface. Figure 1 shows the timing diagram for
serial programming.
The relationship between the VCSO frequency, the
M & P dividers, and the input REF_CLK is defined
as follows:
F VCSO = F REF_CLK x M
P
When the N output divider is included, the
complete relationship for the output frequency is
defined as:
M
FOUT = F VCSO = F REF_CLK x
N
NxP
The N1 input can be hard wired to set the N divider
to a specific state that will automatically occur
during power-up.
Serial operation occurs when S_LOAD is LOW. The
shift register is loaded by sampling the S_DATA bits
with the rising edge of S_CLOCK. The contents of
the shift register are loaded into the M divider and
N output divider when S_LOAD transitions from
LOW-to-HIGH. The M divider and N output divide
values are latched on the HIGH-to- LOW transition
of S_LOAD. If S_LOAD is held HIGH, data at the
S_DATA input is passed directly to the M divider
and N output divider on each rising edge of
S_CLOCK.
When the HOLD input is asserted the M2005-02
will revert back to the initial accuracy of the VCSO
and remain at that frequency until the HOLD signal
is returned LOW.
RLOOP
CLOOP
RPOST
CPOST
CPOST
External
Loop Filter
Components
RLOOP
CLOOP
RPOST
nOP_OUT nVC
VC
0
Frequency
Hold
1
Phase
Shifter
VCSO
SAW Delay Line
M2005-02
MUX
OP_IN
Phase
Detector RIN
nOP_IN OP_OUT
REF_CLK1
REF_CLK0
REF_SEL
1
0
R Divider
R=1,2,4 to 511
RIN
Loop Filter
Amplifier
M Divider
M = 3 to 131,071
S_DATA
S_CLK
S_LOAD
nP_LOAD
P Divider
P = 1 or 4
Serial / Parallel
Configuration Register
FOUT
nFOUT
6
M5:0
P1
HOLD
MR
FIGURE 1
S_DATA
Low Low Null
N1
N0 Null Null Null M5
M4
M3
M2
M1
M0
S_CLK
S_LOAD
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
2
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
FUNCTIONAL DESCRIPTION
LOOP FILTER
FIGURE 2
Rloop
OP_IN
Cloop
M2005-02
Preliminary Specifications
The M2005-02 requires the use of an external loop
filter via the provided filter pins. Due to the
differential design, the implementation requires two
identical RC filters as shown in Figure 2.
Rpost
nVc
Cpost
nOP_OUT
OP_OUT
Cpost
nOP_IN
Rloop
Cloop
Rpost
Vc
TABLE 1. RECOMMENDED LOOP FILTER VALUES
REF_CLK
Frequency
19.44MHz
VCSO
Frequency
622.0800MHz
M
N
Fout
Rloop
Cloop
Rpost
Cpost
32
1
622.0800MHz
5KΩ
1MF
50KΩ
100pf
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
3
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
PIN DESCRIPTIONS
TABLE 2
Pin Number
1, 2, 3
Name
M2005-02
Preliminary Specifications
GND
OP_IN, nOP_IN
nOP_Out, OP_OUT
nVC, VC
GND
VCC
HOLD
N1
I/O
GND
Configuration
Description
Power Supply Ground
4, 9
5, 8
6, 7
10, 14, 26
11, 19, 22, 33
12
13
Analog I/O
Analog I/O
Input
GND
Power
Input
Input
Pull - down
Pull - down
Used for external loop filter. See Figure 2.
Used for external loop filter. See Figure 2.
VCSO Differential Control Voltage Input Pair
Power Supply Ground
Positive Supply Pins
When HIGH the device operates in digital HOLD
mode. LVCMOS / LVTTL interface levels.
Determines the output divider value as
defined in Table 3C. LVCMOS / LVTTL
interface levels.
15, 16
17
FOUT, nFOUT
MR
Output
Input
Unterminated
Pull - down
Differential output, 3.3V LVPECL levels.
Logic HIGH resets the reference frequency and N
output dividers. Logic LOW enables the outputs.
LVCMOS / LVTTL interface levels.
18
S_CLOCK
Input
Pull - down
Clocks in serial data present at S_DATA input
into the shift register on the rising edge of
S_CLOCK.
20
21
23
24
25
S_DATA
S_LOAD
REF_CLK1
REF_CLK0
REF_SEL
Input
Input
Input
Input
Input
Pull - down
Pull - down
Pull - down
Pull - down
Pull - down
Shift register serial input. Data is sampled on the
rising edge of S_CLOCK.
Controls transition of data from shift register into
the dividers. LVCMOS / LVTTL interface levels
Input reference clock. LVCMOS / LVTTL interface
levels.
Input reference clock. LVCMOS / LVTTL interface
levels.
Selects between the different reference clock
inputs as the PLL reference source. See Table
3D. LVCMOS / LVTTL interface levels.
27, 28, 29, 30, 31
32, 34, 35, 36
N/C
No connection. Internal test pins.
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
4
fax: 508-852-8456
www.micronetworks.com
Micro Networks
An Integrated Circuit Systems Company
PIN CHARACTERISTICS
TABLE 4
Symbol
C
IN
Parameter
Input Capacitance
Test Conditions
Min
Typical
M2005-02
Preliminary Specifications
Max
4
Units
pF
R
PULLUP
R
PULLDOWN
Input Pullup Resistor
Input Pulldown Resistor
PARALLEL & SERIAL MODES FUNCTION
51
51
kΩ
kΩ
TABLE 5A
MR
H
nP_LOAD
X
M
X
Inputs
N
S_LOAD S_CLOCK S_DATA
X
X
X
X
Conditions
Reset, Forces outputs LOW.
L
L
L
L
L
H
H
H
H
H
X
X
X
X
X
X
X
X
X
X
L
↑
↓
L
H
↑
L
L
X
↑
Data
Data
Data
X
Data
Serial input mode. Shift register is loaded with data
on S_DATA on each rising edge of S_CLOCK.
Contents of the shift register are passed to the M
divider and N output divider.
M divider and N output divider values are latched.
Parallel or serial input do not affect shift registers.
S_DATA passed directly to M divider as it is
clocked.
Note: L = Low; H = High; X = Don’t care;
↑
= Rising Edge Transition;
↓
= Falling Edge Transition
Micro Networks
324 Clark Street
Worcester, MA 01606
tel: 508-852-5400
5
fax: 508-852-8456
www.micronetworks.com
