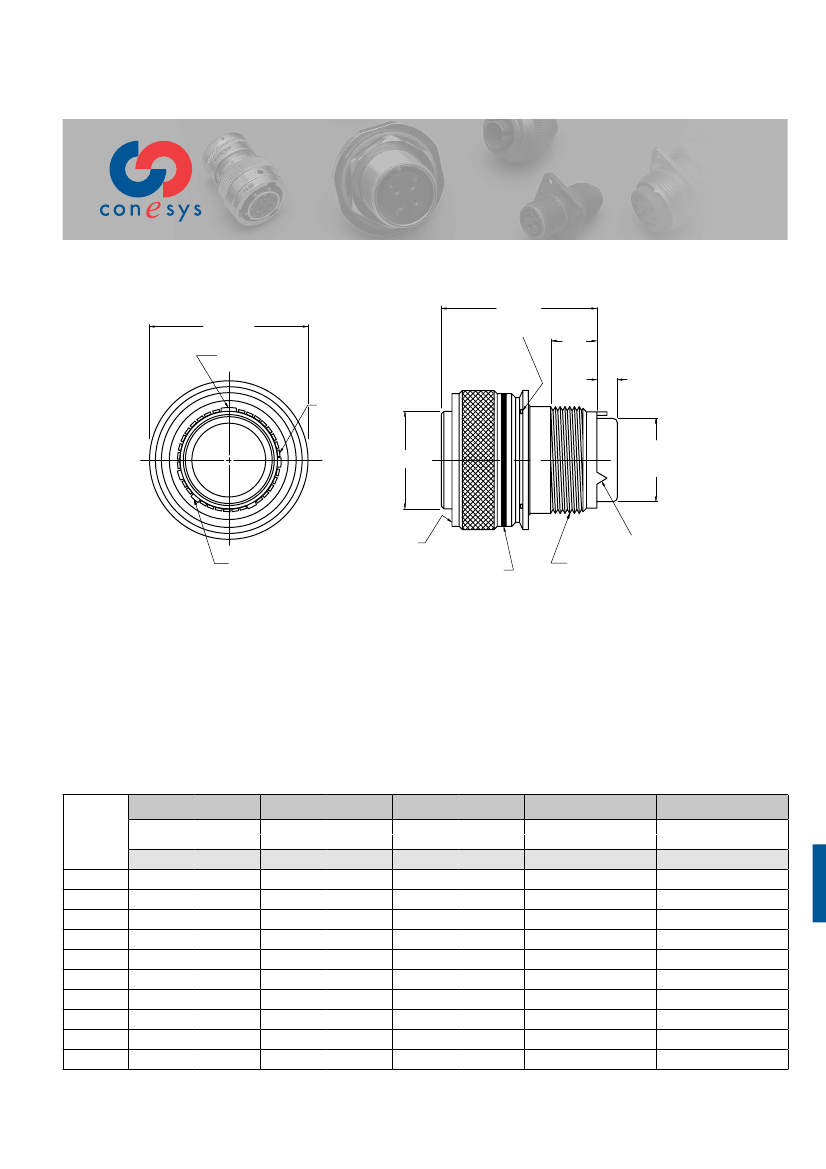

M83723/91, 92
RFI Grounding Plug
AE83391, 92
Threaded Coupling, Crimp Removable, Rear Release
1.180(29.97)
MAX
3X .035(.89)
SAFETY WIRE HOLES
B
MAX
COUPLING NUT
MASTER KEY
.290(7.37)
MIN
FULL
THREAD
.190(4.83)
.130(3.30)
GROMMET
EXTENSION
RFI STRIP
A
MAX
GROMMET
C
D
MATING THREAD
4 MINOR KEYS
BLUE COLOR BAND
3 ACCESSORY TEETH
EQUALLY SPACED
E
ACCESSORY THREAD
Page 129
Page 145
Pages 148,149
Page 128
Page 147
Page 143
Completed Part Number
Contacts, Sealing Plugs and Tools
Insert Arrangements
Performance Specifications
Insert Availability and Contact Information
Polarization
Ø
A
Ø
B
+.13
-.10
mm
10.16
13.23
17.55
19.30
22.53
25.22
28.40
31.57
34.75
41.10
Maximum
inch
.776
.906
1.078
1.141
1.266
1.375
1.510
1.625
1.760
2.050
mm
19.71
23.01
27.38
28.98
32.16
34.93
38.35
41.28
44.70
52.07
Ø
C
Maximum
inch
.305
.405
.531
.665
.790
.869
.994
1.119
1.244
1.475
mm
7.75
10.29
13.49
16.89
20.07
22.07
25.25
28.42
31.60
37.47
9/16-24UNEF
11/16-24UNEF
7/8-20UNEF
15/16-20UNEF
1-1/16-18UNEF
1-3/16-18UNEF
1-5/16-18UNEF
1-7/16-18UNEF
1-9/16-18UNEF
1-13/16-16UN
1/2-20UNF
5/8-24UNEF
3/4-20UNEF
7/8-20UNEF
1-20UNEF
1-1/16-18UNEF
1-3/16-18UNEF
1-5/16-18UNEF
1-7/16-18UNEF
1-3/4-18UNS
D
Mating Thread
Class 2B
E
Accessory Thread
Class 2A
Shell
Size
8
10
12
14
16
18
20
22
24
28
+.005
-.004
inch
.400
.521
.691
.760
.887
.993
1.118
1.243
1.368
1.618
