RMCF1/20.275%A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RMCF1/20.275%A

RMCF1/20.275%A: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 0.75W, 5%, 500ppm, 0.27ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size231KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/; Environmental Compliance

Download Datasheet Parametric View All

RMCF1/20.275%A Overview

RESISTOR, METAL GLAZE/THICK FILM, 0.75W, 5%, 500ppm, 0.27ohm, SURFACE MOUNT, 2010, CHIP, ROHS COMPLIANT

RMCF1/20.275%A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	2063105318
package instruction	, 2010
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e3
Manufacturer's serial number	RMC
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
resistance	0.27 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	500 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	200 V

RMCF1/20.275%A Preview

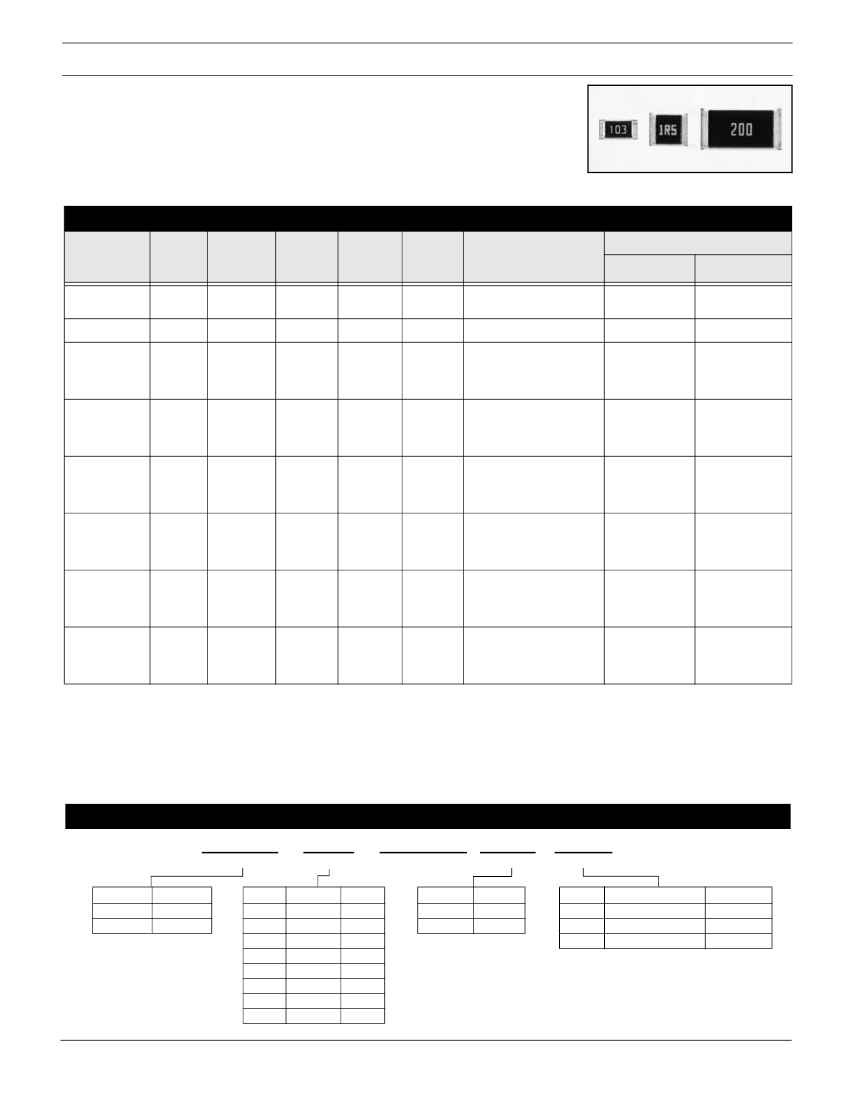

RMC Series — General Purpose Thick Film Chip Resistors

Features

• Nickel barrier terminations standard

• Power derating from 100% at 70°C to

zero at +150°C

• Operating temp range from -65°C to +150°C

• Zero ohm available (max resistance 0.05Ω)

• RoHS compliant / lead-free available (RMCF)

Electrical Specifications

Type / Code

Package

Size

Power

Rating

(Watts)

@ 70°C

0.05W

0.063W

Maximum

Working

Voltage*

Maximum

Overload

Voltage

100

Max.

Current

Resistance Temperature

Coefficient

±300 ppm/°C

±200 ppm/°C

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

±200

±100

±350

ppm/°C

Ohmic Range and Tolerance

10Ω – 97.6Ω

100Ω – 10M

1Ω – 10M

1Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

0.1Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

–

0.1Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

–

0.1Ω – 97.6Ω

100Ω – 1MΩ

1.02M – 10M

–

0.1Ω – 97.6Ω

100Ω – 1M

1.02M – 10M

–

0.1Ω – 9.76Ω

10Ω – 97.6Ω

100Ω – 1M

–

10Ω – 91Ω

100Ω – 10M

1Ω – 10M

1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 24M

0.15Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

0.1Ω – 9.1Ω

10Ω – 1M

–

1.1M – 22M

RMC 1/20

RMC 1/16S

0201

0402

1 Amp

RMC 1/16

0603

0.1W

100

1 Amp

RMC 1/10

0805

0.125W

150

300

2 Amp

RMC 1/8

1206

0.25W

200

400

2 Amp

RMC 1/4

1210

0.33W

200

400

3 Amp

RMC 1/2

2010

0.75W

200

400

3 Amp

RMC 1

2512

200

400

3 Amp

* Lesser of

√

PR or maximum working voltage.

How to Order

RMC

SEI Type

RMC

RMCF

Description

Standard

RoHS

Code

1/20

1/16S

1/16

1/10

1/8

1/4

1/2

1/16

Code

Wattage

0.05W

0.063W

0.1W

0.125W

0.25W

0.33W

0.75W

Size

0201

0402

0603

0805

1206

1210

2010

2512

4.7K

Nominal Resistance

Tolerance

Values

E96,E24

E24

Packaging

Code

Description

7" reel - Paper

10" reel - Paper

Bulk

Pkg Qty

5,000

10,000

1,000

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

RMC Series — General Purpose Thick Film Chip Resistors

Mechanical Specifications

Type / Code

RMC 1/20

RMC 1/16S

RMC 1/16

RMC 1/10

RMC 1/8

RMC 1/4

RMC 1/2

RMC 1

Body Length

0.024 ± 0.001

0.60 ± 0.03

0.039 ± 0.002

1.00 ± 0.05

0.063 ± 0.004

1.60 ± 0.10

0.079 ± 0.004

2.00 ± 0.20

0.126 ± 0.006

3.20 ± 0.20

0.126 ± 0.006

3.20 ± 0.20

0.197 ± 0.006

5.00 ± 0.20

0.248 ± 0.006

6.30 ± 0.20

Body Width

0.011 ± 0.001

0.30 ± 0.03

0.020 ± 0.002

0.50 ± 0.05

0.031 ± 0.004

0.80 ± 0.10

0.049 ± 0.004

1.25 ± 0.10

0.063 ± 0.006

1.60 ± 0.15

0.098 ± 0.006

2.50 ± 0.20

0.098 ± 0.006

2.50 ± 0.20

0.126 ± 0.006

3.20 ± 0.20

Body Height

0.009 ± 0.001

0.23 ± 0.03

0.014 ± 0.002

0.35 ± 0.05

0.018 ± 0.004

0.45 ± 0.10

0.020 ± 0.006

0.50 ± 0.15

0.021 ± 0.006

0.55 ± 0.15

0.021 ± 0.006

0.55 ± 0.15

0.021 ± 0.006

0.55 ± 0.15

0.021 ± 0.006

0.55 ± 0.15

Top Termination

0.004 ± 0.002

0.10 ± 0.05

0.008 ± 0.004

0.20 ± 0.10

0.012 ± 0.008

0.30 ± 0.20

0.016 ± 0.008

0.40 ± 0.20

0.020 ± 0.010

0.50 ± 0.25

0.020 ± 0.010

0.50 ± 0.25

0.024 ± 0.010

0.60 ± 0.25

0.024 ± 0.010

0.70 ± 0.25

Bottom Termination

0.006 ± 0.002

0.15 ± 0.05

0.010 +0.002, -0.004

0.25 +0.05, -0.10

0.012 ± 0.008

0.30 ± 0.20

0.016 ± 0.008

0.40 ± 0.20

0.020 ± 0.010

0.50 ± 0.25

0.020 ± 0.010

0.50 ± 0.25

0.024 ± 0.010

0.60 ± 0.25

0.024 ± 0.010

0.70 ± 0.25

Units

inches

*Lead free (RMCF) dimensions same as standard parts

Performance Characteristics

Test

Short Time Overload

Dielectric Withstanding Voltage

Resistance to Soldering Heat

Solderability

Temperature Cycle

Test Conditions (JIS C 5202)

2.5x rated voltage for 5 seconds

100VAC, 1 minute

260°C ±5°C, for 10 sec. ±0.5 sec. (Solder Bath)

235°C ±5°C, for 2 sec. ±0.5 sec. (Colophonium flux)

-65°C: 30 min. 25°C: 2 to 3 min.

150°C: 30 min. 25°C: 2 to 3 min.

(5 Cycles)

40°C ± 2°C, 90% RH, Rated Load

90 min. On, 30 min. Off, (1,000 hrs. - 0 hrs. + 48 hrs.)

70°C ± 2°C, Rated Load

90 min. On, 30 min. Off, (1,000 hrs. - 0 hrs. + 48 hrs.)

1/10 rated voltage for 3 sec. max, then rated voltage for 3 sec. max.

Bend of 3mm for 5 ± 1 sec.

Test Results

±(2% +0.1Ω)

±(1% +0.05Ω)

95% coverage, minimum

±(1% +0.05Ω)

Jumper (<0.05Ω)

±(3% +0.1Ω)

Jumper (<0.05Ω)

±(3% +0.1Ω)

Jumper (<0.05Ω)

±100 (ppm/V)

±(1.0% + 0.05 Ohm)

Endurance (Damp load)

Endurance (Rated load)

Voltage Coefficient

Robustness of Termination

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
