Curvette
LRA-Series
Single Pole Lighted Rocker
& Paddle Switches
Since its introduction, the Curvette switch has become the barometer for versatility
and performance in the miniature switch market. This lighted version features the
very same self cleaning contacts, International approvals, along with a wide variety of
circuits, ratings, and actuator options that make the Curvette the switch of choice for
sundry markets including HVAC, Office Lighting, Transportation, Commercial Food
and Lawn & Garden.
Carling Technologies, Inc.
60 Johnson Avenue • Plainville, CT 06062-1177
Phone: (860) 793-9281 • Fax: (860) 793-9231
Email: sales@carlingtech.com • www.carlingtech.com

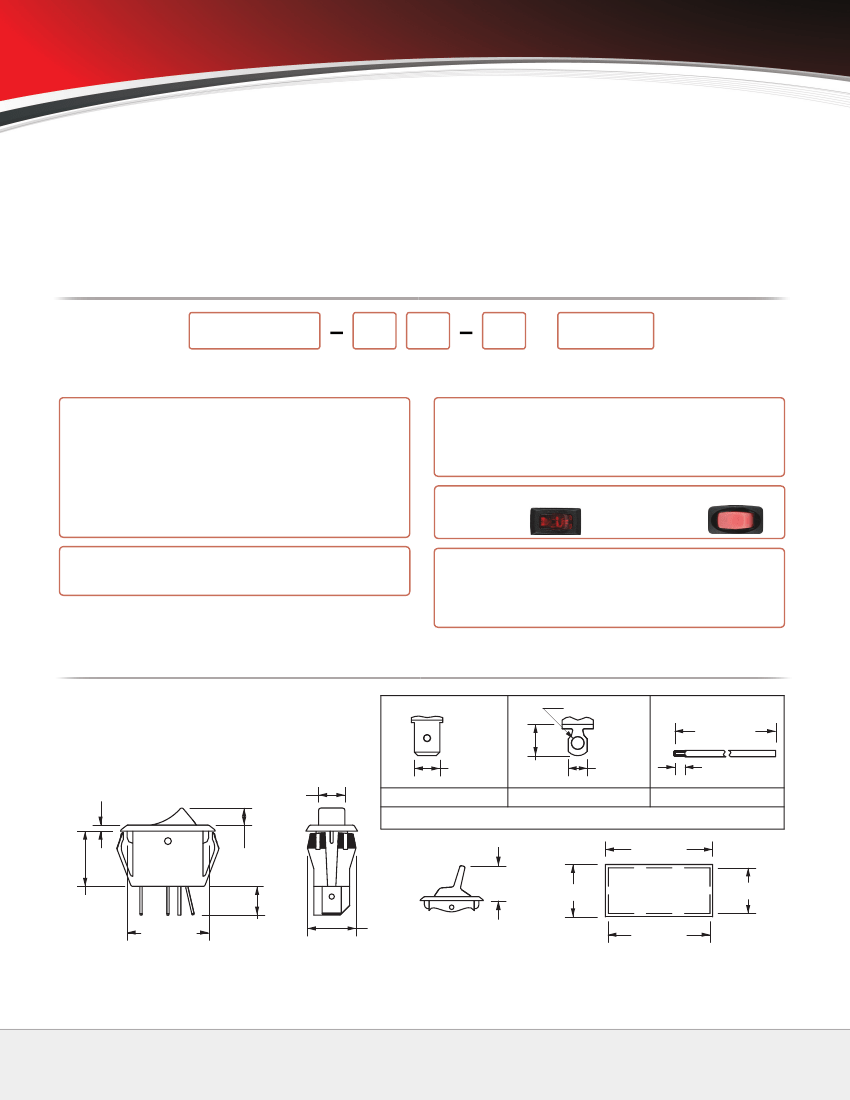

2 | Curvette LRA-Series Single Pole Lighted Rocker and Paddle Switches
Dielectric Strength
UL/CSA:
1000V-live to dead metal parts
VDE:
4000V - live to dead metal parts;
750V - across open contacts
Mechanical Life
100,000 cycles
Operating Temperature
32°F to 185°F (0°C to 85°C)
Electrical Life
100,000 cycles
1
Base Part Number
LRA911
2
Actuator
Style
R S
3
Actuator
Color
4
Bezel
Color/Style
B / 250N
5
Lamp Voltage
clear
A
C
G
1
B
1
R
Amber
Clear
Green
Blue
Red
1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING
2
/TERMINATION
125 neon lamp (use 125N in Selection 5 Lamp Voltage)
10A 250VAC; 16A 125VAC; 10(4)A 125VACu
Solder Lugs
.250 Tabs
Wire Leads
OFF-NONE-ON
LRA210
LRA211
LRA215
250 neon lamp (select 250N in selection 5 Lamp Voltage)
15A 250 VAC; 10A 250VAC; 16A 125VAC; 10(4)A 250 T85
Solder Lugs
.250 Tabs
OFF-NONE-ON
LRA910
LRA911
LRA915
Incandescent lamp (select 006V-024V in selection 5 Lamp Voltage)
10A 30V
Solder Lugs
.250 Tabs
Wire Leads
OFF-NONE-ON
LRA510
LRA511
LRA515
2 ACTUATOR STYLE
P
R
C
Paddle
Rocker translucent
Rocker Clear
3 ACTUATOR COLOR
translucent
A
Amber
C
White
P
Yellow
S
Red
W
Pale Red
4 BEZEL COLOR/STYLE
STANDARD
B
Black (matte)
W
White (matte)
OVAL
1
Black (gloss)
2
White (gloss)
5 LAMP VOLTAGE
006V
012V
018V
024V
125N
1
250N
1
Notes:
LED illumination, PC terminals, independent lamps, and additional color options are
available. Consult factory.
1
Neon lamps not available with blue or green actuators.
2
Consult factory for additional ratings.
6 volts incandescent
12 volts incandescent
18 volts incandescent
24 volts incandescent
125 volts neon
250 volts neon
.125[3.18] DIA
6.000[152.40]
.250[6.35]
.080[2.03]
.375[9.52]
.250 TAB (Q.C.)
.250[6.35]
.187[4.75]
.500[12.70]
WIRE LEAD
SOLDER LUG
TERMINAL TYPE
.187[4.75]
.710[18.03]
.725[18.41]
1.070[27.17]
.375[9.53]
.620[15.75]
PADDLE
1.125[28.58]
TEST CUT HOLE
IN ACTUAL
MATERIAL
1.072[27.23]
MOUNTING HOLE
Panel Thickness: .025 min. - .187 max.
Specific cutout dimension range
dependent on panel thickness and material.
Consult factory.
*Manufacturer reserves the right to change product specification without prior notice.
.550[13.97]
.480[12.19]
REV_SW_LRA_0712
