1-Watt SMD 6mm
(120° Viewing Angle)
OVSPW1BCR4
•
•
•
•
•
Robust energy-efficient design with long operating life
Low thermal resistance—10 C/W
Exceptional spatial uniformity
Optional optics to suit application
High Lumens output
The
OVSPW1BCR4
is an energy-efficient packaged LED source that offers high luminance, and a long operating
lifespan. This device offers a 120° viewing angle and an ultra-low profile (1.5mm) making it highly suitable for
conventional lighting and specialized applications. Optional optics are offered to suit application. Please contact
OPTEK for more information.
Applications
•
Automotive exterior and interior lighting
•
Architectural indoor and outdoor lighting
•
General lighting
•
Electronic signs and signals
Part Number
OVSPW1BCR4
Viewing Angle Emitted Color
120
o
White
Typical Luminous
Flux (lm)
90
Typical On-Axis
Intensity (cd)
na
Lens Color
Water Clear

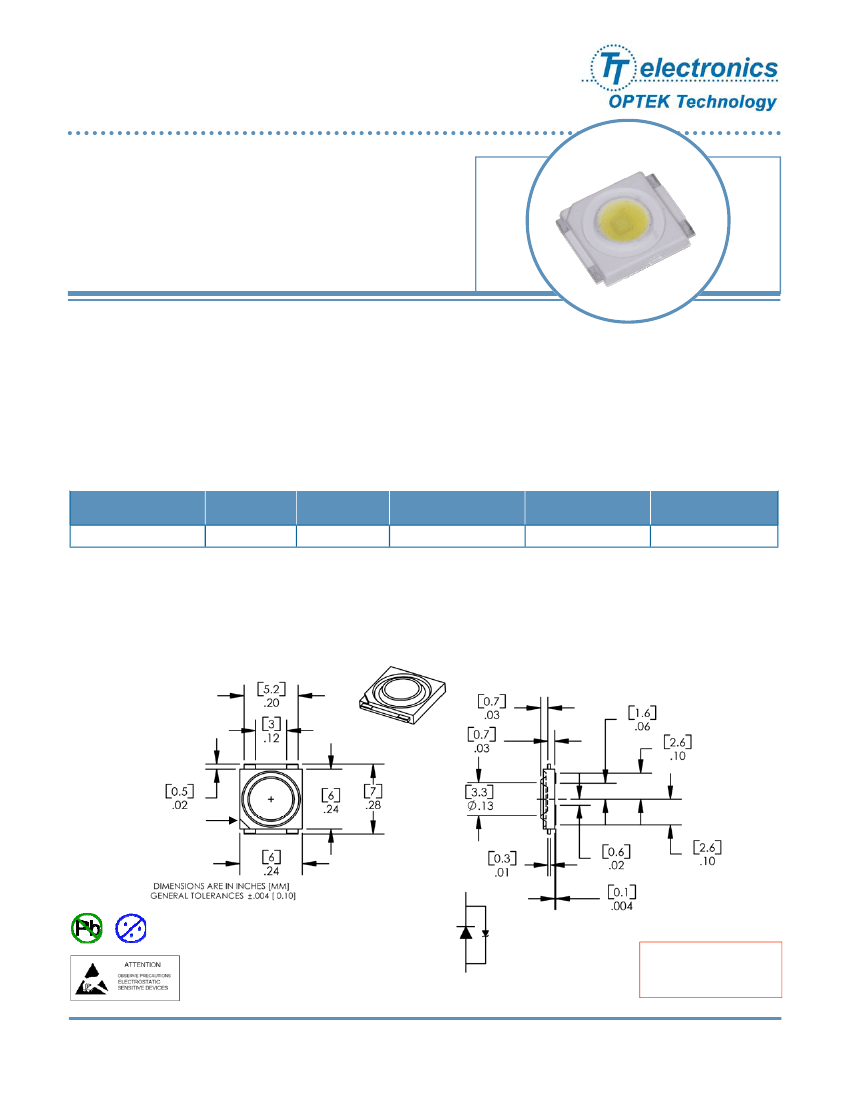

ORIENTATION MARK
POLARITY VARIES BY COLOR
2
RoHS
Moisture
▲
DO NOT LOOK DIRECTLY
AT LED WITH UNSHIELDED
EYES OR DAMAGE TO
RETINA MAY OCCUR.
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/08
Page 1 of 9
1-Watt SMD 6mm
OVSPW1BCR4
Absolute Maximum Ratings
T
A
= 25°C
DC Forward Current
Peak Pulsed Forward Current
1
Reverse Voltage
Junction Temperature
2
Power Dissipation
Storage and Operating Temperature
ESD Threshold (HBM)
Notes:
1. Pulse width tp
≤
10µs, Duty cycle = 0.1
2. Thermal conductivity = 10 C/W
350mA
1000mA
Not designed for reverse bias
125°C
1200mW
-40° ~ +100 ° C
2000V
Optical and Electrical Characteristics
SYMBOL
V
F
Φ
I
R
2
Θ½
PARAMETER
Forward Voltage
Luminous Flux
Reverse Current
50% Power Angle
(I
F
= 350 mA, T
A
= 25° C)
MIN
3.0
67
----
----
TYP
3.5
90
10
120
MAX
4.0
113
----
----
UNITS
V
lm
µA
deg
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A 10/08
Page 2 of 9
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
1-Watt SMD 6mm
OVSPW1BCR4
OVSPW1BCR4 (White)
LEDs are sorted to luminous flux (Φ), chromaticity coordinates, and correlated color temperature (CCT) bins
shown. Orders may be filled with any or all bins contained as below.
Standard Bins
(I
F
= 350 mA)

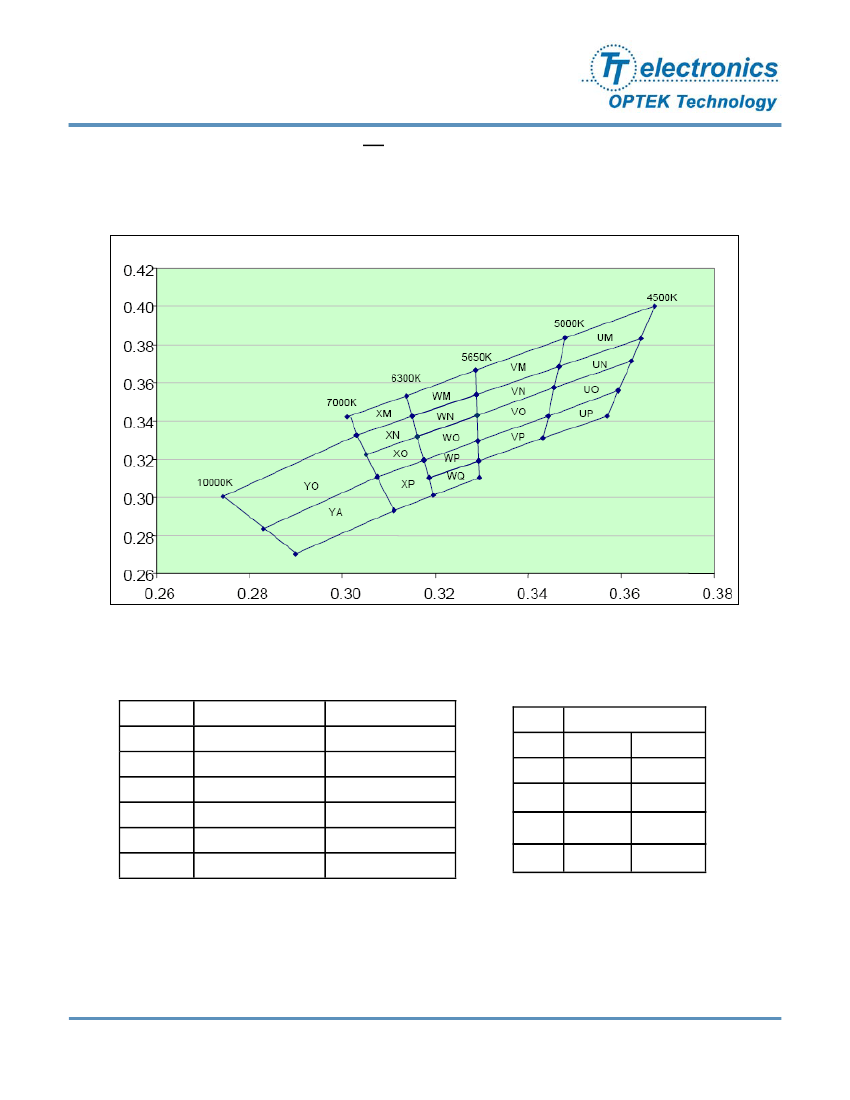

White CCT Bin Structure
4500K
5000K
5650K
6300K
7000K
XM
XN
XM
10000K
YO
XO
XP
YA
Color Bin Minimum CCT (K) Maximum CCT (K)
Φ
Bin
Luminous Flux (lm
Min
67.2
76.5
87.4
99.4
Max
76.5
87.4
99.4
113.6
U
V
W
X
Y
4500
5000
5650
6300
7000
5000
5650
6300
7000
10000
T2
T3
U2
U3
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/08
Page 3 of 9
Bin
YO
YA
XM
XN
XO
XP
WM
WN
WO
WP
WQ
VM
VN
VO
VP
UM
UN
UO
UP
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
Cx
Cy
1
0.274
0.301
0.283
0.284
0.301
0.342
0.303
0.333
0.305
0.322
0.308
0.311
0.314
0.353
0.315
0.343
0.316
0.332
0.318
0.319
0.319
0.310
0.329
0.366
0.329
0.354
0.329
0.343
0.329
0.330
0.348
0.383
0.347
0.368
0.346
0.357
0.344
0.343
2
0.303
0.333
0.308
0.311
0.314
0.353
0.315
0.343
0.316
0.332
0.318
0.319
0.329
0.366
0.329
0.354
0.329
0.343
0.329
0.330
0.329
0.319
0.348
0.383
0.347
0.368
0.346
0.357
0.344
0.343
0.367
0.400
0.364
0.383
0.362
0.372
0.359
0.356
3
0.308
0.311
0.311
0.293
0.315
0.343
0.316
0.332
0.318
0.319
0.320
0.301
0.329
0.354
0.329
0.343
0.329
0.330
0.329
0.319
0.330
0.311
0.347
0.368
0.346
0.357
0.344
0.343
0.343
0.331
0.364
0.383
0.362
0.372
0.359
0.356
0.357
0.343
4
0.283
0.284
0.290
0.270
0.303
0.333
0.305
0.322
0.308
0.311
0.311
0.293
0.315
0.343
0.316
0.332
0.318
0.319
0.319
0.310
0.320
0.301
0.329
0.354
0.329
0.343
0.329
0.330
0.329
0.319
0.347
0.368
0.346
0.357
0.344
0.343
0.343
0.331
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
Issue A 10/08
Page 4 of 9
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
1-Watt SMD 6mm
OVSPW1BCR4

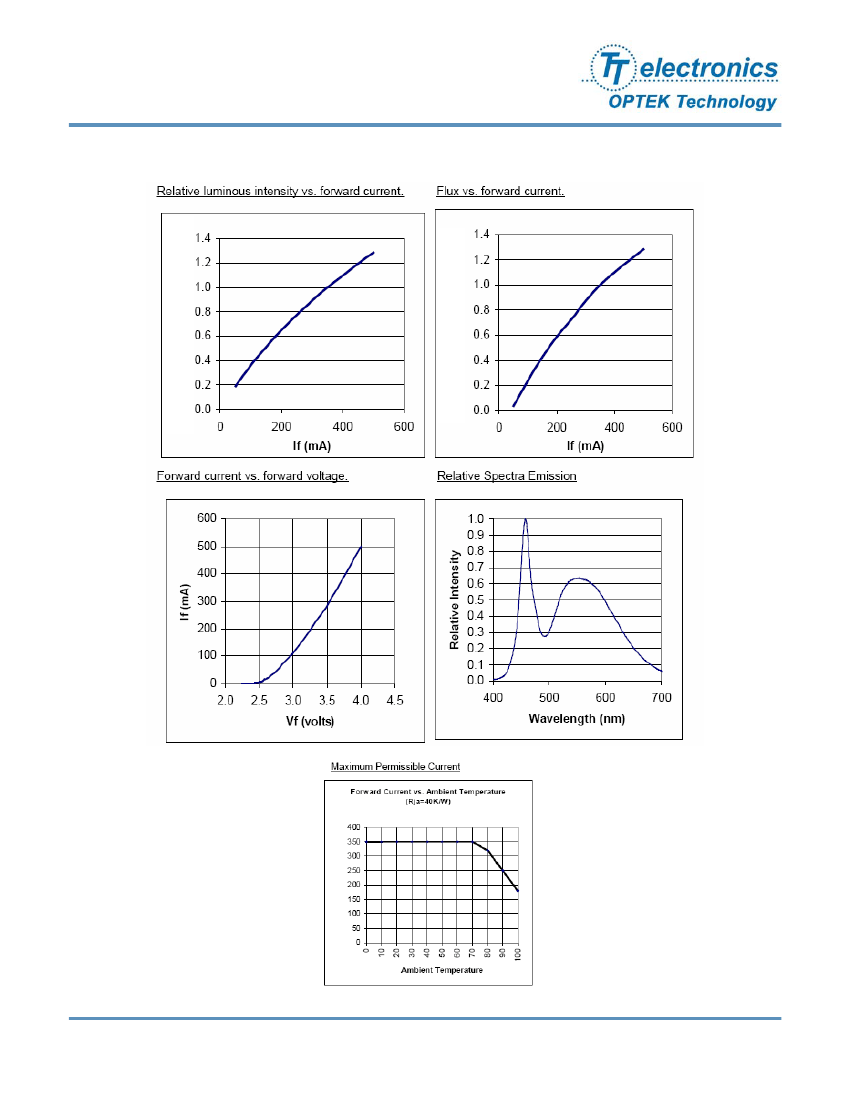

Typical Electro-Optical Characteristics Curves
Relative Intensity, Normalized at 350mA
OPTEK reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc. —
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (972) 323-2200 or (800) 341-4747 FAX: (972) 323-2396 visibleLED@optekinc.com www.optekinc.com
Issue A 10/08
Page 5 of 9
Relative Flux, Normalized at 350mA
