MEWC0.56-20-275 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> MEWC0.56-20-275

MEWC0.56-20-275: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 0.56uF, THROUGH HOLE MOUNT, RADIAL LEAD; CategoryPassive components capacitor; File Size87KB，2 Pages; ManufacturerASC Capacitors; Environmental Compliance

Download Datasheet Parametric View All

MEWC0.56-20-275 Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 0.56uF, THROUGH HOLE MOUNT, RADIAL LEAD

MEWC0.56-20-275 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	2031758250
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.56 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
JESD-609 code	e3
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
positive tolerance	20%
Rated (AC) voltage (URac)	275 V
surface mount	NO
Terminal surface	Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

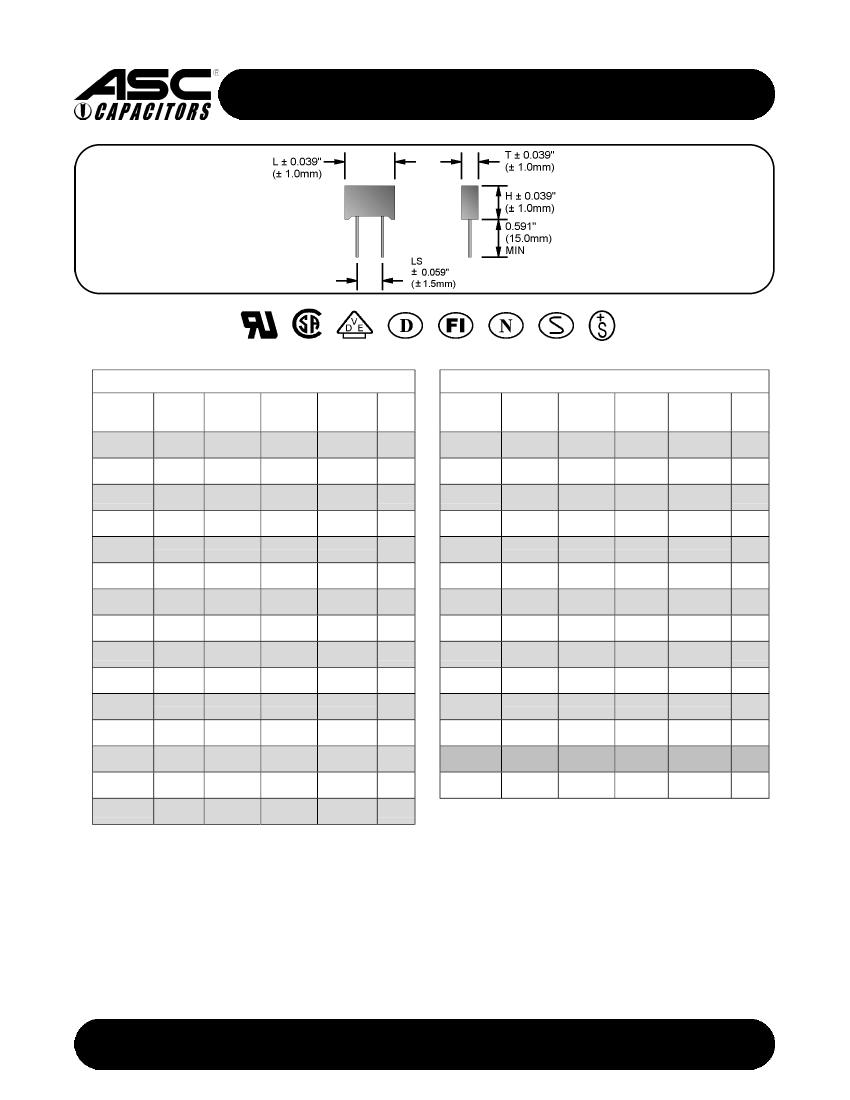

METALLIZED POLYESTER CLASS X2

INTERFERENCE SUPPRESSORS

MEWC

PAGE 1 OF 2

250VAC/275VAC

CAP

(µF)

0.01

0.012

0.015

0.018

0.022

0.027

0.033

0.039

0.047

0.056

0.068

0.082

0.10

0.12

0.15

± 0.039

(±1.0MM)

0.177"

(4.5mm)

0.177"

(4.5mm)

0.177"

(4.5mm)

0.177"

(4.5mm)

0.177"

(4.5mm)

0.217"

(5.5mm)

0.217"

(5.5mm)

0.197"

(5.0mm)

0.197"

(5.0mm)

0.197"

(5.0mm)

0.197"

(5.0mm)

0.236"

(6.0mm)

0.236"

(6.0mm)

0.315"

(8.0mm)

0.315"

(8.0mm)

± 0.039

(±1.0MM)

0.413"

(10.5mm)

0.413"

(10.5mm)

0.413"

(10.5mm)

0.413"

(10.5mm)

0.413"

(10.5mm)

0.453"

(11.5mm)

0.453"

(11.5mm)

0.413"

(10.5mm)

0.433"

(11.0mm)

0.433"

(11.0mm)

0.433"

(11.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.590"

(15.0mm)

0.551"

(15.0mm)

± 0.039

(±1.0MM)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.472"

(12.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

0.669"

(17.0mm)

LEAD

± 0.059"

AWG

(± 1.5mm)

0.393"

(10.0mm)

0.393"

(10.0mm)

0.393"

(10.0mm)

0.393"

(10.0mm)

0.393"

(10.0mm)

0.394"

(10.0mm)

0.394"

(10.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

CAP

(µF)

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

250VAC/275VAC

± 0.039

(±1.0MM)

0.354"

(9.0mm)

0.354"

(9.0mm)

0.315"

(8.0mm)

0.315"

(8.0mm)

0.374"

(9.5mm)

0.374"

(9.5mm)

0.394"

(10.0mm)

0.394"

(10.0mm)

0.492"

(12.5mm)

0.492"

(12.5mm)

0.571"

(14.5mm)

0.571"

(14.5mm)

0.670"

(17.0mm)

0.670"

(17.0mm)

± 0.039

(±1.0MM)

0.630"

(16.0mm)

0.630"

(16.0mm)

0.689"

(17.5mm)

0.689"

(17.5mm)

0.748"

(19.0mm)

0.748"

(19.0mm)

0.748"

(19.0mm)

0.748"

(19.0mm)

0.807"

(20.5mm)

0.807"

(20.5mm)

0.945"

(24.0mm)

0.945"

(24.0mm)

1.142"

(29.0mm)

1.142"

(29.0mm)

± 0.039

(±1.0MM)

0.669"

(17.0mm)

0.669"

(17.0mm)

1.004"

(25.5mm)

1.004"

(25.5mm)

1.004"

(25.5mm)

1.004"

(25.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

1.200"

(30.5mm)

LEAD

± 0.059"

AWG

(± 1.5mm)

0.591"

(15.0mm)

0.591"

(15.0mm)

0.886"

(22.5mm)

0.886"

(22.5mm)

0.886"

(22.5mm)

0.886"

(22.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)

1.083"

(27.5mm)
