8402-15-14-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 8402-15-14-1

8402-15-14-1: DescriptionBoard Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size72KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

8402-15-14-1 Overview

Board Connector, 14 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Wire Wrap Terminal, Locking, Black Insulator

8402-15-14-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	307765433
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.1 inch
subject depth	0.193 inch
body length	1.416 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	1.946 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	8402
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.508 inch
Terminal pitch	2.54 mm
Termination type	WIRE WRAP
Total number of contacts	14
Evacuation force-minimum value	.3058 N

Preview

Download Datasheet

View All

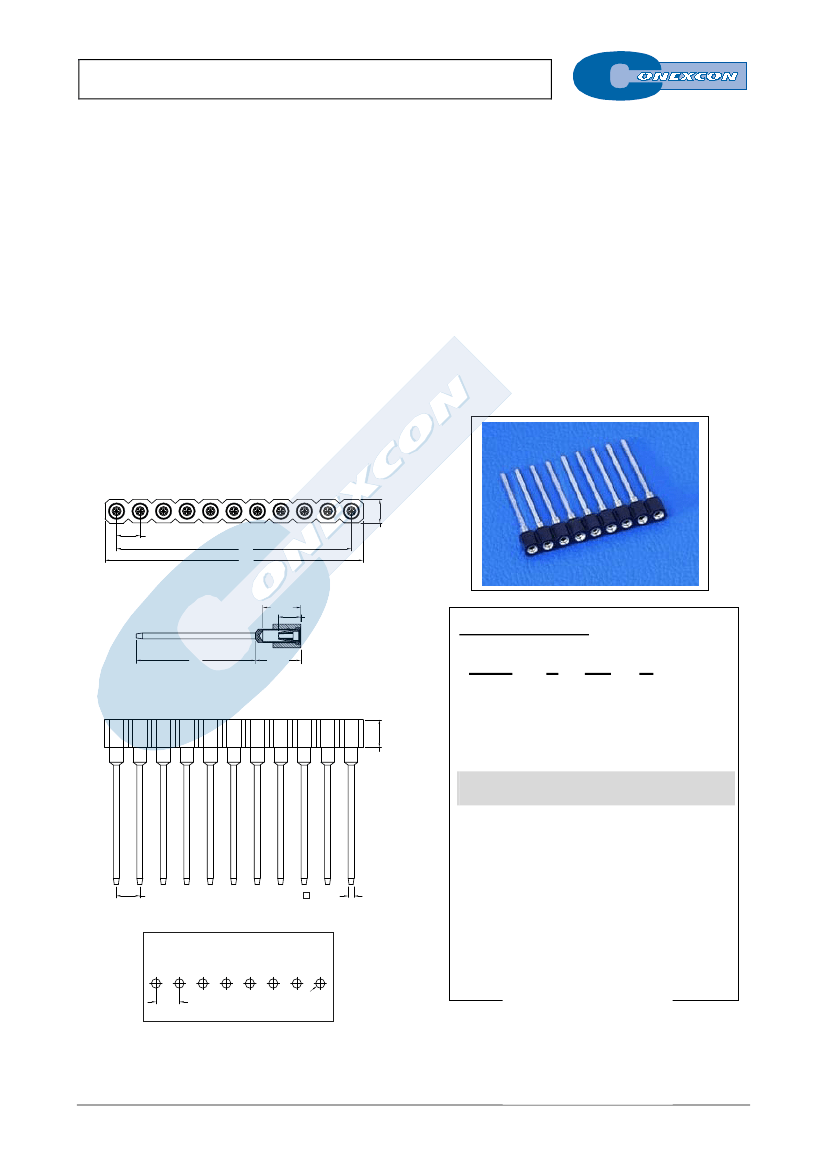

SINGLE ROW VERTICAL SOCKET

8402 SERIES.

2.54 mm. (0.100”) pitch. Machined contact.

General Features

Electrical Features



Available in 2 through 40 circuits



Mates with pin headers 2.54 mm. pitch 8412, 8394,

8398 and 8396 series



Accept round pin 0.40 mm to 0.56 mm

Low profile 4.90 mm.

Square pin 0.64 mm in solder area with different lenghts

With different plating



Voltage rating: < 250V

Current rating: < 3A

Contact resistance: < 10 mΩ

Dielectric withstanding Voltage: 1000 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: PPS black + 30% GF UL 94 V-0

Contact: Clip 4 fingers): Beryllium copper

Sleeve: Brass

Operating temperature. -40ºC to +105ºC

RoHS compliant



Insertion force per pin: < 0.20 Kgf (round pin 0.43 mm)



Withdrawal force per pin: > 0.03 Kgf (round pin 0.43 mm)



Durability: 500 Cycles

Dimension Information

2.54±0.10

4.10

2.40

2.54±0.15

Ordering Information:

4.90

8402 -

T-

XX-

1. Connector Series

3.00±0.15

2. (T) Contact Plating



T =

13.

Selec. gold flash over 30-50µ" Ni overall

Recommended Finish



T =

15.

15µ" selec. gold over 30-50µ" Ni overall



T =

16.

30µ" selec. gold over 30-50µ" Ni overall

3. (XX) Number of circuits



Available in 2 through 40 circuits

2.54

0.635

4. (C) Pin length

RECOMMENDED HOLE PATTERN

(Tolerance ±0.05)



C=1. Dimensión H= 12.90 mm.

C=2. Dimensión H= 9.40 mm.

C=3. Dimensión H= 6.60 mm.

C=4. Dimensión H=16.00 mm.

Dimensions:

(In mm.)

= 2.54 x (XX*-1)

= 2.54 x (XX*)+0.40

* XX

(Number of circuits)

2.54

ø1

A-XX
