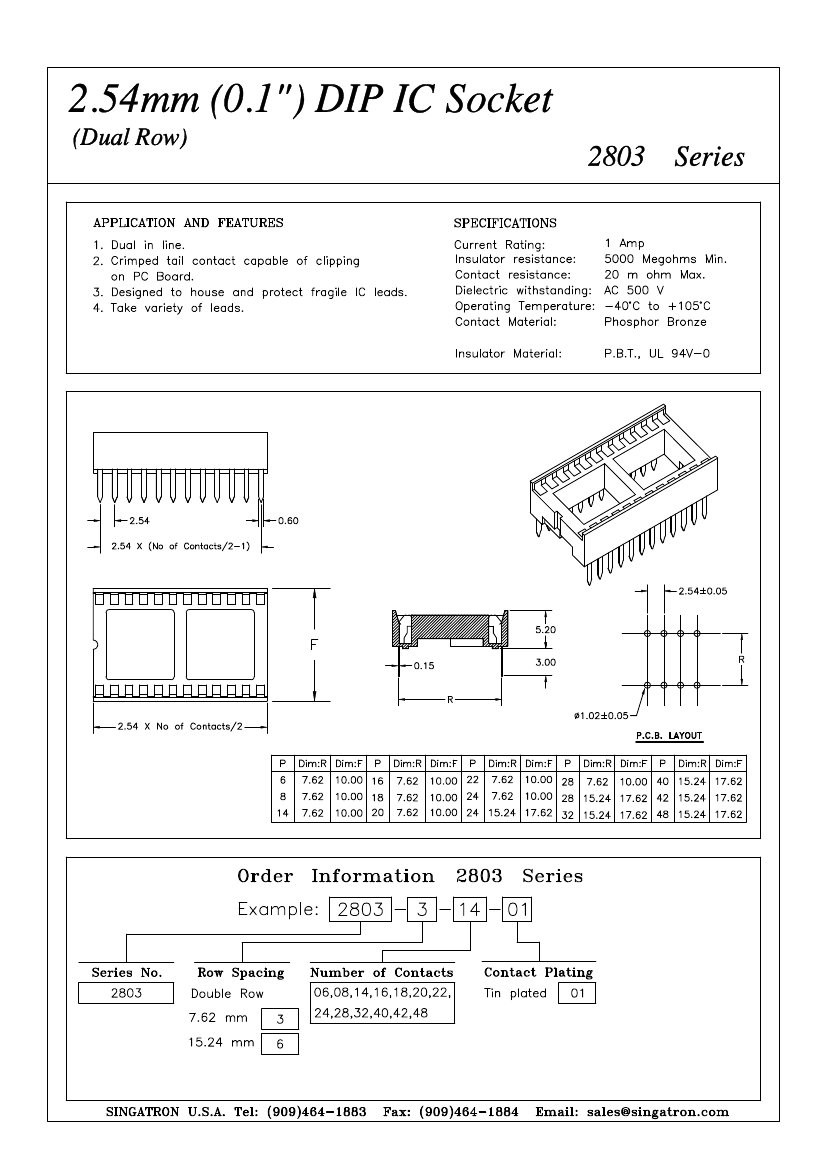

2803-3-16-01 datasheet, PDF - EEWORLD Datasheet

2803-3-16-01: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder; CategoryThe connector socket; File Size80KB，1 Pages; ManufacturerSingatron Enterprises Co

Download Datasheet Parametric View All

2803-3-16-01 Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder

Parameter Name	Attribute value
Objectid	1159677450
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.394 inch
subject depth	0.205 inch
body length	0.8 inch
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact material	P-CUSN
Contact style	SQ PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Dielectric withstand voltage	500VAC V
Shell material	POLYBUTYLENE TEREPHTHALATE
Insulation resistance	5000000000 Ω
Manufacturer's serial number	2803
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER
