2002R-12TW-L datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 2002R-12TW-L

2002R-12TW-L: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size265KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

2002R-12TW-L Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.079 inch Pitch, Solder Kinked Leads Terminal, Locking, Receptacle

2002R-12TW-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305183738
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.183 inch
subject depth	0.299 inch
body length	1.024 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHORUS-BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	800VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYAMIDE
Manufacturer's serial number	2002
Plug contact pitch	0.079 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
polarization key	POLARIZED HOUSING
Rated current (signal)	2 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	12

Preview

Download Datasheet

View All

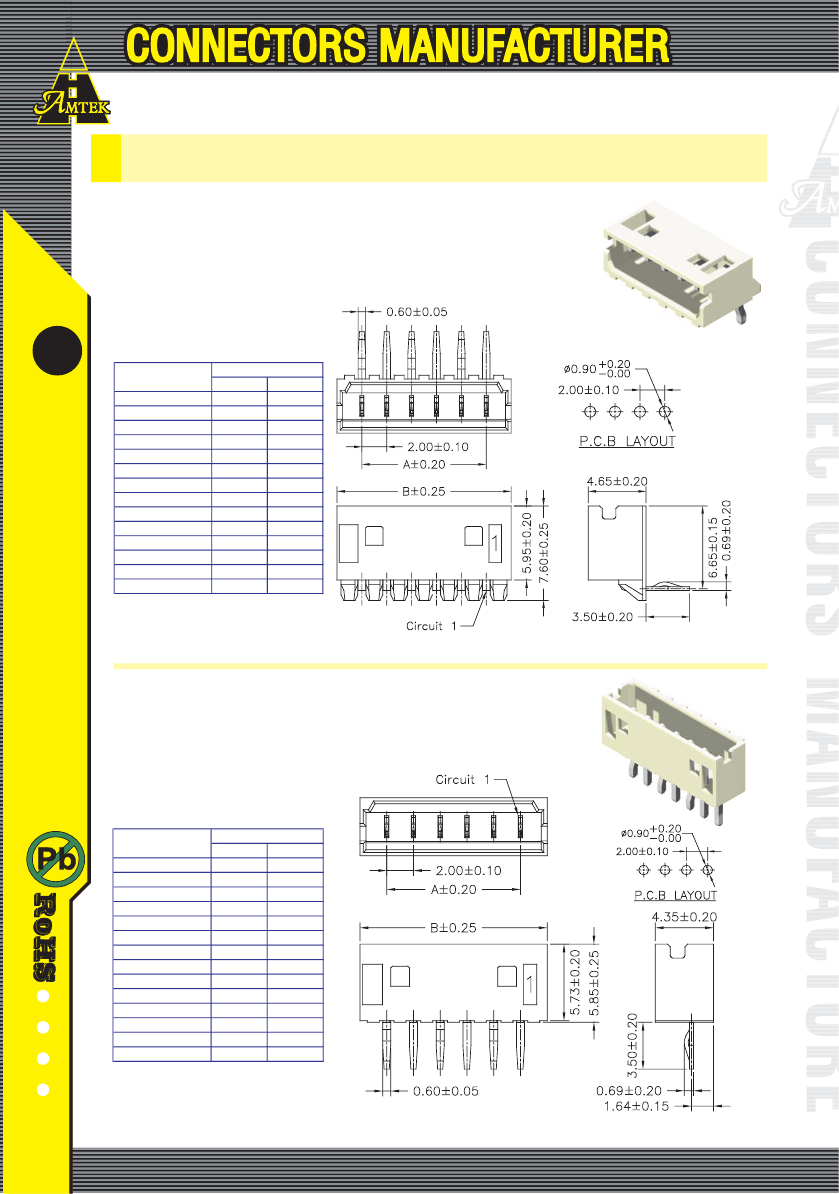

2.0mm Wafer Right Angle / Straight Type

Specifications

Current Rating: 2A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 1000M

Min

Withstanding Voltage: 800V AC/minute

Terminal: Phosphor Brass / Tin Plated

Material:Nylon 66,UL94V-0

Part No.

2002R-02TW-L

2002R-03TW-L

2002R-04TW-L

2002R-05TW-L

2002R-06TW-L

2002R-07TW-L

2002R-08TW-L

2002R-09TW-L

2002R-10TW-L

2002R-11TW-L

2002R-12TW-L

2002R-13TW-L

2002R-14TW-L

2002R-15TW-L

Dimensions

2.00

6.00

4.00

8.00

6.00

10.00

8.00

12.00

10.00

14.00

12.00

16.00

14.00

18.00

16.00

20.00

18.00

22.00

20.00

24.00

22.00

26.00

24.00

28.00

26.00

30.00

28.00

32.00

ousing wafer Terminal

Part No.:2002R-XXTW-L

Specifications

Current Rating: 2A AC,DC

Voltage Rating: 125V AC,DC

Temperature Range: -25°C to +85°C

Contact Resistance: 20m

Max

Insulation Resistance: 1000M

Min

Withstanding Voltage: 800V AC/minute

Terminal: Phosphor Brass / Tin Plated

Material:Nylon 66,UL94V-0

Part No.

2002S-02TW-L

2002S-03TW-L

2002S-04TW-L

2002S-05TW-L

2002S-06TW-L

2002S-07TW-L

2002S-08TW-L

2002S-09TW-L

2002S-10TW-L

2002S-11TW-L

2002S-12TW-L

2002S-13TW-L

2002S-14TW-L

2002S-15TW-L

Dimensions

2.00

6.00

4.00

8.00

6.00

10.00

8.00

12.00

10.00

14.00

12.00

16.00

14.00

18.00

16.00

20.00

18.00

22.00

20.00

24.00

22.00

26.00

24.00

28.00

26.00

30.00

28.00

32.00

Part No.:2002S-XXTW-L

3-41

www.amtek-co.com.tw
