FPC4BMR1A-23TNR-U: DescriptionCard Edge Connector, 23 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator; CategoryThe connector The connector; File Size494KB，1 Pages; ManufacturerAmtek Technology Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FPC4BMR1A-23TNR-U Overview

Card Edge Connector, 23 Contact(s), 1 Row(s), Right Angle, 0.02 inch Pitch, Surface Mount Terminal, Locking, Ivory Insulator

FPC4BMR1A-23TNR-U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305086108
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.047 inch
subject depth	0.134 inch
body length	0.592 inch
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	Tin (Sn)
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	BELLOWED TYPE
Dielectric withstand voltage	250VAC V
Insulation resistance	50000000 Ω
Insulator color	IVORY
insulator material	NYLON
JESD-609 code	e3
Plug contact pitch	0.02 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	23

Preview

Download Datasheet

View All

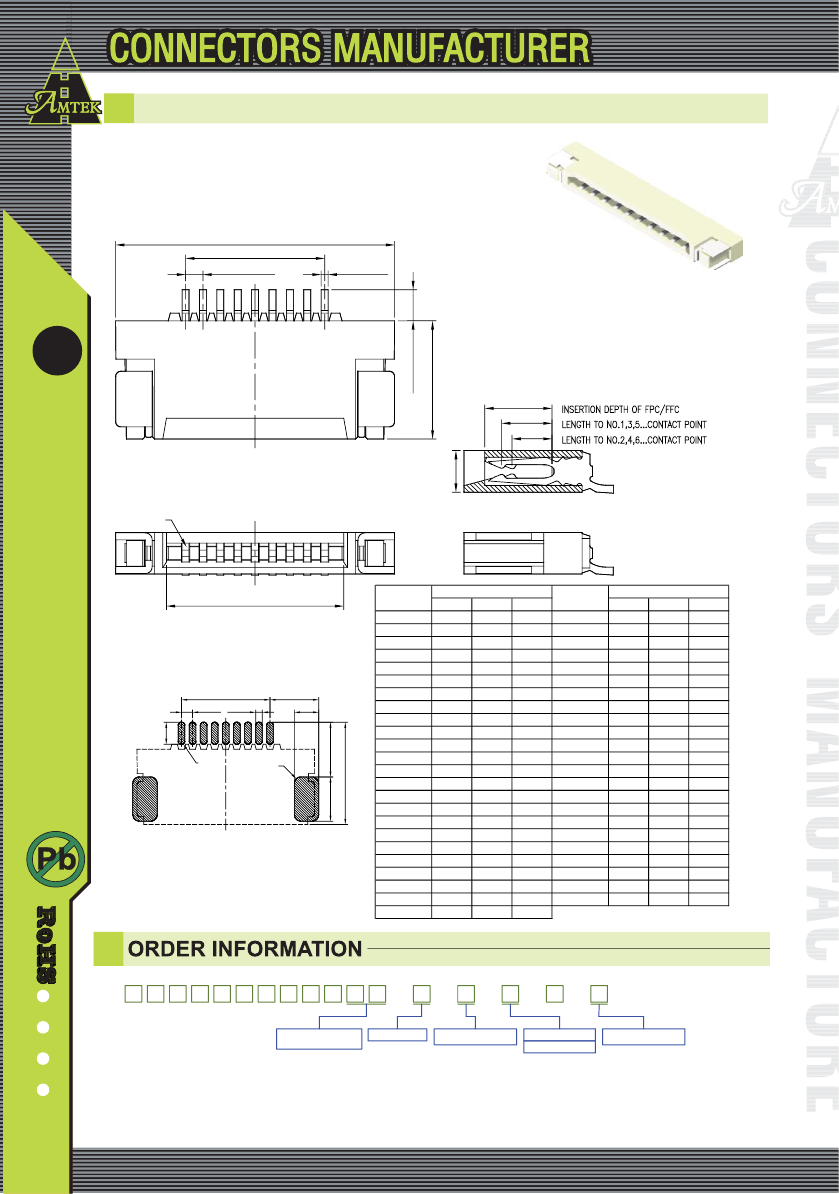

FPC/FFC 0.5mm Non ZIF SMT Type Side Entry

Specifications

Current Rate:0.5 AMP

Insulation Resistance:50MΩ Min.

Contact Resistance:20mΩ Max.

Dielectric Voltage:250V AC for one minute

Operation Temperature:-55°C to +85°C

Material

Insulator:Polyester,UL 94V-0

Standard:Nylon 46

Terminal:Copper Alloy

Plated:Tin Plated

F

PC/FFC Conn.

F P C 4 B M R 1 A - X X

No. of Contacts

No. of

Contacts

04

05

06

07

08

09

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

A

5.53

6.03

6.53

7.03

7.53

8.03

8.53

9.03

9.53

10.03

10.53

11.03

11.53

12.03

12.53

13.03

13.53

14.03

14.53

15.03

15.53

16.03

16.53

17.03

Dimensions

B

C

1.50

2.60

2.00

3.10

2.50

3.60

3.00

4.10

3.50

4.60

4.00

5.10

4.50

5.60

5.00

6.10

5.50

6.60

6.00

7.10

6.50

7.60

7.00

8.10

7.50

8.60

8.00

9.10

8.50

9.60

9.00

10.10

9.50

10.60

10.00

11.10

10.50

11.60

11.00

12.10

11.50

12.60

12.00

13.10

12.50

13.60

13.00

14.10

No. of

Contacts

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

A

17.53

18.03

18.53

19.03

19.53

20.03

20.53

21.03

21.53

22.03

22.53

23.03

23.53

24.03

24.53

25.03

25.53

26.03

26.53

27.03

27.53

28.03

28.53

Dimensions

B

C

13.50

14.60

14.00

15.10

14.50

15.60

15.00

16.10

15.50

16.60

16.00

17.10

16.50

17.60

17.00

18.10

17.50

18.60

18.00

19.10

18.50

19.60

19.00

20.10

19.50

20.60

20.00

21.10

20.50

21.60

21.00

22.10

21.50

22.60

22.00

23.10

22.50

23.60

23.00

24.10

23.50

24.60

24.00

25.10

24.50

25.60

T

N

X

-

T:Tube

R:Tape & Reel

U

U:RoHS + Nylon 46

T:Tin Plated

N:Ivory Insulator

Standard Recommended

4-9

www.amtek-co.com.tw
