28FHSY-RSM1-GAN-TB

Description
Card Edge Connector, 28 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal
CategoryThe connector    The connector
File Size124KB,2 Pages
ManufacturerJST
Download Datasheet Parametric View All

28FHSY-RSM1-GAN-TB Overview

Card Edge Connector, 28 Contact(s), 1 Row(s), Female, Right Angle, Surface Mount Terminal

28FHSY-RSM1-GAN-TB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresZIF, LOW PROFILE
Connector typeFFC/FPC CONNECTOR
Contact to complete cooperationGOLD OVER NICKEL
Contact completed and terminatedGOLD OVER NICKEL
Contact point genderFEMALE
Contact materialCOPPER ALLOY
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch0.5 mm
Termination typeSURFACE MOUNT
Total number of contacts28
UL Flammability Code94V-0
Base Number Matches1
0.5mmピッチ
0.5mm pitch/Connectors for FPC
FHSY
CONNECTOR
Emboss Tape

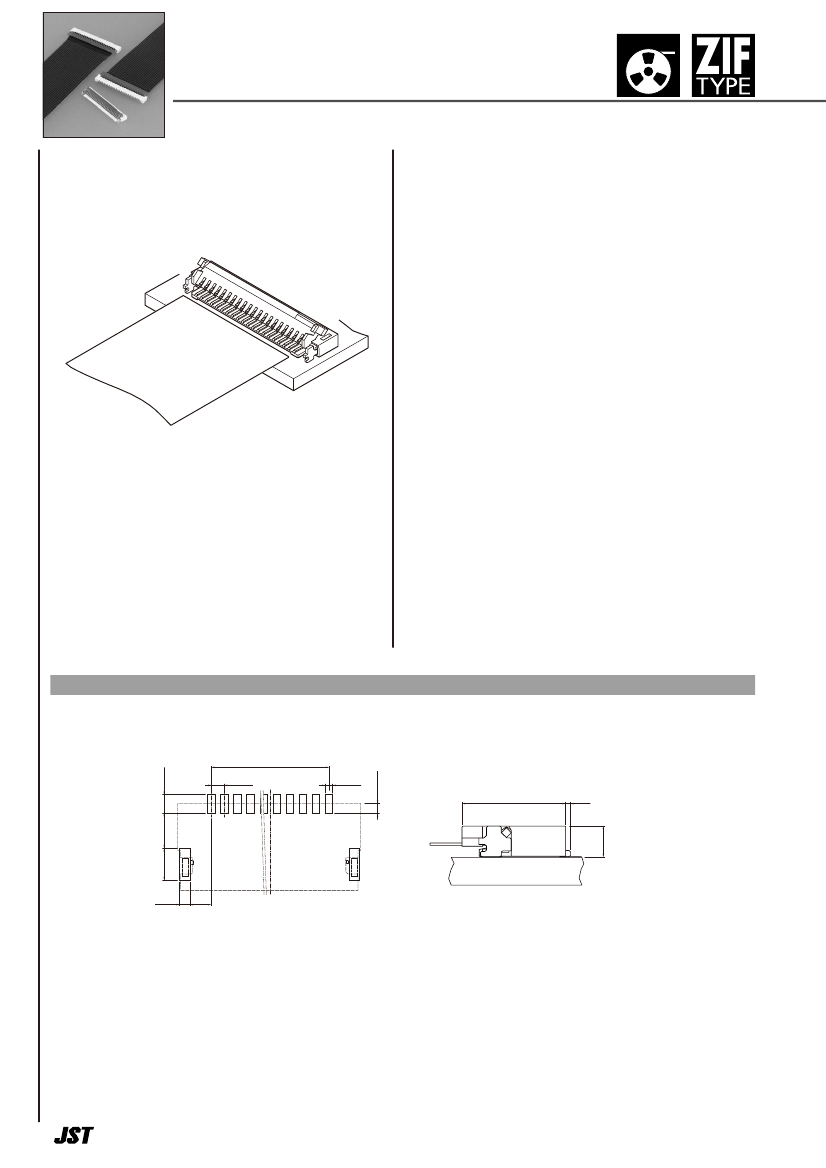

Specifications –––––––––––––––––––
• Current rating: 0.5A AC, DC
• Voltage rating: 50V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/60m
max.
After environmental testing/60m
max.
(variation from initial value)
• Insulation resistance:
500M
min.
• Withstanding voltage: 200V AC/minute
• Applicable FPC: Conductor pitch/0.5mm
Conductor width/0.35mm
Mating part thickness/0.3±0.03mm
* Compliant with RoHS.
* Refer to "General Instruction and Notice when using
Terminals and Connectors" at the end of this catalog.
* Contact JST for details.
This ZIF (zero insertion force) type flip lock
FPC connector achieves a low profile
feature of a 0.9mm mounting height
despite the thickness of the FPC being
0.3mm.
• Space saving design
• Heat resisting design suitable for surface
mounting
• Embossed tape for automatic mounting
Standards ––––––––––––––––––––––
0
Recognized E60389
PC board layout (viewed from component side) and Assembly layout
A
0.7
±0.05
0.5
±0.03
±0.03
0.3
±0.03
0.35
±0.05
3.25
0.15
1.36
±0.05
0.4
±0.05
1.2
±0.05
0.8
±0.05
Note: 1. Tolerances are non-cumulative:
±
0.03mm for all centers.
2. The dimensions above should serve as a guideline. Contact JST for details.
1
0.9
