54H20DMQB

Description

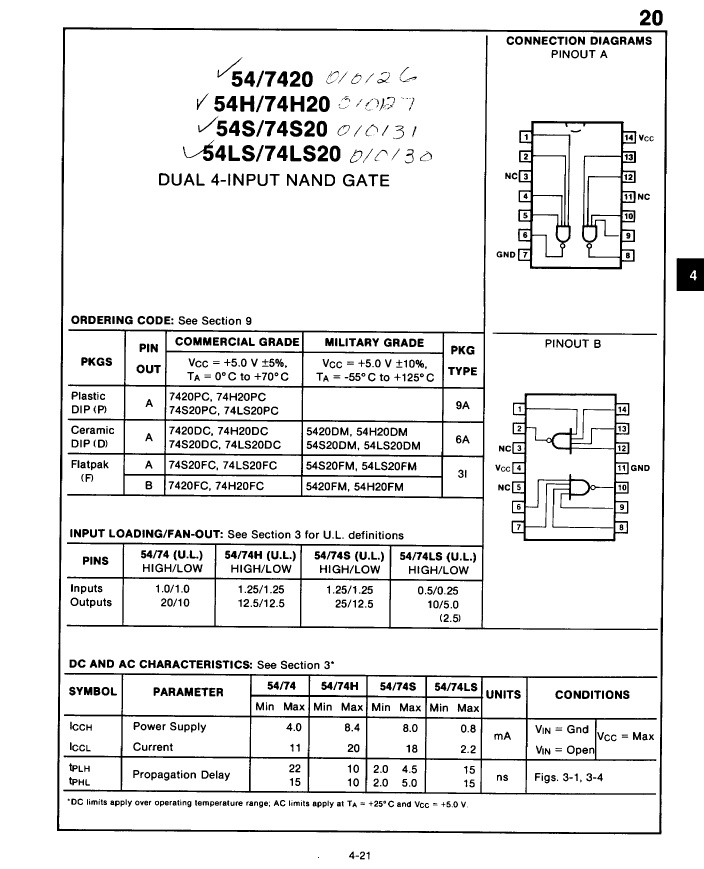

NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14
Categorylogic    logic
File Size58KB,1 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

54H20DMQB Overview

NAND Gate, TTL/H/L Series, 2-Func, 4-Input, TTL, CDIP14, CERAMIC, DIP-14

54H20DMQB Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1435998416
package instructionDIP, DIP14,.3
Reach Compliance Codecompliant
seriesTTL/H/L
JESD-30 codeR-CDIP-T14
JESD-609 codee0
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.02 A
Humidity sensitivity level2A
Number of functions2
Number of entries4
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
Maximum supply current (ICC)20 mA
Prop。Delay @ Nom-Sup10 ns
propagation delay (tpd)10 ns
Certification statusNot Qualified
Schmitt triggerNO
Filter level38535Q/M;38534H;883B
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTIN LEAD
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
