225680-8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 225680-8

225680-8: DescriptionCONNECTOR, CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG; CategoryThe connector The connector; File Size53KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

225680-8 Overview

CONNECTOR, CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG

225680-8 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	APPLICABLE CABLE:RG393/U
Body/casing type	PLUG
Characteristic impedance	50 Ω
Connector type	RF C CONNECTOR
Contact point gender	MALE
Coupling type	BAYONET
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	C
Installation method	RIGHT ANGLE
Installation type	CABLE
Panel mounting	NO
Termination type	CRIMP
Base Number Matches	1

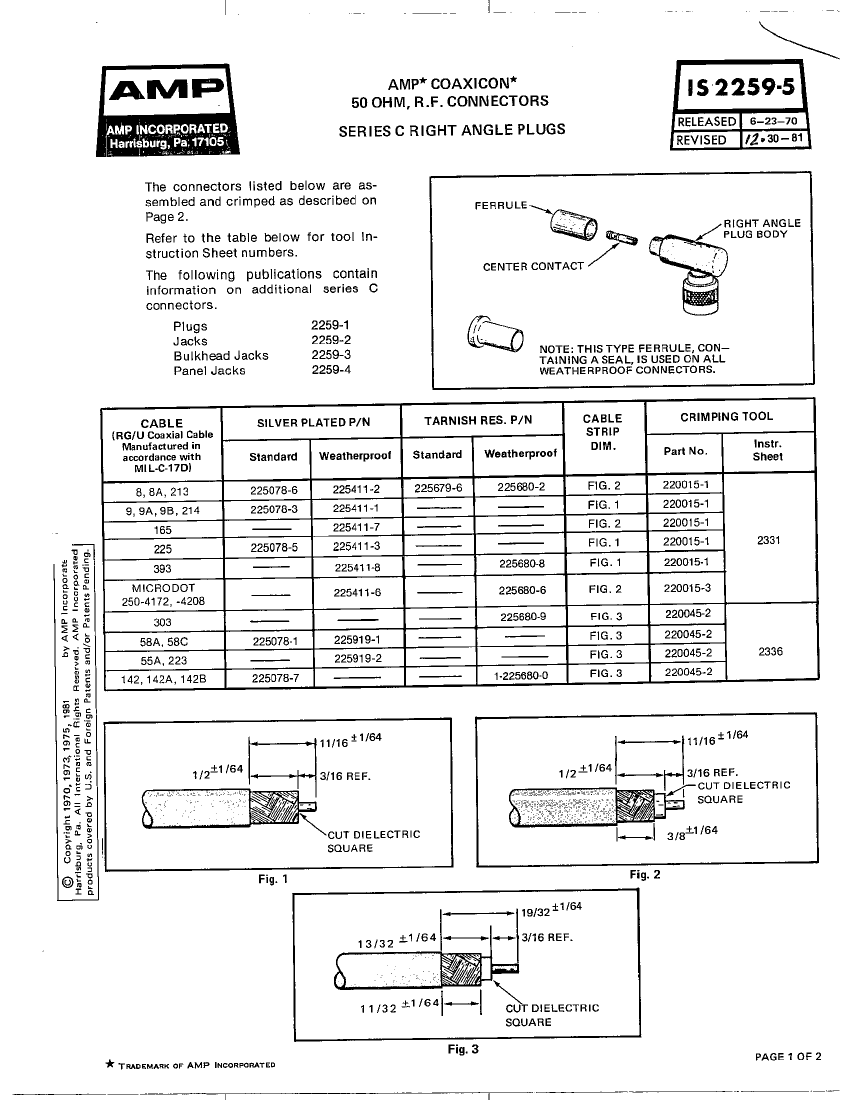

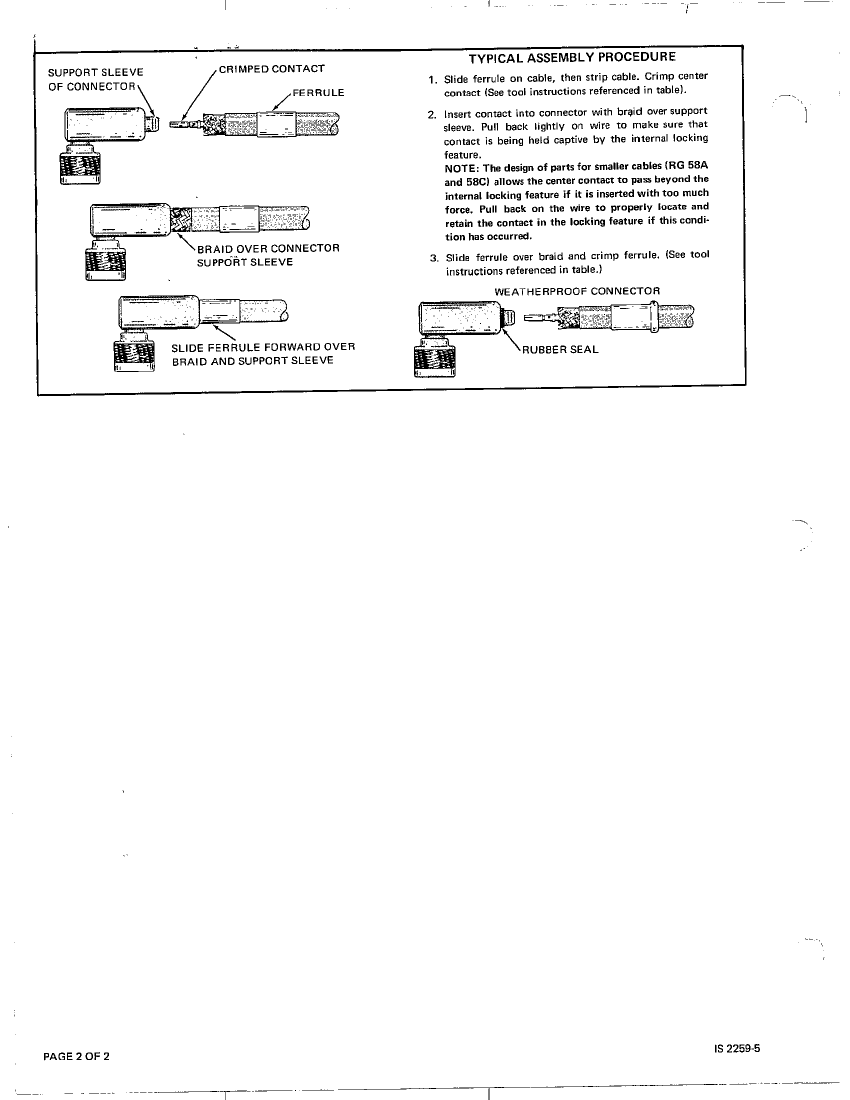

Preview

Download Datasheet

View All

225680-8 Related Products

	225680-8	1-225680-0	225919-1	225919-2	225411-7	225680-2	225411-2	225680-9	225679-6	225680-6
Description	CONNECTOR, CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CONNECTOR, CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG	CABLE TERMINATED, MALE, C CONNECTOR, CRIMP, PLUG
Reach Compliance Code	unknow	unknow	unknow	unknow	unknow	unknown	unknow	unknown	unknown	unknown
Body/casing type	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR	RF C CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Coupling type	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET	BAYONET
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	YES	NO	NO	YES	YES	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE	CABLE
Panel mounting	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Termination type	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP	CRIMP
Other features	APPLICABLE CABLE:RG393/U	APPLICABLE CABLES:RG142/U; RG142A/U; RG142B/U	INDUSTRY STANDARD:M39012, VSWR MAX AT 9-11GHZ	APPLICABLE CABLES:RG55A/U; RG223/U	APPLICABLE CABLE:RG165/U	INSERTION LOSS IS CALCULATED AT 11GHZ	INDUSTRY STANDARD:M39012, VSWR MAX AT 9-11GHZ	APPLICABLE CABLE:RG303/U	APPLICABLE CABLES:RG8/U; RG8A/U; RG213/U	-
Manufacturer's serial number	C	C	225919	C	C	-	225411	C	C	C
Base Number Matches	1	1	1	1	1	-	1	1	1	1
