2508-16NJSC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> 2508-16NJSC

2508-16NJSC: DescriptionGeneral Purpose Inductor, 0.016uH, 5%, 1 Element, Air-Core, SMD, 2716,; CategoryPassive components inductor; File Size134KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

2508-16NJSC Overview

General Purpose Inductor, 0.016uH, 5%, 1 Element, Air-Core, SMD, 2716,

2508-16NJSC Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	2716
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	2716
structure	Flat T
core material	AIR
DC Resistance	0.0052 Ω
Nominal inductance(L)	0.016 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Package height	2.01 mm
Package length	6.86 mm
Package form	SMT
Package width	4.19 mm
method of packing	TR, 7 Inch
Minimum quality factor (at nominal inductance)	110
self resonant frequency	3000 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	FLAT
Test frequency	250 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

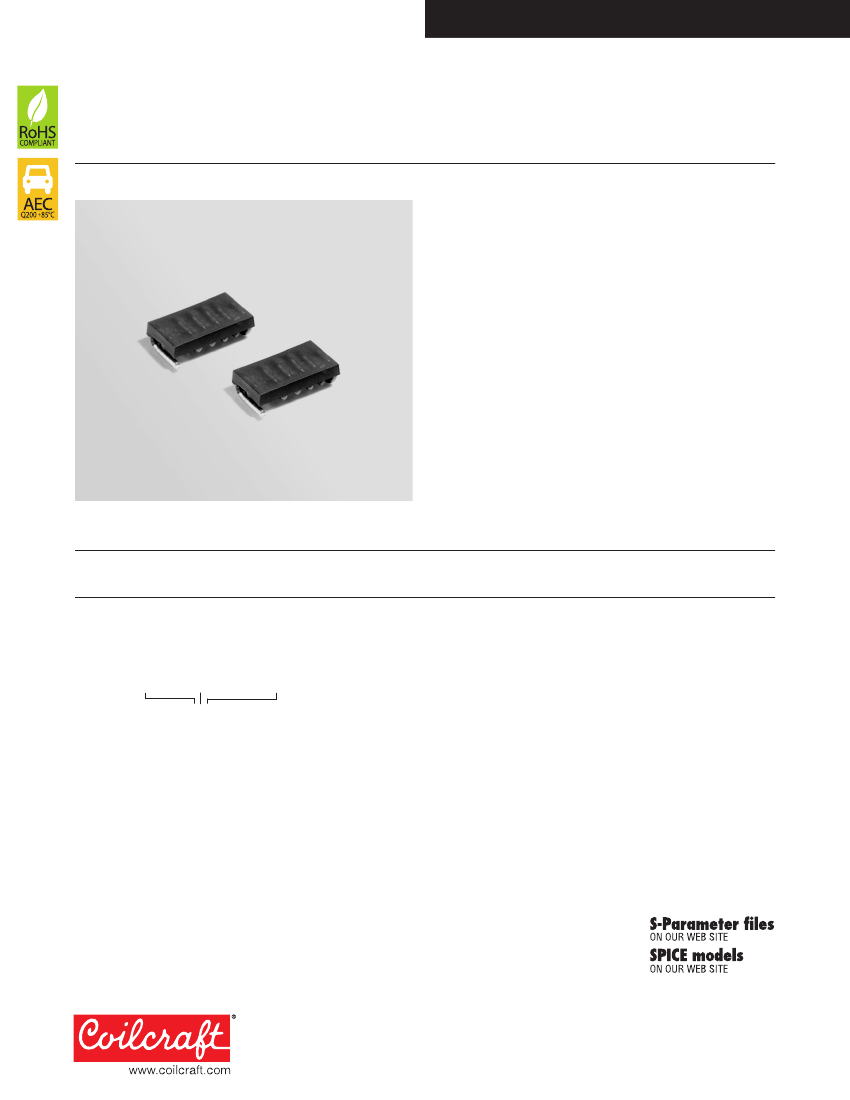

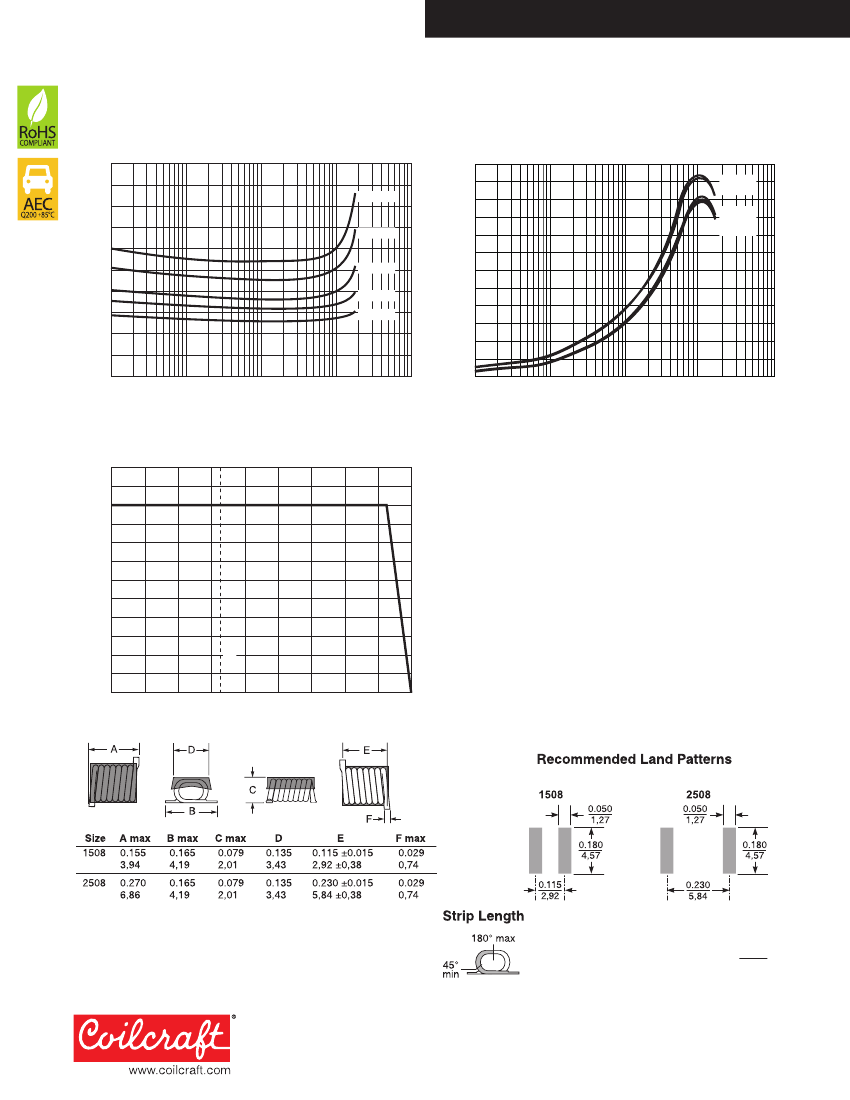

Document 404-1

Low Profile Mini Spring

™

Inductors

• Only 2 mm tall

• High Q over a wide range of frequencies

• Low DCR and excellent current handling capability

Designer’s Kit C394

contains 10 samples each 5% part

Designer’s Kit C394-2

contains 10 samples each 2% part

Terminations

RoHS compliant tin-silver over copper. Other termina-

tions available at additional cost.

Weight

48 – 130 g

Ambient temperature

–40°C to +125°C with

Irms

current, +125°C

to +140°C with derated current

Storage temperature

Component: –40°C to +140°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Temperature Coefficient of Inductance (TCL)

+5 to +70 ppm/°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

One per billion hours / one billion hours, calculated per Telcordia SR-332

Packaging

1000/7″ reel; 3500/13″ reel Plastic tape: 2 mm wide,

0.23 mm thick, 8 mm pocket spacing, 2.2 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part

number

1508-5N5_L_

1508-9N0_L_

1508-13N_L_

2508-16N_L_

2508-18N_L_

2508-23N_L_

2508-27N_L_

Turns

Inductance

(nH)

5.5

9.0

13.0

16.0

18.0

23.0

27.0

Percent

tol

5,2

min

115

120

100

110

SRF min

(GHz)

5.0

4.0

3.0

2.9

2.6

2.3

DCR max

(mOhm)

2.6

3.4

3.9

5.2

6.0

6.8

7.9

Irms

(A)

4.0

(mg)

110

118

133

147

1. Specify

tolerance, termination

and

packaging

codes:

2508-27NJLC

Tolerance: G

= 2%

= 5%

Termination: L

= RoHS compliant tin-silver (96.5/3.5) over copper.

Special order: T

= RoHS tin-silver-copper (95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape (1000 parts per full reel).

= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (3500 parts per full reel).

2. L and Q measured at 250 MHz, 0.1 Vrms, 0 A using an Agilent/HP 4291A impedance analyzer with an Agilent/HP 16193A test fixture.

3. Tolerances in bold are stocked for immediate shipment.

4. SRF measured using an Agilent/HP 8753 network analyzer and a Coilcraft SMD-D test fixture.

5. DCR measured using a micro-ohmmeter.

6. Current that causes a 15°C temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 404-1

Revised 10/03/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
