EA DOG
L128-6
GRAPHIC
128x64 DOTS, 3.3V
ty !
quanti ted
ow
e in l B/L moun
labl
o avai with LED
als
m
: 6.5m
flat
EA DOG
L
128W-6 +
EA LED68x51-W
EA DOG
L
128B-6 +
EA LED68x51-W
EA DOG
L
128W-6 +
EA LED68x51-A
TECHNICAL DATA
*
*
*
*
*
*
*
*
*
HIGH-CONTRAST LCD SUPERTWIST DISPLAY (STN AND FSTN) WITH 15µm DOT GAP
OPTIONAL LED BACKLIGHTS IN VARIOUS COLORS
128x64 PIXELS (CORRESPONDS TO 8x21 CHARACTERS OR 4x16 LARGE CHARACTERS)
ST7565R CONTROLLER WITH SPI (4-WIRE) INTERFACE
POWER SUPPLY: SINGLE SUPPLY 3.0V TO 3.3V (TYPICALLY 320µA)
NO ADDITIONAL VOLTAGES REQUIRED
OPERATING TEMPERATURE RANGE -20°C TO +70°C (STORAGE -30°C TO +80°C)
LED BACKLIGHTING 5mA TO 90mA
NO MOUNTING REQUIRED: SIMPLY SOLDER ONTO PCB
ORDERING CODE
GRAPHICS DISPLAY, 128x64, 68x51mm
x: W
= white background (FSTN pos. transflective)
E
= yellow/green background (STN pos. transmissive)
B
= blue background (STN neg. transmissive)
S
= black background (FSTN neg. transmissive)
L
= yellow/green background (STN pos. reflective, cannot be backlit)
EA DOG
L
128x-6
LED BACKLIGHT, WHITE
LED BACKLIGHT, YELLOW/GREEN
LED BACKLIGHT, BLUE
LED BACKLIGHT, RED
LED BACKLIGHT, AMBER
LED BACKLIGHT, GREEN
LED BACKLIGHT, FULL COLOR RGB
EA LED68X51-W
EA LED68X51-G
EA LED68X51-B
EA LED68X51-R
EA LED68X51-A
EA LED68X51-E
EA LED68X51-RGB
ACCESSORIES
USB TEST BOARD FOR PC (WINDOWS 2000, XP, VISTA)
TOUCH PANEL, 4-WIRE, ANALOG, STICK-ON
ZIF CONNECTOR FOR TOUCH PANEL, BOTTOM CONTACT
SOCKET CONNECTOR 4.8 mm HEIGHT (2 PCS. REQUIRED)
CHARACTER SETS PLUS FONTEDITOR
EA 9780-2USB
EA TOUCH128-2
EA WF100-04S
EA FL-20P
EA USBSTICK-FONT
EA DOG
L
128-6 GRAPHIC
EA DOG
L
128-6

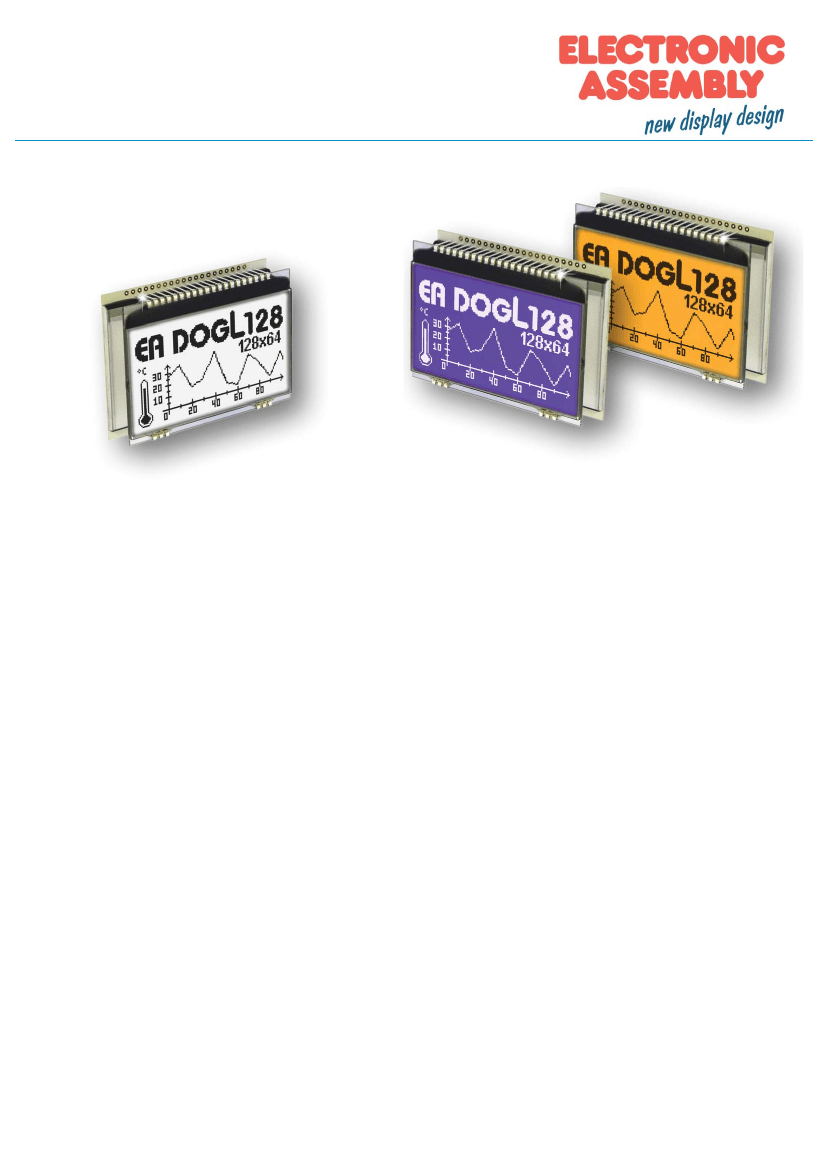

The EA DOG
L
128-6, a 128x64-pixel graphics display, is a new addition to ELECTRONIC ASSEMBLY’s EA DOG
L
series. It, too, has pins that allow it to be mounted quickly and easily. 7 different optional LED backlights are
available. These can be combined with 5 different display technologies, making it possible to have up to around
20 different designs.
Designed for compact, handheld devices, this modern LCD series offers a number of benefits with and without
backlighting:
* Extremely compact (68x51 mm) with a large viewing area of 64x36 mm
* Super-flat: 2.8 mm without backlight module, and only 6.5 mm with a b./l. module mounted
* Serial SPI interface (4-wire)
* Single supply +3.0 V or +3.3 V or dual power supply +1.8..3.3V
* Typical power consumption of only 320µA in full operation (white LED backlight from 5mA)
* Easily mounted by soldering
* Wide range of design variants orderable as single units, backlighting color changes possible
CONTRAST ADJUSTMENT
The contrast can be set by means of a command for all the displays in the EA DOG
L
128-6 series. The contrast
setting of the display must be set once by the software, and is then kept constant throughout the entire operating
temperature range (-20..+70°C), thanks to the integrated temperature compensation.
LED BACKLIGHT
7 different variants are available for individual
Limiting resistor
Current
(ohm, each
Forward voltage (V)
backlighting: white, yellow/green, green, blue,
LED backlight
max.
path)
red, amber and a full-color version.
(mA)
min
typ
max
@3,3 V
@5 V
There are 3 separate LED paths available for
yellow/green
2,1
60
20
47
each monochrome backlight that can be
EA LED68x51-G
switched in parallel or in series to suit the
white
CAT4238
3,3
45
39
system voltage. This means that most
EA LED68x51-W
amber
backlights can be run at either 3.3 V or a
2,1
60
24
52
EA LED68x51-A
higher voltage.
green
CAT4238
To operate the backlight, we recommend a
3,1
45
33
EA LED68x51-E
current source (e.g. CAT4238TD) or an
blue
CAT4238
3,3
45
39
external series resistor to limit the current.
EA LED68x51-B
This can be calculated from R=U/I; you can
red
2
60
24
52
EA LED68x51-R
find the values in the table on the right. To
red
green
blue
prolong the life of the backlights, we
full color
60 each
-
15
EA
recommend that you use a current source.
colour
typ. 4V
typ. 4V typ. 4V
LED68x51-RGB
The operating life of the yellow/green, red and
amber backlights is 100,000 hours. The life of the white and blue backlights is considerably shorter. We recommend
that you dim these or switch them off whenever possible.
Important: Never connect the backlight LEDs directly to a 5 V/3.3 V supply as this will immediately destroy
the LEDs. Always use a current source. Please note that derating applies at temperatures exceeding
+25°C.
ASSEMBLING
First, clip the display and backlight modules together by gently pushing the display pins through the corresponding
holes on the backlight module. Then insert the entire module into the socket, or into the soldering holes on the
pcb. The backlight pins (the 2 rows with 3 pins at the bottom) must be soldered on the top side as well to ensure
good contact between the modules.
Important: The display has 2 protective films on the top and the bottom (except the version EA DOG
L
128L
that does have 1 foil on the top only), and there is also one on the backlight. These must be removed.
Make sure that neither display nor backlight will never come into contact with any kind of liquid like
Fluxer, Cleaner, Water.
Page 2
Printing and typographical errors reserved.
ELECTRONIC ASSEMBLY reserves the right to change specifications without prior notice.
EA DOG
L
128-6 GRAPHIC

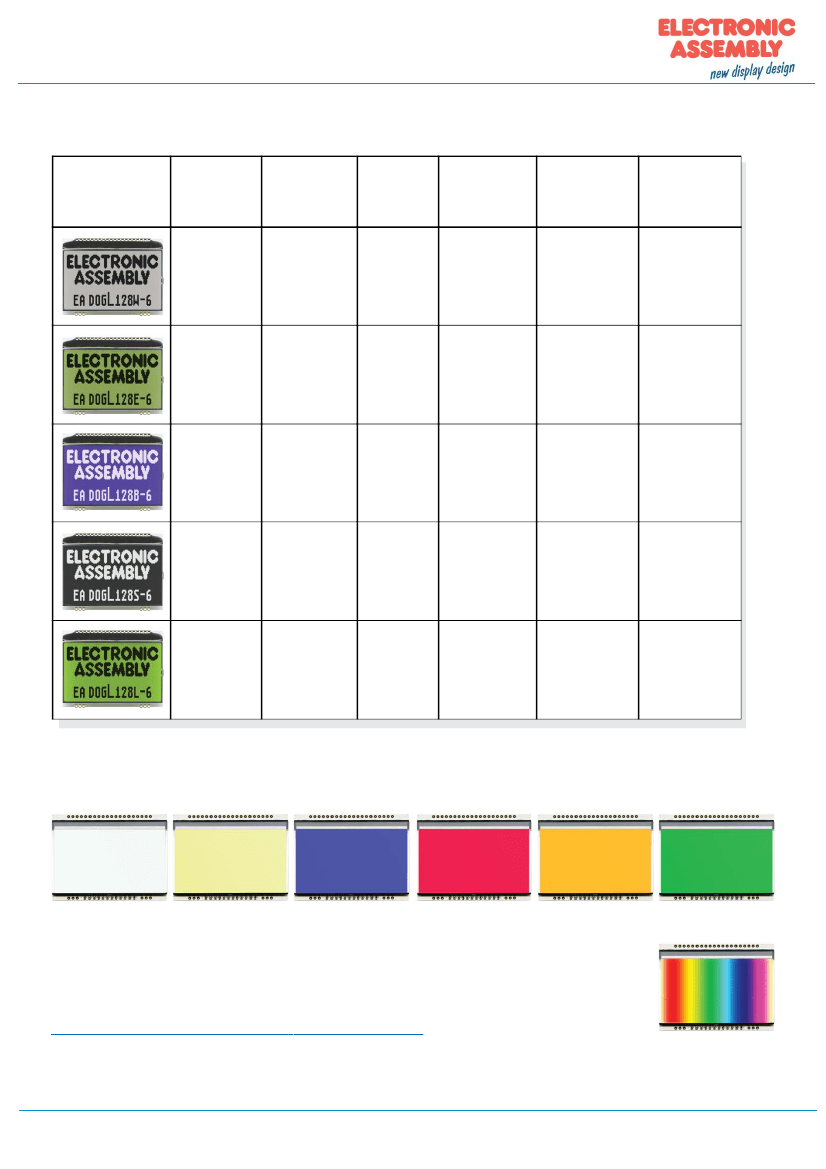

5 DIFFERENT TECHNOLOGIES
See below for an overview of available technologies, combinations with available backlights and their usability:
optional
backlight
display color
readability
non
backlighted
display color
with
backlighted
recommended
backlight
color
display type
technology
FSTN pos.
transflective
it's fine with and
without backlight
readable even
without
backlight
black on white
black on backlight
color
white, blue, green,
RGB
STN pos.
yellow/green
transmissive
backlight unit
required
readable even
without
backlight
dark green on
yellow/green
black on
yellow/green or
amber
yellow/green,
amber
STN neg. blue
transmissive
usage only with
backlight
---
---
backlight color on
blue background
white, yellow/green
FSTN neg.
transmissive
usage only with
backlight
---
---
backlight color on
black background
white, green, RGB
STN pos.
yellow/green
reflective
no backlight
possible
finest readable
without
backlight
dark green on
yellow/green
---
---
6 AND MORE DIFFERENT BACKLIGHTS
6 and more different backlight colors are available to match equipments design as much as possible. The
most effective and brightest one is the white one EA LED68x51-W.
EA LED68x51-W
White
EA LED68x51-G
Yellow/green
EA LED68x51-B
Blue
EA LED68x51-R
Red
EA LED68x51-A
Amber
EA LED68x51-E
Green
If you see black and white pictures on this page but you want to see the colors
of the displays, you can download a full-colored version of this document at
http://www.lcd-module.de/eng/pdf/grafik/dogl128-6e.pdf
EA LED68x51-RGB
Full Color
Printing and typographical errors reserved.
ELECTRONIC ASSEMBLY reserves the right to change specifications without prior notice.
Page 3
EA DOG
L
128-6 GRAPHIC

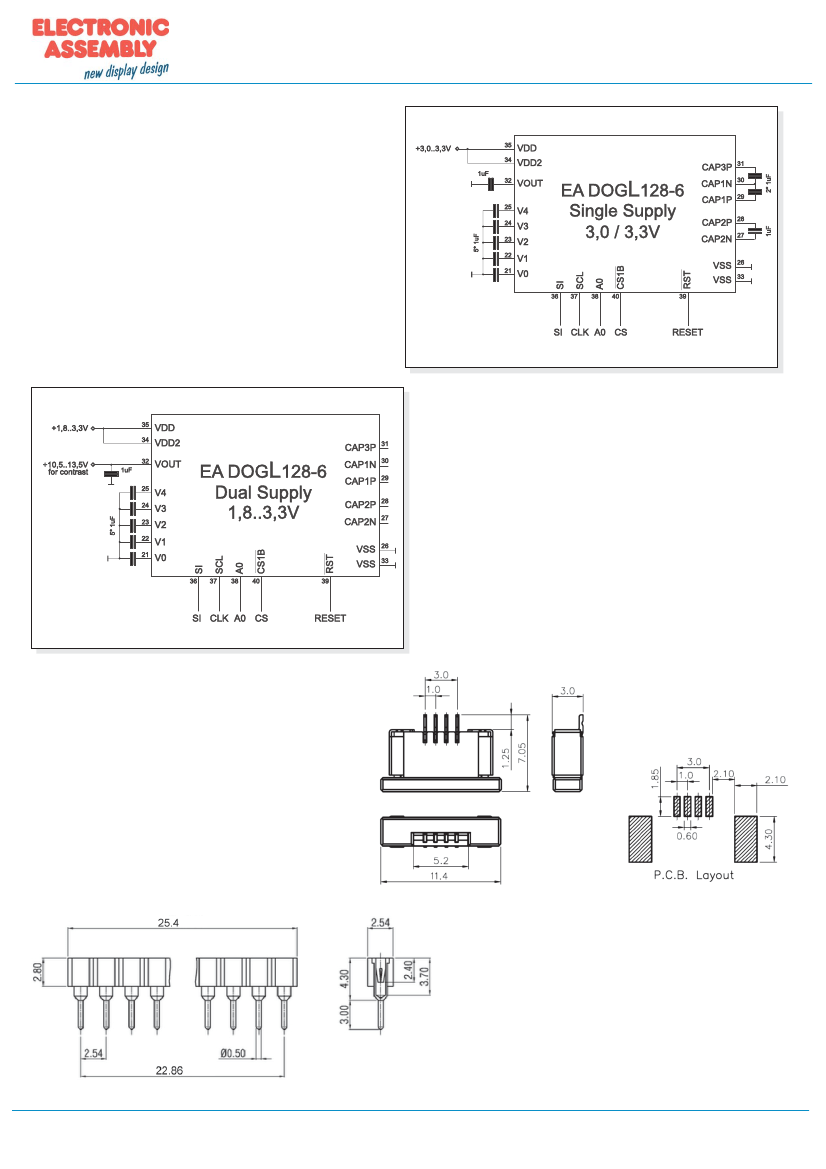

APPLICATION EXAMPLES
LOW POWER
+3.0V or +3.3V (single supply) operation
requires 9 external capacitors
LOW VOLTAGE
If an external source of +10.5..+13.5V (does not have
to be stabilized) is available, the charge pump is not
needed and less external components are required.
Power supply voltage for display and logic may be
1.8..3.3V then.
ZIF CONNECTOR EA WF100-04S
As an accessory for the touch panel we do provide
a ZIF connector (4 pins) with pitch 1.0mm (SMD
type). This connector is a „bottom side contact“
type.
alle dimensions are in mm
SOCKET FOR THE DISPLAY
EA FL-20P provides a 20 pin socket which
matched perfect to the display. Note that 2 pcs.
per display are necessary.
Page 4
Printing and typographical errors reserved.
ELECTRONIC ASSEMBLY reserves the right to change specifications without prior notice.
EA DOG
L
128-6 GRAPHIC

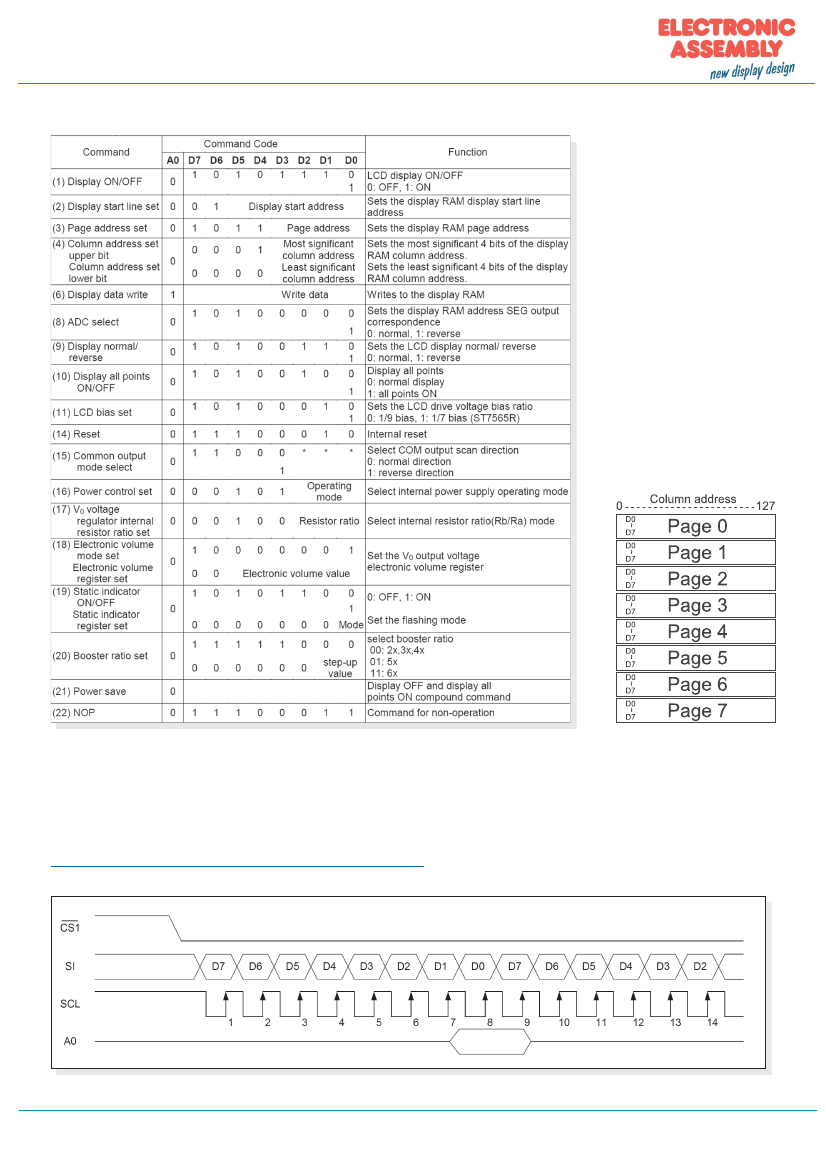

TABLE OF PROGRAMMING COMMANDS
DATA TRANSFER
Data transfer is unidirectional. That means that data can only be written; it cannot be read again. In contrast to
other displays, a busy query is not necessary with this display. The clock-pulse rate of the SCL line can be up
to 20 MHz at 3.3V, depending on the supply voltage. You will find more detailed information on timing on pages
64 and 65 of the data sheet of the ST7565R controller, which you will find on our website at
http://www.lcd-module.de/eng/pdf/zubehoer/st7565r.pdf
