HFBR-0400Z, HFBR-14xxZ and HFBR-24xxZ Series
Low Cost, Miniature Fiber Optic Components
with ST®, SMA, SC and FC Ports
Data Sheet
Description

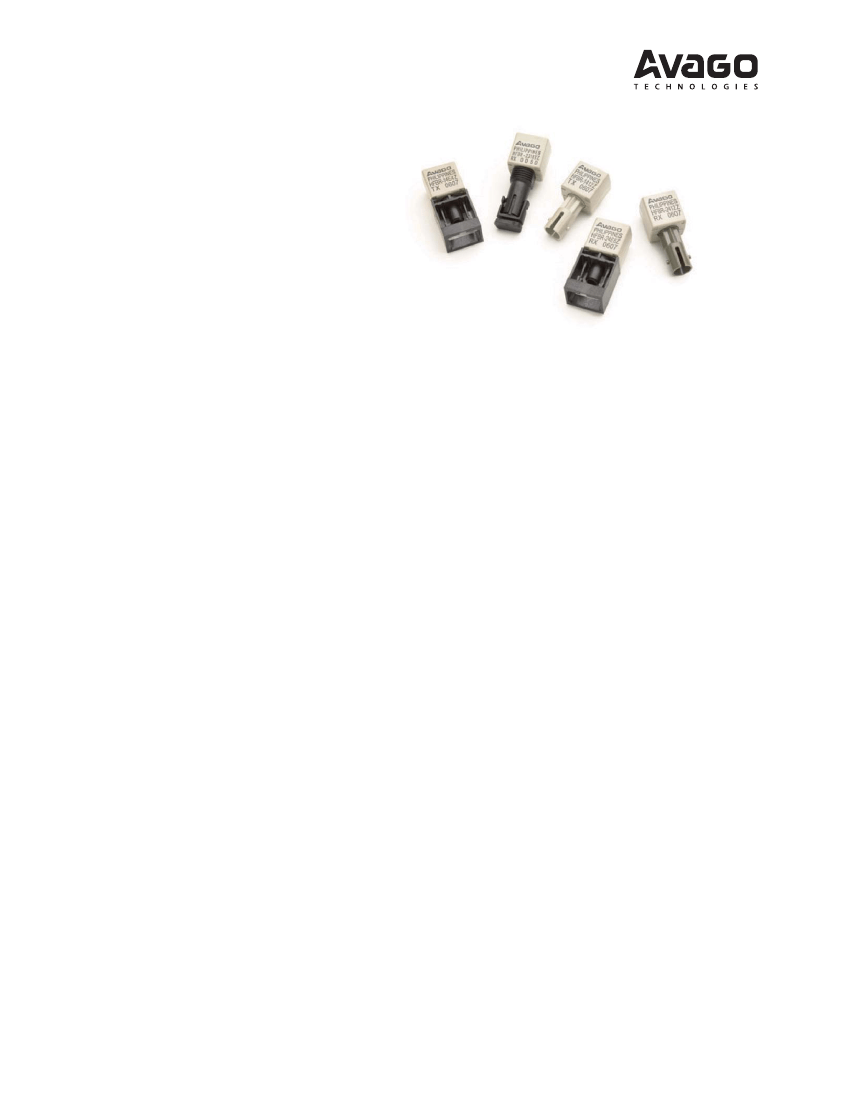

The HFBR-0400Z Series of components is designed to
provide cost effective, high performance fiber optic com-
munication links for information systems and industrial
applications with link distances of up to 2.7 kilometers.
With the HFBR-24x6Z, the 125 MHz analog receiver, data
rates of up to 160 megabaud are attainable.
Transmitters and receivers are directly compatible with
popular “industry-standard” connectors: ST®, SMA, SC
and FC. They are completely specified with multiple fiber
sizes; including 50/125 μm, 62.5/125 μm, 100/140 μm,
and 200 μm.
The HFBR-14x4Z high power transmitter and HFBR-24x6Z
125 MHz receiver pair up to provide a duplex solution
optimized for 100 Base-SX. 100Base-SX is a Fast Ethernet
Standard (100 Mbps) at 850 nm on multimode fiber.
Complete evaluation kits are available for ST product
offerings; including transmitter, receiver, connectored
cable, and technical literature. In addition, ST connec-
tored cables are available for evaluation.
Features
x
RoHS Compliant
x
Meets IEEE 802.3 Ethernet and 802.5 Token Ring Stan-
x
x
x
x
x
x
x
x
x
x
x
x
x
x
dards
Meets TIA/EIA-785 100Base-SX standard
Low Cost Transmitters and Receivers
Choice of ST®, SMA, SC or FC Ports
820 nm Wavelength Technology
Signal Rates up to 160 MBd
Link Distances up to 2.7 km
Compatible with 50/125 μm, 62.5/125 μm, 100/140
μm, and 200 μm HCS® Fiber
Repeatable ST Connections within 0.2 dB Typical
Unique Optical Port Design for Efficient Coupling
Auto-Insertable and Wave Solderable
No Board Mounting Hardware Required
Wide Operating Temperature Range -40 °C to +85 °C
AlGaAs Emitters 100% Burn-In Ensures High Reliability
Conductive Port Option
Applications
x
100Base-SX Fast Ethernet on 850 nm
x
Media/fiber conversion, switches, routers, hubs and
x
x
x
x
x
x
x
x
x
ST® is a registered trademark of AT&T.
HCS® is a registered trademark of the OFS Corporation.
NICs on 100Base-SX
Local Area Networks
Computer to Peripheral Links
Computer Monitor Links
Digital Cross Connect Links
Central Office Switch/PBX Links
Video Links
Modems and Multiplexers
Suitable for Tempest Systems
Industrial Control Links
HFBR-0400Z Series Part Number Guide
HFBR-x4xx aa Z
1
2
Transmitter
Receiver
T
4
820 nm Transmitter and Receiver
products
RoHS Compliant
Threaded port option
Conductive port receiver option
Metal port option
C
M
0
1
2
E
SMA, housed
ST, housed
FC, housed
SC, housed
2
4
2
5
6
TX, standard power
TX, high power
RX, 5 MBd, TTL output
TX, high light output power
RX, 125 MHz, Analog Output
Available Options
HFBR-1402Z
HFBR-1414TZ
HFBR-2402Z
HFBR-2416TCZ
HFBR-1404Z
HFBR-1414Z
HFBR-2406Z
HFBR-2416TZ
HFBR-1412TMZ
HFBR-1415TZ
HFBR-2412TCZ
HFBR-2416Z
HFBR-1412TZ
HFBR-1415Z
HFBR-2412TZ
HFBR-2422Z
HFBR-1412Z
HFBR-1424Z
HFBR-2412Z
HFBR-24E2Z
HFBR-1414MZ
HFBR-14E4Z
HFBR-2416MZ
HFBR-24E6Z
Link Selection Guide
Data rate (MBd)
5
5
20
32
55
125
155
160
Distance (m)
1500
2000
2700
2200
1400
700
600
500
Transmitter
HFBR-14x2Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
HFBR-14x4Z/14x5Z
Receiver
HFBR-24x2Z
HFBR-24x2Z
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
HFBR-24x6Z
Fiber Size (μm)
200 HCS
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
62.5/125
Evaluation Kit
N/A
HFBR-0410Z
HFBR-0414Z
HFBR-0414Z
HFBR-0414Z
HFBR-0416Z
HFBR-0416Z
HFBR-0416Z
For additional information on specific links see the following individual link descriptions. Distances measured over temperature range from 0 to
+70 °C.
The HFBR-1415Z can be used for increased power budget or for lower driving current for the same Data-Rates and Link-Distances.
2
Applications Support Guide
This section gives the designer information necessary to
use the HFBR-0400Z series components to make a func-
tional fiber optic transceiver.
Avago Technologies offers a wide selection of evaluation
kits for hands-on experience with fiber optic products as
well as a wide range of application notes complete with
circuit diagrams and board layouts.
Furthermore, Avago Technologies application support
group is always ready to assist with any design consid-
eration.
Application Literature
Title
HFBR-0400Z Series Reliability Data
Application Bulletin 78
Application Note 1038
Application Note 1065
Application Note 1073
Application Note 1086
Application Note 1121
Application Note 1122
Application Note 1123
Application Note 1137
Application Note 1383
Description
Transmitter & Receiver Reliability Data
Low Cost Fiber Optic Links for Digital Applications up to 155 MBd
Complete Fiber Solutions for IEEE 802.3 FOIRL, 10Base-FB and 10Base-FL
Complete Solutions for IEEE 802.5J Fiberoptic Token Ring
HFBR-0219 Test Fixture for 1x9 Fiber Optic Transceivers
Optical Fiber Interconnections in Telecommunication Products
DC to 32 MBd Fiberoptic Solutions
2 to 70 MBd Fiberoptic Solutions
20 to 160 MBd Fiberoptic Solutions
Generic Printed Circuit Layout Rules
Cost Effective Fiber and Media Conversion for 100Base-SX
3
HFBR-0400Z Series Evaluation Kits
HFBR-0410Z ST Evaluation Kit
Contains the following:
Package and Handling Information
Package Information
All HFBR-0400Z Series transmitters and receivers are
housed in a low-cost, dual-inline package that is made
of high strength, heat resistant, chemically resistant,
and UL 94V-O flame retardant ULTEM® plastic (UL File
#E121562). The transmitters are easily identified by the
light grey color connector port. The receivers are easily
identified by the dark grey color connector port. (Black
color for conductive port). The package is designed for
auto-insertion and wave soldering so it is ideal for high
volume production applications.
x
One HFBR-1412Z transmitter
x
One HFBR-2412Z five megabaud TTL receiver
x
Three meters of ST connectored 62.5/125 μm fiber
optic cable with low cost plastic ferrules.
x
Related literature
HFBR-0414Z ST Evaluation Kit
Includes additional components to interface to the trans-
mitter and receiver as well as the PCB to reduce design
time. Contains the following:
Handling and Design Information
Each part comes with a protective port cap or plug cov-
ering the optics. These caps/plugs will vary by port style.
When soldering, it is advisable to leave the protective
cap on the unit to keep the optics clean. Good system
performance requires clean port optics and cable ferrules
to avoid obstructing the optical path.
Clean compressed air often is sufficient to remove parti-
cles of dirt; methanol on a cotton swab also works well.
x
One HFBR-1414TZ transmitter
x
One HFBR-2416TZ receiver
x
Three meters of ST connectored 62.5/125 μm fiber
x
x
x
x
x
x
optic cable
Printed circuit board
ML-4622 CP Data Quantizer
74ACTllOOON LED Driver
LT1016CN8 Comparator
4.7 μH Inductor
Related literature
Recommended Chemicals for Cleaning/Degreasing
HFBR-0400Z Products
Alcohols: methyl, isopropyl, isobutyl.
Aliphatics: hexane, heptane, Other: soap solution, naph-
tha.
Do not use partially halogenated hydrocarbons such
as 1,1.1 trichloroethane, ketones such as MEK, acetone,
chloroform, ethyl acetate, methylene dichloride, phenol,
methylene chloride, or N-methylpyrolldone. Also, Avago
Technologies does not recommend the use of cleaners
that use halogenated hydrocarbons because of their
potential environmental harm.
HFBR-0400Z SMA Evaluation Kit
Contains the following:
x
One HFBR-1402Z transmitter
x
One HFBR-2402Z five megabaud TTL receiver
x
Two meters of SMA connectored 1000 μm plastic opti-
cal fiber
x
Related literature
HFBR-0416Z Evaluation Kit
Contains the following:
x
One fully assembled 1x9 transceiver board for 155
MBd evaluation including:
- HFBR-1414Z transmitter
- HFBR-2416Z receiver
- circuitry
x
Related literature
Ultem® is a registered Trademark of the GE corporation.
4
Mechanical Dimensions - SMA Port
HFBR-x40xZ
1/4 - 36 UNS 2A THREAD
Rx/Tx
COUNTRY OF
ORIGIN
A YYWW
HFBR-X40XZ
22.2
(0.87)
12.7
(0.50)
6.35
(0.25)
12.7
(0.50)
6.4
(0.25) DIA.
3.6
(0.14)
5.1
(0.20)
10.2
(0.40)
3.81
(0.15)
PINS 1,4,5,8
0.51 X 0.38
(0.020 X 0.015)
2.54
(0.10)
4
5
1.27
(0.05)
2.54
(0.10)
3
PINS 2,3,6,7
0.46 DIA.
(0.018)
1
8
PIN NO. 1
INDICATOR
Mechanical Dimensions - ST Port
HFBR-x41xZ
12.7
(0.50)
Rx/Tx
COUNTRY OF
ORIGIN
A YYWW
HFBR-X41XZ
2
7
6
27.2
(1.07)
12.7
(0.50)
8.2
(0.32)
6.35
(0.25)
7.0 DIA.
(0.28)
3.6
(0.14)
5.1
(0.20)
10.2
(0.40)
3.81
(0.15)
2.54
(0.10)
1.27
(0.05)
PINS 1,4,5,8
0.51 X 0.38
(0.020 X 0.015)
2.54
(0.10)
4
3
1
PINS 2,3,6,7
0.46 DIA.
(0.018)
8
PIN NO. 1
INDICATOR
5
2
7
6
5
