SC1223S-270-X129-N datasheet, PDF

SC1223S-270-X129-N: DescriptionGeneral Purpose Inductor, 27uH, 15%, 1 Element, AXIAL LEADED, LEAD FREE; CategoryPassive components inductor; File Size263KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric View All

SC1223S-270-X129-N Overview

General Purpose Inductor, 27uH, 15%, 1 Element, AXIAL LEADED, LEAD FREE

Parameter Name	Attribute value
Reach Compliance Code	compli
ECCN code	EAR99
DC Resistance	0.027 Ω
Nominal inductance(L)	27 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	SC1223
Number of functions	1
Number of terminals	2
Maximum rated current	1.5 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	TIN
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	15%
Base Number Matches	1

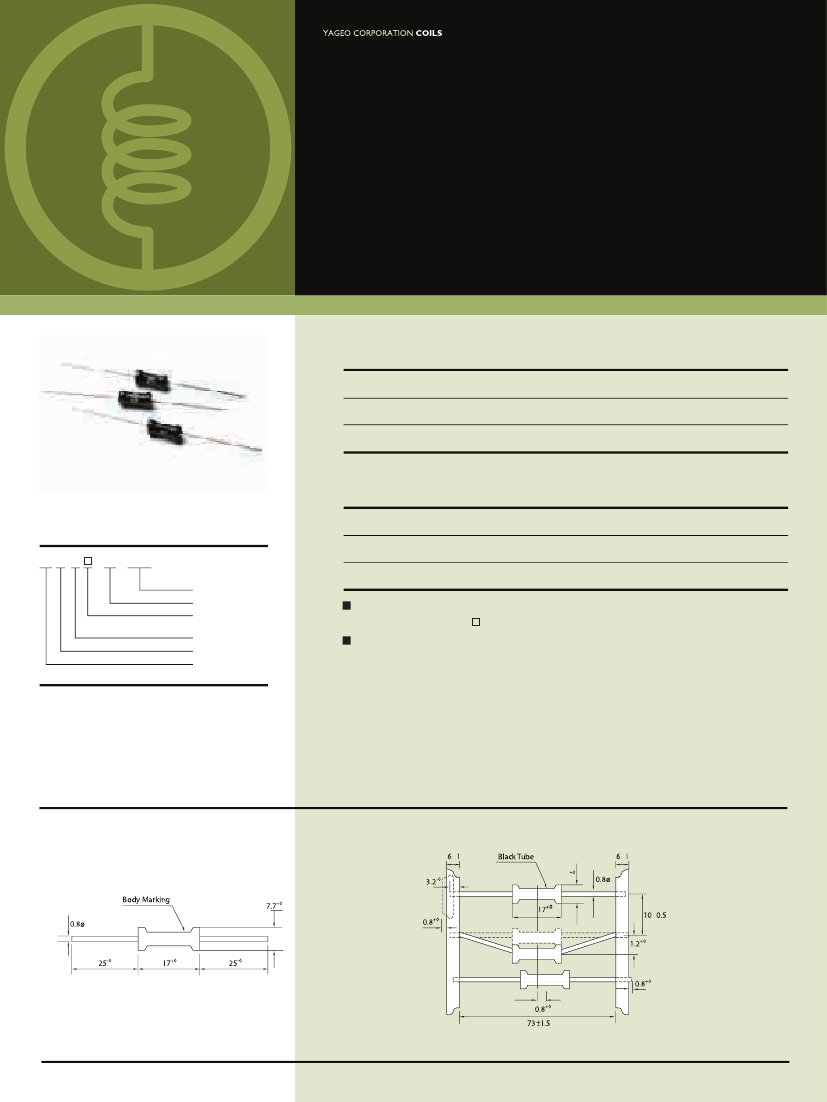

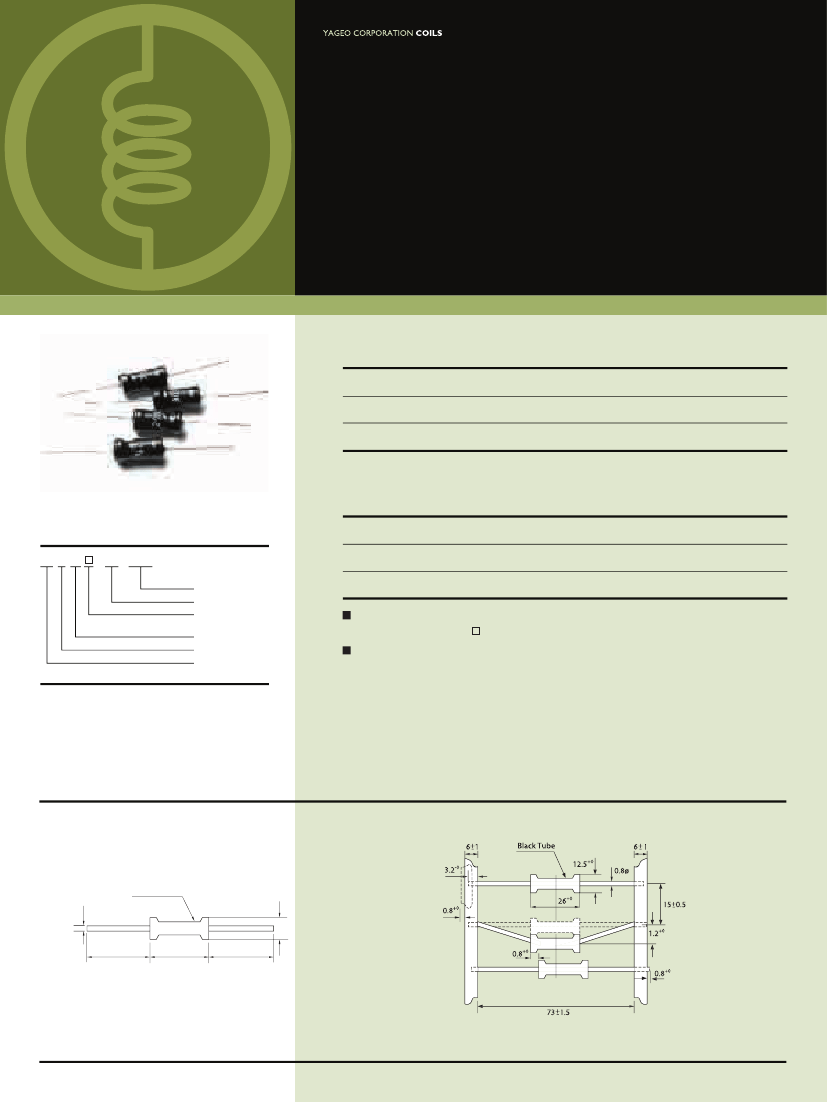

CHOKE COILS

SC TYPE

SC0717 Series

FEATURES

Low Cost

Wide Range of Inductance

High Reliability

TEST INSTRUMENTS

PRODUCT IDENTIFICATION

SC 07 17

- 101 - X129

Material

Inductance 100µH

S : Bulk

ST : Tapping

B Dim.

A Dim.

Choke Coils

SC Type

L : HP 4192A LF Impedance Analyzer

D.C. Current : CHEN HWA CH1061+301A

D.C. Resistance : CHEN HWA502BC

YAGEO the part number of lead-free products will be added "-N" after original one as

identification. Ex: SC0717

-3R9-X129-N

YAGEO uses UL tube on SC Series to avoid damage when wave soldering

DIMENSIONS

Dimensions : mm

8.5
