B82734R2232B30 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> B82734R2232B30

B82734R2232B30: Descriptionfixed inductors 15mh 2.3A 185ohms; CategoryPassive components; File Size721KB，7 Pages; ManufacturerEPCOS (TDK); Environmental Compliance

Download Datasheet Parametric Compare View All

B82734R2232B30 Overview

fixed inductors 15mh 2.3A 185ohms

B82734R2232B30 Parametric

Parameter Name	Attribute value
Manufacture	EPCOS
Product Category	Fixed Inductors
RoHS	Yes
Inductance	80 uH
Tolerance	- 30 %, + 50 %
Maximum DC Curre	2.3 A
Maximum DC Resistance	185 mOhms
Operating Temperature Range	- 25 C to + 60 C
Termination Style	Radial
Case Length	32.5 mm
Case Width	31 mm
Case Heigh	21 mm
Core Material	Ferrite
Packaging	Bulk
Produc	Chokes
Factory Pack Quantity	400
Type	Power Line Chokes

Preview

Download Datasheet

View All

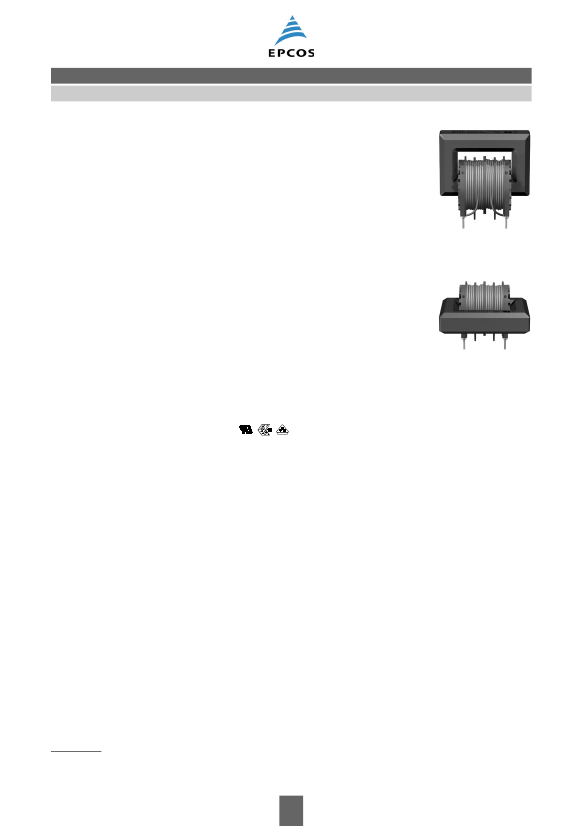

Power line chokes

Current-compensated D core double chokes

250 V AC, 0.7 … 4.6 A, 3.3 … 68 mH

Series/Type:

Date:

B82734R/W

July 2012

a~í~=pÜÉÉí

EPCOS

AG 2012. Reproduction, publication and dissemination of this publication, enclosures

hereto and the information contained therein without EPCOS’ prior express consent is prohibited.

Cautions and warnings

Current-compensated ring core double chokes

■

Please note the recommendations in our Inductors data book (latest edition) and in the data

sheets.

– Particular attention should be paid to the derating curves given there. Derating must be applied

in case the ambient temperature in the application exceeds the rated temperature of the

component.

– Ensure the operation temperature (which is the sum of the ambient temperature and the

temperature rise caused by losses / self-heating) of the component in the application does not

exceed the maximum value specified in the climatic category.

– The soldering conditions should also be observed. Temperatures quoted in relation to wave

soldering refer to the pin, not the housing.

■

If the components are to be washed varnished it is necessary to check whether the washing

varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,

or on glued joints. In particular, it is possible for washing varnish agent residues to have a

negative effect in the long-term on wire insulation.

Washing processes may damage the product due to the possible static or cyclic mechanical

loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,

which might lead to reduced reliability or lifetime.

■

The following points must be observed if the components are potted in customer applications:

– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic

housing or core. This pressure can have a deleterious effect on electrical properties, and in

extreme cases can damage the core or plastic housing mechanically.

– It is necessary to check whether the potting material used attacks or destroys the wire

insulation, plastics or glue.

– The effect of the potting material can change the high-frequency behaviour of the components.

■

Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to

breakage of the core.

■

Even for customer-specific products, conclusive validation of the component in the circuit can

only be carried out by the customer.

Please read

Cautions and warnings

and

Important notes

at the end of this document.

07/12
