Technical Data 4086
Effective April 2014
Supersedes April 2012
Coiltronics MPI4040
High Current, High Frequency, Miniature Power Inductors
Applications:
•
•
•
•
•
•
•
•
•
•
Handheld/mobile devices
Portable media players
GPS/PDAs
MP3 Players
Battery operated devices
Notebook/netbook
Tablets/smartbooks
LCD Displays
LED Drivers
POL Converters
Environmental data:
•
Product description:
•
•
•
•
•
•
Storage temperature range (component):
-55°C to +125°C
Operating temperature range: -55°C to +125°C
(Ambient plus self temperature rise)
Solder reflow temperature: J-STD-020D
compliant
•
•
•
Handles high transient inrush current spikes
Magnetically shielded
Frequency range 20kHz to 10MHz
Inductance range from 0.09µH to 22µH
Current range from 1.1A to 32.0A
4.7 x 4.31 footprint surface mount package
in 1.2, 1.5, 1.85 or 2.0mm heights
Rugged construction
Halogen free, lead free, RoHS compliant
Pb
HF
FREE
HALOGEN
•
•
The Coiltronics brand of
magnetics (formerly of
the Bussmann Division of
Cooper Industries)
is now part of
Eaton’s Electrical Group,
Electronics Division.
Coiltronics is now
part of Eaton
Same great
products plus
even more.
Technical Data 4086
Effective April 2014
MPI4040 Series High Current, High Frequency
Miniature Power Inductors
Product specifications
Part Number
5
OCL
1
± 20% (µH)
0.09
0.15
0.23
0.33
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
0.47
1.0
1.5
2.2
3.3
4.7
6.8
10.0
Part Marking
Designator
A
B
C
D
E
F
G
H
I
J
K
L
M
A
B
C
D
E
F
G
H
I
rms2
(Amps)
8.00
7.00
5.50
4.40
5.20
3.30
3.70
3.00
2.60
2.20
1.80
1.50
1.20
I
sat3
@ 25°C (Amps)
32.0
†
26.0
†
21.0
17.0
11.5
9.00
7.70
6.50
5.90
5.10
3.80
3.20
2.80
12.2
8.90
7.60
5.70
5.40
4.30
3.40
3.10
DCR (mΩ)
± 20% @ 20°C
8.50
11.0
18.0
28.0
20.0
51.0
40.0
60.0
80.0
115
180
250
370
13.0
25.0
37.0
58.0
76.0
105
158
240
K-factor
4
1401
989
814
659
1295
461
990
732
623
481
411
344
276
1403
935
701
647
495
421
351
271
R1 -- 1.2mm Height
MPI4040R1-R10-R
MPI4040R1-R15-R
MPI4040R1-R22-R
MPI4040R1-R33-R
MPI4040R1-R47-R
MPI4040R1-R68-R
MPI4040R1-1R0-R
MPI4040R1-1R5-R
MPI4040R1-2R2-R
MPI4040R1-3R3-R
MPI4040R1-4R7-R
MPI4040R1-6R8-R
††
MPI4040R1-100-R
††
MPI4040R2-R47-R
MPI4040R2-1R0-R
MPI4040R2-1R5-R
MPI4040R2-2R2-R
MPI4040R2-3R3-R
MPI4040R2-4R7-R
MPI4040R2-6R8-R
MPI4040R2-100-R
††
R2 -- 1.5mm Height
6.40
4.60
3.80
3.20
2.60
2.20
1.80
1.50
1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.10V
rms
, 0.0Adc
2 I
rms
: DC current for an approximate temperature rise of 40°C without core
loss. De-rating is necessary for AC currents. Temperature rise is dependent
upon several factors, including the PCB pad layout, trace thickness and width,
air-flow and proximity to other heat generating components. It is
recommended the part temperature not exceed 125°C under worst case
operating conditions and therefore, the temperature rise should be verified
in the end use application. Irms testing was performed on a 19.05mm long x
6.35mm wide x 0.070mm thick copper trace in still air.
3 I
sat
: Peak current for approximately 30% rolloff at +25°C.
4 K-factor: Used to determine B
p-p
for core loss (see graph). B
p-p
= K * L * DI.
Bp-p : (Gauss), K: (K-factor from table), L: (inductance in µH),
DI (peak-to-peak ripple current in amps).
5 Part Number Definition: MPI4040RX-XXX-R
• MPI4040X = product code and size
• XXX = inductance value in all, “R” = decimal point
- If no “R” is present, then third digit equals the number of zeros
• “-R” suffix = RoHS compliant
† Transient pulse not to exceed 1 millisecond.
†† Maximum operating frequency less than 10MHz, consult factory for
application specific values.
2
www.eaton.com/elx
MPI4040 Series High Current, High Frequency
Miniature Power Inductors
Technical Data 4086
Effective April 2014
Part Number
5
OCL
1
± 20% (µH)
0.22
0.47
1.2
1.5
2.2
3.3
4.7
6.8
10.0
15.0
22.0
0.22
0.33
0.45
1.0
1.5
2.2
3.3
4.7
6.8
10.0
22.0
Part Marking
Designator
A
B
C
D
E
F
G
H
I
J
K
A
B
C
D
E
F
G
H
I
J
K
I
rms2
(Amps)
8.00
5.80
4.00
3.80
3.40
3.00
2.30
2.00
1.50
1.30
1.10
I
sat3
@ 25°C (Amps)
20.0
17.0
9.40
8.20
7.90
6.60
4.80
4.50
3.80
3.00
2.20
15.0
12.8
11.5
8.20
6.90
5.70
4.50
3.90
3.20
2.60
1.80
DCR (mΩ)
± 20% @ 20°C
5.8
10.3
32.0
36.0
48.0
60.0
92.0
120
213
285
408
5.3
6.0
8.2
17.0
23.0
35.0
49.0
67.0
91.0
148
316
K-factor
4
1870
1530
732
673
543
432
374
306
251
213
174
2405
1870
1530
990
802
673
510
455
374
306
203
R3 -- 1.85mm Height
MPI4040R3-R22-R
MPI4040R3-R47-R
MPI4040R3-1R2-R
MPI4040R3-1R5-R
MPI4040R3-2R2-R
MPI4040R3-3R3-R
MPI4040R3-4R7-R
MPI4040R3-6R8-R
MPI4040R3-100-R
MPI4040R3-150-R
MPI4040R3-220-R
††
MPI4040R4-R22-R
MPI4040R4-R33-R
MPI4040R4-R47-R
MPI4040R4-1R0-R
MPI4040R4-1R5-R
MPI4040R4-2R2-R
MPI4040R4-3R3-R
††
MPI4040R4-4R7-R
††
MPI4040R4-6R8-R
††
MPI4040R4-100-R
††
MPI4040R4-220-R
††
R4 -- 2.0mm Height
10.1
9.50
8.10
5.70
4.90
3.90
3.30
2.90
2.40
1.90
1.30
1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.10V
rms
, 0.0Adc
2 I
rms
: DC current for an approximate temperature rise of 40°C without core
loss. De-rating is necessary for AC currents. Temperature rise is dependent
upon several factors, including the PCB pad layout, trace thickness and width,
air-flow and proximity to other heat generating components. It is
recommended the part temperature not exceed 125°C under worst case
operating conditions and therefore, the temperature rise should be verified
in the end use application. Irms testing was performed on a 19.05mm long x
6.35mm wide x 0.070mm thick copper trace in still air.
3 I
sat
: Peak current for approximately 30% rolloff at +25°C.
4 K-factor: Used to determine B
p-p
for core loss (see graph). B
p-p
= K * L * DI.
Bp-p : (Gauss), K: (K-factor from table), L: (inductance in µH),
DI (peak-to-peak ripple current in amps).
5 Part Number Definition: MPI4040RX-XXX-R
• MPI4040X = product code and size
• XXX = inductance value in all, “R” = decimal point
- If no “R” is present, then third digit equals the number of zeros
• “-R” suffix = RoHS compliant
† Transient pulse not to exceed 1 millisecond.
†† Maximum operating frequency less than 10MHz, consult factory for
application specific values.
www.eaton.com/elx
3
Technical Data 4086
Effective April 2014
MPI4040 Series High Current, High Frequency
Miniature Power Inductors

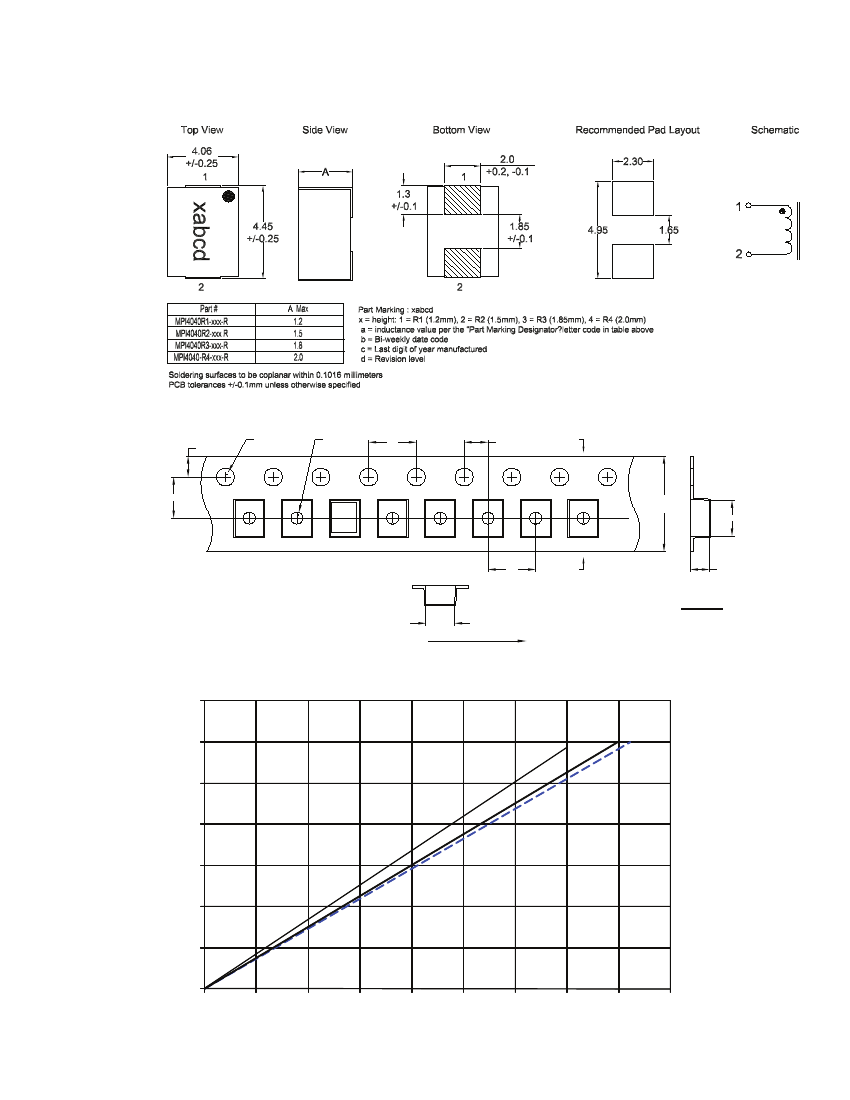

Dimensions - mm
Packaging information - mm
1.75
1.5 dia
1.5 dia.
4.0
2.0
A
5.5
1
xabcd
.
12.0
±0.30
4.8
MPI4040R1=1.30
MPI4040R2=1.60
MPI4040R3=1.95
MPI4040R4=2.1
SECTION A-A
2
Supplied in tape and reel packaging:
•
•
•
•
MPI4040R1 = 5500 parts per 13” diameter reel
MPI4040R2 = 4500 parts per 13” diameter reel
MPI4040R3 = 3500 parts per 13” diameter reel
MPI4040R4 = 3000 parts per 13” diameter reel
8.0
A
4.45
User Direction of feed
Temperature rise vs. total loss
70
60
R3
R2
R1, R4
Temperature Rise (°C)
50
40
30
20
10
0
0
0 .1
0 .2
0 .3
0 .4
0 .5
0 .6
0 .7
0 .8
0 .9
4
www.eaton.com/elx
Total Loss (W)
MPI4040 Series High Current, High Frequency
Miniature Power Inductors

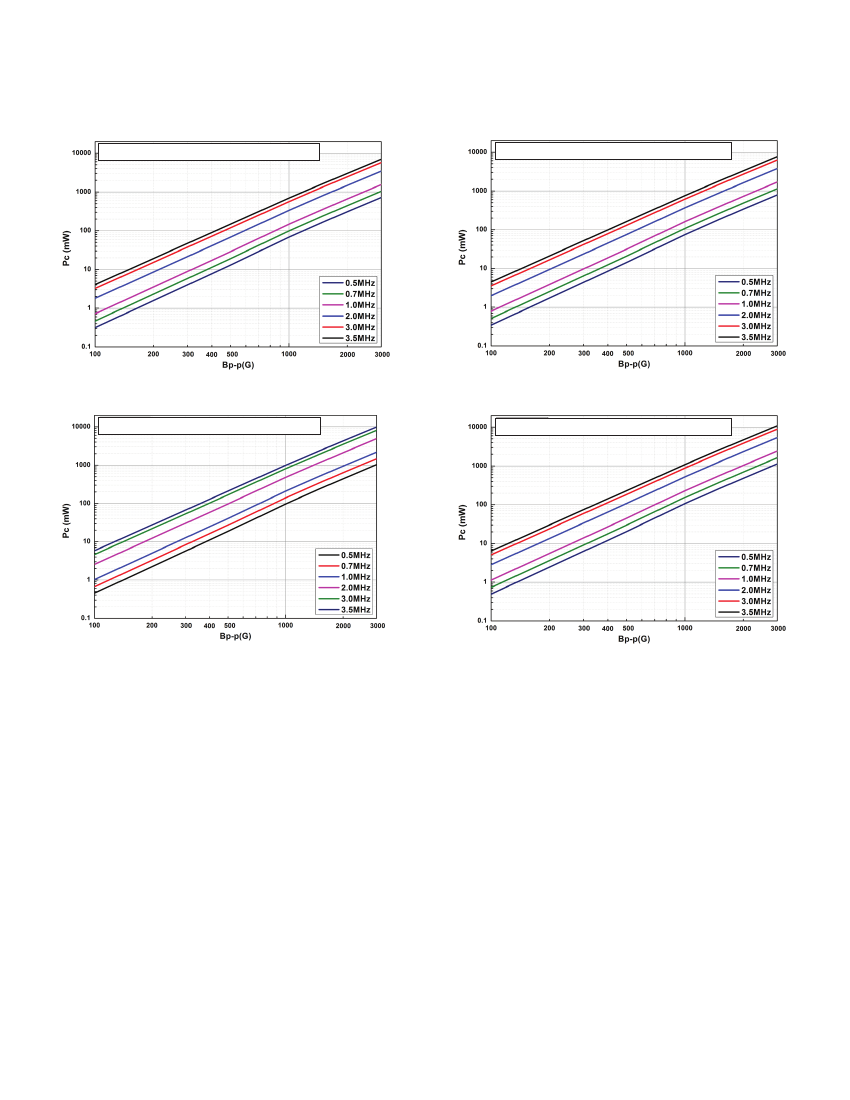

Core loss
1.2mm Height R1
1.5mm Height R2
Technical Data 4086
Effective April 2014
1.85mm Height R3
2.0mm Height R4
www.eaton.com/elx
5
