SMD POWER INDUCTORS(NS SERIES)
SMD POWER INDUCTORS（NS SERIES）
■PARTS
NUMBER
*Operating Temp. : -40½+125℃（Including self-generated heat）
REFLOW
N
S △
①
1
0
1 4
②
5
T △
③
3
R 3
④
M
⑤
N
⑥
A
△＝Blank space
①Series name
Code
NS△
②Dimensions（L×W×H）
Code
10145
10155
10165
12555
12565
12575
③Packaging
Code
T△
Series name
SMD inductor
Dimensions（L×W×H）［mm½
10.1×10.1×4.5
10.1×10.1×5.5
10.1×10.1×6.5
12.5×12.5×5.5
12.5×12.5×6.5
12.5×12.5×7.5
④Nominal inductance
Code
（example）
R20
1R0
100
101
※R＝Decimal point
⑤Inductance tolerance
Code
M
N
⑥Internal code
Code
N△
NA
Nominal inductance［μH½
0.2
1.0
10
100
INDUCTORS POWER INDUCTORS
Inductance tolerance
±20％
±30％
／

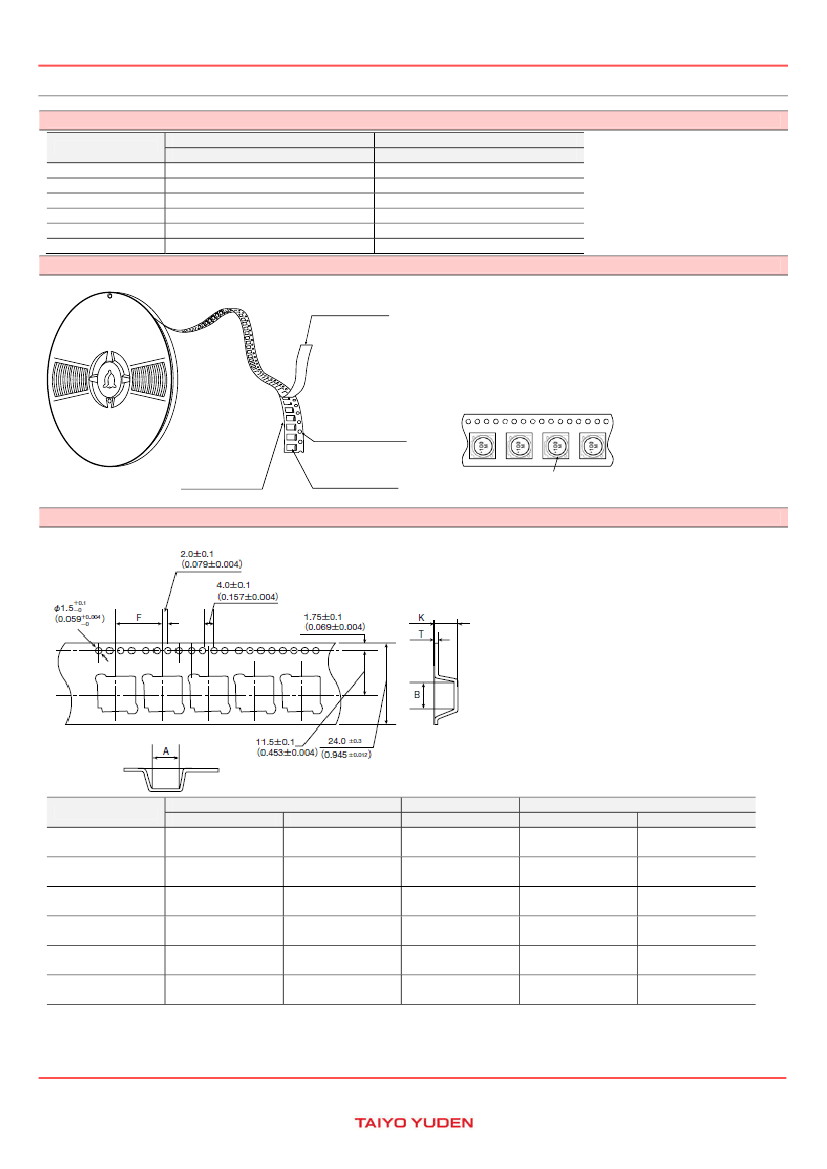

Packaging
Taping
Internal code
■STANDARD

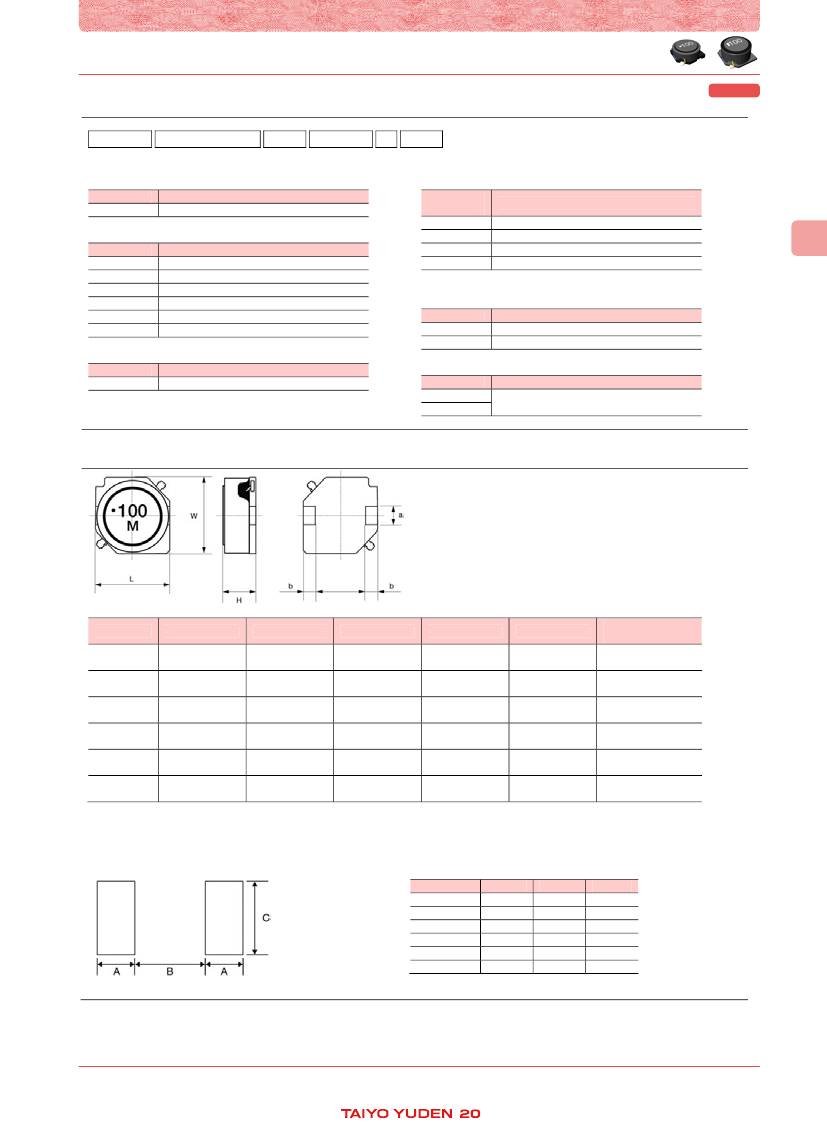

EXTERNAL DIMENSIONS / MINIMUM QUANTITY
Type
NS 10145
NS 10155
NS 10165
NS 12555
NS 12565
NS 12575
L
10.1±0.3
（0.398±0.012）
10.1±0.3
（0.398±0.012）
10.1±0.3
（0.398±0.012）
12.5±0.3
（0.492±0.012）
12.5±0.3
（0.492±0.012）
12.5±0.3
（0.492±0.012）
W
10.1±0.3
（0.398±0.012）
10.1±0.3
（0.398±0.012）
10.1±0.3
（0.398±0.012）
12.5±0.3
（0.492±0.012）
12.5±0.3
（0.492±0.012）
12.5±0.3
（0.492±0.012）
※ The NS 101□□ type does not have the indication of the Manufacturing date code.
Minimum Quantity
H
a
b
[pcs] Taping
4.5±0.35
2.8±0.1
2.0±0.15
2000
（0.177±0.014）
（0.110±0.004）
（0.079±0.006）
5.5±0.35
2.8±0.1
2.0±0.15
2000
（0.217±0.014）
（0.110±0.004）
（0.079±0.006）
6.5±0.35
2.8±0.1
2.0±0.15
2000
（0.256±0.014）
（0.110±0.004）
（0.079±0.006）
5.5±0.35
3.0±0.1
2.0±0.15
2000
（0.217±0.014）
（0.118±0.004）
（0.079±0.006）
6.5±0.35
3.0±0.1
2.0±0.15
2000
（0.256±0.014）
（0.118±0.004）
（0.079±0.006）
7.5±0.35
3.0±0.1
2.0±0.15
2000
（0.295±0.014）
（0.118±0.004）
（0.079±0.006）
Unit：mm（inch）
Recommended Land Patterns
Surface Mounting
・Mounting and soldering conditions should be checked beforehand.
・Applicable soldering process to these products is reflow soldering only.
Type
NS 10145
NS 10155
NS 10165
NS 12555
NS 12565
NS 12575
A
2.5
2.5
2.5
2.5
2.5
2.5
B
5.6
5.6
5.6
8.6
8.6
8.6
C
3.2
3.2
3.2
3.2
3.2
3.2
Unit：mm
i_smd_NS_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
49
■PARTS
NUMBER
●NS
10145 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
10145T 1R0NNA
10145T 1R5NNA
10145T 2R2NNA
10145T 3R3NNA
10145T 4R7NNA
10145T 5R6NNA
10145T 6R8NNA
10145T 100MNA
10145T 150MNA
10145T 220MNA
10145T 330MNA
10145T 470MNA
10145T 680MNA
10145T 101MNA
10145T 151MNA
10145T 221MNA
10145T 331MNA
10145T 471MNA
10145T 681MNA
10145T 102MNA
10145T 152MNA
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
1.0
1.5
2.2
3.3
4.7
5.6
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
Inductance tolerance
±30％
±30％
±30％
±30％
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0049
0.0060
0.0085
0.0100
0.0144
0.0181
0.0200
0.0248
0.0381
0.0520
0.0815
0.100
0.150
0.200
0.341
0.485
0.700
1.030
1.57
2.58
3.70
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
12.54
8.90
10.34
7.99
8.91
6.64
7.33
6.10
6.69
5.03
5.85
4.45
5.05
4.22
4.22
3.77
3.44
3.00
2.87
2.55
2.36
2.01
1.85
1.80
1.66
1.45
1.29
1.25
1.11
0.94
0.91
0.78
0.71
0.64
0.61
0.52
0.50
0.42
0.41
0.32
0.36
0.27
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
INDUCTORS POWER INDUCTORS
／
50
●NS
10155 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
10155T
10155T
10155T
10155T
10155T
10155T
10155T
10155T
1R5NNA
2R2NNA
3R3NNA
4R7NNA
6R8NNA
100MNA
150MNA
220MNA
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
1.5
2.2
3.3
4.7
6.8
10
15
22
Inductance tolerance
±30％
±30％
±30％
±30％
±30％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0060
0.0072
0.0097
0.0112
0.0159
0.0200
0.0284
0.0380
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
11.90
8.39
10.00
7.61
8.50
6.49
7.40
6.01
6.00
4.98
4.49
4.40
4.03
3.65
3.37
3.12
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
●NS
10165 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
10165T
10165T
10165T
10165T
10165T
10165T
10165T
10165T
1R5NNA
2R2NNA
3R3NNA
4R7NNA
6R8NNA
100MNA
150MNA
220MNA
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
1.5
2.2
3.3
4.7
6.8
10
15
22
Inductance tolerance
±30％
±30％
±30％
±30％
±30％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0062
0.0074
0.0086
0.0112
0.0140
0.0174
0.0250
0.0313
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
13.60
8.04
10.80
7.32
9.30
6.76
7.70
5.88
6.00
5.22
5.20
4.66
4.50
3.84
3.60
3.41
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
●NS
12555 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
12555T 6R0NN
12555T 100MN
12555T 150MN
12555T 220MN
12555T 330MN
12555T 470MN
12555T 680MN
12555T 101MN
12555T 151MN
12555T 221MN
12555T 331MN
12555T 471MN
12555T 681MN
12555T 102MN
12555T 152MN
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
6.0
10
15
22
33
47
68
100
150
220
330
470
680
1000
1500
Inductance tolerance
±30％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0140
0.0175
0.0233
0.0297
0.0415
0.0551
0.0797
0.117
0.176
0.270
0.410
0.520
0.760
1.12
1.73
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
5.01
5.60
4.73
5.04
3.89
4.18
3.20
3.81
2.64
3.16
2.23
2.70
1.81
2.14
1.53
1.86
1.22
1.43
1.00
1.18
0.82
0.96
0.68
0.80
0.60
0.72
0.47
0.59
0.40
0.44
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
※
） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value (Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
i_smd_NS_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
■PARTS
NUMBER
●NS
12565 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
12565T
12565T
12565T
12565T
12565T
12565T
12565T
12565T
12565T
12565T
12565T
12565T
2R0NN
4R2NN
7R0NN
100MN
150MN
220MN
330MN
470MN
680MN
101MN
151MN
221MN
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
2.0
4.2
7.0
10
15
22
33
47
68
100
150
220
Inductance tolerance
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0080
0.0126
0.0162
0.0199
0.0237
0.0310
0.0390
0.0575
0.0775
0.123
0.173
0.273
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
13.91
7.60
10.15
5.91
7.93
5.21
6.96
4.75
5.84
4.33
4.87
3.91
3.89
3.22
3.34
2.78
2.78
2.30
2.23
1.81
1.84
1.54
1.39
1.18
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
100
100
100
100
●NS
12575 type
Parts number
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
NS
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
12575T
1R2NN
2R7NN
3R9NN
5R6NN
6R8NN
100MN
150MN
220MN
330MN
470MN
680MN
101MN
151MN
221MN
102MN
EHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
RoHS
Nominal inductance
［μH½
1.2
2.7
3.9
5.6
6.8
10
15
22
33
47
68
100
150
220
1000
Inductance tolerance
±30％
±30％
±30％
±30％
±30％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
±20％
DC Resistance
［Ω½（±20％）
0.0058
0.0085
0.0099
0.0116
0.0131
0.0156
0.0184
0.0260
0.0390
0.0515
0.0720
0.110
0.161
0.245
0.927
Rated current ※） ［A½
Saturation current
Temperature rise current
Idc2
Idc1
18.08
9.15
13.91
7.69
12.52
7.38
10.85
6.36
10.02
5.84
7.65
5.55
6.54
5.22
5.56
4.05
4.45
3.48
3.76
2.95
2.78
2.49
2.64
2.01
2.09
1.51
1.81
1.35
0.80
0.68
Measuring frequency
［kHz½
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
INDUCTORS POWER INDUCTORS
／
※
） The saturation current value (Idc1) is the DC current value having inductance decrease down to 30%. (at 20℃)
※） The temperature rise current value (Idc2) is the DC current value having temperature increase up to 40℃. (at 20℃)
※） The rated current is the DC current value that satisfies both of current value saturation current value and temperature rise current value.
i_smd_NS_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
For details of each product (characteristics graph, reliability information, precautions for use, and so on), see our Web site (http://www.ty-top.com/) .
1
4
51
京公网安备 11010802033920号
EEWORLD
