Document order number: MPC17550
Rev 1.0, 03/2004
Advance Information
Quad H-Bridge Micromotor Driver
with DC/DC Boost Converter
The 17550 is a monolithic quad H-Bridge power IC ideal for portable
electronic applications containing tiny bipolar stepper motors and/or brush
DC-motors powered by two-to-four cell NiCd/NiMH batteries.
The 17550 operates from 2.5 V to 5.5 V, with independent control of each
H-Bridge via parallel 3.0 V or 5.0 V logic-compatible I/O. The device features
an on-board DC/DC boost converter that allows motor operation all the way
down to 1.6 V (the boost converter supplies the gate-drive voltage for each of
the four independent H-bridge output stages). Each output bridge has its own
gate-drive and logic circuitry with built-in shoot-through current protection.
The 17550 has four operating modes: Forward, Reverse, Brake, and
Tri-Stated (High Impedance). The 17550 has a low total R
DS(ON)
of 1.2
Ω
max
@ 25°C. In addition, it can be set into a very low current-drain standby mode.
The H-Bridge outputs can be independently PWM’ed at up to 200 kHz for
speed/torque and current control. The 17550 can efficiently drive many types
of micromotors owing to its low output resistance and high output slew rates.
Features
• Low Total R
DS(ON)
0.7
Ω
(Typ), 1.2
Ω
(Max) @ 25
°C
•
•
•
•
•
•
•
Output Current 700 mA (Continuous per Output)
Shoot-Through Current Protection Circuit
PWM Control Input Frequency up to 200 kHz
Built-In DC/DC Boost Converter
Low Power Consumption Standby Mode
Undervoltage Detection and Shutdown Circuit
Pb-Free Packaging Designated by Suffix Code EV

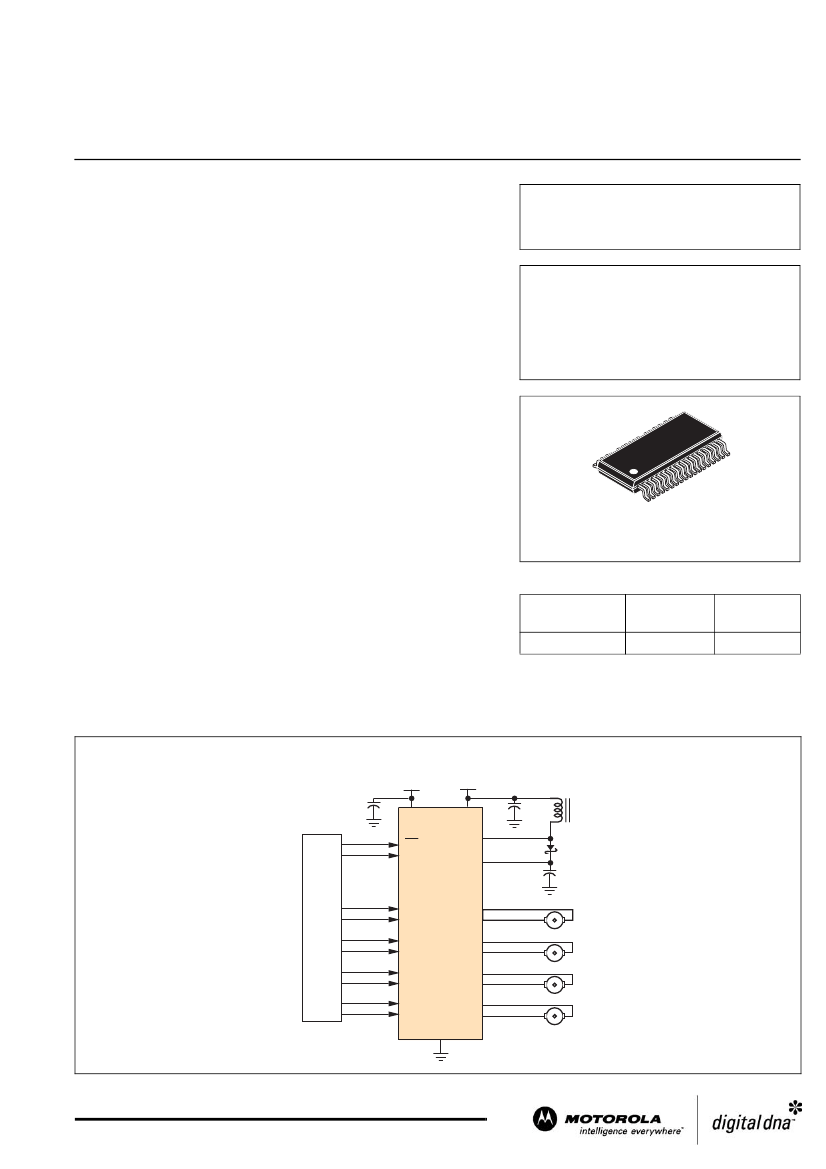

Simplified Application Diagram
17550
QUAD H-BRIDGE MICROMOTOR
DRIVER WITH DC/DC BOOST
CONVERTER
Freescale Semiconductor, Inc...
EV (Pb-FREE) SUFFIX
CASE 1522-01
36-LEAD VMFP
ORDERING INFORMATION
Device
MPC17550EV/EL
Temperature
Range (T
A
)
-10°C to 60°C
Package
36 VMFP
17550 Simplified Application Diagram
V
M
17550
VM
OE
PSB
V
DD
V
DD
LX
VG
MCU
INAF
INAR
INBF
INBR
INCF
INCR
INDF
INDR
HBAF
HBAR
HBBF
HBBR
HBCF
HBCR
HBDF
HBDR
GND
This document contains certain information on a new product.
Specifications and information herein are subject to change without notice.
© Motorola, Inc. 2004
For More Information On This Product,
Go to: www.freescale.com
Freescale Semiconductor, Inc.
GND
LX
VG
V
DD
V
DD
PSB
V
DD
DC/DC
Converter
V
DD
AGND
VG
HBA
VMA
HBAF
HBAR
PGND
Freescale Semiconductor, Inc...
INAF
INAR
INBF
INBR
HBB
VMB
HBBF
HBBR
V
DD
OE
Control
Logic
Gate
Driver
and
Level
Shifter
PGND
HBC
VMC
HBCF
INCF
INCR
HBCR
PGND
HBD
VMD
INDF
INDR
HBDF
HBDR
PGND

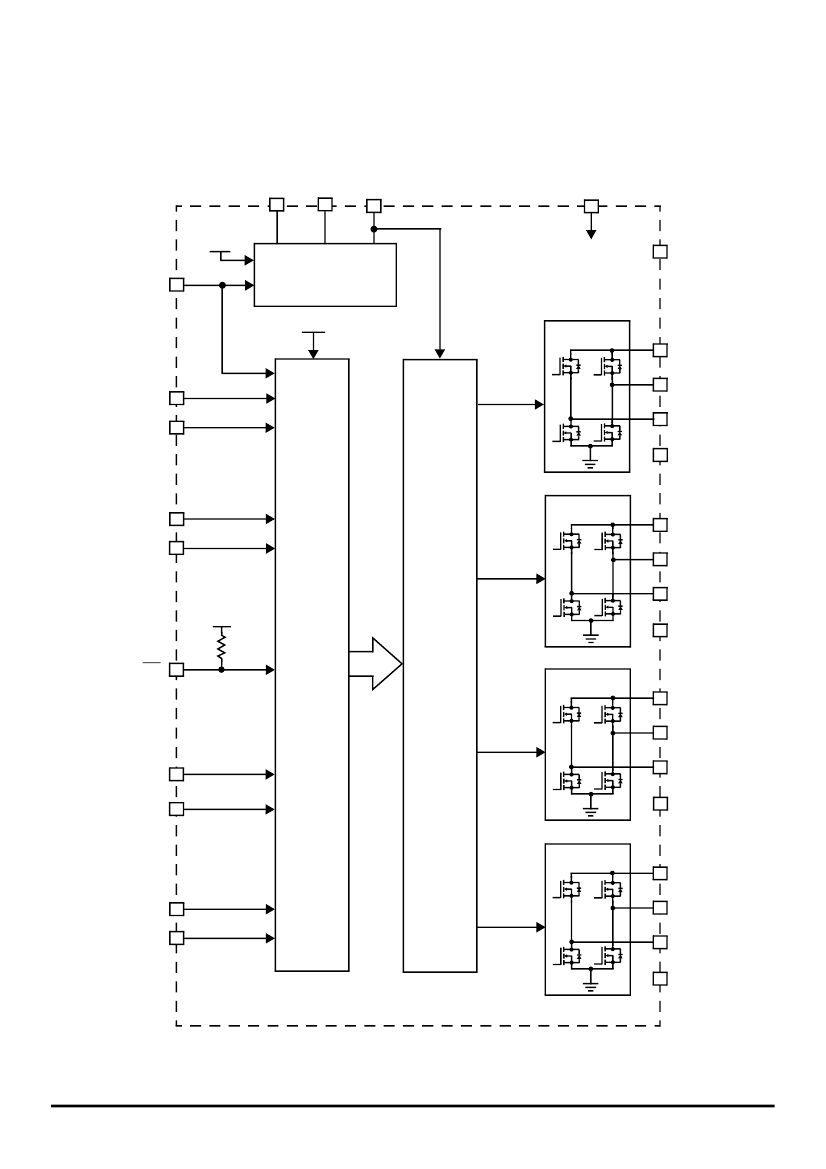

Figure 1. 17550 Simplified Internal Block Diagram
17550
2
MOTOROLA ANALOG
For More Information On This Product,
INTEGRATED CIRCUIT DEVICE DATA
Go to: www.freescale.com
Freescale Semiconductor, Inc.
AGND
NC
PSB
OE
VMA
HBAF
PGND
HBAR
VMA
VMB
HBBR
PGND
HBBF
VMB
INAR
INAF
INBF
INBR
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
VG
V
DD
LX
GND
VMC
HBCF
PGND
HBCR
VMC
VMD
HBDR
PGND
HBDF
VMD
INCR
INCF
INDF
INDR
Freescale Semiconductor, Inc...
TERMINAL FUNCTION DESCRIPTION
Terminal
1
2
3
4
5, 9
6
8
10, 14
11
7, 12, 25, 30
13
15
16
17
18
19
20
21
22
23, 27
24
26
28, 32
29
31
Terminal
Name
AGND
NC
PSB
OE
VMA
HBAF
HBAR
VMB
HBBR
PGND
HBBF
INAR
INAF
INBF
INBR
INDR
INDF
INCF
INCR
VMD
HBDF
HBDR
VMC
HBCR
HBCF
Formal Name
Analog Ground
No Connect
Power Standby
Output Enable
Motor Drive Power Supply A
HBA Forward Output
HBA Reverse Output
Motor Drive Power Supply B
HBB Reverse Output
Power Ground
HBB Forward Output
Input Control HBA Reverse
Input Control HBA Forward
Input Control HBB Forward
Input Control HBB Reverse
Input Control HBD Reverse
Input Control HBD Forward
Input Control HBC Forward
Input Control HBC Reverse
Motor Drive Power Supply D
HBD Forward Output
HBD Reverse Output
Motor Drive Power Supply C
HBC Reverse Output
HCB Forward Output
Definition
Analog and logic signal ground reference terminal.
No connection to this terminal.
Power standby mode control terminal.
Logic output Enable control of H-Bridges (Low = True).
Power supply voltage connection for Motor “A” (top of HBA).
Forward output of H-Bridge A.
Reverse output of H-Bridge A.
Power supply voltage connection for Motor “B” (top of HBB).
Reverse output of H-Bridge B.
Power ground connection.
Forward output of H-Bridge B.
Control signal input for H-Bridge A reverse.
Control signal input for H-Bridge A forward.
Control signal input for H-Bridge B forward.
Control signal input for H-Bridge B reverse.
Control signal input for H-Bridge D reverse.
Control signal input for H-Bridge D forward.
Control signal input for H-Bridge C forward.
Control signal input for H-Bridge C reverse.
Power supply voltage connection for Motor “D” (top of HBD).
Forward output of H-Bridge D.
Reverse output of H-Bridge D.
Power supply voltage connection for Motor “C” (top of HBC).
Reverse Output of H-Bridge C.
Forward Output of H-Bridge C.
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
17550
3
Freescale Semiconductor, Inc.
TERMINAL FUNCTION DESCRIPTION (continued)
Terminal
33
34
35
36
Terminal
Name
GND
LX
V
DD
VG
Formal Name
Ground
DC/DC Converter Switching
Transistor Output
Logic Supply
Gate-Driver Circuit Power
Supply
Definition
Control circuit ground terminal for DC/DC circuit ground.
Open-drain output of the internal DC/DC converter circuit.
Control circuit power supply terminal.
Input terminal for the gate-drive voltage.
Freescale Semiconductor, Inc...
17550
4
MOTOROLA ANALOG
For More Information On This Product,
INTEGRATED CIRCUIT DEVICE DATA
Go to: www.freescale.com
Freescale Semiconductor, Inc.
MAXIMUM RATINGS
All voltages are with respect to ground unless otherwise noted. Exceeding the ratings may cause a malfunction or permanent
damage to the device.
Rating
Motor Supply Voltage
Gate-Driver Circuit Power Supply Voltage
Logic Supply Voltage
Signal Input Voltage (Note 1)
Driver Output Current
Continuous (Note 2)
Peak (Note 3)
I
O
I
OPK
V
ESD1
V
ESD2
T
STG
T
A
T
J
R
θ
JA
P
D
T
SOLDER
0.7
2.0
V
±2000
±100
-65 to 150
-10 to 60
-10 to 150
TBD
1500
260
°C
°C
°C
°C/W
mW
°C
Symbol
V
M
V
G
V
DD
V
IN
Value
-0.5 to 9.0
V
DD
-0.5 to 14
-0.5 to 6.0
-0.5 to V
DD
+0.5
Unit
V
V
V
V
A
Freescale Semiconductor, Inc...
ESD Voltage
Human Body Model (Note 4)
Machine Model (Note 5)
Storage Temperature Range
Operating Ambient Temperature
Operating Junction Temperature
Thermal Resistance (Note 6)
Power Dissipation (Note 7)
Soldering Temperature (Note 8)
Notes
1. V
IN
is the voltage level applied to any input terminal.
2. I
O
is measured as the load current flowing through the H-bridge.
3.
4.
5.
6.
7.
8.
T
A
= 25°C, pulse width < 10 ms at intervals > 0.2 seconds.
ESD1 testing is performed in accordance with the Human Body Model (C
ZAP
= 100 pF, R
ZAP
= 1500
Ω).
ESD2 testing is performed in accordance with the Machine Model (CZAP = 200 pF, RZAP = 0
Ω).
Mounted on 37 x 50 Cu area (1.6 mm FR-4 PCB).
Maximum at T
A
= 25°C.
Soldering temperature limit is for 10 seconds maximum duration. Not designed for immersion soldering. Exceeding these limits may cause
malfunction or permanent damage to the device.
MOTOROLA ANALOG INTEGRATED CIRCUIT DEVICE DATA
For More Information On This Product,
Go to: www.freescale.com
17550
5
