MEC2-05-01-L-DV-K datasheet, PDF

Datasheet> All Categories > The connector> The connector> MEC2-05-01-L-DV-K

MEC2-05-01-L-DV-K: DescriptionCard Edge Connector, 10 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT; CategoryThe connector The connector; File Size659KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/

Download Datasheet Parametric View All

MEC2-05-01-L-DV-K Overview

Card Edge Connector, 10 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket, ROHS COMPLIANT

MEC2-05-01-L-DV-K Parametric

Parameter Name	Attribute value
Objectid	1220336243
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	7
Other features	POLARIZED
Body/casing type	SOCKET
Connector type	CARD EDGE CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	MATTE TIN OVER NICKEL (50)
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	MEC2
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2 mm
Termination type	SURFACE MOUNT
Total number of contacts	10

Preview

Download Datasheet

View All

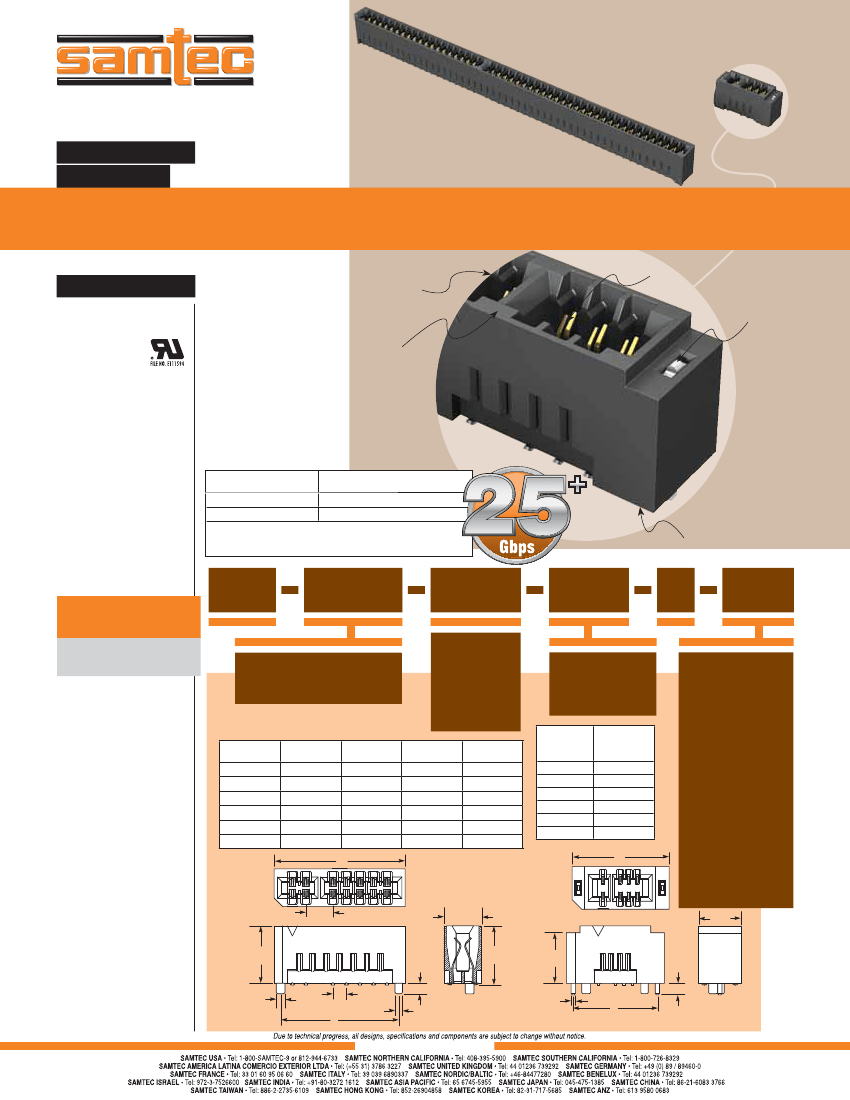

F-213-1

MEC2–05–01–L–DV–WT

MEC2–50–01–L–DV

(2,00 mm) .0787"

MEC2 SERIES

MICRO EDGE CARD SOCKET

SPECIFICATIONS

For complete speciﬁcations and

recommended PCB layouts see

www.samtec.com?MEC2-DV

Insulator Material:

–01=Black Liquid

Crystal Polymer

–02=Natural Liquid

Crystal Polymer

Contact Material:

BeCu

Plating:

Sn or Au over

50µ" (1,27 µm) Ni

Operating Temp Range:

-55°C to +125°C

Current Rating:

2.5 A per contact @ 95°C

ambient

Voltage Rating:

238 VAC

RoHS Compliant:

Yes

Mates with:

(1,60 mm) .062" card,

(2,36 mm) .093" card

Choice of

two card

thicknesses

Up to

98 I/Os

Rugged

Weld Tab

option

Polarized

Processing:

Lead–Free Solderable:

Yes

SMT Lead Coplanarity:

(0,10 mm) .004" max (05-30)

(0,15 mm) .006" max (40-50)

MEC2

Rated @ 3dB Insertion Loss*

8,78 mm Stack Height

Single-Ended Signaling

12.5 GHz / 25 Gbps

Differential Pair Signaling

14.5 GHz / 29 Gbps

*Test board losses de-embedded from performance data.

Complete test data available at www.samtec.com?MEC2-DV or

contact sig@samtec.com

Alignment

Pins

MEC2

POSITIONS

PER ROW

CARD

THICKNESS

PLATING

OPTION

APPLICATION

SPECIFIC

Non-polarized

Call Samtec.

–01

–05, –08, –20,

–30, –40, –50

= (1,60 mm) .062"

thick card

–L

= 10µ" (0,25 µm)

Gold on contact,

Matte Tin on tail

POSITIONS POLARIZED

PER ROW POSITIONS

(No Contact)

3, 4

–05

5, 6

–08

15, 16

–20

21, 22

–30

31, 32

–40

41, 42

–50

–WT

= Weld Tabs

(Standard on

–02 card thickness,

optional on –01

card thickness)

–02

= (2,36 mm) .093"

thick card

POSITIONS

PER ROW

–05

–08

–20

–30

–40

–50

(13,40) .528

(19,40) .764

(43,40) 1.709

(63,40) 2.496

(83,40) 3.283

(11,50) .453

(17,50) .689

(41,50) 1.634

(61,50) 2.421

(81,50) 3.209

(17,40) .685

(23,40) .921

(47,40) 1.866

(67,40) 2.654

(87,40) 3.441

(15,40) .606

(21,40) .843

(45,40) 1.787

(65,40) 2.575

(85,40) 3.362

–K

= (5,00 mm) .197" DIA

(–01 card thickness)

(5,70 mm) .224" DIA

(–02 card thickness)

Polyimide ﬁlm

pick & place pad

(–TR only)

(103,40) 4.071 (101,50) 3.996 (107,40) 4.228 (105,40) 4.150

–TR

= Tape & Reel

packaging

(–05 thru –30

positions only)

(6,30)

.248

Note:

While optimized for

50Ω applications, this

connector with alternative

signal/ground patterns may

also perform well in certain

75Ω applications. Contact

Samtec for further information.

Note:

Other Gold plating

options available.

Contact Samtec.

Note:

Some sizes, styles and

options are non-standard,

non-returnable.

(4,00) .157

(5,60)

.220

(8,50)

.335

(1,55)

.061

(2,00)

.0787

(1,10) .043

(8,78)

.346

(7,50)

.295

(1,72)

.068

(1,32)

.052

DIA

–01

(0,64)

.025

–02

–WT OPTION

WWW.SAMTEC.COM
