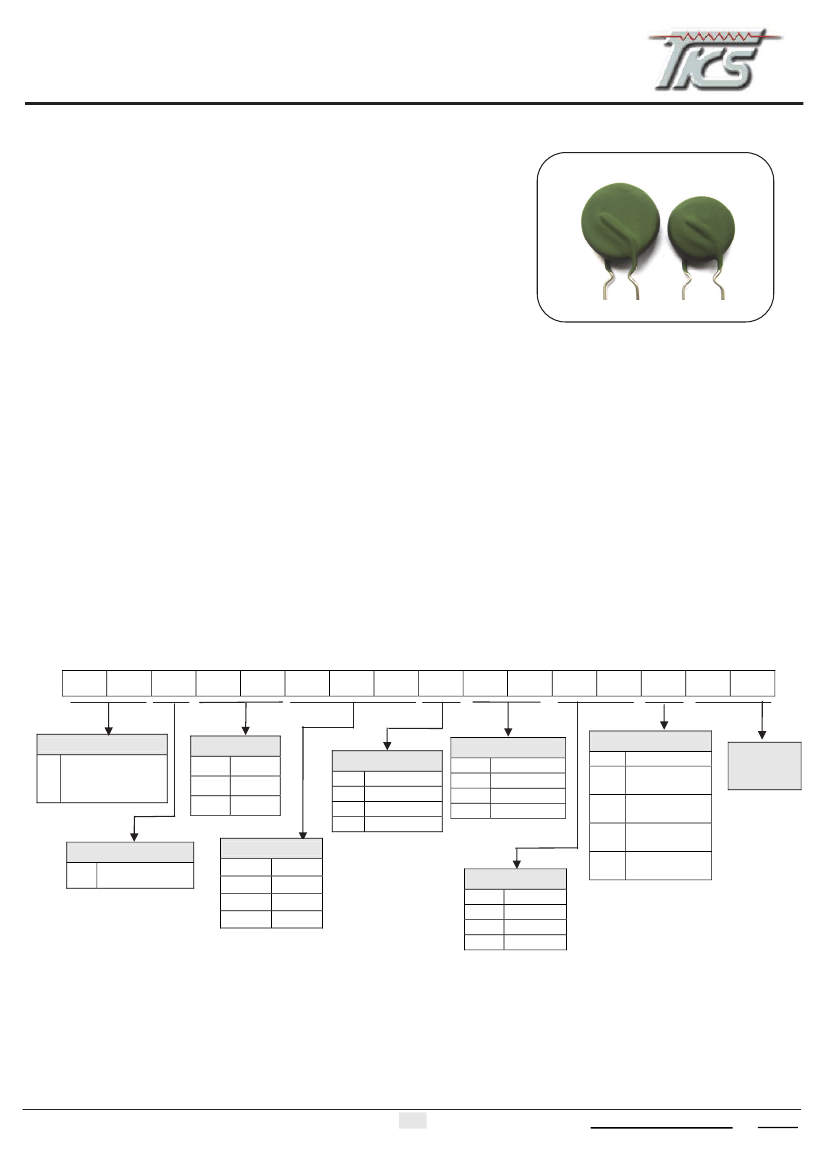

Ceramic PTC Thermistor: PPL Series
Dip Type for Inrush Current Limiter
Features
1. RoHS compliant
2. Leaded type
3. Voltage rating: 270V
ac
~500V
ac
4. Resistance range:10~1000Ω
5. Stable over a long time
6. Operating temperature range:
-20 ~ +85°C (V=V
max
)
-40 ~ +125°C (V=0)
7. Agency recognition:
UL/cUL File No. E138827
Recommended Applications
1. Air conditioner
2. Server
3. LED lamp
4. Switch power supply
Part Number Code
P
1
P
2
L
3
1
4
6
5
5
6
0
7
0
8
M
9
A
10
2
11
B
12
7
13
Y
14
15
16
Product Code
THINKING Ceramic
PP
PTC Thermistor
PP Series
Dimensions
11
16
20
ψ11mm
ψ16mm
ψ20mm
Curie Temperature
Tolerance of R
25
M
H
N
Y
±20%
±25%
±30%
Special
P8
A0
A2
A4
80℃
100℃
120℃
140℃
Packaging
Y
X
V
W
U
Bulk
Ammo Box
Pitch 12.7mm
Ammo Box
Pitch 15mm
Taping & Reel
Pitch 12.7mm
Taping & Reel
Pitch 15mm
Internal
Control
Code
Series
L
Leaded Type
Resistance (R
25
)
250
500
101
102
25Ω
50Ω
100Ω
1000Ω
Max. Voltage
A4
B7
C8
E0
140 V
270 V
380 V
500 V
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice.
26
www.thinking.com.tw
2014.05
Ceramic PTC Thermistor: PPL Series
Dip Type for Inrush Current Limiter

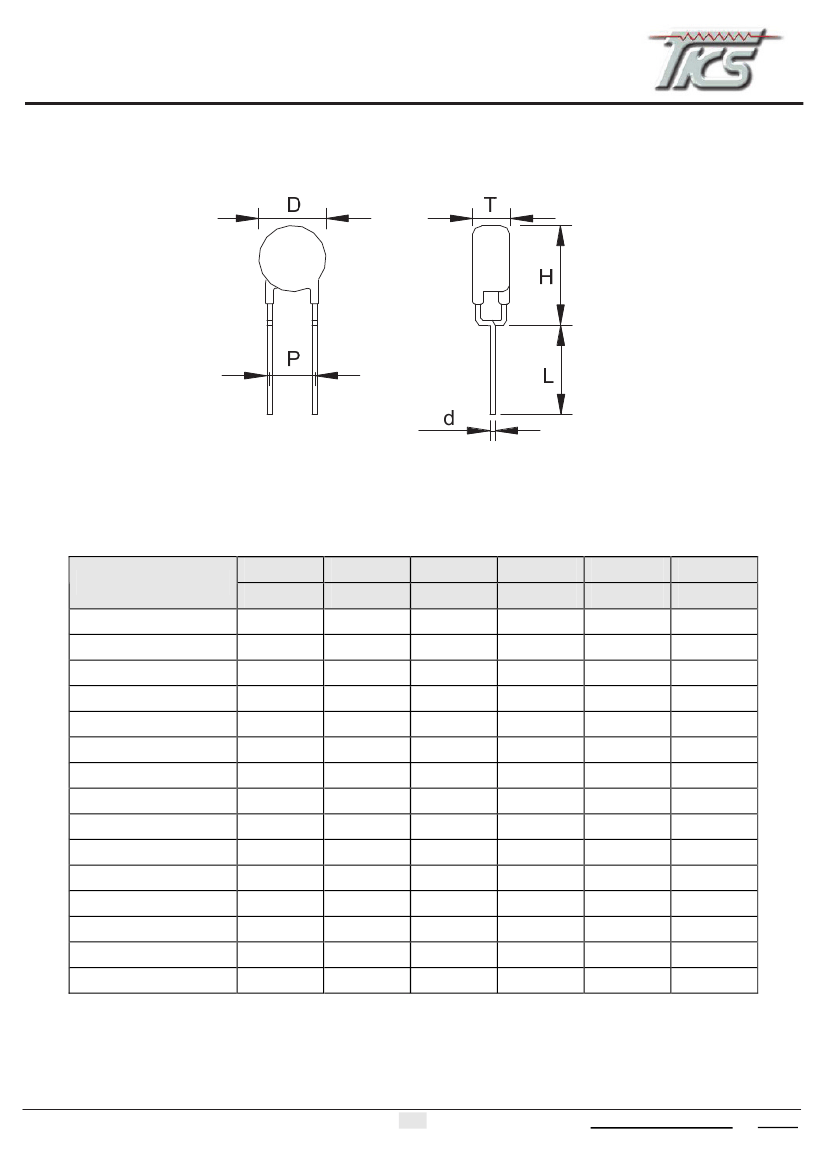

Structure and Dimensions
Structure
Dimensions
D
max
21.5
18
22
18
18
13
13
13
21.5
13
13
15
21.5
18
13
(Unit: mm)
T
max
10.7
7
10.7
7
7
6
7
7
10.7
7
7
7.5
10.7
7
7
Part No.
PPL19100□A1B7
PPL16270□A2B7
PPL20330□A3B7
PPL16350□A2B7
PPL16500□A2B7
PPL11250□A2C8
PPL11500□A2C8
PPL11800□A2C8
PPL19500□A0C8
PPL11121□A2C8
PPL11151□A2C8
PPL14121□A3D4
PPL19102□A0D8
PPL16251□A2E0
PPL11501□A2E0
H
max
25.5
21.5
25.5
21.5
21.5
17
17
17
25.5
17
17
19.5
25.5
21.5
17
d
±0.02
1.0
1.0
1.0
1.0
1.0
0.6
0.6
0.6
1.0
0.6
0.6
0.8
1.0
1.0
0.6
P
±1.0
10
10
10
10
10
5
5
5
10
5
5
5
10
10
5
L
Min.
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice.
27
www.thinking.com.tw
2014.05
Ceramic PTC Thermistor: PPL Series
Dip Type for Inrush Current Limiter

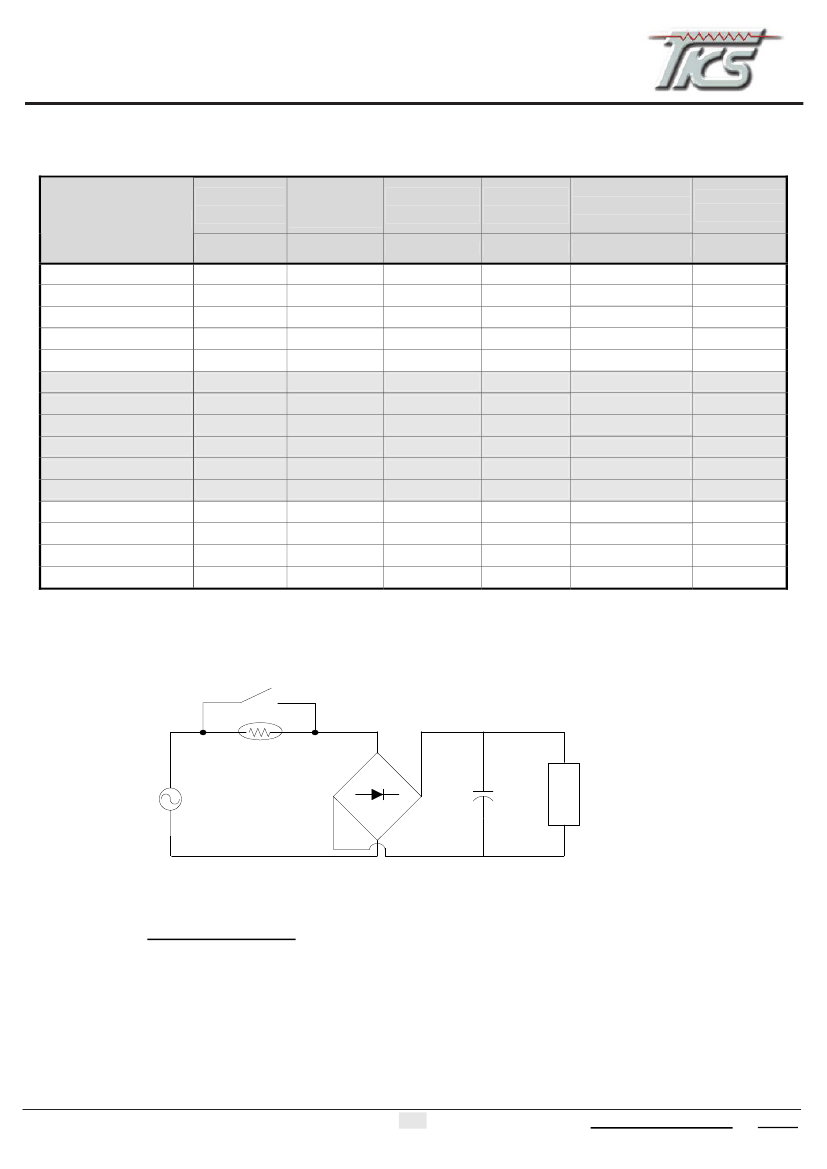

Characteristics
Max.
Voltage
Vmax (Vac)
PPL19100□A1B7
PPL16270□A2B7
PPL20330□A3B7
PPL16350□A2B7
PPL16500□A2B7
PPL11250□A2C8
PPL11500□A2C8
PPL11800□A2C8
PPL19500□A0C8
PPL11121□A2C8
PPL11151□A2C8
PPL14121□A3D4
PPL19102□A0D8
PPL16251□A2E0
PPL11501□A2E0
270
270
270
270
270
380
380
380
380
380
380
440
480
500
500
Part No.
Zero-power
Resistance
at 25℃
R
25
(Ω)
10
27
33
35
50
25
50
80
50
120
150
120
1000
250
500
Curie
Temperature
Tc (℃)
110
120
130
120
120
115
115
115
100
115
115
130
100
120
115
Thermal
Capacity
Cth(J/K)
3.5
2.3
3.8
2.3
2.3
1.0
1.4
1.4
3.5
1.4
1.4
2.1
3.8
2.3
1.4
Max.
Non-operating
Energy at 60℃
E
Non60
(J)
123
97
186
97
97
39
54
54
98
54
54
103
106
97
54
Safety
Approvals
UL/cUL
Note:
□
is the tolerance of R
25
Application and Selection
Typical application circuit:
PTC
Thermistor
AC
Vs
Bulk
Cap.
Load
Selection
Select charging capacitor according to the following formula.
C<
0.7x
(Tc-Ta)xCthx10
6
0.5xV
2
(Unit: uF)
C: Bulk Cap.
Tc: Curie temperature of PTC
V: Voltage of capacitor charging (V=1.414xVs)
E
Non60
=
0.7x
(Tc-Ta)xCth
E
Non60:
Max Non-operating Energy at 60℃(Ta= 60)
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice.
0.7: Safety factor
Ta: Ambient temperature
28
www.thinking.com.tw
2014.05
Ceramic PTC Thermistor: PPL Series
Dip Type for Inrush Current Limiter

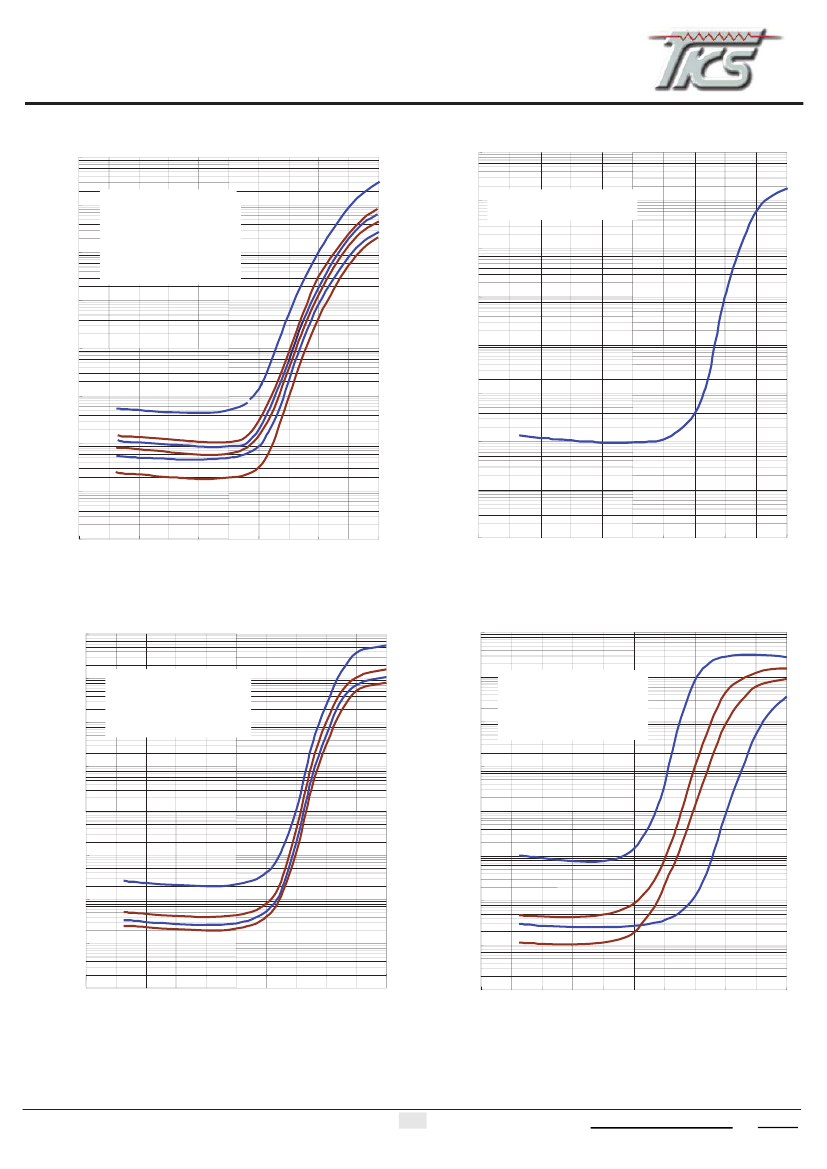

R-T Characteristic Curve (Typical)
10
8
10
1
8
10
7
10
6
Resistance ()
Resistance ()
1.PPL11501□A2E0
Resistance ()
2.PPL11151□A2C8
3.PPL11121□A2C8
4.PPL11800□A2C8
5.PPL11500□A2C8
6.PPL11250□A2C8
2
3
4
5
6
10
7
PPL14121□A3D4
10
6
10
5
10
5
10
4
10
4
10
3
10
3
10
2
10
2
10
10
1
0
40
80
120
160
200
1
0
40
80
120
160
200
Temperature(C)
Temperature(C)
10
8
1
7
10
8
10
10
6
1.PPL16251□A2E0
2.PPL16500□A2B7
3.PPL16350□A2B7
4.PPL16270□A2B7
2
3
4
10
7
10
6
1.PPL19102□A0D8
2.PPL19500□A0C8
3.PPL20330□A3B7
4.PPL19100□A1B7
1
2
3
4
10
5
10
5
Resistance ()
Resistance ()
10
4
10
4
10
3
10
3
10
2
10
2
10
10
1
0
40
80
120
160
200
1
0
0
40
80
120
160
200
Temperature(C)
Temperature(C)
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice.
29
www.thinking.com.tw
2014.05
Ceramic PTC Thermistor: PPL Series
Dip Type for Inrush Current Limiter

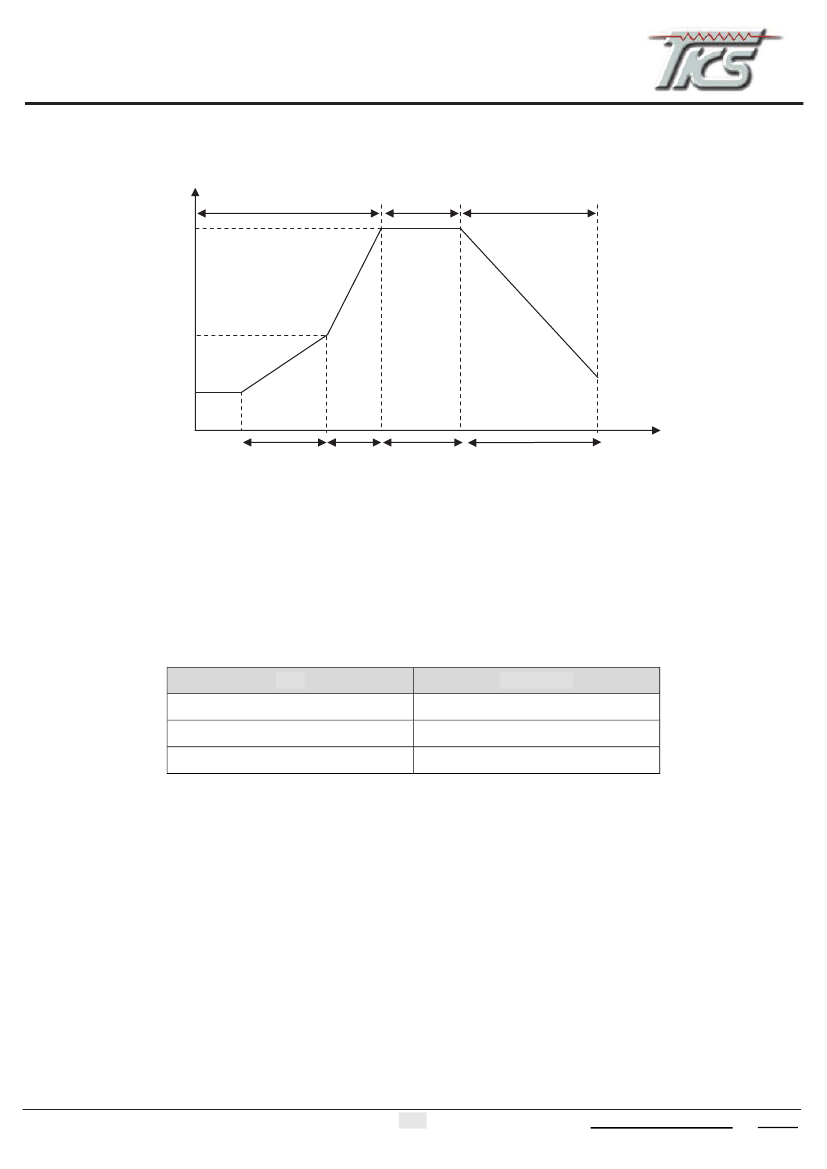

Soldering Recommendation
Wave Flow Soldering Profile
Preheating
260℃ Max
Temperature
Soldering
Cooling
Note 2
Note 3
130±20℃
Note 1
Ta
30~90 sec.
＜1
sec.
＜10
sec.
>60sec
Time
Note
1: (1~3℃)/sec
2: Approx. 200℃/sec
3: 5℃/sec. (Max)
Recommended Reworking Conditions With Soldering Iron
Item
Temperature of Soldering Iron-tip
Soldering Time
Distance from Thermistor
Conditions
360℃ (max.)
3 sec (max.)
2 mm (min.)
THINKING ELECTRONIC INDUSTRIAL CO., LTD.
All specifications are subject to change without notice.
30
www.thinking.com.tw
2014.05
