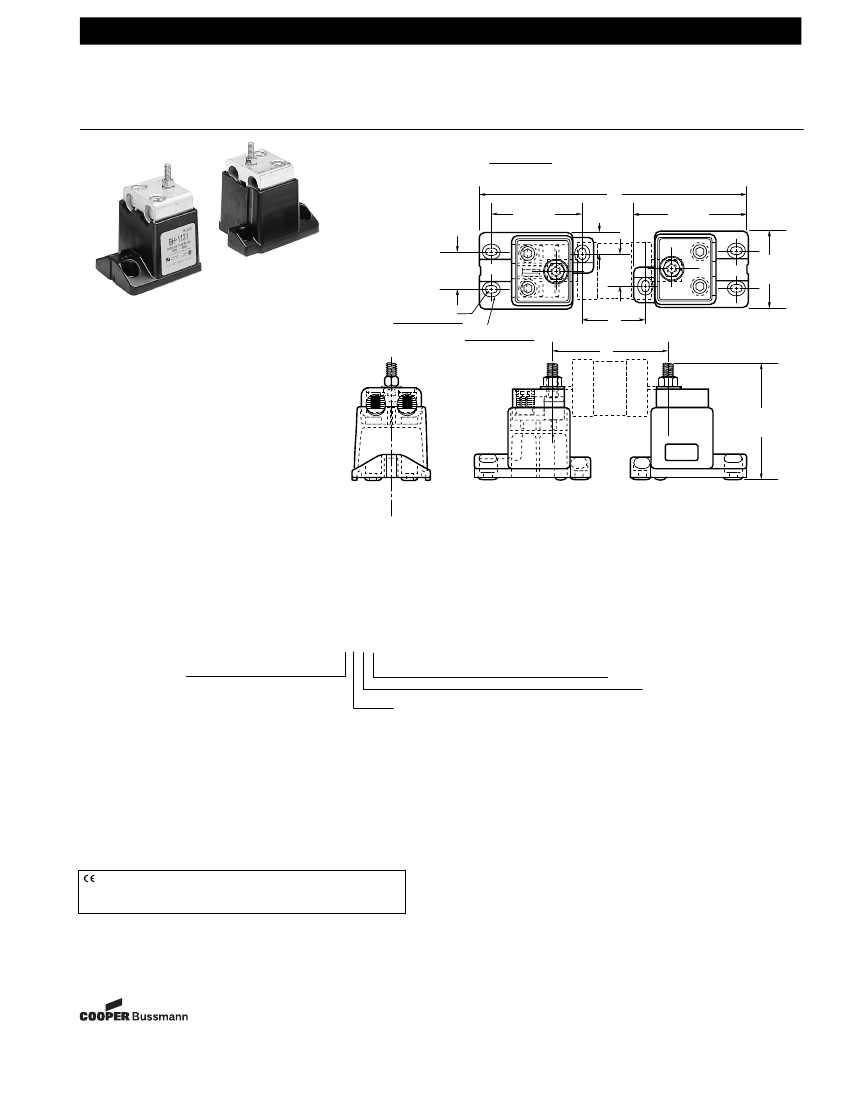

Bussmann
®
Modular Fuseblocks
0-2500 Volts, 400 Amps
Dimensional Data
mm (± .25)
Inches (± .01)
BH-1 Series
79.50
3.130"
B
17.78
0.7"
99.82
3.930"
®
Catalog Symbol:
BH-1 Series
Base:
Light-weight, high temperature
thermoplastic
Mounting Studs:
Plated steel
Connector:
Tin-plated aluminum.
Standard connector accepts #6 - 250 MCM
copper wire
Nut:
Plated steel
Washer:
Spring steel
Agency Approval:
UL Recognized, Guide EZLT2, File E14853
up to 700 Volts
CSA Certified, Class 6225-01, File 47235
up to 700 Volts
Withstand Rating:
200,000A RMS Sym.
or interrupting rating of fuse used, whichever
is smaller.
Temperature Rating (RTI):
140°C
Catalog Code Description:
Block Series
Agency Approval
0 No Agency Approval
1 UL Recognition and CSA Certification
2 UL Recognition Only
3 CSA Certification Only
(Typ. 3)
6.60 x 9.53
(Typ. 3)
.26" x .375"
13.97 x 15.62
.55" x .615"
A
C
BH - 1 X X X S
Optional Control Wire Screw
Stud Size
1⁄Ω¢ - 20
Wire Connector
2fiΩ¡§ - 18
0 No Connector
3 2 Hole for #6 - 250 MCM Copper Wire
3‹Ω• - 16
(for use with Base 1, 2, & 3)
NOTES:
1. Always check applicable end use standards for required spacing between blocks, fuses or other hardware.
2. For applications above 700V, consult appropriate electrical standard for proper creepage distances, clearance distances and insulator
voltage withstand ratings.
CE logo denotes compliance with European Union Low Voltage Directive
(50-1000 VAC, 75-1500 VDC). Refer to BIF document #8002 or contact
Bussmann Application Engineering at 314-527-1270 for more information.
12-17-98
SB98107
Rev. A
Buss
®
31.75
1.250"
Buss
31.75
1.250"
67.31
2.650"
100.96
3.975"
Form No. BH-1
Page 1 of 3
BIF Doc #1201
Bussmann
®
Modular Fuseblocks
0-2500 Volts, 400 Amps
Electrical Characteristics (continued)
Buss Cat. No.
170M1308 thru 170M1317
170M1318 thru 170M1322
170M1358 thru 170M1367
170M1368 thru 170M1372
170M1408 thru 170M1417
170M1418 thru 170M1422
170M1458 thru 170M1467
170M1468 thru 170M1472
170M1508 thru 170M1517
170M1518 thru 170M1522
170M2608 thru 170M2614
170M2615 thru 170M2621
170M2658 thru 170M2664
170M2665 thru 170M2671
170M3008 thru 170M3012
170M3013 thru 170M3019
170M3058 thru 170M3062
170M3063 thru 170M3069
170M3108 thru 170M3112
170M3113 thru 170M3119
170M3138 thru 170M3141
170M3142 thru 170M3148
170M3158 thru 170M3162
170M3163 thru 170M3169
170M3188 thru 170M3191
170M3192 thru 170M3198
170M3208 thru 170M3212
170M3213 thru 170M3219
170M3238 thru 170M3241
170M3242 thru 170M3248
170M3258 thru 170M3262
170M3263 thru 170M3269
170M3308 thru 170M3312
170M3313 thru 170M3319
170M3358 thru 170M3362
170M3363 thru 170M3369
170M3608 thru 170M3612
170M3613 thru 170M3619
170M3658 thru 170M3662
170M3663 thru 170M3669
170M3688 thru 170M3691
170M3692 thru 170M3697
170M3708 thru 170M3712
170M3713 thru 170M3719
170M3738 thru 170M3741
170M3742 thru 170M3747
170M3758 thru 170M3762
170M3763 thru 170M3769
Fuseblock
Part No.
BH-1131
BH-1131
BH-1131
BH-1131
BH-1131
BH-1131
BH-1132
BH-1132
BH-1132
BH-1132
BH-1133
BH-1131
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1132
BH-1132
BH-1132
BH-1132
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
BH-1133
Stud
Ref.
⁄Ω¢
⁄Ω¢
⁄Ω¢
⁄Ω¢
⁄Ω¢
⁄Ω¢
fiΩ¡§
fiΩ¡§
fiΩ¡§
fiΩ¡§
‹Ω•
⁄Ω¢
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
fiΩ¡§
fiΩ¡§
fiΩ¡§
fiΩ¡§
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
‹Ω•
Fuse Volt
Rating
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
1250V
1250V
660V
660V
1250V
1250V
660V
660V
1250V
1250V
660V
660V
660V
660V
660V
660V
660V
660V
660V
660V
1250V
1250V
660V
660V
1250V
1250V
660V
660V
"A"
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
25.04 / 0.986
25.04 / 0.986
25.04 / 0.986
25.04 / 0.986
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
33.04 / 1.300
63.04
63.04
63.04
63.04
63.04
63.04
63.04
63.04
63.04
63.04
63.04
63.04
31.04
31.04
31.04
31.04
40.03
40.03
40.03
40.03
85.04
85.04
78.03
40.03
85.04
85.04
78.03
40.03
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
2.560
2.560
2.482
2.482
2.482
2.482
2.482
2.482
2.482
2.482
2.482
2.482
1.222
1.222
1.222
1.222
1.576
1.576
1.576
1.576
3.348
3.348
3.072
1.576
3.348
3.348
3.072
1.576
BH-1 Series
Dimensions mm / Inches
"B"
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
204.37 / 8.046
204.37 / 8.046
204.37 / 8.046
204.37 / 8.046
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
212.34 / 8.360
244.35
244.35
242.37
242.37
242.37
242.37
242.37
242.37
242.37
242.37
242.37
242.37
210.36
210.36
210.36
210.36
219.35
219.35
219.35
219.35
264.36
264.36
257.35
219.35
264.36
264.36
257.35
219.35
/ 9.620
/ 9.620
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 9.542
/ 8.282
/ 8.282
/ 8.282
/ 8.282
/ 8.636
/ 8.636
/ 8.636
/ 8.636
/10.408
/10.408
/10.132
/ 8.636
/10.408
/10.408
/10.132
/ 8.636
"C"
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
70.00 / 2.756
70.00 / 2.756
70.00 / 2.756
70.00 / 2.756
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
78.00 / 3.070
109.98
109.98
108.00
108.00
108.00
108.00
108.00
108.00
108.00
108.00
108.00
108.00
76.00
76.00
76.00
76.00
84.99
84.99
84.99
84.99
130.00
130.00
122.99
84.99
130.00
130.00
122.99
84.99
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
/
4.330
4.330
4.252
4.252
4.252
4.252
4.252
4.252
4.252
4.252
4.252
4.252
2.992
2.992
2.992
2.992
3.346
3.346
3.346
3.346
5.118
5.118
4.842
3.346
5.118
5.118
4.842
3.346
