Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
744870004
LF
RoHS
compliant
DATUM / DATE : 2006-03-01
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
A

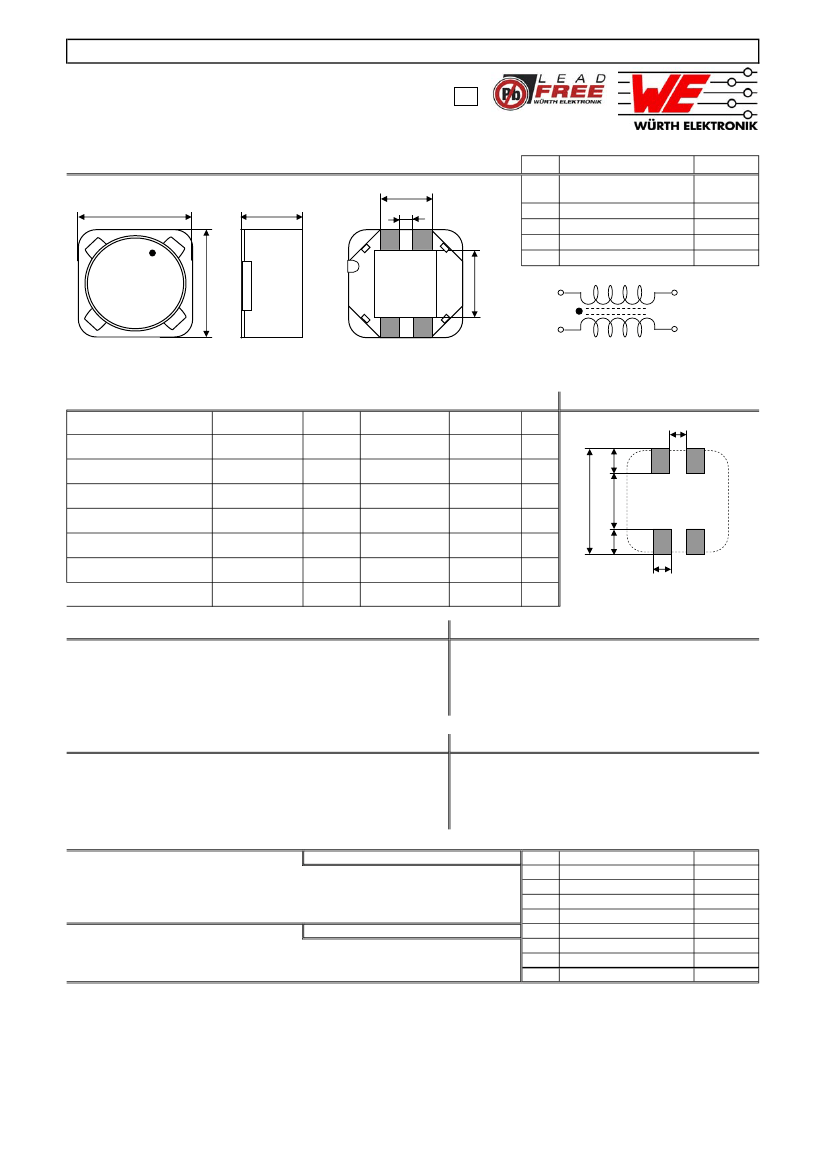

Mechanische Abmessungen / dimensions:
Typ XL
A
B
1
D
C
2
A
B
C
D
E
12,5 max.
8,5 max.
1,5 ± 0,2
4,9 ± 0,2
7,3 ± 0,5
1
Start
2
3
Finish
4
mm
mm
mm
mm
mm
L1
A
E
L2
4
3
@@FRM 1@@
B
Elektrische Eigenschaften / electrical properties:
Eigenschaften / properties
Induktivität (je Wicklg.) /
inductance (each wdg.)
DC-Widerstand (je Wicklg.) /
DC-resistance (each wdg)
DC-Widerstand (je Wicklg.) /
DC-resistance (each wdg)
Nennstrom (je Wicklg.) /
rated Current (each wdg.)
Sättigungsstrom (je Wicklg.) /
saturation current (each wdg.)
Eigenres.-Frequenz /
self-res.-fequency
Nennspannung /
rated voltage
Testbedingungen /
test conditions
1 kHz / 0,25V
Wert / value
Einheit / unit
tol.
±20%
typ.
max.
max.
typ.
typ.
max.
C
Lötpad / soldering spec.:
1,0
[ mm ]
L
1,
L
2
R
DC1,2 typ
R
DC1,2 max
4,7
0,025
0,030
3,60
10,00
34,0
80,0
µH
Ω
Ω
A
A
MHz
V
3,85
13,8
6,1
∆T
= 40 K
∆L/Lo
= -10%
I
N1,
I
N2
I
sat
SRF
U
DC
3,85
2,5
D
Prüfgeräte / test equipment:
HP 4274 A
für/for L und/and Q
HP 34401 A
für/for I
DC
und/and R
DC
E
Testbedingungen / test conditions:
Luftfeuchtigkeit / humidity:
Umgebungstemperatur / temperature:
33%
+20°C
F
Werkstoffe & Zulassungen / material & approvals:
Basismaterial / base material:
Draht / wire:
Ferrit/ ferrite
2 SFBW; 155°C
G
Eigenschaften / general specifications:
Betriebstemp. / operating temperature:
-40°C - + 125°C
Umgebungstemp. / ambient temperature: -40°C - + 85°C
It is recommended that the temperature of the part does
not exceed 125°C under worst case operating conditions.
Freigabe erteilt / general release:
Kunde / customer
SSt
SST
Version 7
Version 6
Version 5
Version 4
Version 3
Version 2
Version 1
Änderung / modification
06-03-01
05-03-29
04-10-11
04-09-15
04-03-09
03-06-11
02-11-23
..................................................................................
..................................................................................
MST
SST
SST
AG
Datum / date
Unterschrift / signature
Würth Elektronik
............................................
...............................................
AG
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 1 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
744870004
LF
RoHS
compliant
DATUM / DATE : 2006-03-01
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
H

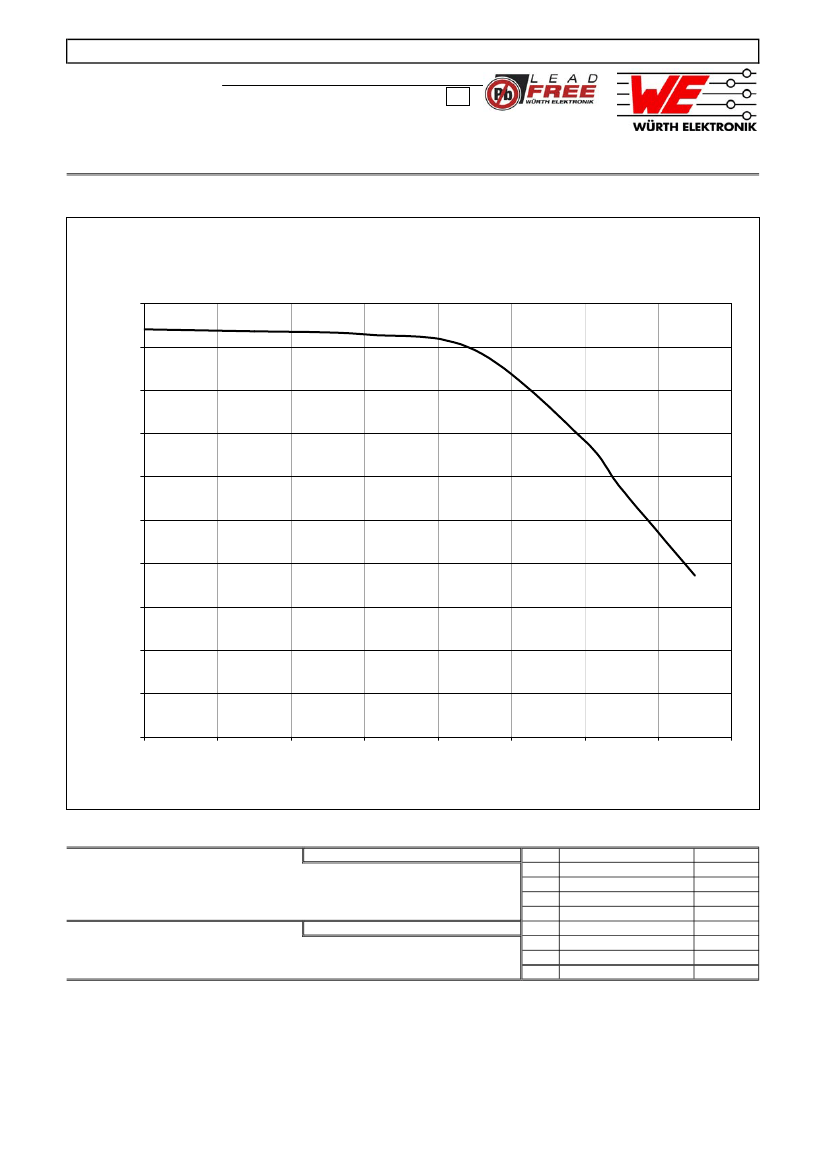

Induktivitätskurve / Inductance curve:
Induktivität vs Strom (typ.)/
Inductance vs Current (typ.)
5,00
4,50
4,00
3,50
3,00
L (µH)
2,50
2,00
1,50
1,00
0,50
0,00
0,0
2,0
4,0
6,0
8,0
Current (A)
10,0
12,0
14,0
16,0
Freigabe erteilt / general release:
Kunde / customer
SSt
SST
Version 7
Version 6
Version 5
Version 4
Version 3
Version 2
Version 1
Änderung / modification
06-03-01
05-03-29
04-10-11
04-09-15
04-03-09
03-06-11
02-11-23
..................................................................................
..................................................................................
MST
SST
SST
AG
Datum / date
Unterschrift / signature
Würth Elektronik
............................................
...............................................
AG
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 2 VON 3
Spezifikation für Freigabe / specification for release
Kunde / customer
:
Artikelnummer / part number
:
Bezeichnung :
description :
744870004
LF
RoHS
compliant
DATUM / DATE : 2006-03-01
DOPPELDROSSEL WE-DD
POWER-CHOKE WE-DD
I

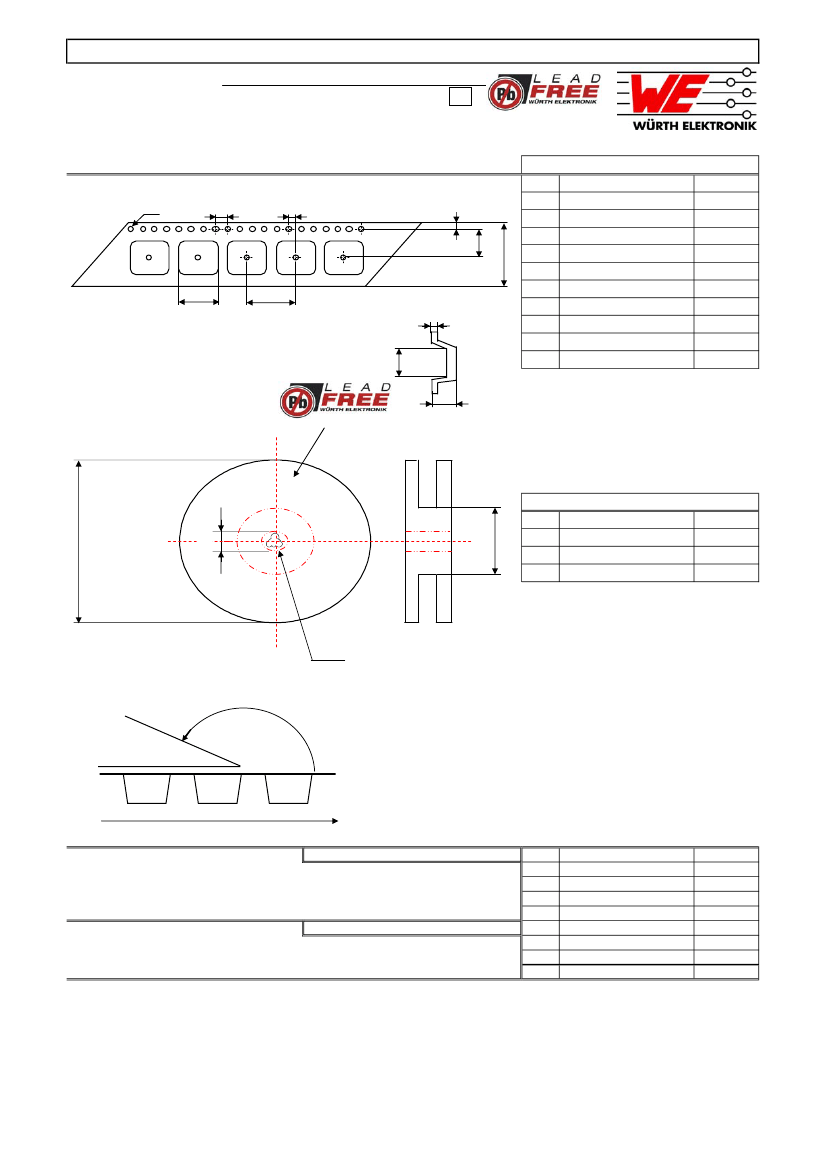

Rollenspezifikation / tape and reel specification:
øD
E
F
G
H
A
B
T
I
Gurtspezifikation / Tape specification:
A
12,5 ± 0,1
mm
B
16,0 ± 0,1
mm
C
24,0 ± 0,3
mm
+ 0,1
D
1,50
- 0,0
mm
E
4,00 ± 0,1
mm
C
F
2,00 ± 0,1
mm
G
1,75 ± 0,1
mm
H
11,5 ± 0,1
mm
I
12,6 ± 0,1
mm
J
8,50 ± 0,1
mm
T
0,40 ± 0,05
mm
J
a
b
d
Rollenspezifikation / Reel specification:
a
330,0 ± 2,0
mm
b
21,00 ± 0,8
mm
c
13,00 ± 0,5
mm
d
100,0 ± 1,0
mm
Øc
150°
The force for tearing off cover tape is
20 to 70 grams in arrow direction
feeding direction
Kunde / customer
SSt
SST
..................................................................................
..................................................................................
Freigabe erteilt / general release:
Version 7
Version 6
Version 5
Version 4
Version 3
Version 2
Version 1
Änderung / modification
06-03-01
05-03-29
04-10-11
04-09-15
04-03-09
03-06-11
02-11-23
MST
SST
SST
AG
Datum / date
Unterschrift / signature
Würth Elektronik
............................................
...............................................
AG
Name
Geprüft / checked
Kontrolliert / approved
Datum / date
This electronic component is designed and developed with the intention for use in general electronics equipments. Before incorporating the components into any equipments in the field such as
aerospace, aviation, nuclear control, submarine, transportation, (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.
where higher safety and reliability are especially required or if there is possibility of direct damage or injury to human body. In addition, even electronic component in general electronic equipments,
when used in electrical circuits that require high safety, reliability functions or performance, the sufficient reliability evaluation-check for the safety must be performed before use. It is essential to
give consideration when to install a protective circuit at the design stage.
Würth Elektronik eiSos GmbH & Co. KG
D-74638 Waldenburg · Max-Eyth-Strasse 1 · Germany · Telefon (+49) (0) 7942 - 945 - 0 · Telefax (+49) (0) 7942 - 945 - 400
http://www.we-online.de
SEITE 3 VON 3
