CDR-MIL-PRF-55681
www.vishay.com
Vishay Vitramon

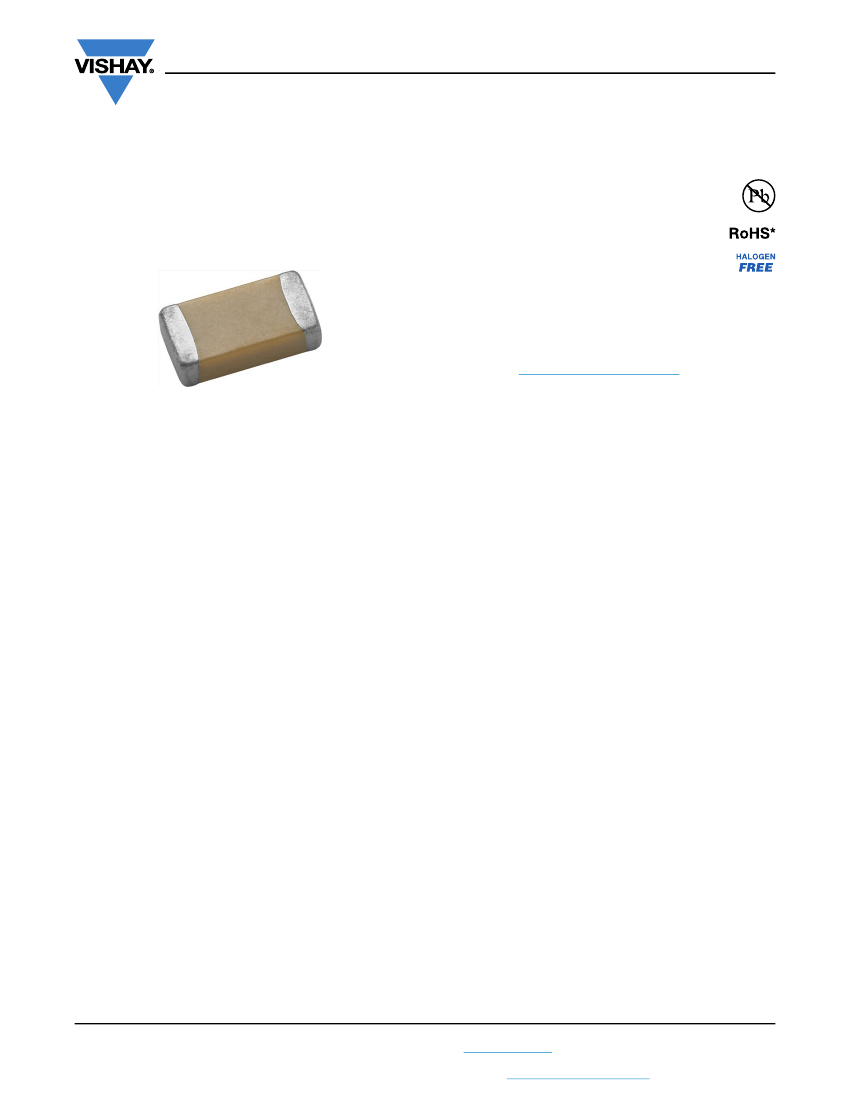

Surface Mount Multilayer Ceramic Chip Capacitors
MIL Qualified, Type CDR
FEATURES
• Military qualified products
• Federal stock control number,
CAGE CODE 2770A
• High reliability tested per MIL-PRF-55681
• Tin / lead termination codes “Z” and “U”
• Lead (Pb)-free termination codes “W”, “Y”, “M”
• Wet build process
• Reliable Noble Metal Electrode (NME) system
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
Note
*
This datasheet provides information about parts that are
RoHS-compliant and / or parts that are non-RoHS-compliant. For
example, parts with lead (Pb) terminations are not RoHS-compliant.
Please see the information / tables in this datasheet for details.
Available
Available
APPLICATIONS
• Avionic systems
• Sonar systems
• Satellite systems
• Missiles applications
• Geographical information systems
• Global positioning systems
ELECTRICAL SPECIFICATIONS
Note
•
Electrical characteristics at +25 °C unless otherwise specified
Operating Temperature:
-55 °C to +125 °C
Capacitance Range:
1.0 pF to 470 nF
Voltage Range:
50 V
DC
to 100 V
DC
Temperature Coefficient of Capacitance (TCC):
BP: 0 ppm/°C ± 30 ppm/°C from -55 °C to +125 °C,
with 0 V
DC
applied
BX: ± 15 % from -55 °C to +125 °C,
with 0 V
DC
applied
BX: +15 %, -25 % from -55 °C to +125 °C,
with 100 % rated V
DC
applied
Dissipation Factor (DF):
BP: 0.15 % maximum
BX: 2.50 % maximum
Test frequency:
1 MHz ± 50 kHz for BP capacitors
1000 pF
and for BX capacitors
100 pF
All other BP and BX at 1 kHz ± 50 Hz
Revision: 14-Aug-15
Document Number: 45026
1
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
Aging Rate:
BP: 0 % maximum per decade
BX: 1 % maximum per decade
Insulation Resistance (IR):
at +25 °C and rated voltage 100 000 M minimum or
1000
F,
whichever is less
Dielectric Strength Test:
performed per method 103 of EIA-198-2-E.
Applied test voltages:
100 V
DC
-rated: 250 % of rated voltage
CDR-MIL-PRF-55681
www.vishay.com
Vishay Vitramon
QUICK REFERENCE DATA
DIELECTRIC
BP
BX
BP
BX
BP
BX
BP
BX
BX
BP
BX
BP
BX
BP
BX
BP
BX
BP
STYLE (CASE)
CDR01 (0805)
CDR01 (0805)
CDR02 (1805)
CDR02 (1805)
CDR03 (1808)
CDR03 (1808)
CDR04 (1812)
CDR04 (1812)
CDR06 (2225)
CDR31 (0805)
CDR31 (0805)
CDR32 (1206)
CDR32 (1206)
CDR33 (1210)
CDR33 (1210)
CDR34 (1812)
CDR34 (1812)
CDR35 (1825)
MAXIMUM VOLTAGE
(V)
100
100
100
100
100
100
100
100
50
100
100
100
100
100
100
100
100
100
100
CAPACITANCE
MINIMUM
10 pF
120 pF
220 pF
3.9 nF
330 pF
12 nF
1.2 nF
39 nF
390 nF
1.0 pF
470 pF
1.0 pF
4.7 nF
1.0 nF
15 nF
2.2 nF
27 nF
4.7 nF
56 nF
MAXIMUM
180 pF
4.7 nF
270 pF
22 nF
1.0 nF
68 nF
3.3 nF
180 nF
470 nF
680 pF
18 nF
2.2 nF
39 nF
3.3 nF
100 nF
10 nF
180 nF
22 nF
470 nF
BX
CDR35 (1825)
Note
• Detail ratings see selection chart
ORDERING INFORMATION - MILITARY
CDR31
MILITARY
STYLE
CDR01
CDR02
CDR03
CDR04
CDR06
CDR31
CDR32
CDR33
CDR34
CDR35
BX
DIELECTRIC
102
A
K
CAPACITANCE
TOLERANCE
(2)
C = ± 0.25 pF
D = ± 0.5 pF
F=±1%
J=±5%
K = ± 10 %
M = ± 20 %
Y
TERMINATION
S
FAILURE
RATE
A
MARKING
T
PACKAGING
CAPACITANCE
DC
NOMINAL
VOLTAGE
CODE
RATING
(1)
Expressed in
picofarads (pF).
The first two
digits are
significant, the
third is a
multiplier.
Examples:
102 = 1000 pF
1R8 = 1.8 pF
A = 50 V
B = 100 V
BP and BX
M = silver palladium M = 1.0 %
Y = Ni barrier with
P = 0.1 %
100 % tin
R = 0.01 %
W = Ni barrier with S = 0.001 %
100 % tin
Consult
Z = Ni barrier with
factory for
tin / lead plate
failure rate
min. 4 % lead
status
U = hot solder
dipped
(min. of 4 % lead)
(3)
A=
unmarked
T = 7" reel / plastic tape
J = 7" reel (low quantity)
C = 7" reel / paper tape
R = 11 1/4" /
13" reel / plastic tape
P = 11 1/4" /
13" reel / paper tape
B = bulk
Notes
(1)
DC voltage rating should not be exceeded in application. Other application factors may affect the MLCC performance.
Consult for questions:
mlcc@vishay.com
(2)
Available tolerances please see rating chart
(3)
MIL-PRF-55681 “U” termination part number have increased dimensions
Revision: 14-Aug-15
Document Number: 45026
2
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CDR-MIL-PRF-55681
www.vishay.com
Vishay Vitramon
DIMENSIONS
in inches (millimeters)
L
W
T
MAX.
P
MIL-PRF-55681
STYLE
CDR01
LENGTH
(L)
0.080 ± 0.015 (2.03 ± 0.38)
0.180 ± 0.015 (4.57 ± 0.38)
0.180 ± 0.015 (4.57 ± 0.38)
0.180 ± 0.015 (4.57 ± 0.38)
0.225 ± 0.020 (5.72 ± 0.51)
0.078 ± 0.008 (2.00 ± 0.20)
0.125 ± 0.008 (3.20 ± 0.20)
0.125 ± 0.010 (3.20 ± 0.25)
0.176 ± 0.010 (4.50 ± 0.25)
0.176 ± 0.012 (4.50 ± 0.30)
WIDTH
(W)
0.050 ± 0.015 (1.27 ± 0.38)
0.050 ± 0.015 (1.27 ± 0.38)
0.080 ± 0.015 (2.03 ± 0.38)
0.125 ± 0.015 (3.20 ± 0.38)
0.250 ± 0.020 (6.35 ± 0.51)
0.049 ± 0.008 (1.25 ± 0.20)
0.062 ± 0.008 (1.60 ± 0.20)
0.098 ± 0.010 (2.50 ± 0.25)
0.125 ± 0.010 (3.20 ± 0.25)
0.250 ± 0.012 (6.40 ± 0.30)
MAXIMUM
THICKNESS (T)
0.055 (1.40)
0.055 (1.40)
0.080 (2.03)
0.080 (2.03)
0.080 (2.03)
0.051 (1.30)
0.051 (1.30)
0.059 (1.50)
0.059 (1.50)
0.059 (1.50)
TERM. (P)
MINIMUM
0.010 (0.25)
0.010 (0.25)
0.010 (0.25)
0.010 (0.25)
0.010 (0.25)
0.012 (0.30)
0.012 (0.30)
0.010 (0.25)
0.010 (0.25)
0.008 (0.20)
MAXIMUM
0.030 (0.75)
0.030 (0.75)
0.030 (0.75)
0.030 (0.75)
0.030 (0.75)
0.028 (0.70)
0.028 (0.70)
0.030 (0.75)
0.030 (0.75)
0.032 (0.80)
/1
CDR02
CDR03
CDR04
CDR06
CDR31
CDR32
CDR33
CDR34
CDR35
/3
/7
/8
/9
/10
/11
“U” TERMINATION
in inches (millimeters)
STYLE
CDR01
CDR02 to CDR06
CDR31
CDR32 to CDR35
LENGTH
0.020 (0.51)
0.025 (0.64)
0.023 (0.60)
0.023 (0.60)
WIDTH / THICKNESS
0.015 (0.38)
0.015 (0.38)
0.012 (0.30)
0.012 (0.30)
PACKAGING CODES
“C”, “J”, “P”, “B”
“T”, “J”, “R”, “B”
“C”, “J”, “P”, “B”
“T”, “J”, “R”, “B”
MIL-C-55681 QUALIFIED, TYPE CDR
MILITARY TYPE
DESIGNATION
CDR01BP
CDR01BP100B_ _ _
CDR01BP120BJ_ _
CDR01BP150B_ _ _
CDR01BP180BJ_ _
CDR01BP220B_ _ _
CDR01BP270BJ_ _
CDR01BP330B_ _ _
CDR01BP390BJ_ _
CDR01BP470B_ _ _
CDR01BP560BJ_ _
CDR01BP680B_ _ _
CDR01BP820BJ_ _
CDR01BP101B_ _ _
CDR01BP121B_ _ _
CDR01BP151B_ _ _
CDR01BP181B_ _ _
CAPACITANCE
CODE
100
120
150
180
220
270
330
390
470
560
680
820
101
121
151
181
CAPACITANCE
(pF)
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
CAPACITANCE
TOLERANCE
J, K
J
J, K
J
J, K
J
J, K
J
J, K
J
J, K
J
J, K
J, K
J, K
J, K
RATED TEMP. AND
VOLTAGE TEMP. LIMITS
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
VOLTAGE
(DC)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
RoHS
STATUS
Notes
RoHS-compliant except when supplied with lead (Pb)-containing terminations, codes “Z” and “U”
Not RoHS-compliant
Revision: 14-Aug-15
Document Number: 45026
3
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CDR-MIL-PRF-55681
www.vishay.com
MIL-C-55681 QUALIFIED, TYPE CDR
MILITARY TYPE
CAPACITANCE CAPACITANCE CAPACITANCE
RATED TEMP. AND
DESIGNATION
CODE
(pF)
TOLERANCE
VOLTAGE TEMP. LIMITS
CDR01BX
CDR01BX121B_ _ _
121
120
J, K
BX
CDR01BX151B_ _ _
151
150
J, K
BX
CDR01BX181B_ _ _
181
180
J, K
BX
CDR01BX221B_ _ _
221
220
K, M
BX
CDR01BX271BK_ _
271
270
K
BX
CDR01BX331B_ _ _
331
330
K, M
BX
CDR01BX391BK_ _
391
390
K
BX
CDR01BX471B_ _ _
471
470
K, M
BX
CDR01BX561BK_ _
561
560
K
BX
CDR01BX681B_ _ _
681
680
K, M
BX
CDR01BX821BK_ _
821
820
K
BX
CDR01BX102B_ _ _
102
1000
K, M
BX
CDR01BX122BK_ _
122
1200
K
BX
CDR01BX152B_ _ _
152
1500
K, M
BX
CDR01BX182BK_ _
182
1800
K
BX
CDR01BX222B_ _ _
222
2200
K, M
BX
CDR01BX272BK_ _
272
2700
K
BX
CDR01BX332B_ _ _
332
3300
K, M
BX
CDR01BX392AK_ _
392
3900
K
BX
CDR01BX472A_ _ _
472
4700
K, M
BX
CDR02BP
CDR02BP221B_ _ _
221
220
J, K
BP
CDR02BP271BJ_ _
271
270
J
BP
CDR02BX
CDR02BX392BK_ _
392
3900
K
BX
CDR02BX472B_ _ _
472
4700
K, M
BX
CDR02BX562BK_ _
562
5600
K
BX
CDR02BX682B_ _ _
682
6800
K, M
BX
CDR02BX822BK_ _
822
8200
K
BX
CDR02BX103B_ _ _
103
10 000
K, M
BX
CDR02BX123AK_ _
123
12 000
K
BX
CDR02BX153A_ _ _
153
15 000
K, M
BX
CDR02BX183AK_ _
183
18 000
K
BX
CDR02BX223A_ _ _
223
22 000
K, M
BX
CDR03BP
CDR03BP331B_ _ _
331
330
J, K
BP
CDR03BP391BJ_ _
391
390
J
BP
CDR03BP471B_ _ _
471
470
J, K
BP
CDR03BP561BJ_ _
561
560
J
BP
CDR03BP681B_ _ _
681
680
J, K
BP
CDR03BP821BJ_ _
821
820
J
BP
CDR03BP102B_ _ _
102
1000
J, K
BP
CDR03BX
CDR03BX123BK_ _
123
12 000
K
BX
CDR03BX153B_ _ _
153
15 000
K, M
BX
CDR03BX183BK_ _
183
18 000
K
BX
CDR03BX223B_ _ _
223
22 000
K, M
BX
CDR03BX273BK_ _
273
27 000
K
BX
CDR03BX333B_ _ _
333
33 000
K, M
BX
CDR03BX393AK_ _
393
39 000
K
BX
CDR03BX473A_ _ _
473
47 000
K, M
BX
CDR03BX563AK_ _
563
56 000
K
BX
CDR03BX683A_ _ _
683
68 000
K, M
BX
Notes
RoHS-compliant except when supplied with lead (Pb)-containing terminations, codes “Z” and “U”
Not RoHS-compliant
Revision: 14-Aug-15
VOLTAGE
(DC)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
100
100
100
100
100
100
100
100
50
50
50
50
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
RoHS
STATUS
Vishay Vitramon
Document Number: 45026
4
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
CDR-MIL-PRF-55681
www.vishay.com
MIL-C-55681 QUALIFIED, TYPE CDR
MILITARY TYPE
DESIGNATION
CDR04BP
CDR04BP122BJ_ _
CDR04BP152B_ _ _
CDR04BP182BJ_ _
CDR04BP222B_ _ _
CDR04BP272BJ_ _
CDR04BP332B_ _ _
CDR04BX
CDR04BX393BK_ _
CDR04BX473B_ _ _
CDR04BX563BK_ _
CDR04BX823AK_ _
CDR04BX104A_ _ _
CDR04BX124AK_ _
CDR04BX154A_ _ _
CDR04BX184AK_ _
CDR06BX
CDR06BX394AK_ _
CDR06BX474A_ _ _
CDR31BP
CDR31BP1R0B_ _ _
CDR31BP1R1B_ _ _
CDR31BP1R2B_ _ _
CDR31BP1R3B_ _ _
CDR31BP1R5B_ _ _
CDR31BP1R6B_ _ _
CDR31BP1R8B_ _ _
CDR31BP2R0B_ _ _
CDR31BP2R2B_ _ _
CDR31BP2R4B_ _ _
CDR31BP2R7B_ _ _
CDR31BP3R0B_ _ _
CDR31BP3R3B_ _ _
CDR31BP3R6B_ _ _
CDR31BP3R9B_ _ _
CDR31BP4R3B_ _ _
CDR31BP4R7B_ _ _
CDR31BP5R1B_ _ _
CDR31BP5R6B_ _ _
CDR31BP6R2B_ _ _
CDR31BP6R8B_ _ _
CDR31BP7R5B_ _ _
CDR31BP8R2B_ _ _
CDR31BP9R1B_ _ _
CDR31BP100B_ _ _
CDR31BP110B_ _ _
1R0
1R1
1R2
1R3
1R5
1R6
1R8
2R0
2R2
2R4
2R7
3R0
3R3
3R6
3R9
4R3
4R7
5R1
5R6
6R2
6R8
7R5
8R2
9R1
100
110
1
1.1
1.2
1.3
1.5
1.6
1.8
2
2.2
2.4
2.7
3
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
9.1
10
11
C
C
C
C
C
C
C
C
C
C
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
C, D
F, J, K
F, J, K
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
BP
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
394
474
390 000
470 000
K
K, M
BX
BX
50
50
393
473
563
823
104
124
154
184
39 000
47 000
56 000
82 000
100 000
120 000
150 000
180 000
K
K, M
K
K
K, M
K
K, M
K
BX
BX
BX
BX
BX
BX
BX
BX
100
100
100
50
50
50
50
50
122
152
182
222
272
332
1200
1500
1800
2200
2700
3300
J
J, K
J
J, K
J
J, K
BP
BP
BP
BP
BP
BP
100
100
100
100
100
100
CAPACITANCE
CODE
CAPACITANCE
(pF)
CAPACITANCE
TOLERANCE
RATED TEMP. AND
VOLTAGE TEMP. LIMITS
VOLTAGE
(DC)
RoHS
STATUS
Vishay Vitramon
Notes
RoHS-compliant except when supplied with lead (Pb)-containing terminations, codes “Z” and “U”
Not RoHS-compliant
Revision: 14-Aug-15
Document Number: 45026
5
For technical questions, contact:
mlcc@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
