SMD Molded Wound Chip inductor
AISM-1008
FEATURES:
• Highly reliable in sudden temperature and humidity change
• Resistant to mechanical shocks and high temperature
• Accurate dimensions for automatically surface mounted
• Low DCR and High current, suitable for power line application
• Wide range of inductance value
Pb
RoHS
Compliant
APPLICATIONS:
• xDSL, mobile base stations
• TVs, VCRs, digital cameras
• Automobile audio sytems, ECU systems
• HDDs, ODDs
1.8 x .098 x .079mm
| | | | | | | | | | | | | | |
ELECTRICAL SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
AISM-1008-XXX
Operating Temperature: -40°C to + 105°C
(Including self-temperature rise)
Storage Temperature: -40°C to + 105°C
Self Temperature Arising: <20°C
Rating Current:
When the rating current flows, inductance should not drop more than 10%
Part No.
AISM-1008-R01
AISM-1008-R012
AISM-1008-R015
AISM-1008-R018
AISM-1008-R022
AISM-1008-R027
AISM-1008-R033
AISM-1008-R039
AISM-1008-R047
AISM-1008-R056
AISM-1008-R068
AISM-1008-R082
AISM-1008-R10
AISM-1008-R12
AISM-1008-R15
AISM-1008-R18
AISM-1008-R22
AISM-1008-R27
AISM-1008-R33
AISM-1008-R39
AISM-1008-R47
AISM-1008-R56
AISM-1008-R68
AISM-1008-R82
AISM-1008-1R0
AISM-1008-1R2
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
L
(µH)
0.01
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.1
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
Tolerance
(%)
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
Q
typ.
15
15
15
15
15
20
20
20
20
20
20
20
20
30
30
30
30
30
30
30
30
30
30
30
30
30
L, Q
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
SRF
(MHz)min.
2150
2050
2000
1850
1650
1550
1450
1350
1200
1100
1050
900
800
700
550
500
450
425
400
375
350
325
300
260
245
230
DCR
(Ω) max.
0.26
0.27
0.29
0.31
0.37
0.40
0.42
0.45
0.50
0.60
0.65
0.75
0.80
0.30
0.35
0.40
0.50
0.55
0.60
0.65
0.68
0.75
0.85
1.00
1.10
1.20
Idc*
(mA)max.
530
500
480
450
420
410
400
380
360
340
320
300
280
550
500
475
450
425
400
375
350
325
300
260
245
230
Revised: 08.11.09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
SMD Molded Wound Chip inductor
AISM-1008
L
(µH)
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
(%)
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
Q
typ.
30
30
30
30
30
30
30
25
25
25
25
25
25
25
25
25
25
20
20
20
20
20
15
Test Freq.
L, Q
(MHz)
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
0.796
SRF
(MHz)min.
182
135
105
70
55
48
43
42
39
36
33
30
26
24
22
21
20
18
17
16
15
13
12
Pb
RoHS
Compliant
DCR
(Ω) max.
1.30
1.45
1.55
1.70
1.90
2.1
2.3
2.5
2.7
3.05
3.5
3.8
4.4
4.8
5.5
6.3
7.1
9.5
11.1
12.1
16.6
19.0
21.0
Idc*
(mA)max.
220
210
200
195
185
180
175
170
165
160
155
150
140
130
125
115
110
90
80
75
70
66
60
1.8 x .098 x .079mm
| | | | | | | | | | | | | | |
Part No.
AISM-1008-1R5
AISM-1008-1R8
AISM-1008-2R2
AISM-1008-2R7
AISM-1008-3R3
AISM-1008-3R9
AISM-1008-4R7
AISM-1008-5R6
AISM-1008-6R8
AISM-1008-8R2
AISM-1008-100
AISM-1008-120
AISM-1008-150
AISM-1008-180
AISM-1008-220
AISM-1008-270
AISM-1008-330
AISM-1008-390
AISM-1008-470
AISM-1008-560
AISM-1008-680
AISM-1008-820
AISM-1008-101
Note:
Tolerance : J=±5%;
* Rated current: Value obtained when current flows and the temperature has risen to 20
℃
or when DC current flows
and the initial value of inductance has fallen by 10%, whichever is smaller.
OPTIONS AND PART IDENTIFICATION
AISM -1008 -
Inductance
Please refer to the tables
on page 2.
J-
Packaging
Tape and
T
Reel
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.11.09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
SMD Molded Wound Chip inductor
AISM-1008

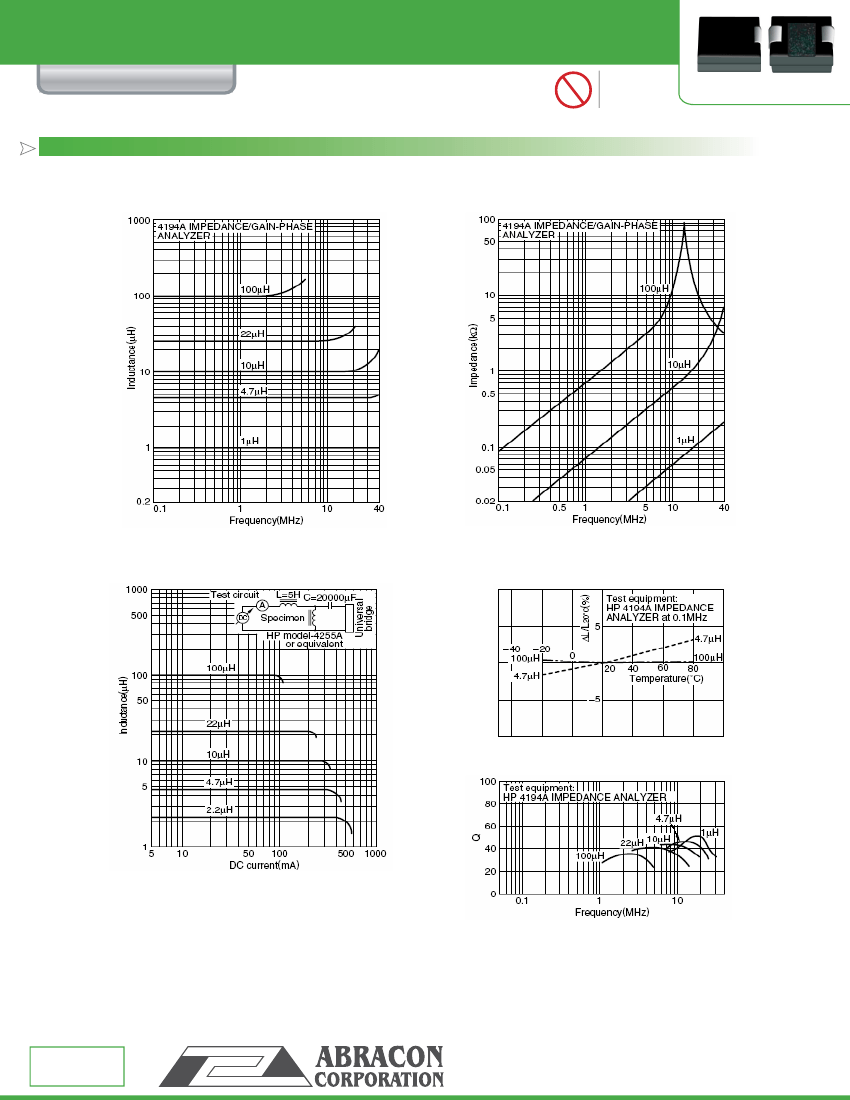

TEST PLOTS:
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
IMPEDANCE vs. FREQUENCY CHARACTERISTICS
Pb
RoHS
Compliant
1.8 x .098 x .079mm
| | | | | | | | | | | | | | |
INDUCTANCE CHANGE vs. DC SUPERPOSITION
CHARACTERISTICS
INDUCTANCE CHANGE vs. TEMPERATURE
CHARACTERISTICS
Q vs. FREQUENCY CHARACTERISTICS
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.11.09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
LOW PROFILE WIRE WOUND INDUCTOR (CERAMIC BASE)
SMD Molded Wound Chip inductor
AISM-1008

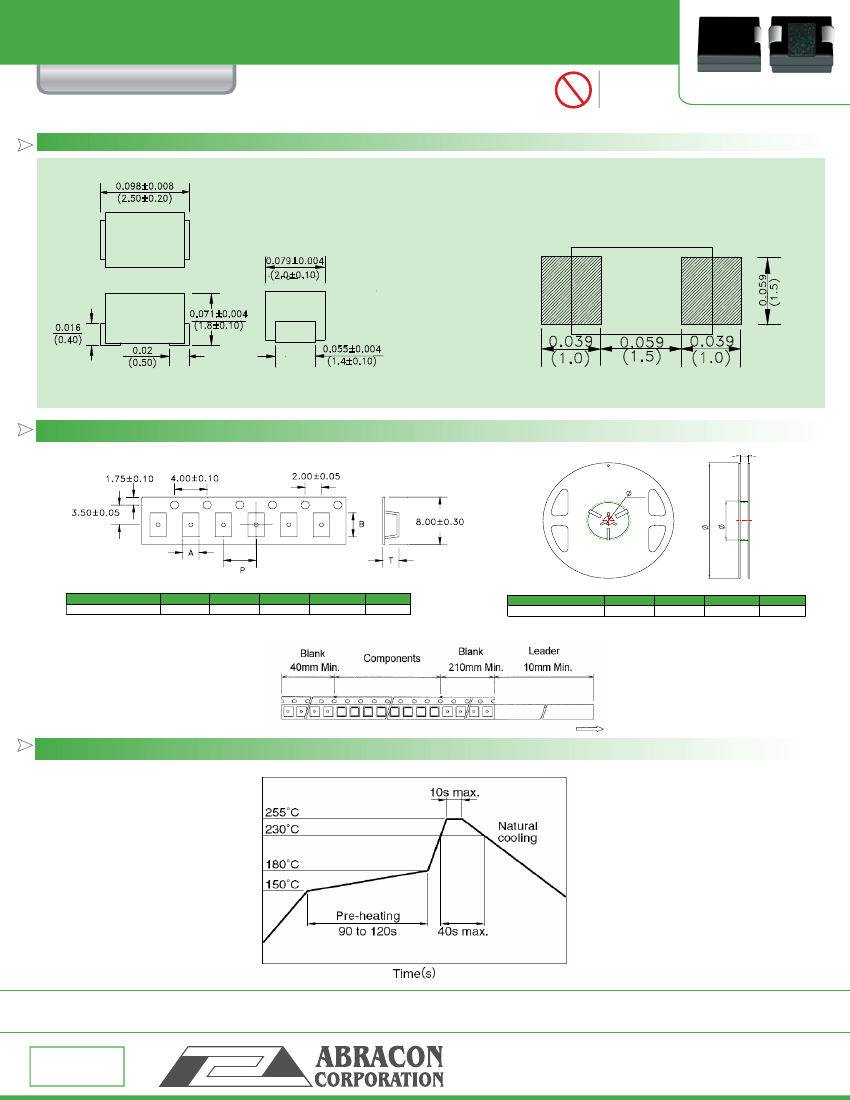

OUTLINE DRAWING:
Pb
RoHS
Compliant
1.8 x .098 x .079mm
| | | | | | | | | | | | | | |
RECOMMENDED LAND PATTERN
Dimension : Inches/mm
TAPE & REEL:
W
C
A
Series
AISM-1008
A (mm)
2.3 ref.
B (mm)
2.7 ref.
T (mm)
2.0 ref.
P (mm)
4.0 ± 0.1
PCS/REEL
2000
Series
AISM-1008
ΦA(mm)
180+0/-0.3
ΦB(mm)
60+1/-0
ΦC(mm)
13.0±0.2
B
W(mm)
9.0±0.3
Dimension: mm
REFLOW PROFILE:
NOTE:
Abracon manufactured products are intended for general commercial and industrial use. For applications requiring
high reliability and/or presenting extreme operating environment, written consent & authorization from Abracon is required.
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 08.11.09
30332
Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
