SMT power inductors
Size 10.4
Series/Type:
Date:
10.4
4.8 (mm)
B82464G4
June 2012
a~í~=pÜÉÉí
EPCOS AG 2012. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
SMT power inductors
Size 10.4 x 10.4 x 4.8 (mm)
Rated inductance 0.82 ... 1000 μH
Rated current 0.34 ... 7.6 A
Construction
■
■
■
■
B82464G4
Ferrite core
Magnetically shielded
Winding: enamel copper wire
Winding welded to terminals
Features
■
■
■
■
Temperature range up to +150 °C
High rated current
Low DC resistance
Suitable for lead-free reflow soldering
as referenced in JEDEC J-STD 020D
■
Qualified to AEC-Q200
■
RoHS-compatible
Applications
■
■
■
■
■
Filtering of supply voltages
Coupling, decoupling
DC/DC converters
Automotive electronics
Industrial electronics
Terminals
■
Base material CuFe2P
■
Layer composition Ag, Sn (lead-free)
■
Electro-plated
Marking
■
Marking on component:
Manufacturer, L value (nH, coded),
L tolerance (coded), manufacturing date (YWWD),
two last digits of work order
■
Minimum data on reel:
Manufacturer, ordering code,
L value, quantity, date of packing
Delivery mode and packing unit
■
16-mm blister tape, wound on 330-mm
■
Packing unit: 750 pcs./reel
reel
Please read
Cautions and warnings
and
Important notes
at the end of this document.
2
06/12
SMT power inductors
Size 10.4 x 10.4 x 4.8 (mm)

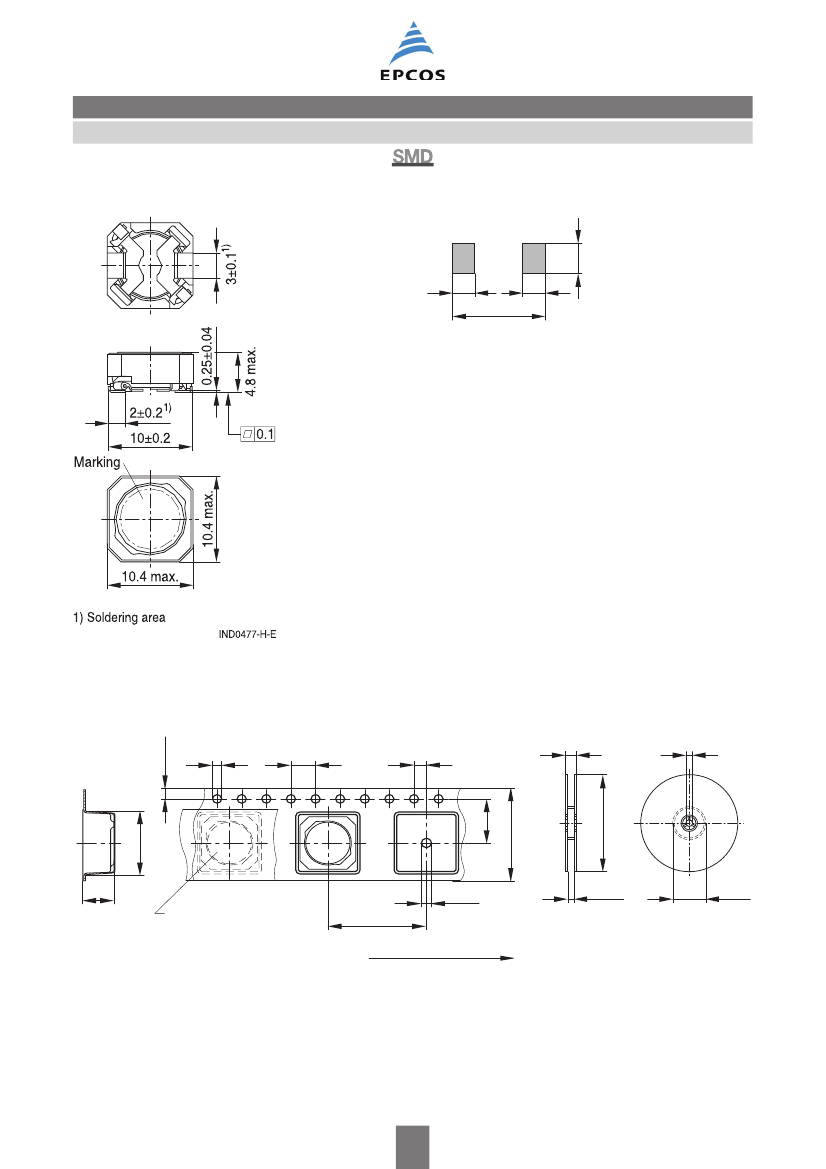

Dimensional drawing and layout recommendation
B82464G4
2.7
11
2.7
IND0474-K
Dimensions in mm
Taping and packing
Blister tape
1.75±0.1
1.5+0.1
4±0.1
2±0.05
Reel
22.4 max.
13±0.2
7.5±0.1
3.6
11.7 max.
16±0.3
1.6±0.1
5.4 max.
Component
16±0.1
Direction of unreeling
IND0830-V-E
_
0
16.4
+1.5
_
2
330
+0
62±1.5
IND0351-A
Dimensions in mm
Please read
Cautions and warnings
and
Important notes
at the end of this document.
3
06/12
SMT power inductors
Size 10.4 x 10.4 x 4.8 (mm)
Technical data and measuring conditions
Rated inductance L
R
Rated temperature T
R
Rated current I
R
Saturation current I
sat
DC resistance R
max
Solderability (lead-free)
B82464G4
Measured with impedance analyzer Agilent 4294A at
frequency f
L
, 0.1 V, +20 °C
+85 °C
Max. permissible DC with temperature increase of
at rated temperature
Max. permissible DC with inductance decrease
L/L
0
of approx. 10%
Measured at +20 °C
Dip and look method Sn95.5Ag3.8Cu0.7:
+(245 5) °C, (5 0.3) s
Wetting of soldering area 90%
(based on IEC 60068-2-58)
+260 °C, 40 s (as referenced in JEDEC J-STD 020D)
55/150/56 (to IEC 60068-1)
Mounted: –55 °C … +150 °C
Packaged: –25 °C … +40 °C,
Approx. 2 g
75% RH
40 K
Resistance to soldering heat
Climatic category
Storage conditions
Weight
Please read
Cautions and warnings
and
Important notes
at the end of this document.
4
06/12
SMT power inductors
Size 10.4 x 10.4 x 4.8 (mm)
Characteristics and ordering codes
L
R
H
0.82
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
20%
^
B82464G4
Tolerance f
L
MHz
M 0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
I
R
A
7.60
7.50
7.00
6.50
5.50
4.90
4.30
3.40
2.75
2.25
1.85
1.55
1.30
1.05
0.85
0.70
0.59
0.50
0.42
0.34
I
sat
A
10.3
10.0
8.50
7.00
5.90
5.20
4.60
3.50
3.10
2.50
2.10
1.80
1.45
1.15
0.90
0.75
0.65
0.55
0.46
0.35
R
max
0.007
0.007
0.009
0.010
0.012
0.015
0.020
0.030
0.040
0.052
0.075
0.095
0.13
0.22
0.32
0.44
0.65
0.93
1.30
2.20
Ordering code
B82464G4821M000
B82464G4102M000
B82464G4152M000
B82464G4222M000
B82464G4332M000
B82464G4472M000
B82464G4682M000
B82464G4103M000
B82464G4153M000
B82464G4223M000
B82464G4333M000
B82464G4473M000
B82464G4683M000
B82464G4104M000
B82464G4154M000
B82464G4224M000
B82464G4334M000
B82464G4474M000
B82464G4684M000
B82464G4105M000
Sample kit available. Ordering code: B82464X004
For more information refer to chapter “Sample kits”.
