RC1218FK-071M54P datasheet, PDF

RC1218FK-071M54P: DescriptionFixed Resistor, Metal Glaze/thick Film, 1W, 1540000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1218, CHIP; CategoryPassive components The resistor; File Size833KB，8 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

RC1218FK-071M54P Overview

Fixed Resistor, Metal Glaze/thick Film, 1W, 1540000ohm, 200V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 1218, CHIP

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	145074581438
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Mainland China, Taiwan
ECCN code	EAR99
YTEOL	7.65
Other features	LASER TRIMMABLE
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.55 mm
Package length	3.1 mm
Package form	SMT
Package width	4.6 mm
method of packing	TR, Embossed, 7 Inch
Rated power dissipation(P)	1 W
Rated temperature	70 °C
resistance	1540000 Ω
Resistor type	FIXED RESISTOR
size code	1218
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

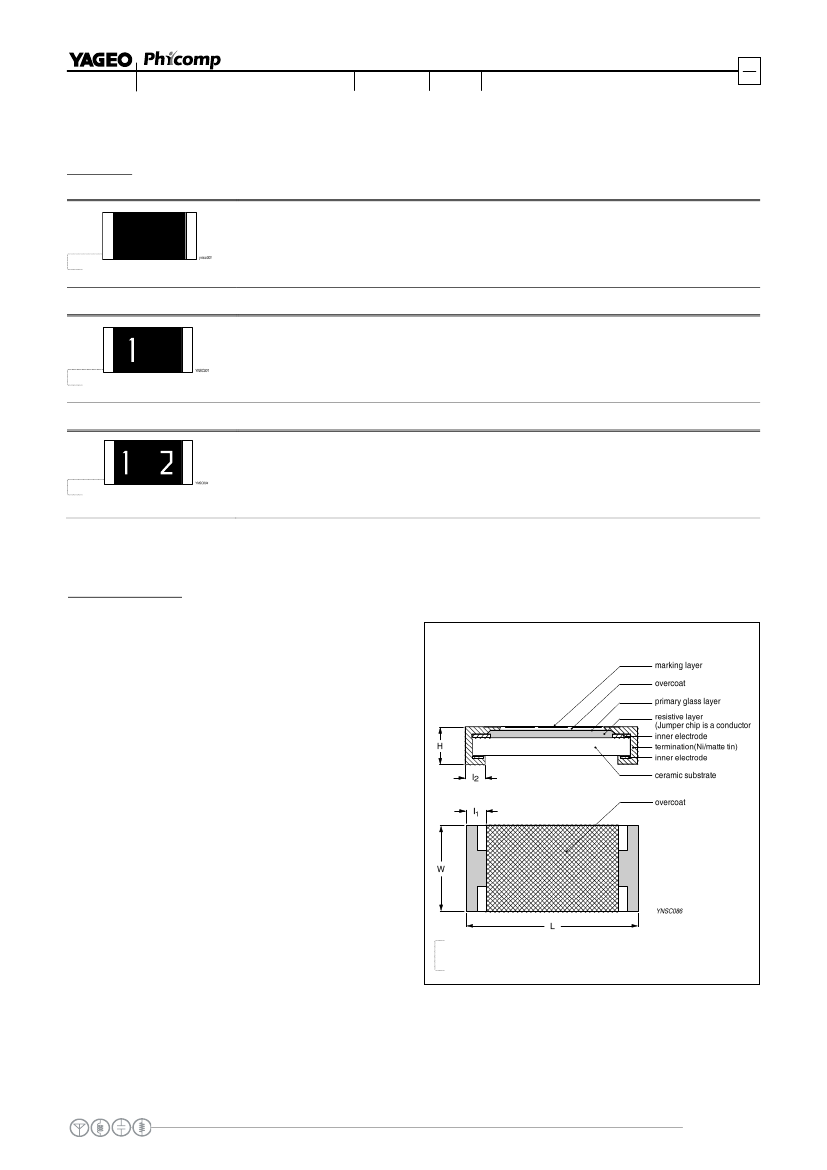

DATA SHEET

LEAD FREE CHIP RESISTORS

±0.5%, ±1%, ±5%

Sizes 0100/0201/0402/0603/0805/

1206/1210/1218/2010/2512

RC_P series

Product specification – June 07, 2017 V.0
