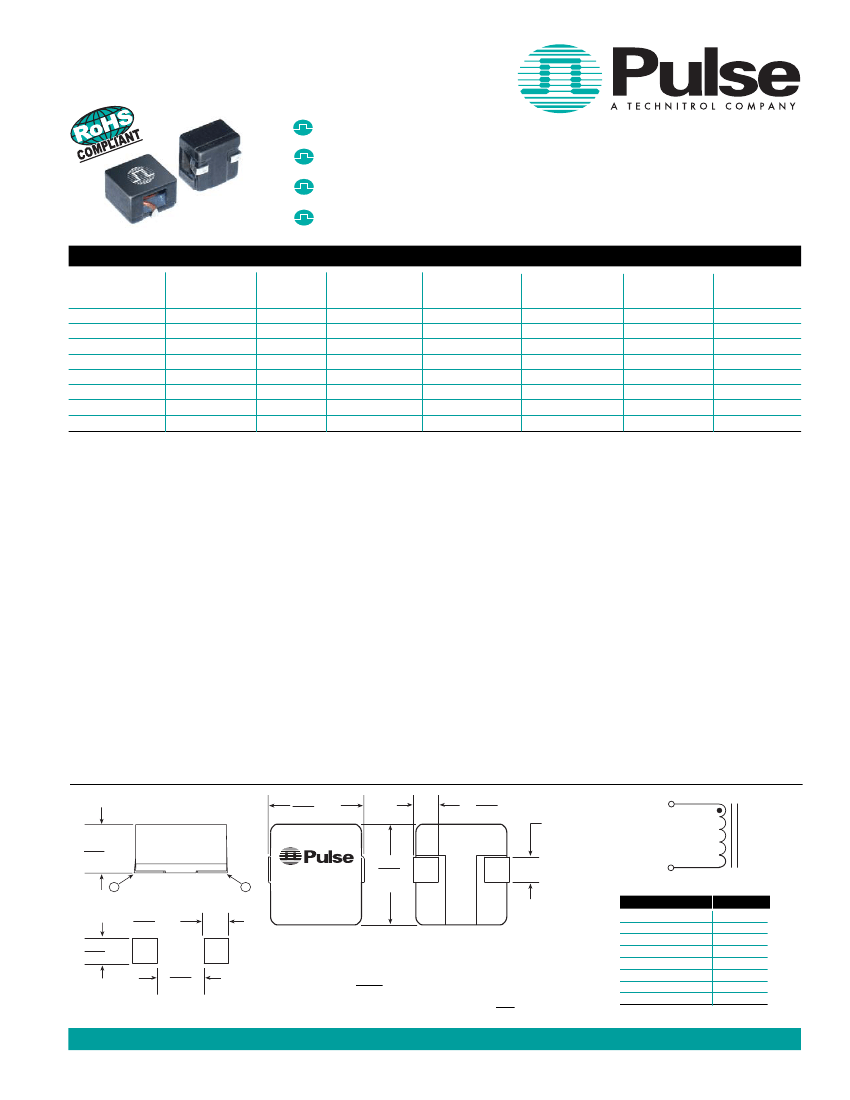

SMT POWER INDUCTORS
Flat Coils - PG0642NL Series
Height:
5.0mm Max
Footprint:
7.9mm x 7.6mm Max
Saturation Current:
up to 32Apk
Inductance Range:
0.32µH to 5.4µH
Electrical Specifications @ 25°C — Operating Temperature -40°C to +125°C
1
Part
9
Number
PG0642.401NL
PG0642.681NL
PG0642.102NL
PG0642.152NL
PG0642.222NL
PG0642.332NL
PG0642.472NL
PG0642.682NL
NOTES:
Inductance
@Irated
(μH TYP)
0.32
0.54
0.80
1.20
1.70
2.60
3.70
5.40
2
Irated
3
(A)
20.0
17.5
14.5
13.3
10.0
9.5
9.0
6.0
DCR
4
(mΩ)
(±6%)
3.3
4.3
5.8
6.8
12.7
16.6
18.4
26.4
Inductance
@0A
DC
(μH ±20%)
0.40
0.68
1.00
1.50
2.20
3.30
4.70
6.80
Saturation
5
Current Isat
(A TYP)
32
25
22
18
14
13
10
8
Heating
6
Current I
DC
(A TYP)
20.0
17.5
14.5
13.3
10.0
9.5
9.0
6.0
Core Loss
7
Factor
K2
33.6
46.5
58.2
75.7
84.7
107.0
140.1
176.2
1. Actual temperature of the component during system operation (ambi-
ent plus temperature rise) must be within the standard
operating range.
2. Inductance at Irated is a typical inductance value for the
component taken at rated current.
3. The rated current as listed is either the saturation current (@ 25°C) or
the heating current depending on which value is lower.
4. The DCR of the part is measured at an ambient temperature of 20°C
±3°C from point a and b as shown above on the mechanical drawing.
5. The saturation current, Isat, is the current at which the
component inductance drops by 20% (typical) at an ambient
temperature of 25°C. This current is determined by placing the compo-
nent in the specified ambient environment and applying a short dura-
tion pulse current (to eliminate self-heating effect) to the component.
6. The heating current, Idc, is the DC current required to raise the compo-
nent temperature by approximately 40°C. The heating current is
determined by mounting the component on a typical pcb and applying
current for 30 minutes. The temperature is measured by placing the
thermocouple on top of the unit under test. Take note that the
components' performance varies depending on the system condition.
It is suggested that the component be tested at the system level, to
verify the temperature rise of the component during system operation.
7. Core loss approximation is based on published core data:
Core Loss
= K1 * (f)
1.48
* (K2ΔI)
1.97
Where: Core Loss
= in Watts
K1=
5.894E-10
f
= switching frequency in kHz
K1 & K2
= core loss factors
Δ
I
= delta I across the component in Ampere
Δ
K2*ΔI
= one half of the peak to peak flux density
across the component in Gauss
8. Unless otherwise specified, all testing is made at
100kHz, 0.1V
AC
.
9. Optional Tape & Reel packaging can be ordered by adding a “T”
suffix to the part number (i.e. PG0642.222NL becomes
PG0642.222NLT). Pulse complies to industry standard tape and reel
specification EIA481. The tape and reel for this product has a width
(W=24mm), pitch (Po=12mm) and depth (Ko=5.5mm).
Mechanical
.311 MAX
7,90
2x .067 MIN
1,70
X
(Refer to
Table below)
Schematic
1
2
Part No.
PG0642.401NL
PG0642.681NL
PG0642.102NL
PG0642.152NL
PG0642.222NL
PG0642.332NL
PG0642.472NL
PG0642.682NL
X (Ref.)
1.2mm
1.2mm
1.1mm
1.1mm
0.8mm
0.7mm
0.7mm
0.7mm
.197
5,00 MAX
a
b
PG0642.XXXNL
Date Code
Country of Origin
.299
7,60
MAX
.091
2x
REF
2,30
.071
1,80 REF
Weight......................1.2
grams
Tape & Reel
................800/reel
Dimensions:
Inches
mm
Unless otherwise specified, all tolerances are ± .010
0,25
SUGGESTED PAD LAYOUT
.138
3,50
REF
USA 858 674 8100
•
Germany 49 7032 7806 0
•
Singapore 65 6287 8998
•
Shanghai
86 21 54643211 / 2
•
China 86 755 33966678
•
Taiwan 886 3 4643715
www.pulseeng.com
P670.A (7/08)
SMT POWER INDUCTORS
Flat Coils - PG0642NL Series

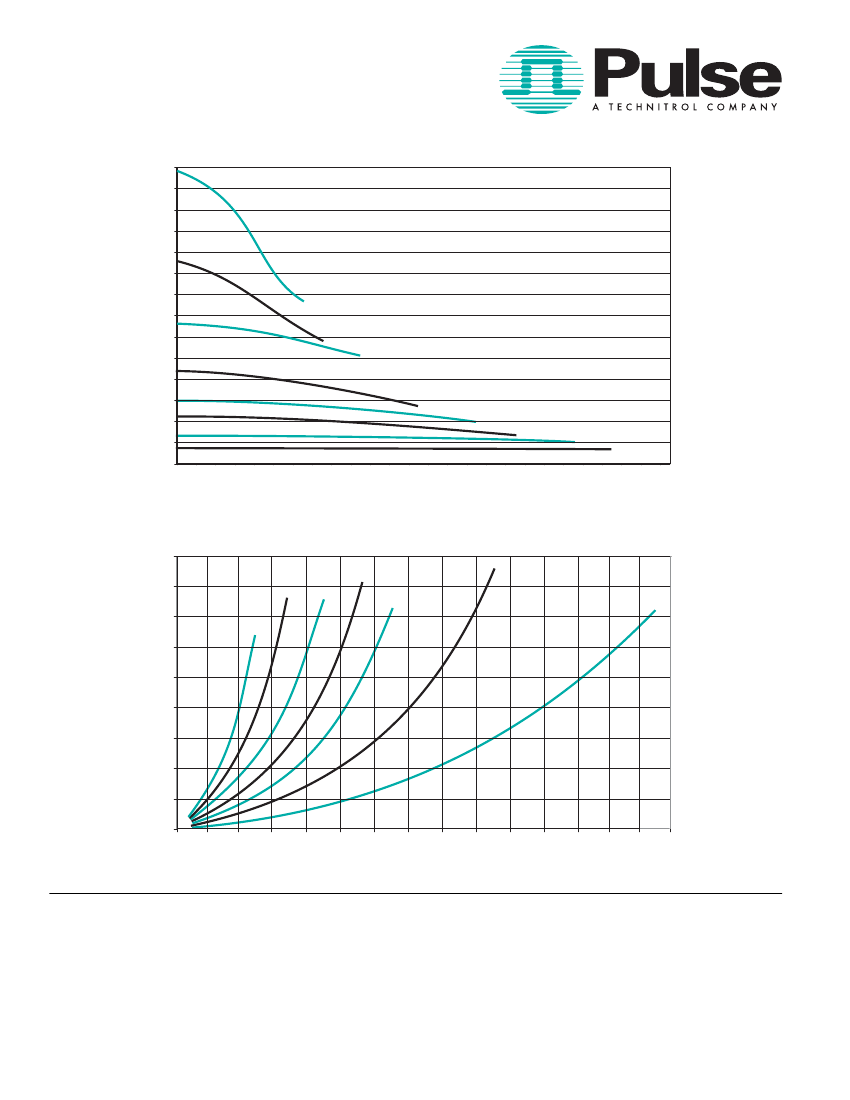

Typical Inductance vs Current Characteristics
7.0
6.5
6.0
5.5
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
0
2
4
6
Inductance (
µ
H)
.682NL
.472NL
.332NL
.222NL
.152NL
.102NL
.681NL
.401NL
8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50
DC Bias (A)
Typical Core Loss vs Peak Flux Density
4.50
4.00
3.50
700
kHz
1.0
MHz
500
kHz
400
kHz
300
kHz
200
kHz
100
kHz
CoreLoss (W)
3.00
2.50
2.00
1.50
1.00
0.50
0.00
0
200 400
600
800 1000 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000
DB
(Gauss) where
DB
= K2 *
DI
For More Information:
Pulse Worldwide
Headquarters
12220 World Trade Dr.
San Diego, CA 92128
U.S.A.
www.pulseeng.com
Pulse European
Headquarters
Einsteinstrasse 1
D-71083 Herrenberg
Germany
Pulse China
Headquarters
B402, Shenzhen Academy of
Aerospace Technology Bldg.
10th Kejinan Rd.
High-Tech Zone
Nanshan District
Shenzen, PR China 518057
TEL: 86 755 33966678
FAX: 86 755 33966700
Pulse North China
Room 1503
XinYin Building
No. 888 YiShan Rd.
Shanghai 200233
China
Pulse South Asia
150 Kampong Ampat
#07-01/02
KA Centre
Singapore 368324
Pulse North Asia
No. 26
Kao Ching Rd.
Yang Mei Chen
Taoyuan Hsien
Taiwan, R. O. C.
32667
TEL: 886 3 4643715
FAX: 886 3 4641911
TEL: 858 674 8100
FAX: 858 674 8262
TEL: 49 7032 7806 0
FAX: 49 7032 7806 12
TEL: 86 21 32181071
FAX: 86 21 32181396
TEL: 65 6287 8998
FAX: 65 6280 0080
Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product
names mentioned herein may be trademarks or registered trademarks of their respective owners. © Copyright, 2008. Pulse Engineering, Inc. All rights reserved.
www.pulseeng.com
P670.A (7/08)
