Cellular phones, Digital cameras, CD players, PDAs
•
•
•
•
•
Small LCD displays
LED driver and LED flash circuits
Hard disk drives
Backlighting
EL panel
Environmental Data
SMD Device

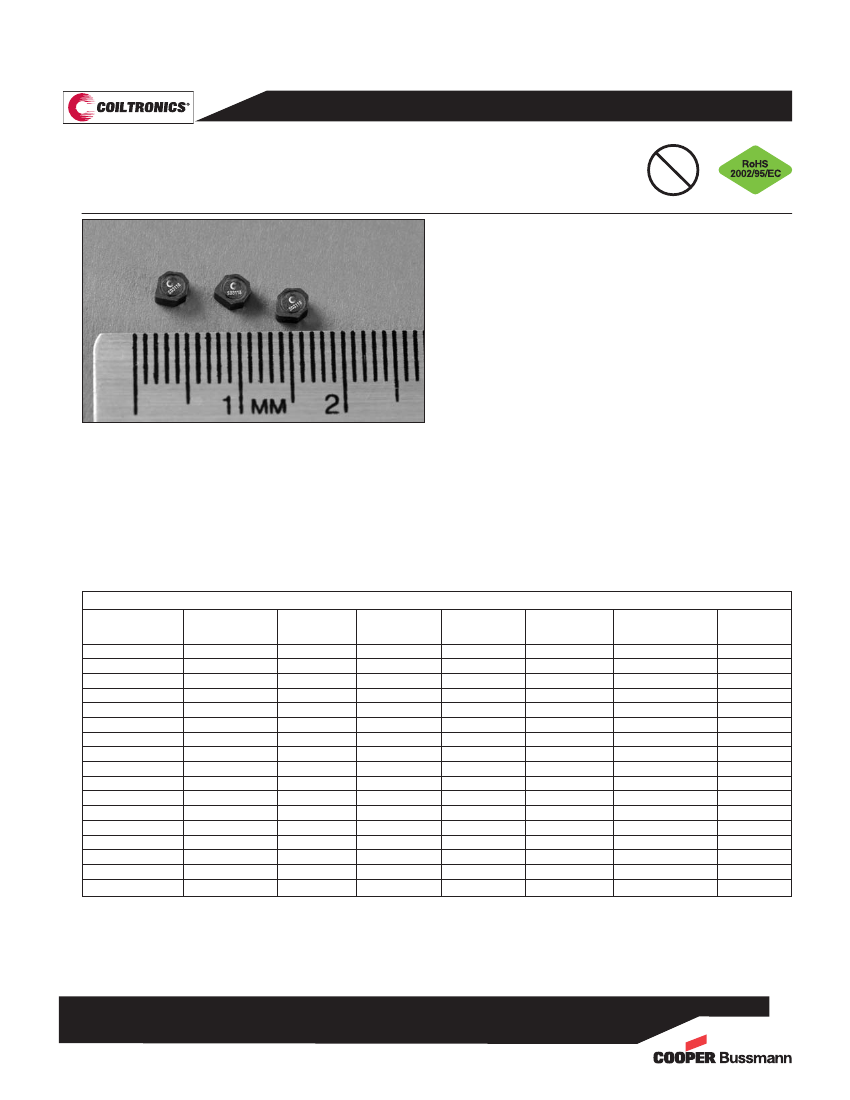

Description
•
•
•
•
•
•
•
125°C maximum total temperature operation
3.2mm x 3.2mm x 1.8mm maximum shielded drum core
Ferrite core material
Inductance range from 1.0μH to 1000μH
Current range from 2.94 Amps to 0.083 Amps
Frequency range up to 4MHz
RoHS compliant
Part
Number
5
SD3118-1R0-R
SD3118-1R5-R
SD3118-2R2-R
SD3118-3R3-R
SD3118-4R7-R
SD3118-6R8-R
SD3118-8R2-R
SD3118-100-R
SD3118-150-R
SD3118-220-R
SD3118-330-R
SD3118-470-R
SD3118-221-R
SD3118-331-R
SD3118-471-R
SD3118-681-R
SD3118-102-R
Rated
Inductance (μH)
1.0
1.5
2.2
3.3
4.7
6.8
8.2
10.0
15.0
22.0
33.0
47.0
220.0
330.0
470.0
680.0
1000.0
OCL
1
• Storage temperature range: -40°C to +125°C
• Operating temperature range: -40°C to +125°C
(with derated current)
• Solder reflow temperature: +260°C max. for 10 seconds maximum
Packaging
• Supplied in tape and reel packaging, 4100 per reel,
13” diameter reel
Product Specifications
Part Marking
Designator
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
Irms
2
(Amps)
2.01
1.81
1.50
1.22
1.02
0.85
0.81
0.75
0.62
0.50
0.41
0.370
0.182
0.146
0.131
0.107
0.087
(μH)
1.04±30%
1.44±30%
2.12±30%
3.36±30%
4.90±30%
6.72±30%
8.10±30%
10.4±30%
14.9±20%
22.5±20%
33.1±20%
47.5±20%
221.9±20%
329.9±20%
470.1±20%
680.3±20%
999.4±20%
Isat
3
(Amps)
3.07
2.42
2.00
1.59
1.31
1.12
1.02
0.90
0.75
0.61
0.51
0.42
0.177
0.145
0.122
0.101
0.083
DCR (Ω) @ 20°C
(Typical)
0.041
0.051
0.074
0.113
0.162
0.232
0.257
0.295
0.440
0.676
0.986
1.21
4.77
7.40
9.20
13.70
20.90
K-factor
4
84
68
57
56
39
32
29
26
21
18
14
12
6
5
4
3
3
1 Open Circuit Inductance (OCL) Test Parameters: 100kHz, 0.10Vrms, 0.0Adc
2 Irms: DC current for an approximate temperature rise of 40°C without core loss. Derating is
necessary for AC currents. PCB pad layout, trace thickness and width, air-flow and proximity of
other heat generating components will affect the temperature rise. It is recommended the part
temperature not exceed 125°C under worst case operating conditions verified in the end
application.
3 Isat: Peak current for approximately 30% rolloff at +20°C.
4 K-factor: Used to determine Bp-p for core loss (see graph). Bp-p = K * L *
ΔI.
Bp-p (mT),
K: (K-factor from table), L: (inductance in
μH), ΔI
(peak-to-peak ripple current in amps).
5 Part Number Definition:HCF1007-xxx-R
• SD3118 = Product code and size
• xxx= Inductance value in
μH,
R = decimal point.
If no “R” is present then third character =# of zeros
• -R suffix = RoHS compliant
1109
BU-SB091064
Page 1 of 3
Data Sheet: 4084

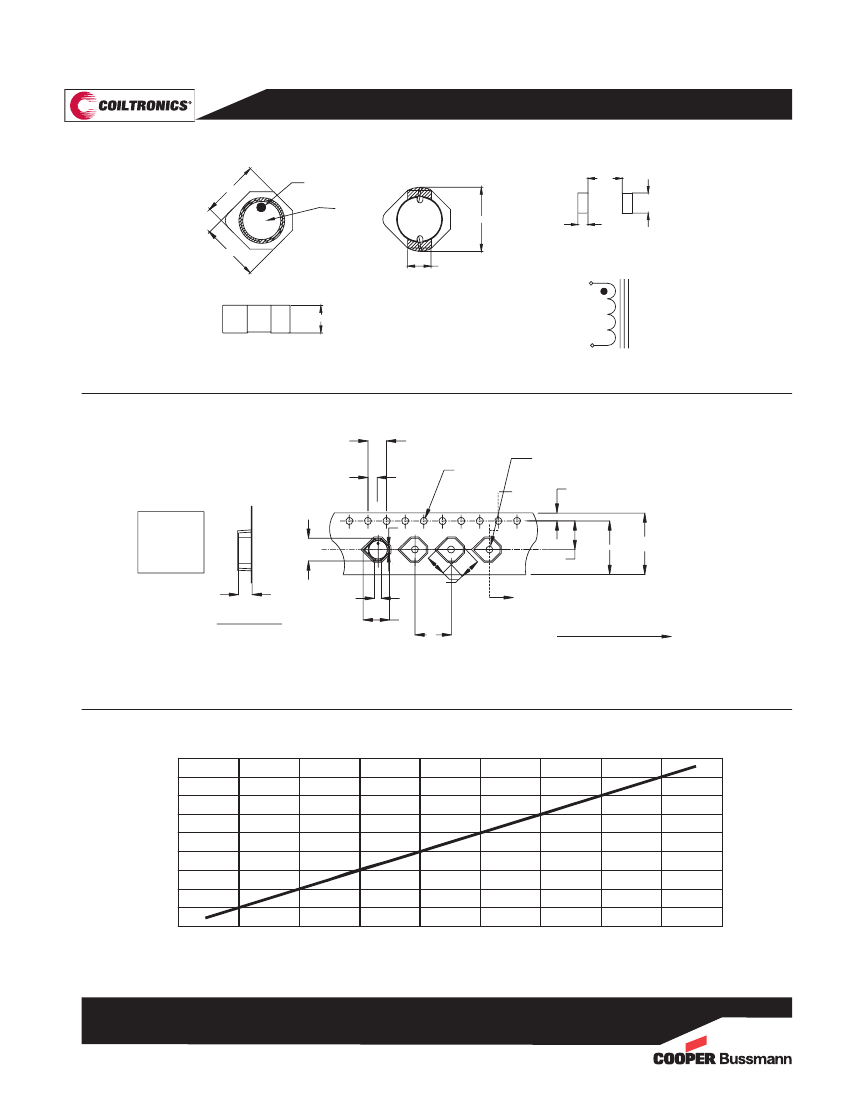

Dimensions - mm
TOP VIEW
BOTTOM VIEW
RECOMMENDED PCB LAYOUT
2.40
3.2 max.
Pin #1 indicator
Marking
1.40
XX X
3.2 ma
x.
3.9 max
0.70
1.5 typical
SIDE VIEW
1
SCHEMATIC
1.8 max
2
3 Digit Part Marking: (1st digit: Indicates inductance value per letter in Part Marking Designator); (2nd digit: Bi-weekly production date code); (3rd digit: Last digit of the year produced).
Packaging Information - mm
4.00
1.5 Dia.
+0.1/-0.0
1.2 Dia
min.
2.00
A
Ao = 4.0mm
A1 = 0.93mm
Bo = 4.20mm
B1 = 1.25mm
Ko = 2.00mm
1.75
1
B1
10.25
5.50
12.0
+/-0.3
Bo
2
3.4
Ko
A1
Ao
8.0
3.4
A
SECTION A-A
Direction of feed
Supplied in tape-and-reel packaging, 4100 parts per reel, 13” diameter reel.
Temperature Rise vs. Total Loss
90
80
70
60
50
40
30
20
10
0
0
0.05
0.1
0.15
0. 2
0.25
0.3
0. 35
0.4
0.45
Total Lo ss(W)
1109
BU-SB091064
Temp.Ris e(°C)
Page 2 of 3
Data Sheet: 4084

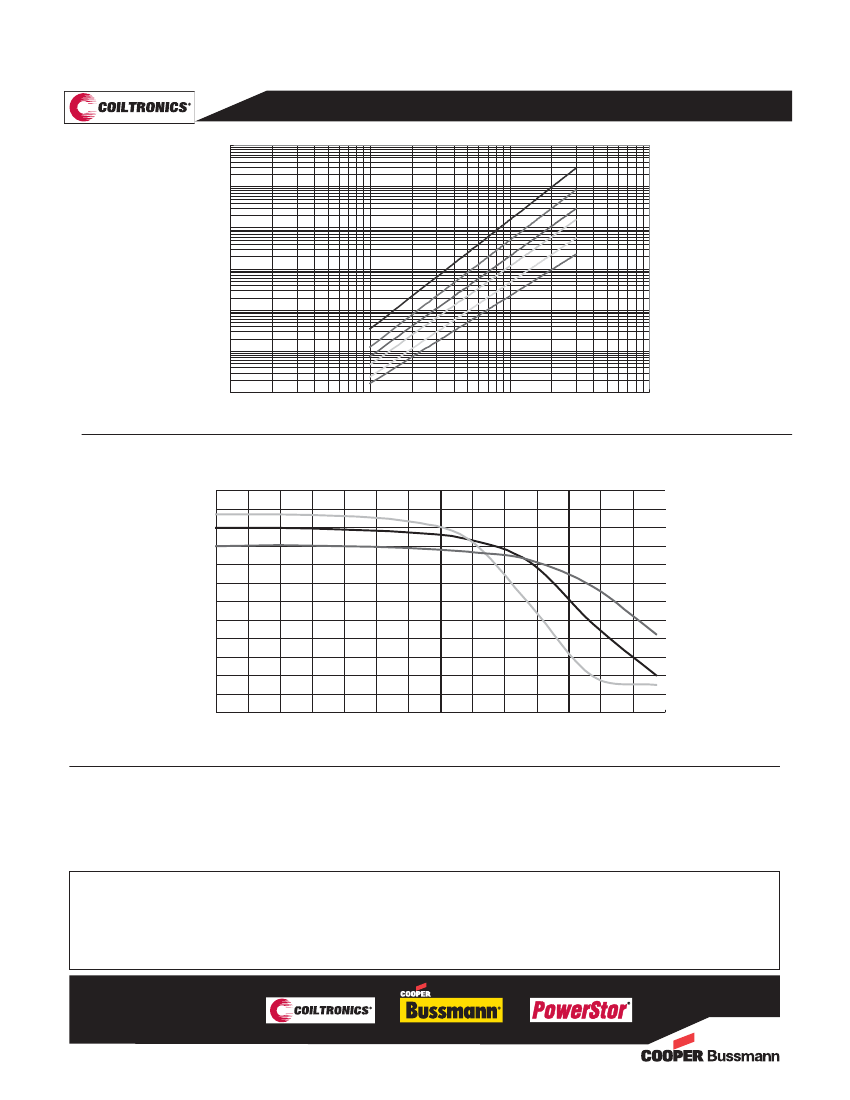

Core Loss
10
1MHz
1
500kHz
300kHz
0.1
200kHz
100kHz
50kHz
0.01
Core Loss (W)
0.001
0.0001
0.00001
1
10
Bp-p (mT)
100
1000
Inductance Characteristics
120%
110%
100%
90%
OCL vs. I
sat
% of L initial
80%
70%
60%
50%
40%
30%
20%
10%
0%
0%
10%
20%
30%
40%
50%
60%
70%
80%
90%
100% 110%
120%
130% 140%
-40°C
25°C
85°C
% o f I
sat
