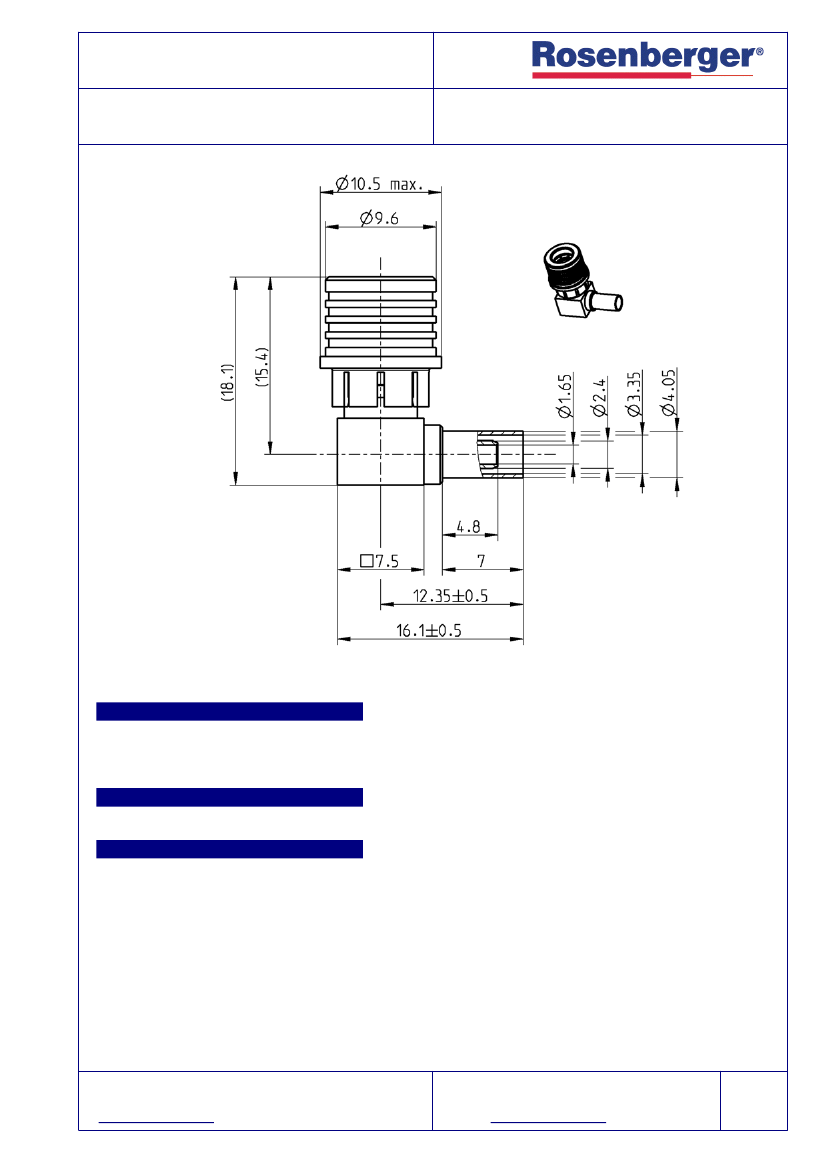

TECHNICAL DATA SHEET

QMA

RIGHT ANGLE PLUG

28S247-303N5-YY-NM *

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28S000-000, series QMA

Rosenberger is an authorised QLF® manufacturer

Documents

Assembly instruction

28 B

Material and plating

Non-magnetic version

Connector parts

Center contact

Outer contact

Body

Dielectric

Crimping ferrule

Unlocking sleeve

Material

Spring bronze

PTFE

Spring bronze

POM

Plating

AuroDur®, gold plated

White bronze(e.g. Optalloy®)

Flash white bronze over silver(e.g. Optargen®)

available in different colours *

* The colour is defined in the part number by the colour code YY: bl=blue, gn=green, ro=red, sw=black

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2

28S247-303N5-GN-NM Related Products

	28S247-303N5-GN-NM	28S247-303N5-BL-NM	28S247-303N5-RO-NM	28S247-303N5-SW-NM
Description	RF QMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT	RF QMA Connector, 1 Contact(s), Male, Cable Mount, Crimp Terminal, Plug, ROHS COMPLIANT
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compli	compli	compli	compli
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	CAPTIVE CENTRE CONTACT, APPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT 6 GHZ	CAPTIVE CENTRE CONTACT, APPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT 6 GHZ	CAPTIVE CENTRE CONTACT, APPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT 6 GHZ	CAPTIVE CENTRE CONTACT, APPLICABLE CABLE: RG 316/U-D, INSERTION LOSS AND VSWR MAX AT 6 GHZ
subject depth	0.713 inch	0.713 inch	0.713 inch	0.713 inch
Body diameter	0.413 inch	0.413 inch	0.413 inch	0.413 inch
Body/casing type	PLUG	PLUG	PLUG	PLUG
Cable type	RG-316/U	RG-316/U	RG-316/U	RG-316/U
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR	RF QMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE
Contact resistance	3 mΩ	3 mΩ	3 mΩ	3 mΩ
Contact style	COAX	COAX	COAX	COAX
Coupling type	SNAP	SNAP	SNAP	SNAP
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	1700VAC V	1700VAC V	1700VAC V	1700VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	23.5744 N	23.5744 N	23.5744 N	23.5744 N
Insertion loss	0.12 dB	0.12 dB	0.12 dB	0.12 dB
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	GREEN	BLUE	RED	BLACK
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO
Manufacturer's serial number	28S247-303N5	28S247-303N5	28S247-303N5	28S247-303N5
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE
Number of ports	1	1	1	1
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	NO	NO	NO	NO
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell material	BRONZE	BRONZE	BRONZE	BRONZE
Termination type	CRIMP	CRIMP	CRIMP	CRIMP
Total number of contacts	1	1	1	1
voltage standing wave ratio	1.29	1.29	1.29	1.29
Base Number Matches	1	1	1	1
