28S246-272N5-SW: DescriptionRF QMA Connector, 1 Contact(s), Male, Cable Mount, Solder Lug Terminal, Plug, ROHS COMPLIANT; CategoryThe connector The connector; File Size80KB，2 Pages; ManufacturerRosenberger; Websitehttps://www.rosenberger.com/

Download Datasheet Parametric Compare View All

28S246-272N5-SW Overview

RF QMA Connector, 1 Contact(s), Male, Cable Mount, Solder Lug Terminal, Plug, ROHS COMPLIANT

28S246-272N5-SW Parametric

Parameter Name	Attribute value
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	APPLICABLE CABLE: RG 402, INSERTION LOSS AND VSWR MAX AT: 6 GHZ
subject depth	0.732 inch
Body diameter	0.413 inch
Body/casing type	PLUG
Cable type	RG-402
Characteristic impedance	50 Ω
Connector type	RF QMA CONNECTOR
Contact to complete cooperation	GOLD (6) OVER NICKEL
Contact completed and terminated	GOLD (6) OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	3 mΩ
Contact style	COAX
Coupling type	SNAP
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	23.5744 N
Insertion loss	0.12 dB
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	28S246-272N5
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	CABLE
Number of ports	1
Maximum operating frequency	18 GHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
Panel mounting	NO
reliability	COMMERCIAL
Shell surface	GOLD
Shell material	BRASS
Termination type	SOLDER LUG
Total number of contacts	1
voltage standing wave ratio	1.12
Base Number Matches	1

Preview

Download Datasheet

View All

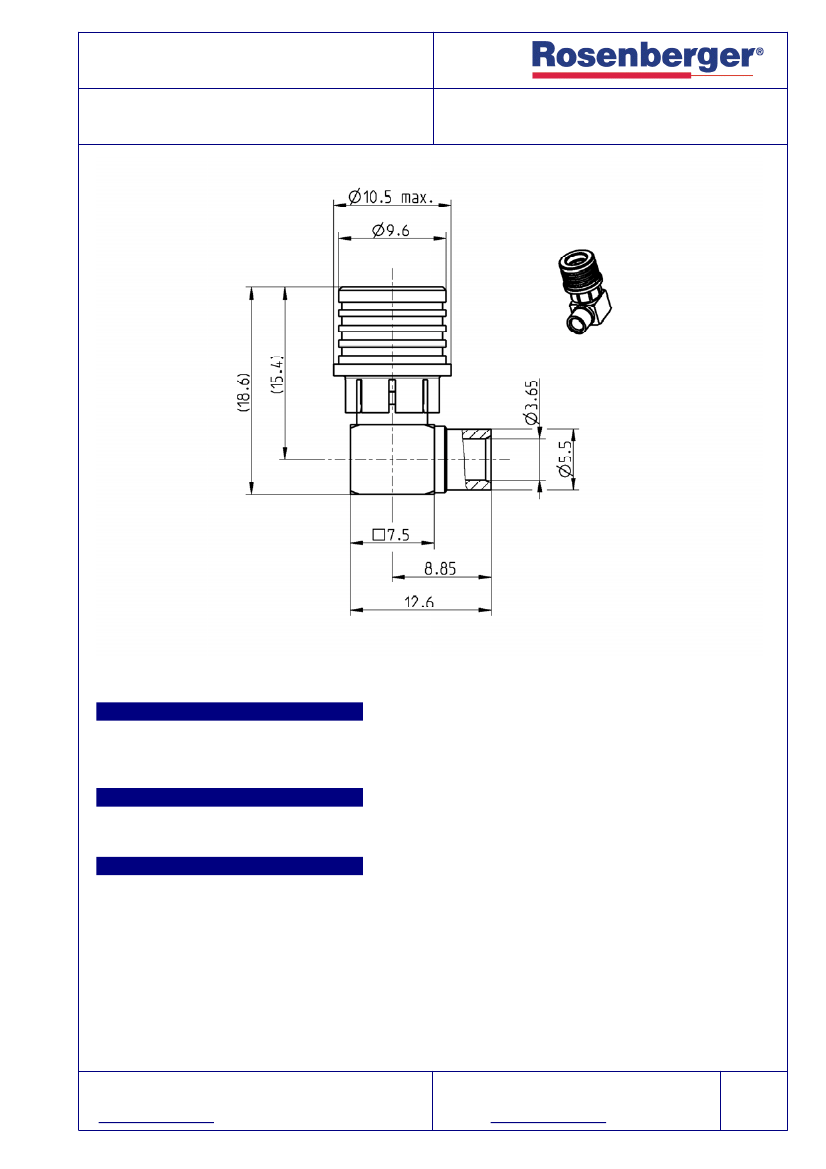

TECHNICAL DATA SHEET

QMA

RIGHT ANGLE PLUG

28S246-272N5-YY *

All dimensions are in mm; tolerances according to ISO 2768 m-H

Interface

According to

Rosenberger 28S000-000, series QMA

Rosenberger is an authorised QLF® manufacturer

Documents

Assembly instruction

28 C4

Material and plating

Connector parts

Center contact

Outer contact

Body

Dielectric

Unlocking sleeve

Material

Brass

Spring bronze

Brass

PTFE

POM

Plating

Gold, min. 0.15 µm, over chemical nickel

White bronze(e.g. Optalloy®)

Gold, min. 0.15 µm, over chemical nickel

available in different colours *

* The colour is defined in the part number by the colour code YY: bl=blue, gn=green, ro=red, sw=black

RF_35/12.04/3.0

Rosenberger Hochfrequenztechnik GmbH & Co. KG

P.O.Box 1260

D-84526 Tittmoning

Germany

www.rosenberger.de

Tel.: +49 8684 18-0

Fax: +49 8684 18-499

email: info@rosenberger.de

Page

1/2
