Part Number

Search

3A2011

Description
TOGGLE SWITCH,STRAIGHT,DPDT,ON-ON,SOLDER TERMINAL,TOGGLE BAT
CategoryMechanical and electronic products    switch
File Size1MB,9 Pages
ManufacturerNidec Copal Electronics
Download Datasheet Parametric View All

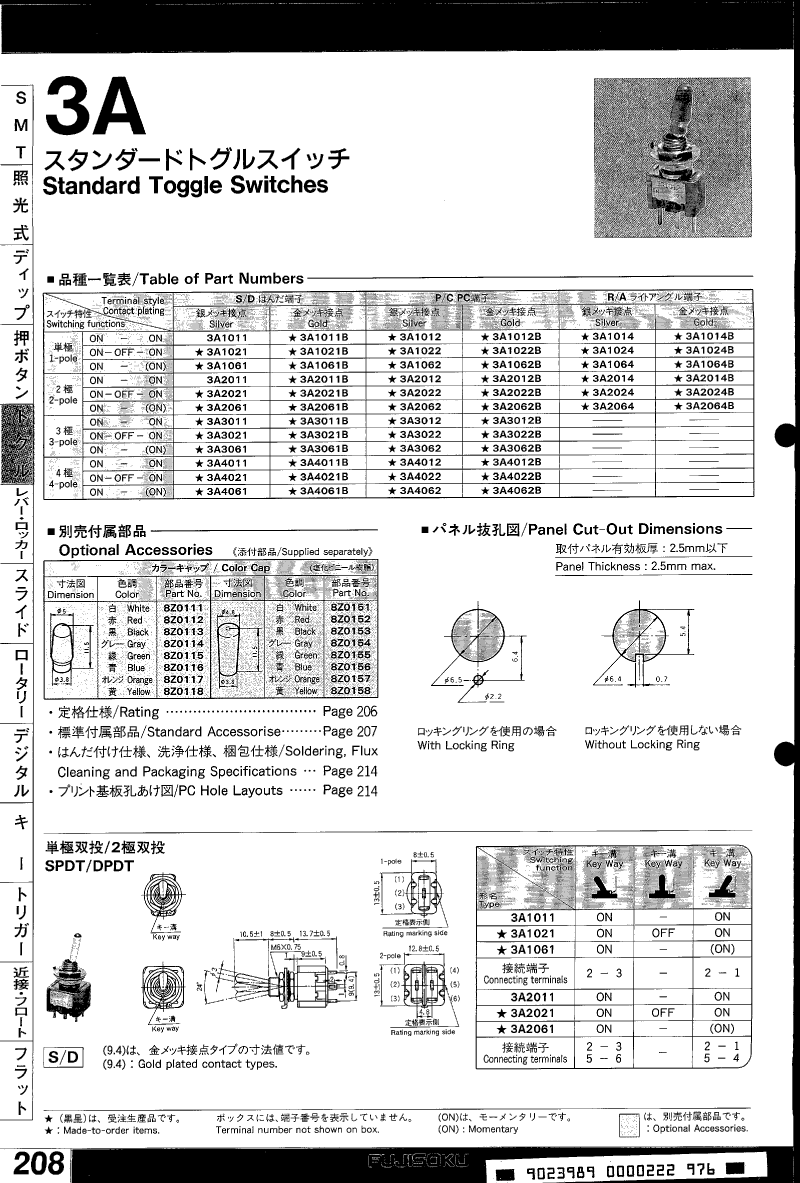

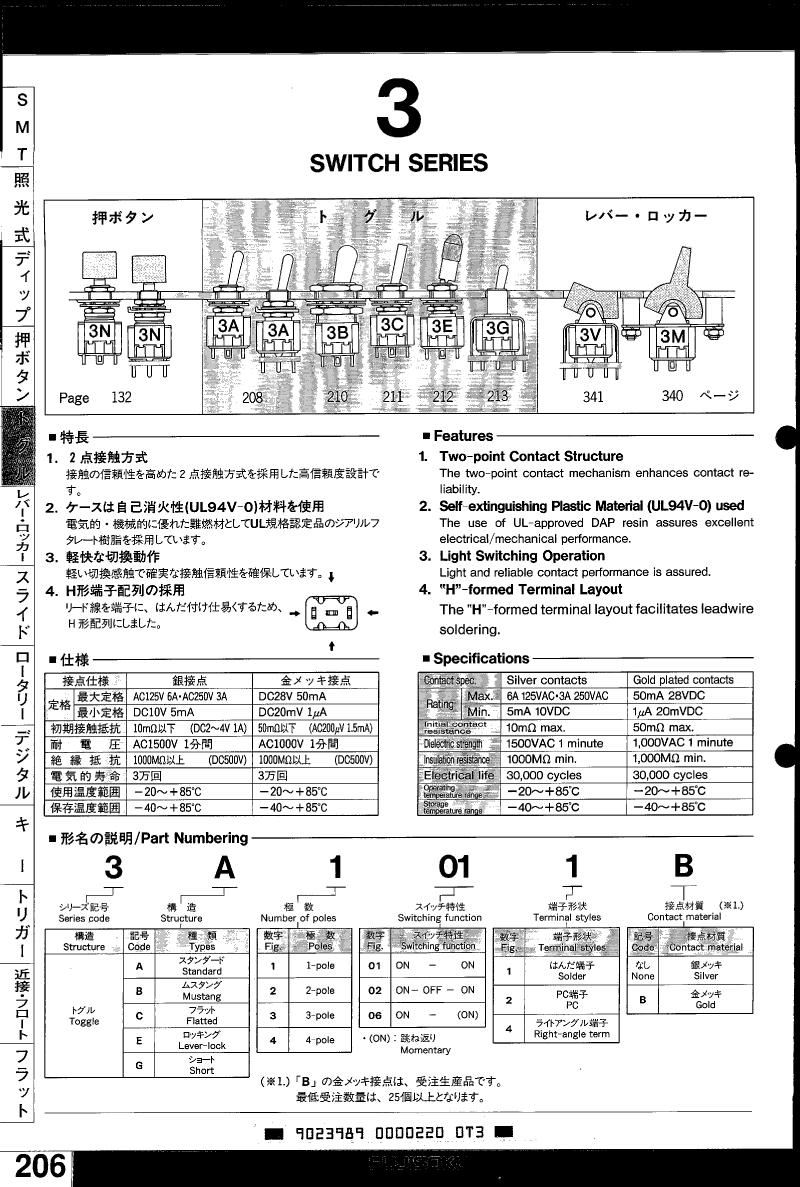

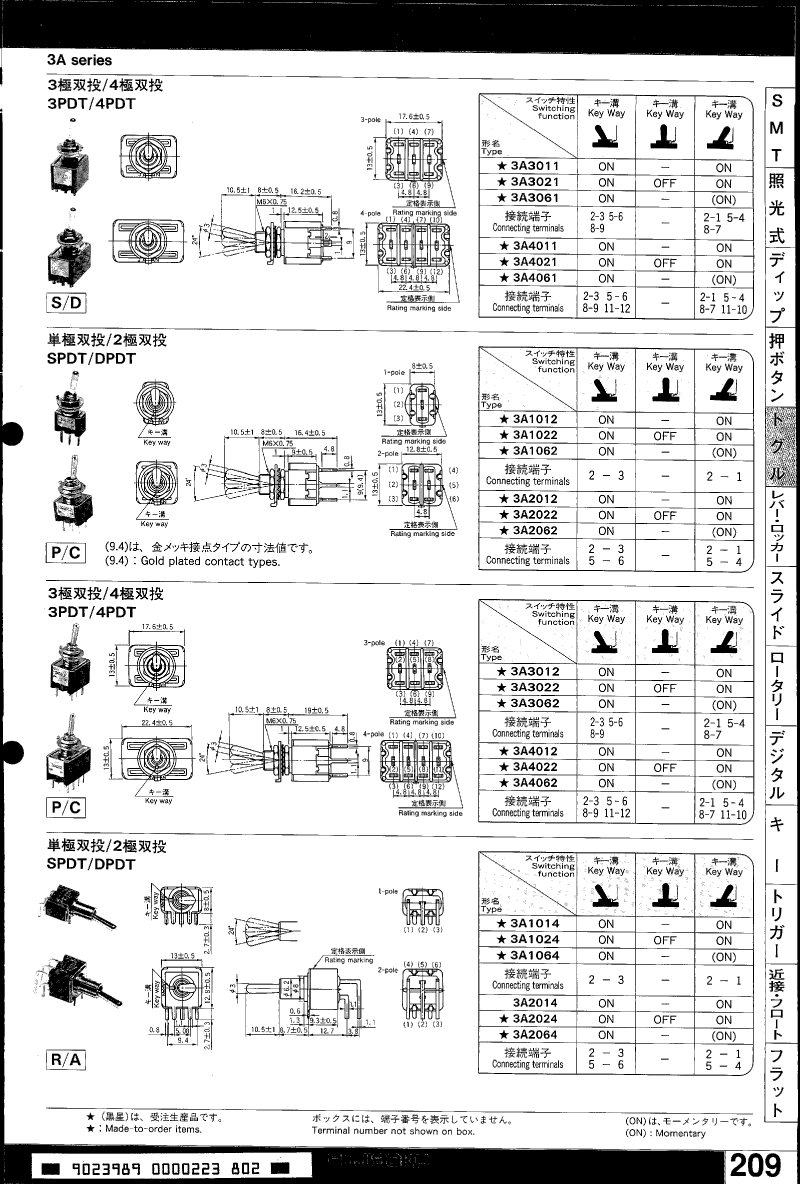

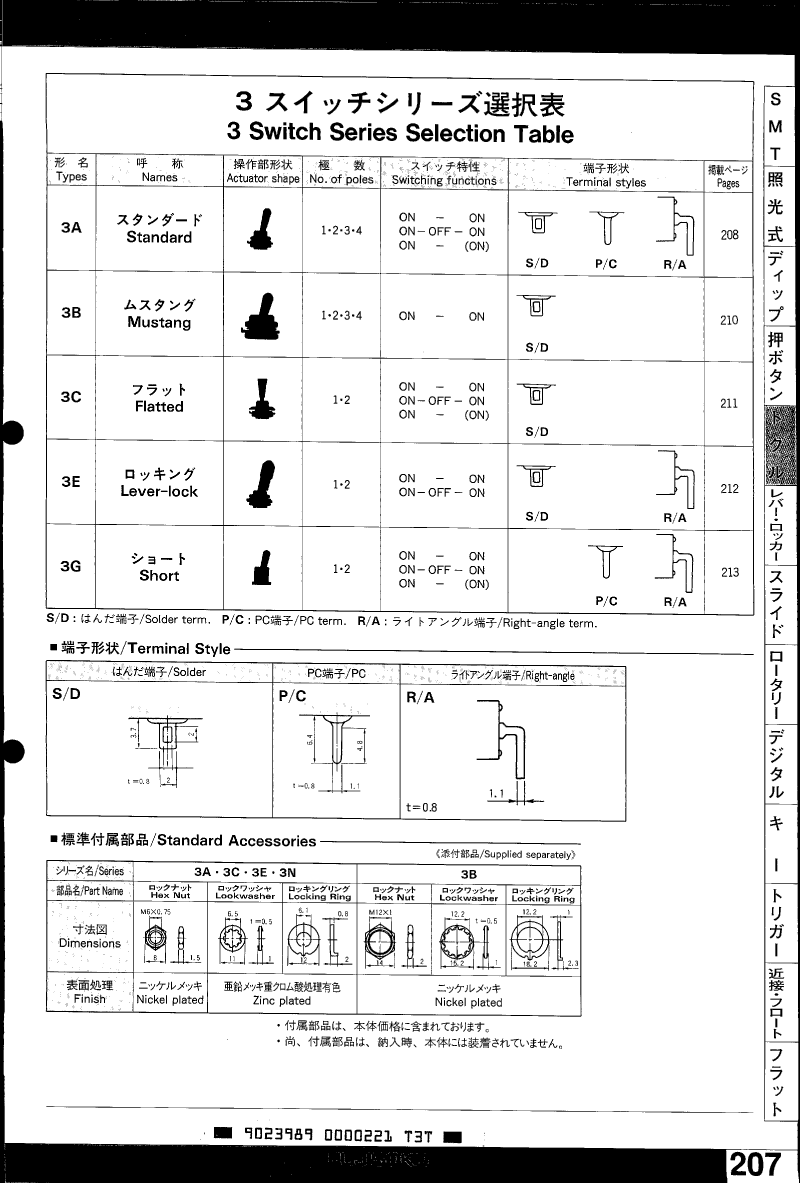

3A2011 Overview

TOGGLE SWITCH,STRAIGHT,DPDT,ON-ON,SOLDER TERMINAL,TOGGLE BAT

3A2011 Parametric

Parameter NameAttribute value
Objectid312033338
Reach Compliance Codeunknown
ECCN codeEAR99
YTEOL2
Actuator angle24 deg
Actuator length0.413 inch
Actuator typeTOGGLE BAT
Other featuresUL APPROVED
body width12.8016 mm
Body length or diameter13.0048 mm
Nozzle length0.315 inch
Casing typeM6X0.75
Center contact platingSILVER
Contact (AC) maximum rated R load3A@250VAC
Maximum contact current (AC)3 A
Maximum contact current (DC)0.005 A
Contact (DC) maximum rated R load0.005A@10VDC
Contact functionON-ON
Contact resistance0.01 mΩ
contact timeBREAK-BEFORE-MAKE
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)10 V
Dielectric withstand voltage1500VAC V
Electrical life30000 Cycle(s)
End contact platingSILVER
Insulation resistance1000000000 Ω
Manufacturer's serial number3A
Installation featuresPANEL MOUNT
Maximum operating temperature85 °C
Minimum operating temperature-20 °C
SolderabilityHAND
surface mountNO
Switch actionHORIZONTAL
switch functionDPDT
Switch typeTOGGLE SWITCH
Termination typeSOLDER LUG
WashabilitySOLVENT
