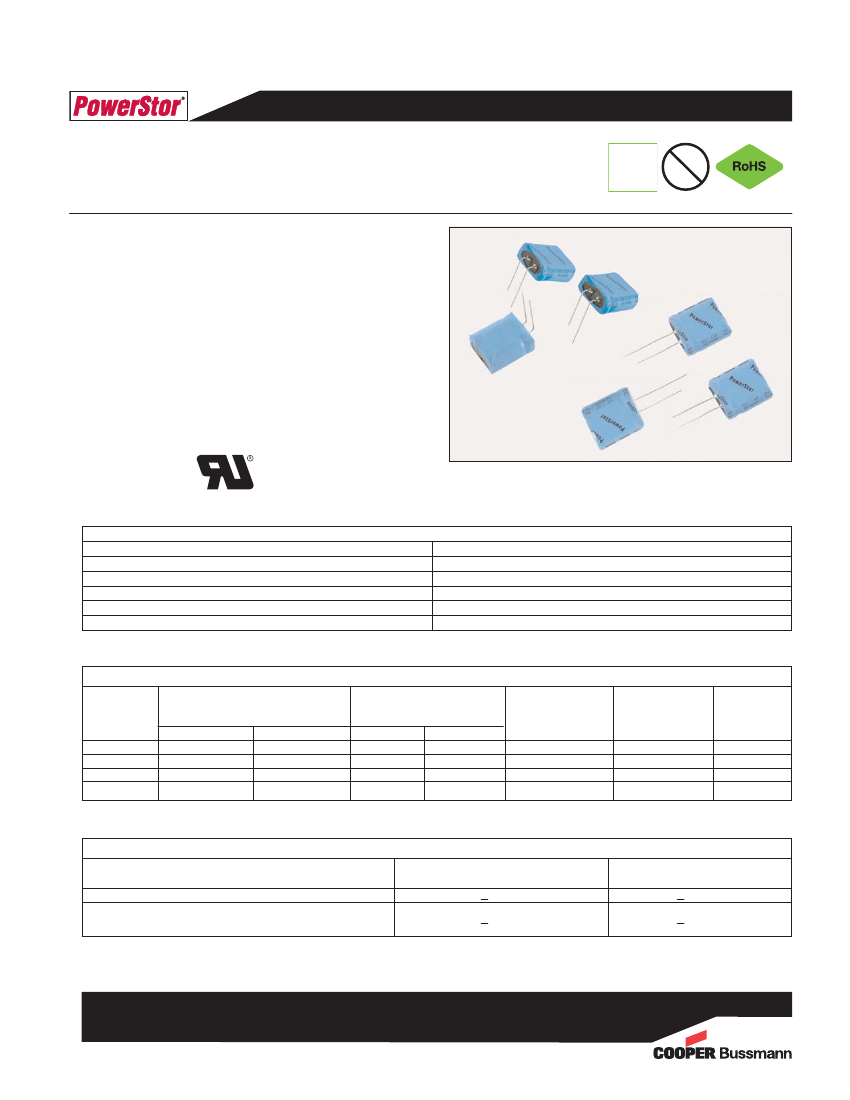

Supercapacitors
PM Series
Description
Cooper Bussmann PowerStor supercapacitors are unique, ultra-high
capacitance devices utilizing electrochemical double layer capacitor (EDLC)
construction combined with new, high performance materials. This
combination of advanced technologies allows Cooper Bussmann to offer a
wide variety of capacitor solutions tailored to specific applications that range
from a few micro-amps for several days to several amps for milliseconds.
HF
Pb
FREE
HALOGEN
Features & Benefits
• Low ESR with high energy density
• 5.0 Volts
• High capacitance
• Long cycle life
• Low leakage currents
• UL Recognized
Applications
• Pulse power
• Bridge or hold-up power
Cylindrical Device
Specifications
Working Voltage
Surge Voltage
Nominal Capacitance
Capacitance Tolerance
Operating Temperature Range
Extended Operating Temperature Range
5.0V
5.5V
0.47F to 3.0F
-20% to +80% (20°C)
-40°C to 60°C
-40°C to 85°C (Max. working voltage: 3.9V)
Standard Product
Nominal
Capacitance (F)
0.47
1.0
1.5
3.0
Part Number
Vertical
Horizontal
PM-5R0V474-R
PM-5R0H474-R
PM-5R0V105-R
PM-5R0H105-R
PM-5R0V155-R
PM-5R0H155-R
PM-5R0V305-R
PM-5R0H305-R
Nominal ESR (Ω)
(Equivalent Series Resistance)
Measured @
1kHz
100Hz
0.42
0.50
0.15
0.20
0.07
0.10
0.05
0.07
Nominal
Leakage Current (μA)
After 100 Hrs.
@ 5V, 20°C
8
10
15
20
Nominal
Dimensions (mm)
8.5 x 16.8 x 14.0
8.5 x 16.8 x 21.5
10.5 x 20.8 x 22.5
10.5 x 20.8 x 32
Typical Mass
(grams/piece)
2.4
3.5
5.4
7.8
Performance
Parameter
Life (1000 hrs @ 60°C @ 5Vdc)
Storage - Low and High Temperature
(1000 hrs @ -40°C and 60°C)
Capacitance Change
(% of specified value)
<
30 %
<
30 %
ESR
(% of specified value)
<
200 %
<
200 %
1211
BU-SB111357
Page 1 of 2
Data Sheet: 4308
Dimensions (mm)
Vertical Part#
Horizontal Part#
PM-5R0V474-R PM-5R0H474-R
PM-5R0V105-R PM-5R0H105-R
PM-5R0V155-R PM-5R0H155-R
PM-5R0V305-R PM-5R0H305-R
Tolerances
Note: Longer lead is positive.
A
9.0
9.0
11.0
11.0
B
17.3
17.3
21.3
21.3
Maximum
C
14.5
22.0
23.0
32.5
d’
0.5
0.5
0.6
0.6
± 0.02
D
20
20
20
20
D’
15
15
15
15
E
25
25
25
25
Minimum
E’
20
20
20
20
F
2.0
2.0
2.0
2.0
P
11.8
11.8
5.3
5.3
± 0.5
B
B
C
F
C
A
A
d
d’
C
C
d’
d
A
A
D’
D
D
E
E’
E
P
F
P
Vertical
P
Horizontal
Part Numbering System
P
Series
Code
P = Pack
M
Version
-
5
R
0
Voltage (V)
R = Decimal
5R0 = 5.0V
-
Configuration
V = Vertical
H = Horizontal
Capacitance (μF)
Value
Multiplier
Example: 474 = 47 x 10
4
µF or 0.47F
R
RoHS
Compliant
Packaging Information
Standard packaging: Bulk, 100 units per package.
Large, bulk packaging available upon request.
Part Marking
Manufacturer
Capacitance (F)
Max. Operating Voltage (V)
Series Code (or part number)
Polarity
