250BXA47MRI16X20 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 250BXA47MRI16X20

250BXA47MRI16X20: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 47uF,; CategoryPassive components capacitor; File Size151KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

250BXA47MRI16X20 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 250V, 20% +Tol, 20% -Tol, 47uF,

250BXA47MRI16X20 Parametric

Parameter Name	Attribute value
Objectid	259460909
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	47 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	16 mm
dielectric materials	ALUMINUM
length	20 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package form	Radial
method of packing	Bulk
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	250 V
ripple current	720 mA
series	BXA
Terminal pitch	7.5 mm

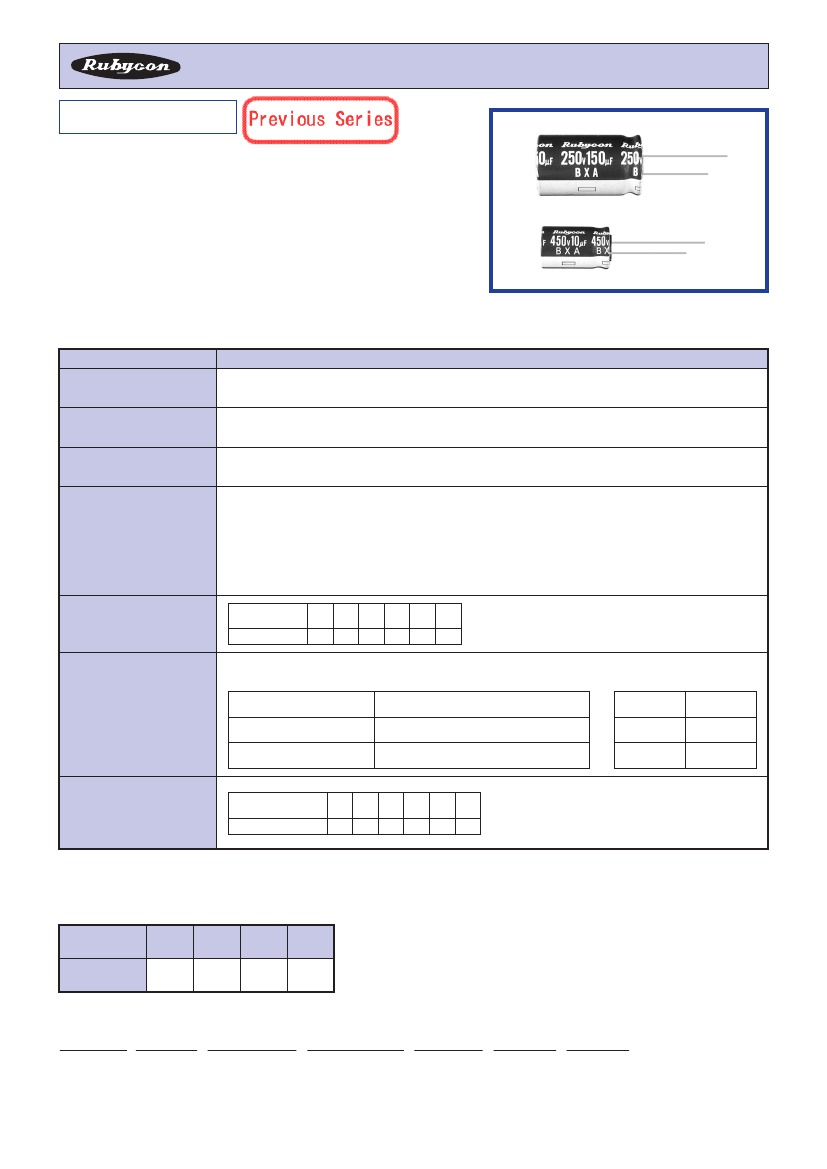

Preview

Download Datasheet

View All

FINAL ACCEPTED ORDER DATE [2013/09]

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS

BXA

SERIES

Load Life:105℃ 12000 hours.(φ10:10000 hours)

◆FEATURES

・

High Ripple Current

・

Electronic Ballast, Power Supply

For

・

RoHS compliance.

BXA series will be discontinued in due course. In case of new design,

the succeeding BXC series will be applied.

We appreciate for your kind understanding and acceptance.

◆SPECIFICATIONS

Items

Category Temperature Range

Characteristics

−25∼＋105℃

160∼450V.DC

±20％

（20℃，

120Hz）

I＝0.04CV+100μA

(After 1 minute application of rated voltage)

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I＝0.02CV+25μA

(After 5 minutes application of rated voltage)

I＝

Leakage Current

(μA)

C＝

Rated Capacitance

(μF)

V＝

Rated Voltage

(V)

(tanδ)

Dissipation Factor(MAX)

Rated Voltage

160 200 250 350 400 450

(V)

tanδ

0.15 0.15 0.15 0.20 0.20 0.20

（20℃，

120Hz）

After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet

the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within ±20％ of the initial value.

Not more than 200％ of the speciﬁed value.

Not more than the speciﬁed value.

Case Size

φD=10

φD≧12.5

Life Time

(hrs)

10000

12000

Low Temperature Stability

Impedance Ratio(MAX)

Rated Voltage

160 200 250 350 400 450

(V)

（−25℃）（20℃） 3

（120Hz）

◆MULTIPLIER FOR RIPPLE CURRENT

Frequency coeﬃcient

Frequency

（Hz）

120

0.50

0.80

10k

0.90

100k≦

1.00

Coeﬃcient

◆PART NUMBER

□□□

Rated Voltage

BXA

Series

□□□□□

Rated Capacitance

□

Capacitance Tolerance

□□□

Option

□□

Lead Forming

D×L

Case Size

2011_B
