2513N datasheet, PDF - EEWORLD Datasheet

2513N: DescriptionIC 512 X 5 MASK PROM, 600 ns, PDIP24, Programmable ROM; Categorystorage storage; File Size203KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

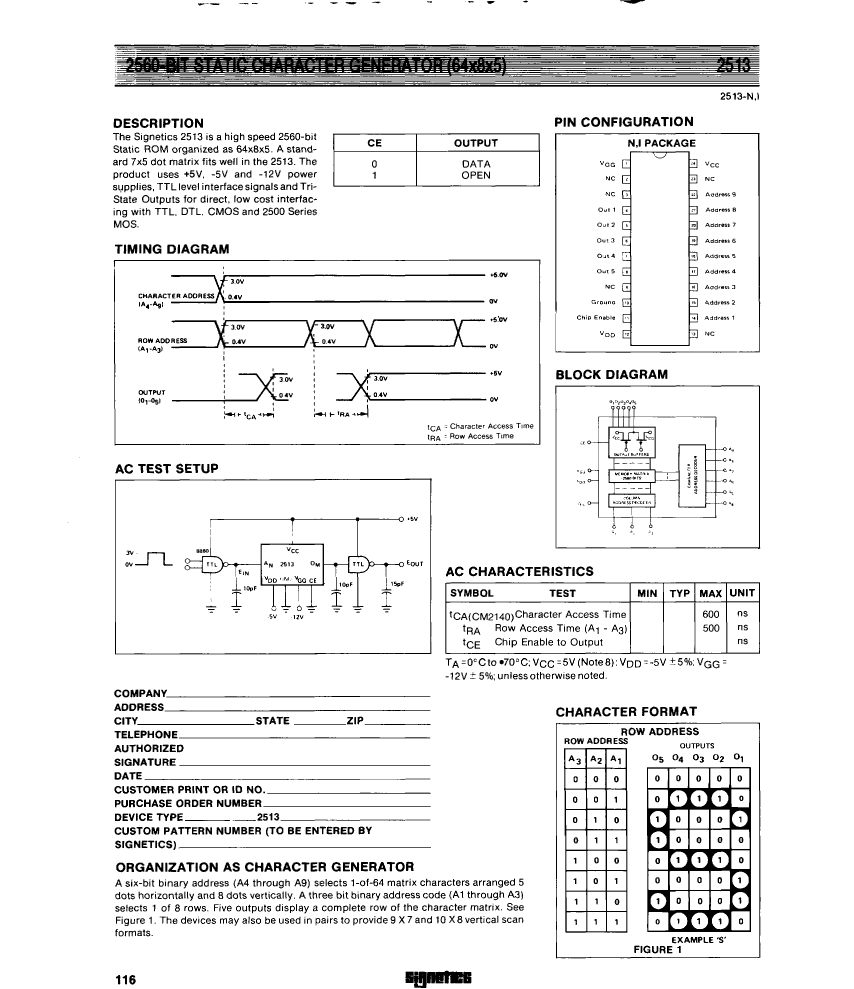

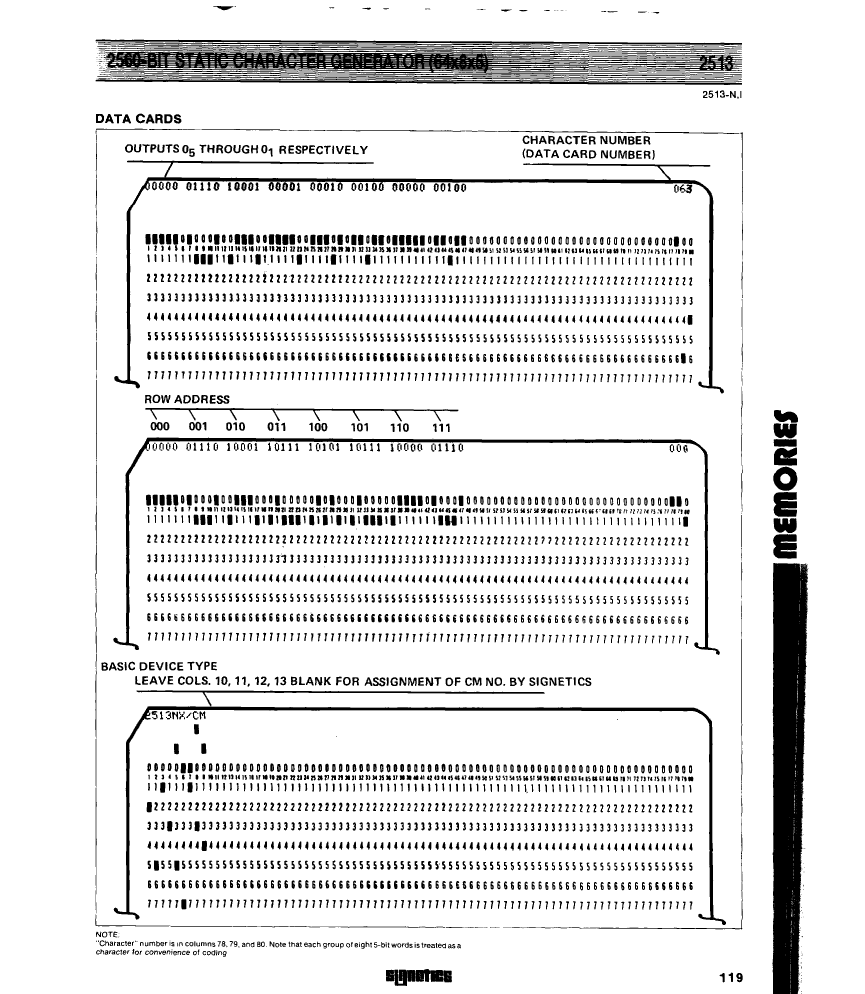

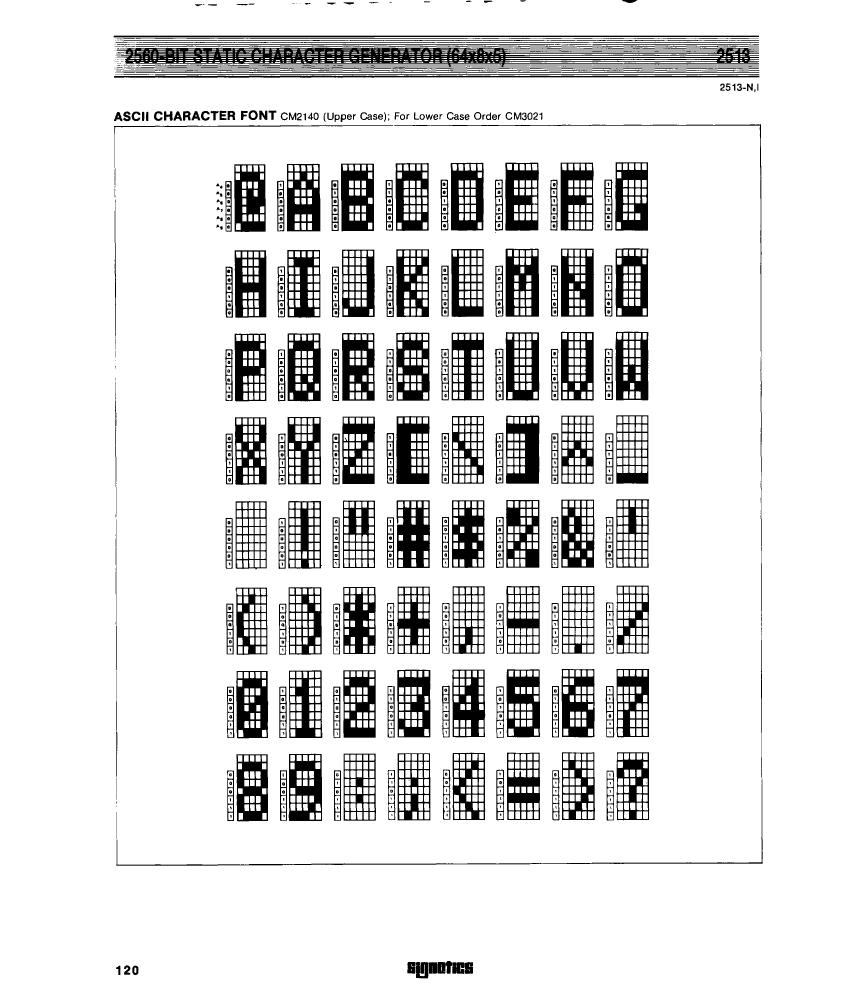

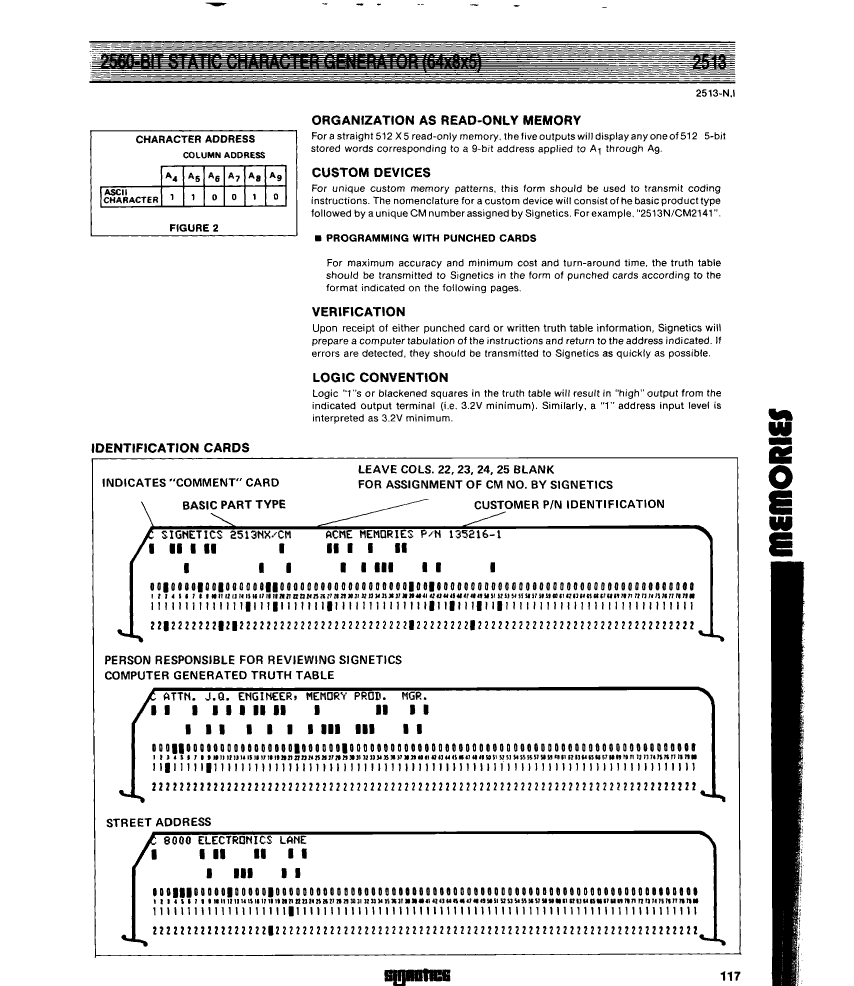

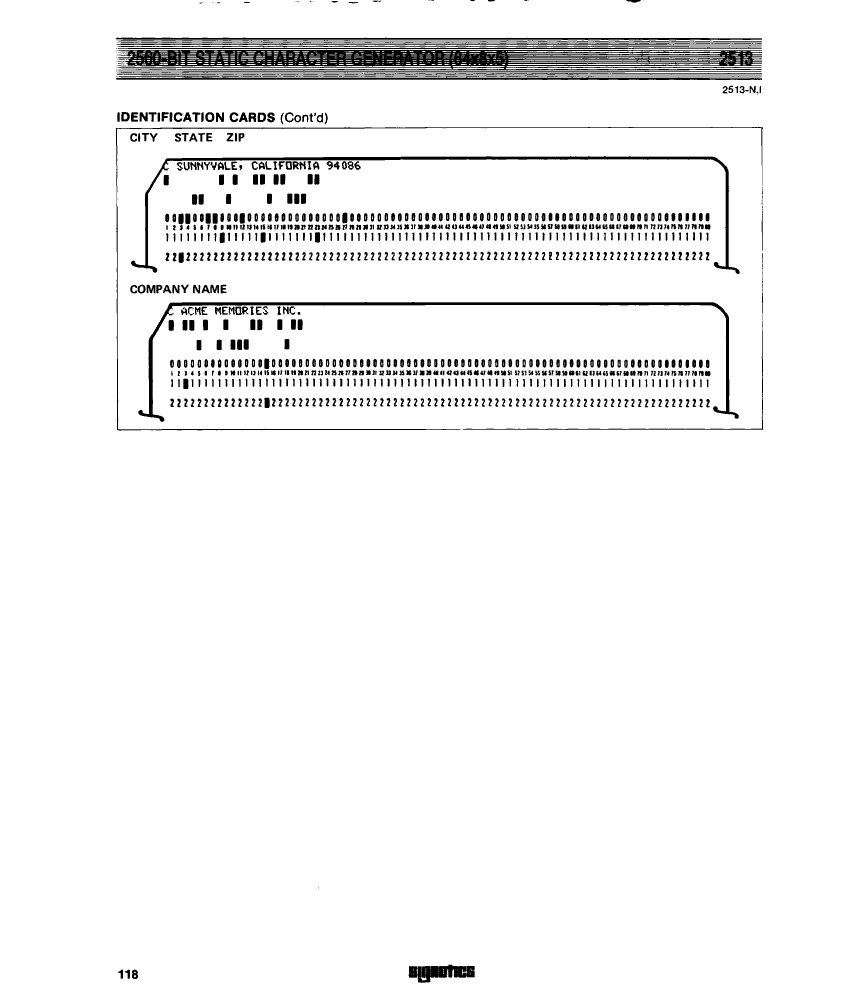

2513N Overview

IC 512 X 5 MASK PROM, 600 ns, PDIP24, Programmable ROM

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknow
ECCN code	EAR99
Maximum access time	600 ns
JESD-30 code	R-PDIP-T24
memory density	2560 bi
Memory IC Type	MASK ROM
memory width	5
Number of functions	1
Number of terminals	24
word count	512 words
character code	512
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X5
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	MOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Base Number Matches	1

	2513N	2513I
Description	IC 512 X 5 MASK PROM, 600 ns, PDIP24, Programmable ROM	IC 512 X 5 MASK PROM, 600 ns, CDIP24, Programmable ROM
Reach Compliance Code	unknow	unknow
ECCN code	EAR99	EAR99
Maximum access time	600 ns	600 ns
JESD-30 code	R-PDIP-T24	R-CDIP-T24
memory density	2560 bi	2560 bi
Memory IC Type	MASK ROM	MASK ROM
memory width	5	5
Number of functions	1	1
Number of terminals	24	24
word count	512 words	512 words
character code	512	512
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C
organize	512X5	512X5
Output characteristics	3-STATE	3-STATE
Package body material	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	MOS	MOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL
