In
EC TYPE

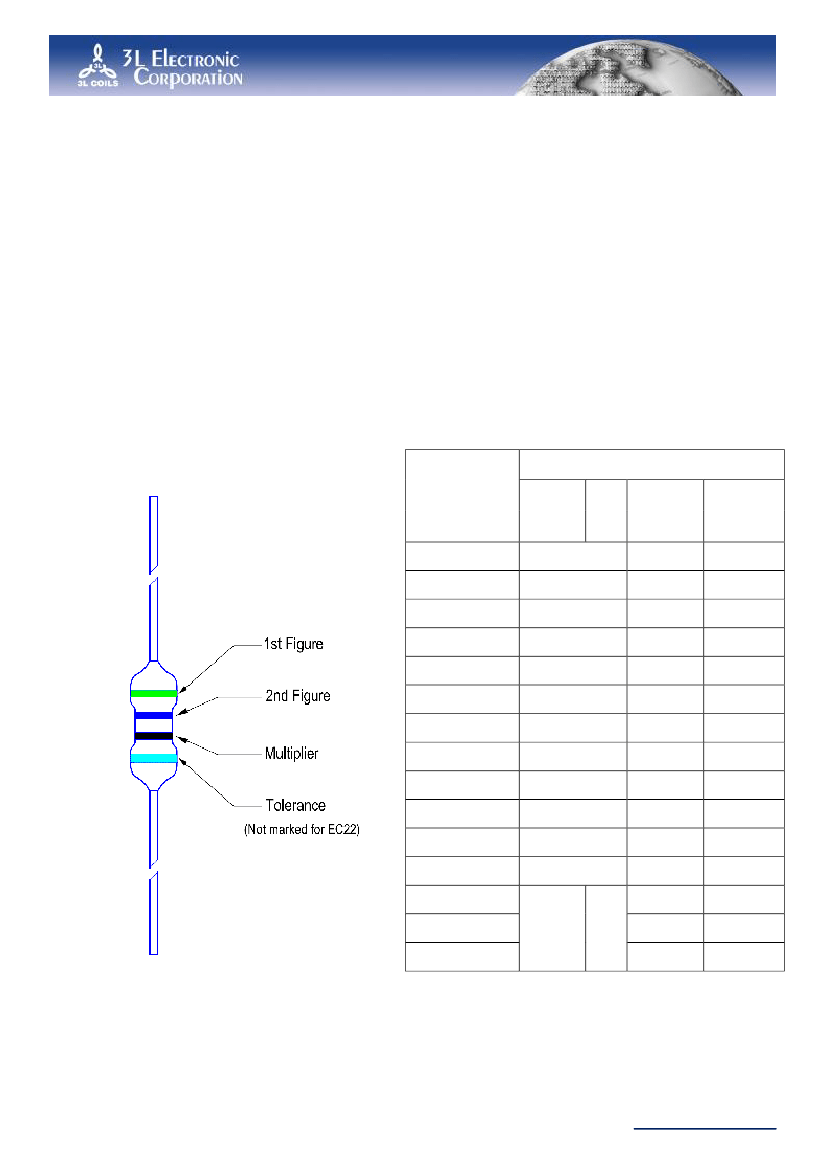

series color band are marked for identification. These bands indicate
inductance value and tolerance. For values below 0.1uH, Gold indicates the decimal point
and the next three bands indicate inductance value. There is no tolerance marked for values
below
0.1uH.
In
EC22
series due to limitation in size, only three color bands indicating inductance value
is marked without decimal value and tolerance.
Nominal inductance (uH)
figure
First
Color
Second
figure
Multiplier
1
10
100
1000
-
-
-
-
-
-
0.01
0.10
Tolerance
±20%
-
-
-
-
-
-
-
-
-
±10%
±5%
Black (Bk)
Brown (Bn)
Red (R)
Orange (O)
Yellow (Y)
Green (Gn)
Blue (Be)
Violet (V)
Gray (Gy)
White (W)
Silver (S)
Gold (Gd)
Green
0
1
2
3
4
5
6
7
8
9
-
-
Example
56uH
±10%
Blue
Black
Silver
Lasting. Leaning. Leading
3L Electronic Corp.
26.1
Web : http://www.3lcoil.com
EC SERIES
EPOXY COATED.
Applications :
．Televisions,
personal computers.
．Radios,
telephones.
．Others
various electronic products.

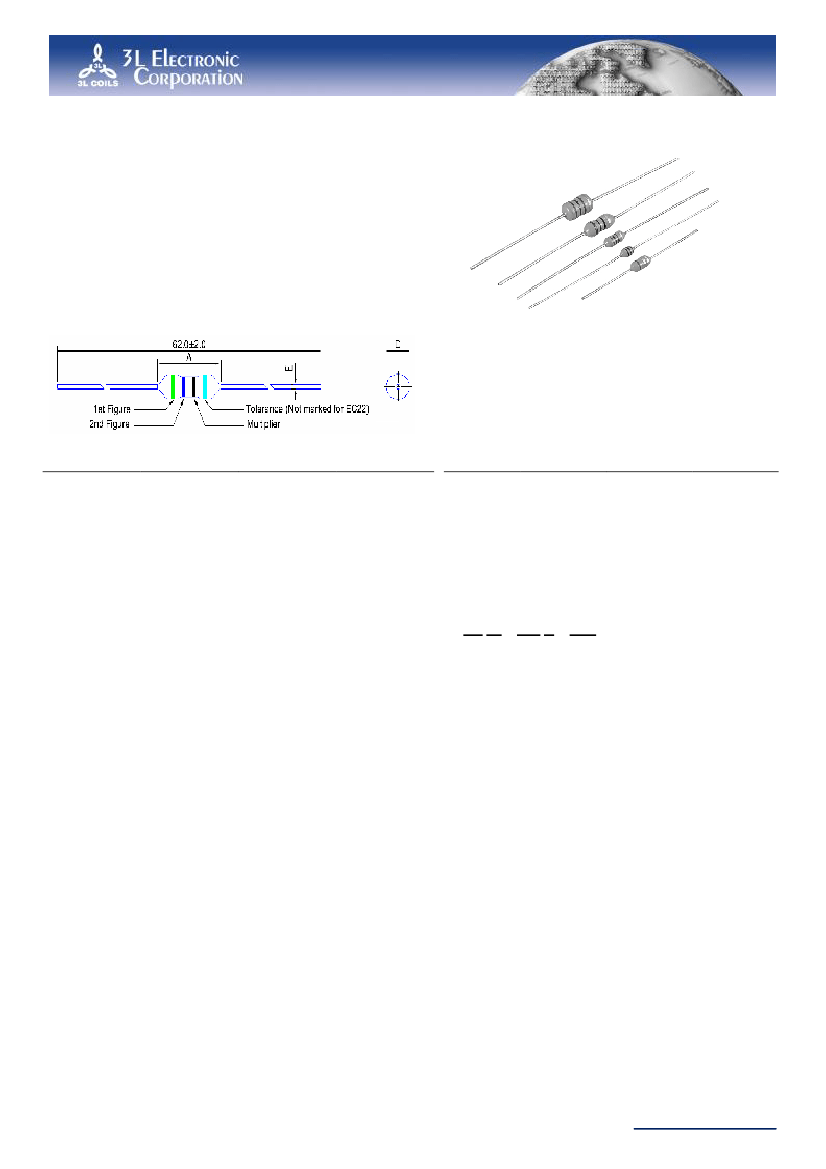

Shape and Dimensions (Dimensions are in mm) :
Item
EC22
EC23
EC24
EC36
A Max
4.00
6.35
7.62
10.5
D Max
2.8
2.3
3.0
4.0
E(±0.05)
0.50
0.50
0.55
0.65
Item
EC38
EC46
EC0410
A Max
12.7
12.0
15.0
D Max
4.2
5.0
5.0
E(±0.05)
0.65
0.65
0.65
Features :
．Conformal
coated inductors.
．Treated
with epoxy resin coating makes it high
reliability.
．EC22/24/36/46
with special magnetic core structure,
contribute to high Q and high SRF.
．EC38/0410
for power application.
．EC23/EC24/EC36
for inductance below 1.0uH, use
ceramic core.
．Tape
and reel packaging for automatic insertion.
Product Identification :
EC 24
–
560 K
–
T5A
(1)
(2)
(3)
(4)
(5)
(1) Type:
Epoxy Coated.
(2) Style:
According
to core size.
(3) Inductance: Example:
560
for
56
uH.
(4) Tolerance:
“M”:
±20%;
“K”:
±10%;
“J”:
±5%.
(5)
Other information:
“T5,T2,T5A,TF1,TF2”represents
the Packing Method No code: Bulk,
“U,
F” represents the shape.
Characteristics :
．Saturation
Current (Isat): The current when the inductance
becomes 10% lower than its initial value.(Ta=20℃)
．Temperature
Rise Current( Irms): The current when
temperature of coil increase up to max.△T=20℃.
(Ta=20℃).
．Operating
temperature ranges: -20 to 80℃.
．Dielectric
with standing voltage:250V AC r.m.s.
Lasting. Leaning. Leading
Test equipments :
．L&Q:
HP 4285A with HP 42851A(Freq.>75kHz).
．L&Q:
HP4284A(Freq.<75kHz).
．L&Q:
HP4291B(Freq.@50MHz)
．DCR:
Milli-ohm meter.
．SRF:
HM 9461 L-SRF meter.
．Electrical
specifications at 25℃.
3L Electronic Corp.
26.2
Web : http://www.3lcoil.com
