CRG0603-Q-2490FT datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> CRG0603-Q-2490FT

CRG0603-Q-2490FT: DescriptionFixed Resistor, 0.1W, 249ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP; CategoryPassive components The resistor; File Size351KB，4 Pages; ManufacturerVENKEL LTD; Environmental Compliance

Download Datasheet Parametric View All

CRG0603-Q-2490FT Overview

Fixed Resistor, 0.1W, 249ohm, 50V, 1% +/-Tol, 100ppm/Cel, Surface Mount, 0603, CHIP

CRG0603-Q-2490FT Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7211347545
package instruction	, 0603
Reach Compliance Code	compliant
Country Of Origin	Taiwan
ECCN code	EAR99
Samacsys Description	RoHS 6/6 Green CR,0603,1/10W,249R,±1%
Samacsys Manufacturer	Venkel
Samacsys Modified On	2022-04-28 13:17:55
YTEOL	7.75
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	1.6 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	0.8 mm
method of packing	TR, PAPER, 7 INCH
Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	249 Ω
Resistor type	FIXED RESISTOR
size code	0603
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	MATTE TIN OVER NICKEL
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	50 V

Preview

Download Datasheet

View All

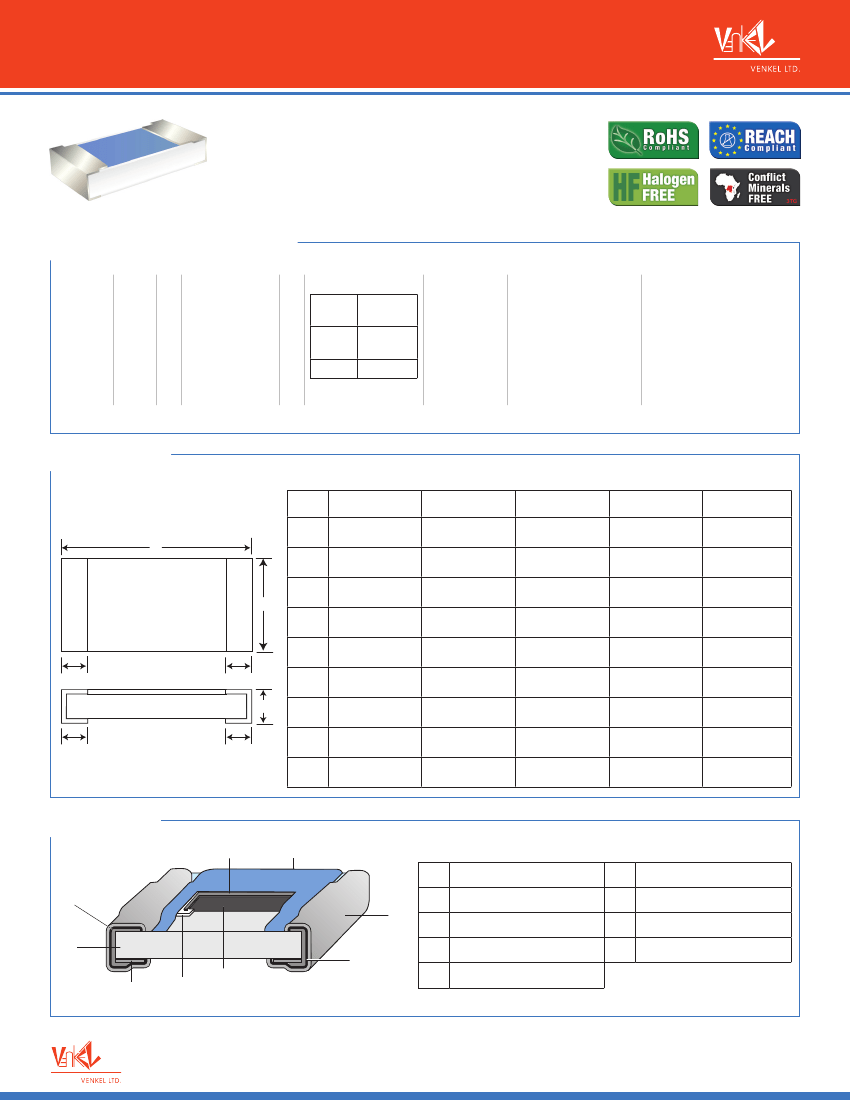

CRG

GENERAL PURPOSE RoHS 10/10 GREEN RESISTORS

FEATURES:

• TCR as low as ±100ppm

• Available Sizes 01005 to 2512

• 100% matte Tin over Nickel with wrap around termination

for excellent solderability

SERIES

PART NUMBER STRUCTURE

CRG

Series

1206

Size

01005

0201

0402

0603

0805

1206

1210

2010

2512

—

Power rating

M = 1/32W (0.03W)

N = 1/20W (0.05W)

P = 1/16W (0.063W)

Q = 1/10W (0.10W)

R = 1/8W (0.125W)

T = 1/4W (0.25W)

U = 1/3W (0.33W)

V = 1/2W (0.5W)

X = 1W (1.0W)

—

103

Resistance

3 DIGIT

(J TOL.)

4 DIGIT

(F TOL.)

Jumper

2R2=2.2Ω

103=10KΩ

10R2=10.2Ω

1002=10KΩ

3 zeros

Tolerance

F = ± 1%

J = ± 5%

No tolerance

specified for the

zero ohm

Leave blank for

zero ohm value

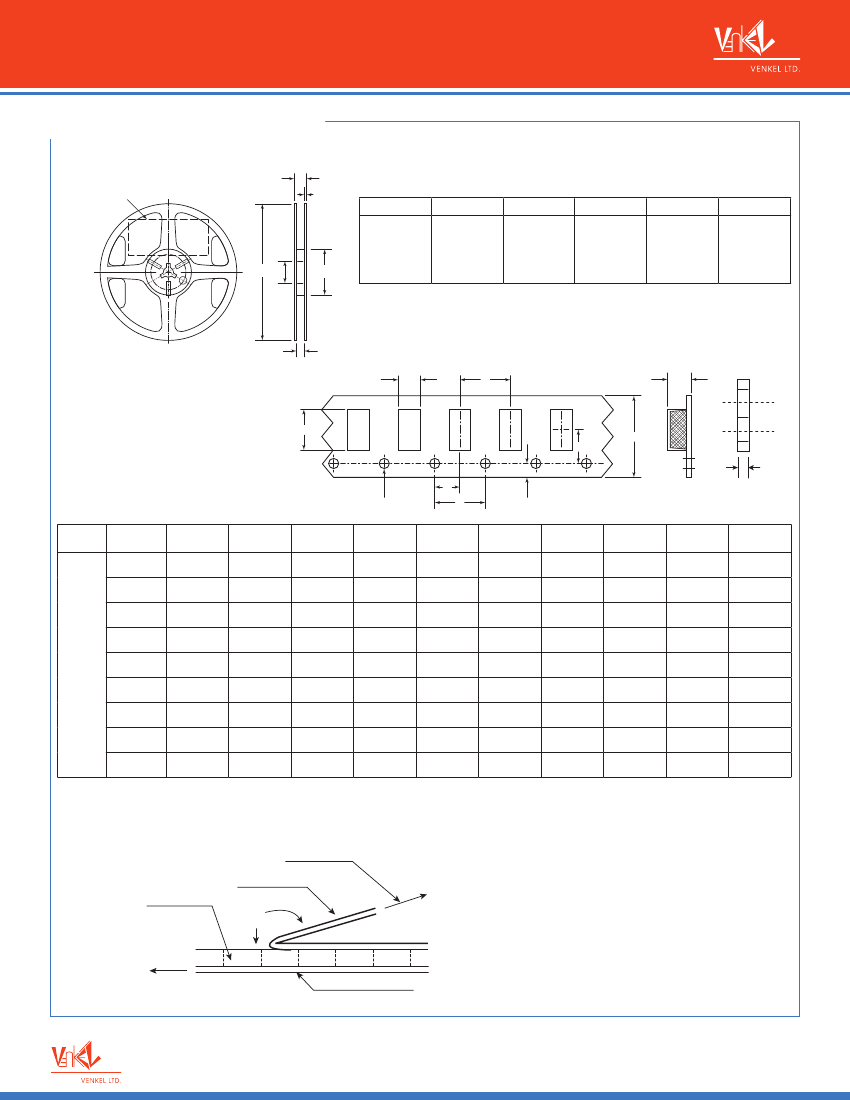

Packaging

T = Tape & Reel

⎕

Optional Reel Identifies

Leave blank if standard

Reel size.

Add “-13” if 13” Reel is

required

Example P/N:

CRG1206-T-103JT

Standard temination finish is 100% matte Tin (Sn) over Nickel.

DIMENSIONS

Unit: inches (mm)

SIZE

01005

0.016 ± 0.0008

(0.40 ± 0.02)

0.023 ± 0.0012

(0.60 ± 0.03)

0.039 ± 0.002

(1.00 ± 0.05)

0.062 ± 0.004

(1.60 ± 0.10)

0.078 ± 0.004

(2.00 ± 0.10)

0.122 ± 0.003

(3.10 ± 0.10)

0.122 ± 0.003

(3.10 ± 0.10)

0.20 ± 0.004

(5.0 ± 0.20)

0.252 ± 0.008

(6.4 ± 0.20)

0.008 ± 0.0008

(0.20 ± 0.02)

0.012 ± 0.0012

(0.30 ± 0.03)

0.0191 ± 0.002

(0.50 ± 0.05)

0.031 ± 0.004

(0.80 ± 0.10)

0.049 ± 0.004

(1.25 ± 0.10)

0.063 ± 0.004

(1.60 ± 0.10)

0.102 ± 0.004

(2.60 ± 0.10)

0.098 ± 0.008

(2.50 ± 0.20)

0.126 ± 0.008

(3.20 ± 0.20)

0.005 ± 0.0008

(0.13 ± 0.02)

0.009 ± 0.0012

(0.23 ± 0.03)

0.013 ± 0.002

(0.35 ± 0.05)

0.017 ± 0.006

(0.45 ± 0.15)

0.019 ± 0.006

(0.50 ± 0.15)

0.0236 ± 0.006

(0.60 ± 0.15)

0.0215 ± 0.004

(0.55 ± 0.10)

0.0215 ± 0.004

(0.55 ± 0.10)

0.24 ± 0.008

(0.60 ± 0.10)

0.003 ± 0.0012

(0.08 ± 0.03)

0.004 ± 0.002

(0.10 ± 0.05)

0.007 ± 0.004

(0.20 ± 0.10)

0.012 ± 0.003

(0.30 ± 0.10)

0.0151 ± 0.008

(0.40 ± 0.20)

0.019 ± 0.008

(0.50 ± 0.20)

0.019 ± 0.007

(0.50 ± 0.20)

0.0256 ± 0.01

(0.65 ± 0.25)

0.0256 ± 0.008

(0.65 ± 0.25)

0.004 ± 0.0012

(0.10 ± 0.03)

0.005 ± 0.002

(0.15 ± 0.05)

0.010 ± 0.004

(0.25 ± 0.10)

0.012 ± 0.006

(0.30 ± 0.15)

0.015 ± 0.008

(0.40 ± 0.20)

0.017 ± 0.008

(0.45 ± 0.20)

0.019 ± 0.008

(0.50 ± 0.20)

0.0236 ± 0.01

(0.60 ± 0.25)

0.0354 ± 0.01

(0.90 ± 0.25)

0201

0402

0603

0805

1206

1210

2010

2512

STRUCTURE

Alumina Substrate

Backside Electrode

Topside Electrode

Edge Electrode

Resistive Layer

Primary Coating

Protective Coating

Barrier Layer (Ni)

Termination-100% matte Tin

Email:

sales@venkel.com

Phone:

512.794.0081

Toll Free:

800.950.8365

Web:

www.venkel.com

Rev: 06/2020-A
