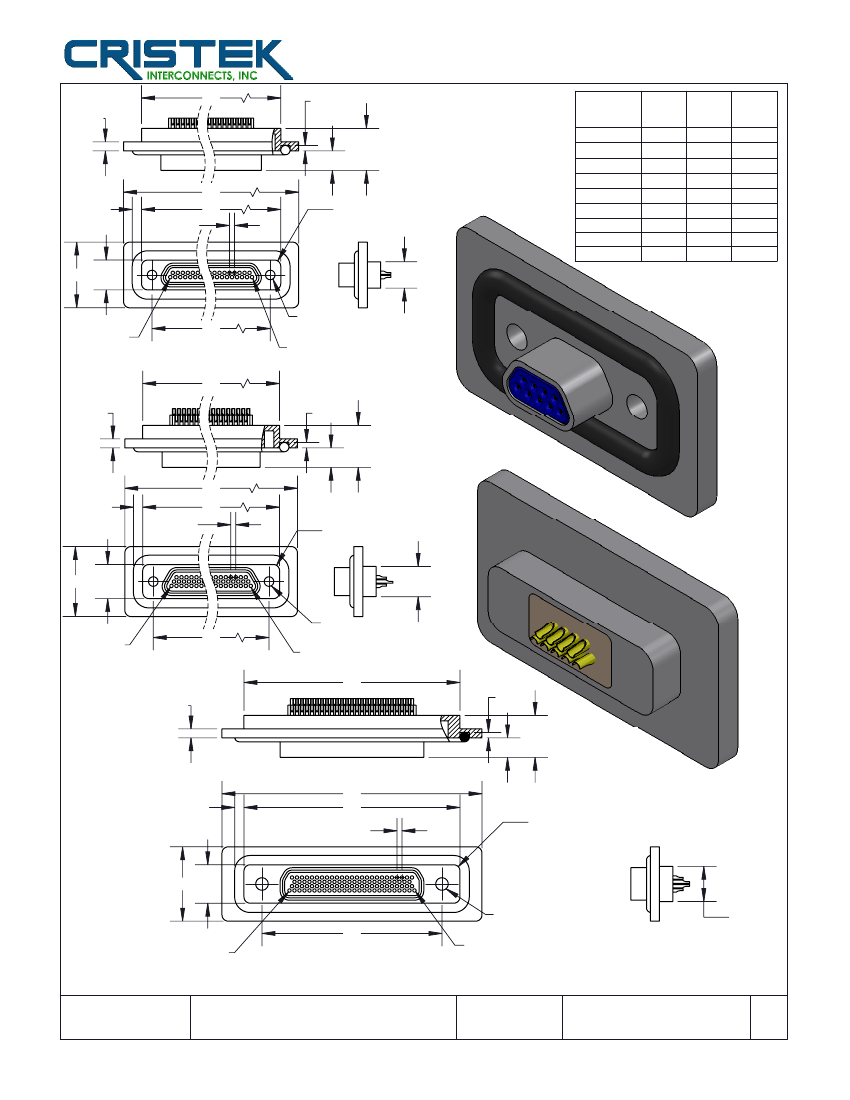

MICRO-D WITH O-RING
9
5
6
15
8
9
21
11
12
24
13
14
6
1
9
9
1
15
12
1
21
14
1
24
1
1
1
37
19
1
20
1
5
8
11
20
1
13
37
19
SERIES
MDG
9
15
21
25
9
15
21
25
31
16
17
1
17
1
31
16
31
51
35
18
36
19
1
69
47
24
37
48
25
1
36
19
1
31
51
35
18
48
25
1
37
69
47
24
51
100
75
51
26
76
52
27
1
69
51
76
52
27
1
100
75
51
26
69
100
100
PLUG MATING FACE
RECEPTACLE MATING FACE

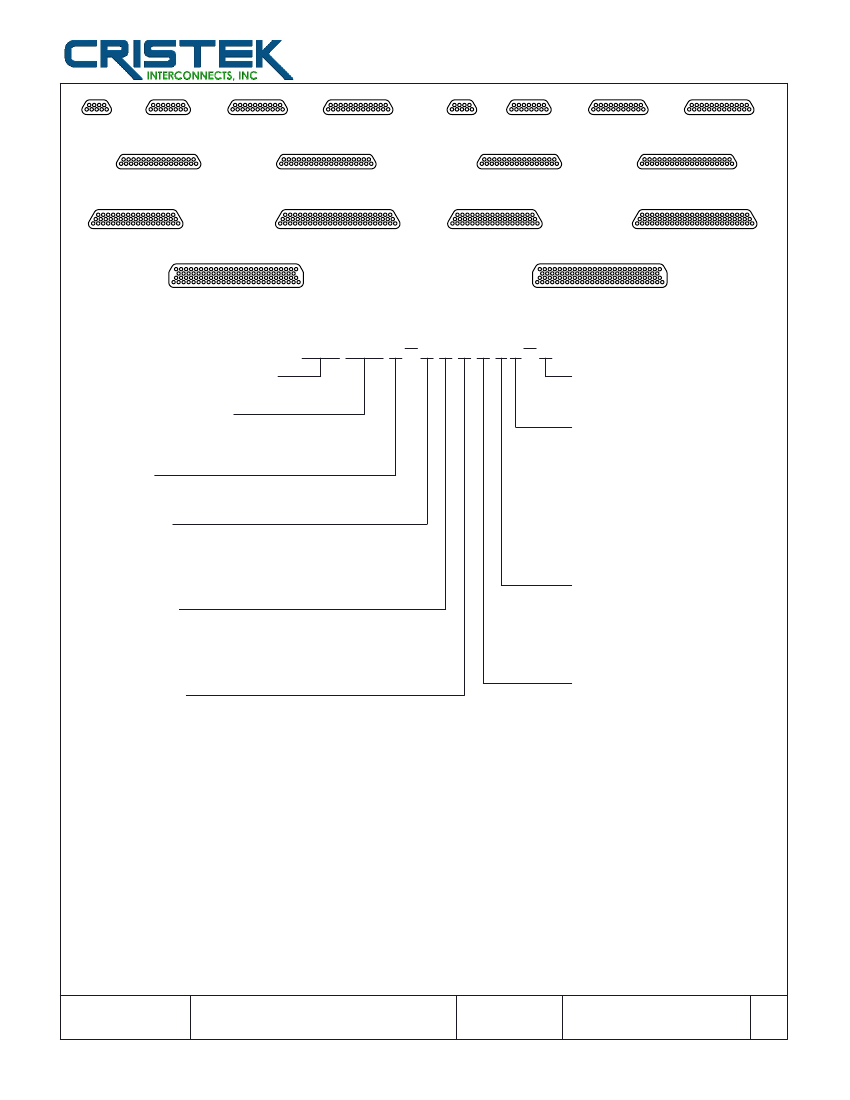

MDG XXX X
CRISTEK METAL SHELL MICRO-D
CONNECTORS (MATE WITH M83513)
NUMBER OF CONTACTS
009 025 051
015 031 069
021 037 100
GENDER
P = PIN, PLUG SHELL
S = SOCKET, RECEPTACLE SHELL
HARDWARE
U = TAPPED FOR 4-40 SCREW*
A = JACKPOST (.040 RPM)
B = JACKPOST (.060 RPM)
C = JACKPOST (.070 RPM)
D = JACKPOST (.080 RPM)
SHELL FINISH
A = CADMIUM
B - NICKEL
C = ANODIZE (BLACK)
D = CHEM FILM
E = GOLD
TERMINATION
0000 = SOLDER CUP
WIRE TYPE
STRANDED
H = HARNESS (MIL-W-16878/4)
S = SPACE (MIL-W-22759/33)
M = MILITARY (MIL-W-22759/11) *
SOLID
G = GOLD PLATED COPPER
T = TIN/LEAD PLATED COPPER *
U X X X XX
X
"O" RING (OMIT FOR NONE)
C = CONDUCTIVE, EMI
D = DIELECTRIC, NON-CONDUCTIVE
WIRE LENGTH
STRANDED (+1.00 / -0.00)
1 = 6 INCHES
2 = 12 INCHES
3 = 18 INCHES
4 = 24 INCHES
5 = 36 INCHES
6 = 72 INCHES
SOLID COPPER (+0.20 / - 0.00)
1 = 0.5 INCH
2 = 1.0 INCH
3 = 0.25 INCH
STRANDED WIRE
0 = 26 AWG
1 = 24 AWG
2 = 28 AWG
SOLID WIRE
0 = 25 AWG
1 = 24 AWG
WIRE COLOR/TYPE
0 = WHITE STRANDED *
1 = YELLOW STRANDED
2 = 10 SOLID COLORS REPEATED *
3 = FULL COLOR CODE STRANDED
9 = SOLID COPPER *
T = TAPPED FOR 2-56 SCREW
E = JACKPOST (.040 RPM)
F = JACKPOST (.060 RPM)
G = JACKPOST (.070 RPM)
H = JACKPOST (.080 RPM)
* = MOST COMMONLY USED & STOCKED
WIRE TYPES AND HARDWARE OPTIONS
MATERIALS AND FINISHES ARE IAW MIL-DTL-83513 WHERE APPLICABLE
FOR DETAILS SEE MIL SPEC OR WWW.CRISTEK.COM
1. MATERIALS:
3. SPECIFICATIONS:
SHELL - ALUMINUM ALLOY
INSULATOR - GLASS FILLED THERMOPLASTIC
PIN/SOCKET CONTACT - COPPER ALLOY
INTERFACIAL SEAL - FLUOROSILICONE BLEND
"O" RING - FLUOROSILICONE BLEND
SHELL - SEE OPTIONS ABOVE
PIN/SOCKET CONTACT - GOLD OVER NICKEL
2. FINISH:
CURRENT RATING ------------------ 3 AMPS MAX
TEMPERATURE RATING ---------- -55° C TO +125° C
INSULATION RESISTANCE -------- 5000 MEGOHMS MIN
DWV AT SEA LEVEL ---------------- 600 VAC
DWV AT 70,000 FT ALTITUDE --- 150 VAC
CONTACT RESISTANCE ------------ 8 MILLIOHMS MAX AT 2.5 AMPS
LOW LEVEL CONTACT ------------ 10 MILLIOHMS MAX
RESISTANCE
CONTACT RETENTION ------------- 5 lb MINIMUM AXIAL LOAD
ENGAGEMENT FORCE ------------- 6 oz MAX
SEPARATION FORCE --------------- 0.5 oz MIN
4. ADDITIONAL INFORMATION:
DESIGN AND PERFORMANCE IN GENERAL
ACCORDANCE WITH M83513 WHERE APPLICABLE.
CONTACT CRISTEK FOR OTHER TERMINATIONS
AND HARDWARE OPTIONS.
TOLERANCE: .XXX ±.005
.XX ±.01
ANGLE ±1°
TITLE
MICRO-D WITH O-RING
DWG. NO.
SHT
2
OF
2
MDG
CRISTEK.COM
888.265.9162
