51818100

Description
Board Connector, 18 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Plug
CategoryThe connector    The connector
File Size232KB,1 Pages
ManufacturerW+P Products GmbH
Download Datasheet Parametric View All

51818100 Overview

Board Connector, 18 Contact(s), 1 Row(s), Female, 0.079 inch Pitch, Crimp Terminal, Plug

51818100 Parametric

Parameter NameAttribute value
Objectid304366571
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.08 inch
subject depth0.276 inch
body length1.428 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance20 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
insulator materialTHERMOPLASTIC
Manufacturer's serial number518
Plug contact pitch0.079 inch
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Rated current (signal)1 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts18
Maximum wire diameter26 AWG
Minimum wire diameter30 AWG
518

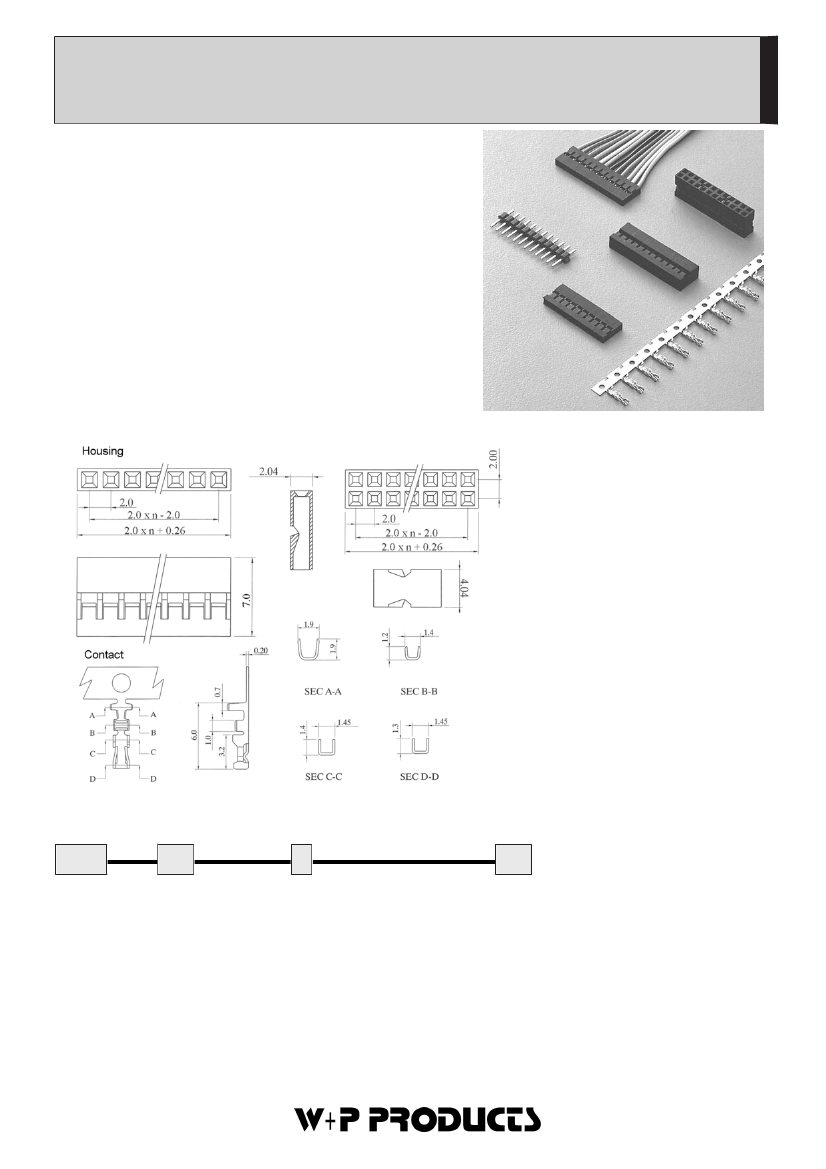

Buchsenleisten - Crimp-Rast-System - RM 2,00mm
Crimp Housing - Pitch 2,00mm
Technische Daten /Technical
Data
Isolierkörper
Thermoplastischer Kunststoff, nach UL94 V-0
Insulator
Thermoplastic, rated UL94 V-0
Kontaktmaterial
Messing, vergoldet
Contact Material
Brass, gold plated
Aderquerschnitt
AWG 26 ... 30
Applicable wire Gauge
AWG 26 ... 30
Lötbarkeit
IEC512-12A
Solderability
IEC512-12A
Durchgangswiderstand
< 20mΩ
Contact Resistance
< 20mΩ
9
Isolationswiderstand
> 10
9
Insulation Resistance
> 10
Spannungsfestigkeit
1500V
AC
Test Voltage
1500V
AC
Nennspannung
150V
AC/DC
max.
Voltage Rating
150V
AC/DC
max.
Nennstrom
1A
Current Rating
1A
Temperaturbereich
-25°C ... +85°C
Temperature Range
-25°C ... +85°C
Passende Stiftleiste:
Mates with pin header:
314
Series
Contacts
*
Type
*
Plating
518
40
02-40
Einreihig
Single row
04-80
Zweireihig
Double row
2
1
Buchsengehäuse einreihig
Housing single row
2
Buchsengehäuse zweireihig
Housing double row
3
Kontakte
Contacts
00
00
Vergoldet (für Gehäuse nicht erforderlich)
Gold plated (not used for housings)
(
*
Bestellbeispiel - Bitte durch Ihre
Spezifikationen ersetzen.
*
Order example - To be replaced by your
specifications.)
TEL.: +49 5223 98507-0
FAX.: +49 5223 98507-50
E-MAIL: sales@wppro.com
INTERNET: www.wppro.com
