BD033-036-B-T-0-0730-0630-L-E: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size177KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BD033-036-B-T-0-0730-0630-L-E Overview

Board Connector, 36 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

BD033-036-B-T-0-0730-0630-L-E Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1948574149
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.222 inch
subject depth	0.287 inch
body length	1.026 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	100 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.1954 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Plug contact pitch	0.05 inch
Match contact row spacing	0.05 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.9116 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT
Total number of contacts	36
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N

Preview

Download Datasheet

View All

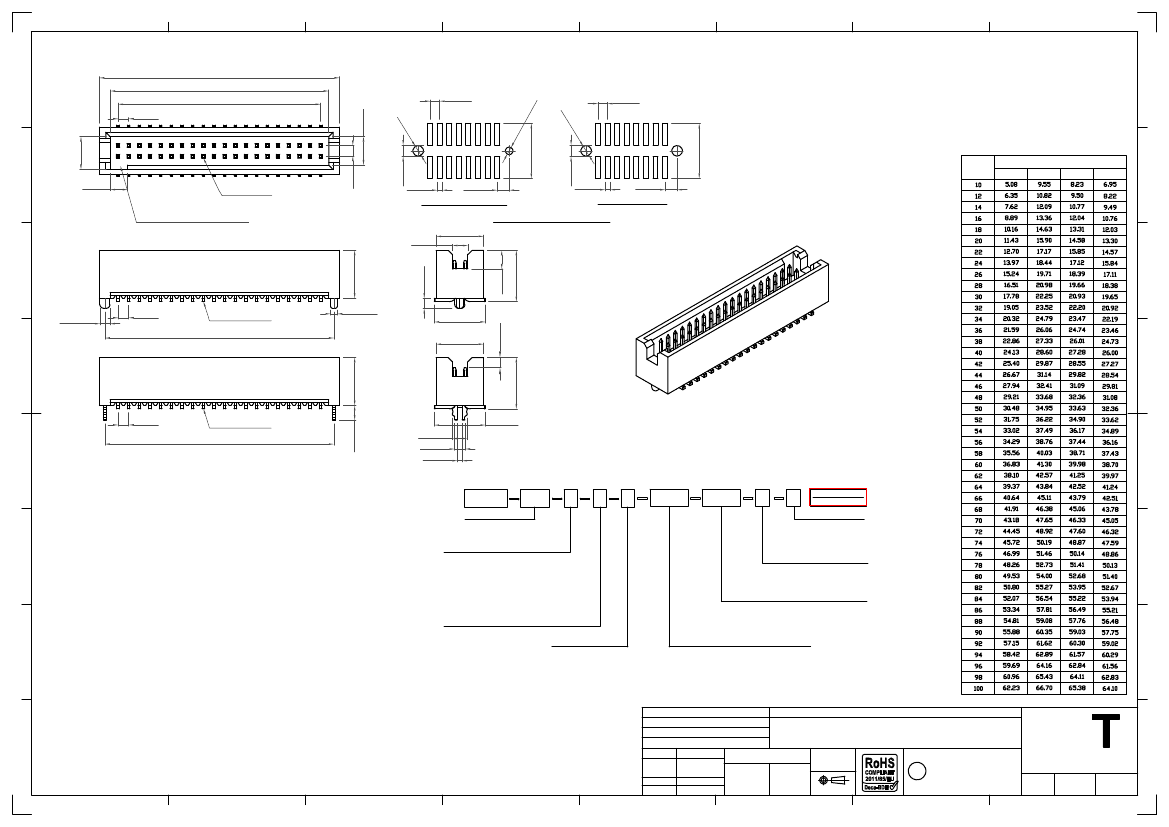

B±0.25

D±0.20

3.37

1.27

Ø0

.95

A±0.20

Ø1

.35

1.27

Ø1

.35

F+1.0

3.92

1.50

1.27

2.10

Pin 0.40 sq.

The polarization and the big

post will be at the same end.

CONTACTS

DIMENSIONS

0.70

1.58

0.70

1.58

Locating Peg Option

5.65

Key Lock Option

Recommended PCB Layout

Tolerance: ±0.05

1.84

Ø1.20

1.27

Pin 0.30 x 0.40

Ø0.80

F±0.2

5.65

1.00

F±0.2

1.43

0.99

0.43

Ordering Grid

E±0.2

C±0.20

Key

Lock

Version

1.27

Pin 0.30 x 0.40

C±0.20

NOTE: Views above show 5.70mm insulator 'H' height

version with protruding SMT leads, SMT leads on

7.30mm version are flush with insulator, and measure

0.40mm sq. Contact GCT for more information.

1.45

2.20

E±0.2

1.20

Peg

Version

BD033

XXX

XXXX

Request Samples

and Quotation

No. of Contacts

10 to 100

e.g. 10 = 010

Specifications

规格

Current Rating

电流额定值

: 1 amp

Insulator Resistance

绝缘电阻值

: 1000 MΩ min.

Dielectric Withstanding

耐电压

: AC 300 V

Contact Resistance

接触电阻值：

20mΩ max.

Operating Temperature

工½温度

: -40°C to +105°C

Contact Material

端子物料

: Phosphor Bronze

Insulator Material

绝缘½物料

Standard

标准物料

: Polyester

聚酯

, LCP, UL 94V-0

Soldering Process

可焊性

IR Reflow

回流焊

: 260°C for 10 sec.

Wave

波峰焊

: 250°C for 5-10 sec

Manual Solder

人工焊接

: 350°C for 3-5 sec

Mates with

配套之母座

(Subject to pin length

在端子长度适合的条件下

BD065 - Allowing perfect polarisation

- Non-Polarised mating connections available - contact GCT for details

Contact Plating

A = Gold Flash All Over

(Standard)

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Insulator

Height 'H'

S = 5.70mm

(Standard)

T = 7.30mm

Packing Options

D = Tube

(Standard)

B = Tape & Reel with Cap

E = Tube with Cap

Insulator Material

L = LCP

Dimension F (1/100mm)

(Footprint Width)

0630

6.30mm

(Standard)

or specify Dimension F

eg 0250 = 2.50mm

Locating Peg

0 = No Peg/No key Lock

1 = With Peg

2 = With Key Lock

Dimension E (1/100mm)

(Top of Insulator to Bottom of Pin)

6.10mm = 0610

(Standard when 'H' = 5.70mm)

7.30mm = 0730

(Standard when 'H' = 7.30mm)

or specify Dimension E

eg 0250 = 2.50mm

Part Number

Product Description

BD033

Drawing Date

3rd April 2008

Detail

Revision

Date

AJO

BD033

F PCN

08/09/14

Length

1.27mm Pitch Shrouded Pin Header

Dual Row, Surface Mount, Vertical

Tolerances

(Except as Noted)

Angle

X.° ± 5°

X. ± 0.30

X.X° ± 3°

X.X ± 0.25

X.XX° ± 2°

X.XX ± 0.15

X.XXX ± 0.10 X.XXX° ± 1°

Units:

Metric (mm)

3rd Angle Projection

This drawing is confidential and

Technology, Ltd (GCT).

This drawing must not be copied

or disclosed without written

consent. E & OE

Global Connector Technology

Drawn By

ASE

www.gct.co

Not to

Scale

Sheet No.

1/1
