12443FL121027 datasheet, PDF - EEWORLD Datasheet

12443FL121027: DescriptionBoard Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator; CategoryThe connector The connector; File Size199KB，6 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

12443FL121027 Overview

Board Connector, 27 Contact(s), 1 Row(s), Female, Right Angle, 0.05 inch Pitch, Solder Terminal, Locking, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308943642
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.071 inch
subject depth	0.179 inch
body length	1.37 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
Manufacturer's serial number	124
Plug contact pitch	0.05 inch
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	55 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.067 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	27

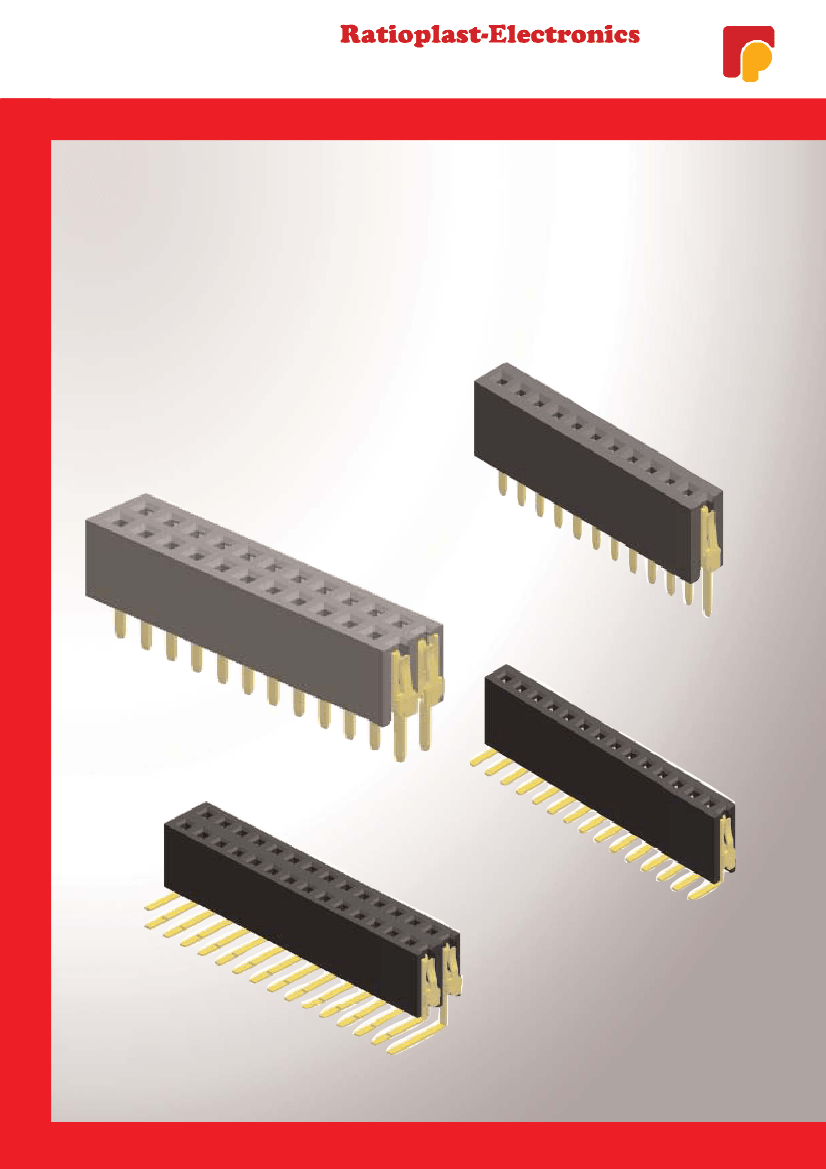

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0 Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

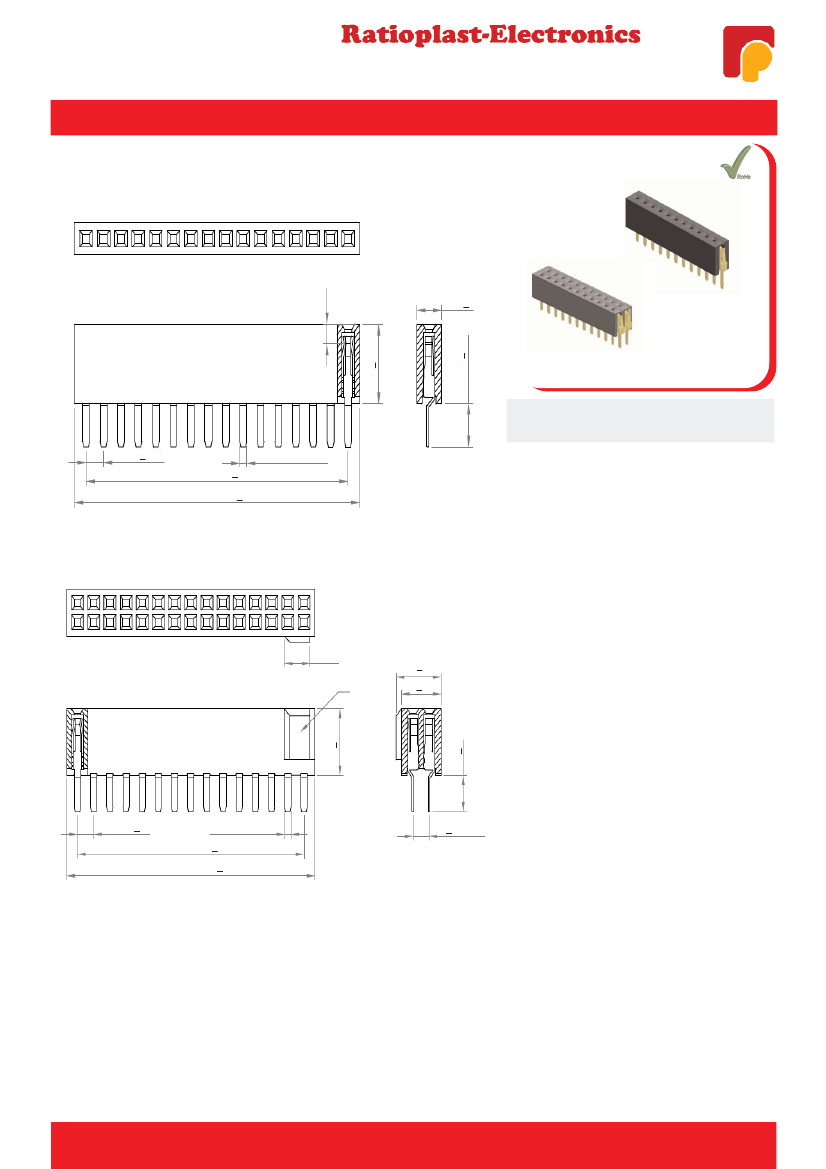

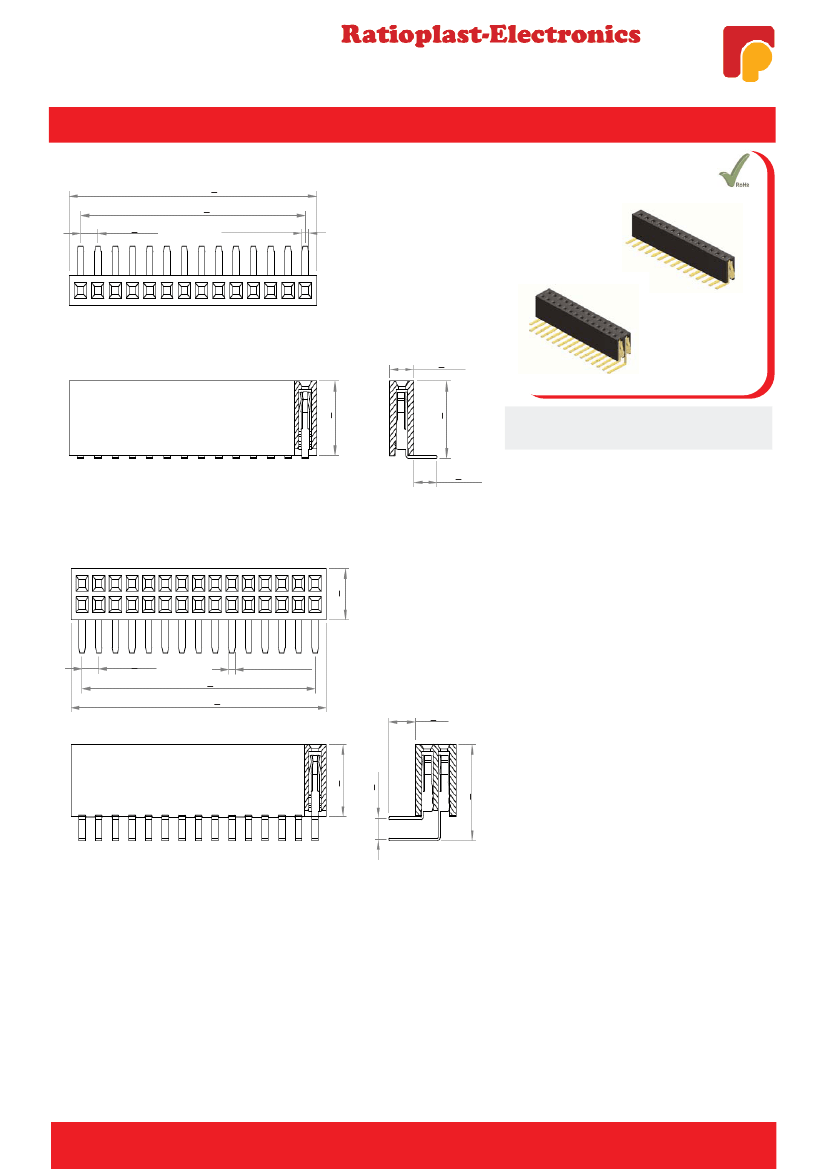

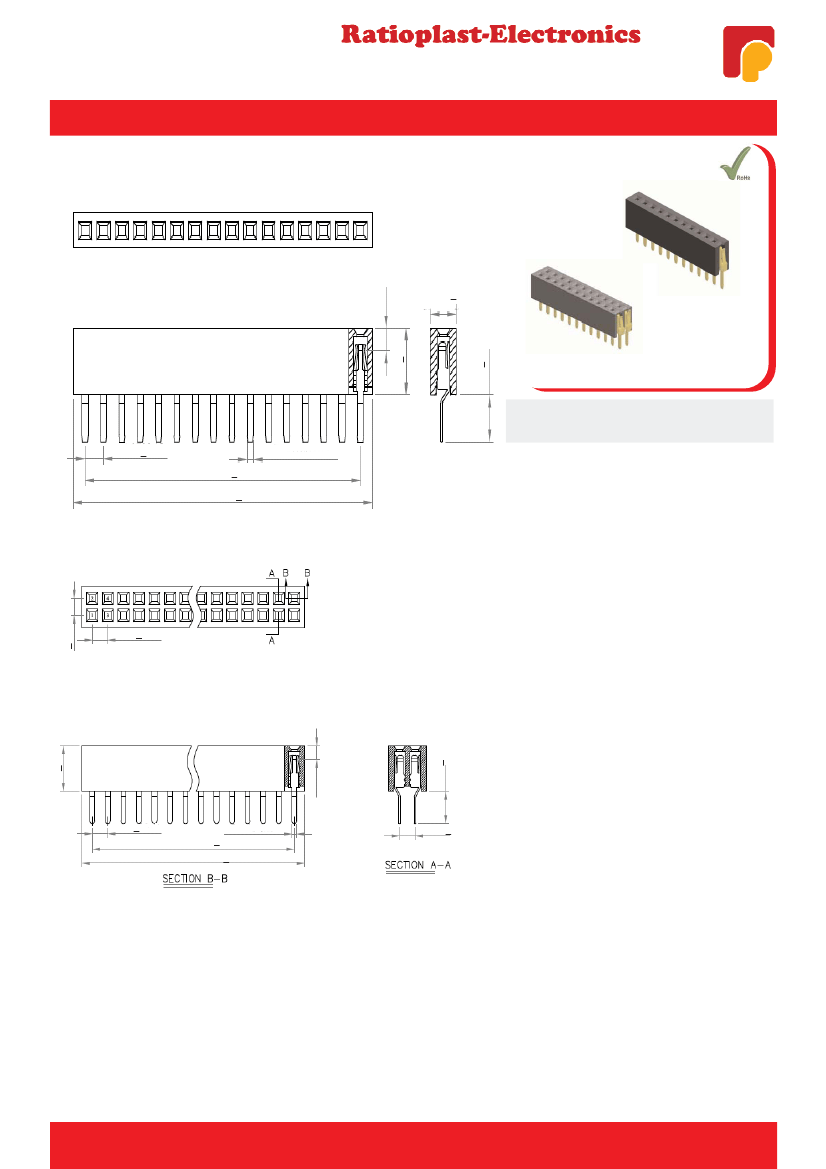

Buchsenleisten / Female header

Serie 124

Seite: 1

www.ratioplast.com

Version 01.2011
