3691H-09W-L

Description
Board Connector, 9 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug
CategoryThe connector    The connector
File Size1MB,1 Pages
ManufacturerRatioplast Electronics
Download Datasheet Parametric View All

3691H-09W-L Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, 0.156 inch Pitch, Crimp Terminal, Locking, Natural Insulator, Plug

3691H-09W-L Parametric

Parameter NameAttribute value
Objectid304379913
Reach Compliance Codecompliant
ECCN codeEAR99
body width0.303 inch
subject depth0.63 inch
body length1.423 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contactor designPREASSEM CONN
Contact to complete cooperationSN
Contact completed and terminatedTIN
Contact point genderFEMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1500VAC V
Insulation resistance1000000000 Ω
Insulator colorNATURAL
insulator materialNYLON
Manufacturer's serial number3691H
Plug contact pitch0.156 inch
Installation option 1LOCKING
Installation option 2FRICTION LOCK
Installation typeCABLE
Number of rows loaded1
Maximum operating temperature85 °C
Minimum operating temperature-25 °C
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Termination typeCRIMP
Total number of contacts9
Maximum wire diameter18 AWG
Minimum wire diameter24 AWG
Ratioplast - Electronics
Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de
Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

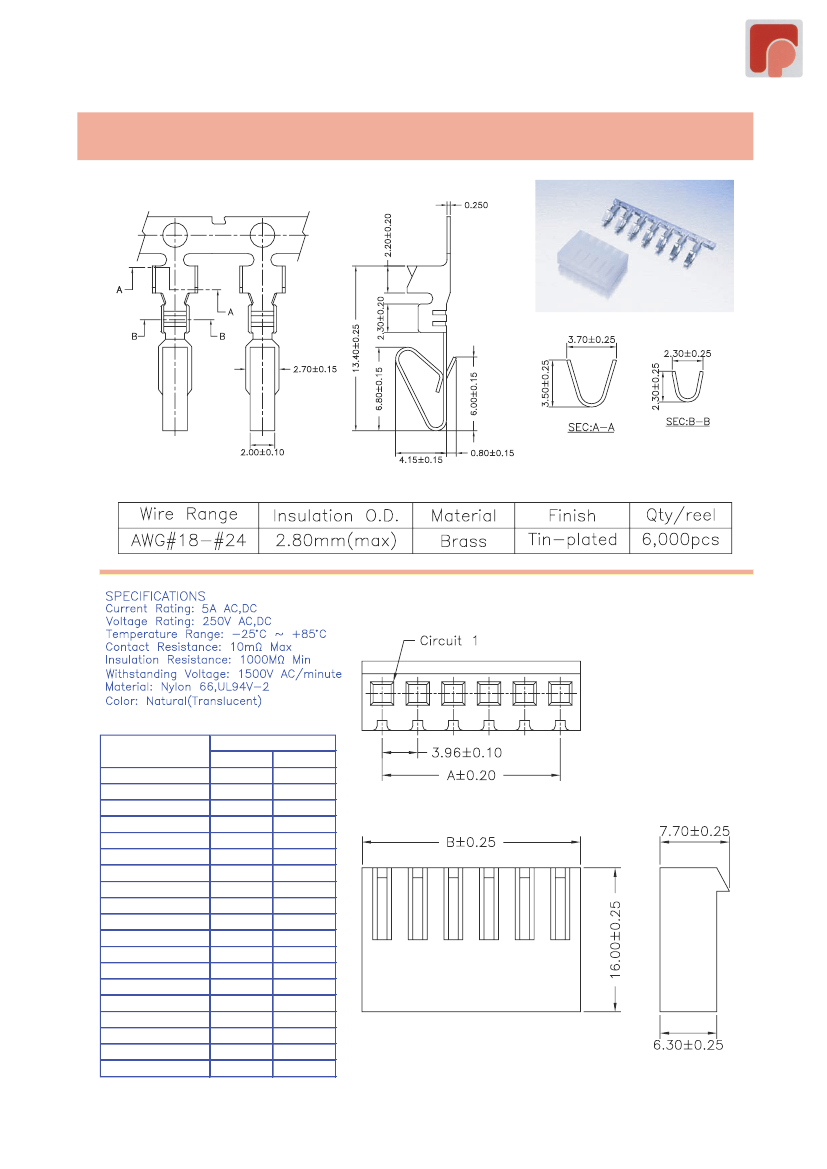

3.96mm TERMINAL / HOUSING
Part No.:3961-T-L
PART NO.
3691H-02W-L
3691H-03W-L
3691H-04W-L
3691H-05W-L
3691H-06W-L
3691H-07W-L
3691H-08W-L
3691H-09W-L
3691H-10W-L
3691H-11W-L
3691H-12W-L
3691H-13W-L
3691H-14W-L
3691H-15W-L
3691H-16W-L
3691H-17W-L
3691H-18W-L
3691H-19W-L
3691H-20W-L
Dimensions
A
B
3.96
8.43
7.92
8.43
11.88
8.43
15.84
8.43
19.80
8.43
23.76
8.43
27.72
8.43
31.68
8.43
35.64
8.43
39.60
8.43
43.56
8.43
47.52
8.43
51.48
8.43
55.44
8.43
59.40
8.43
63.36
8.43
67.32
8.43
71.28
8.43
75.24
8.43
Part No.:3961H-XXW-L
